BOSCH

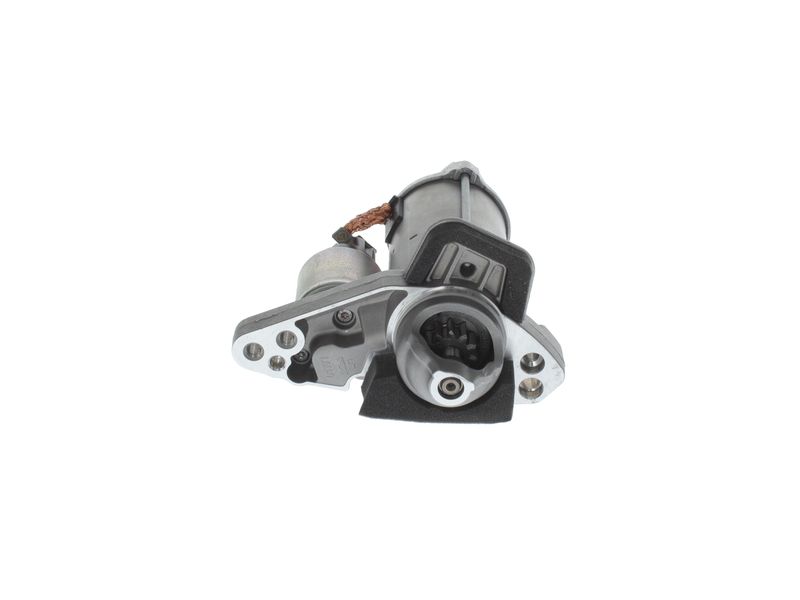

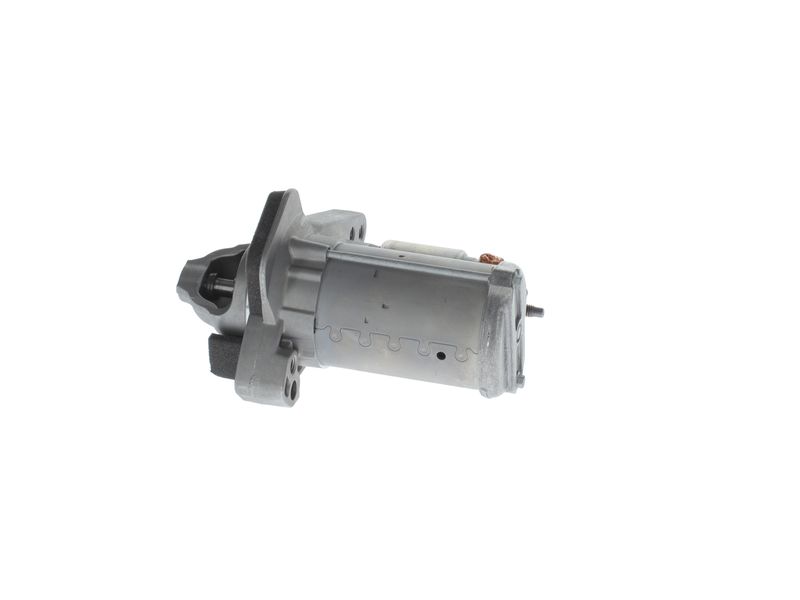

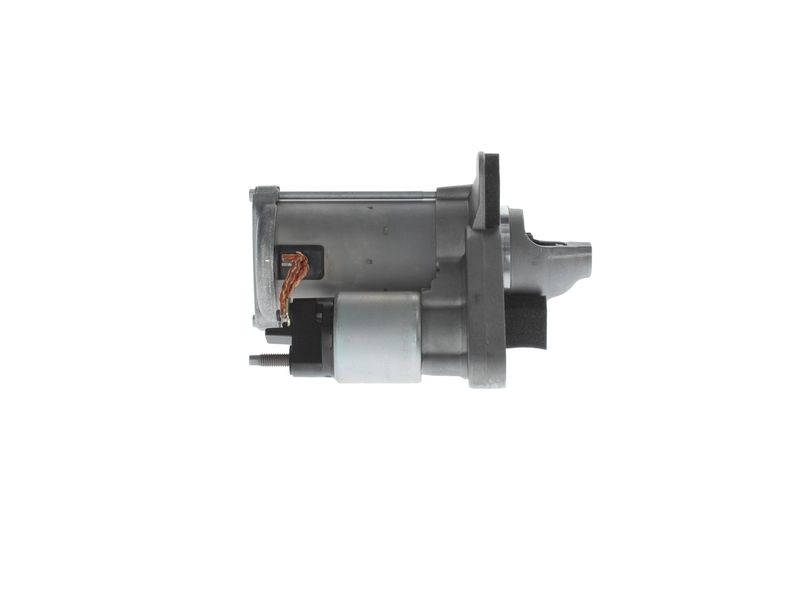

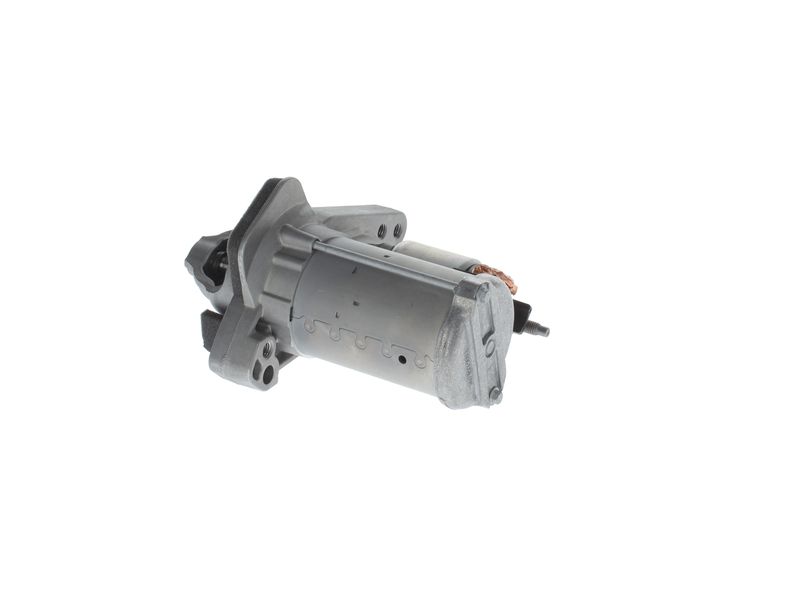

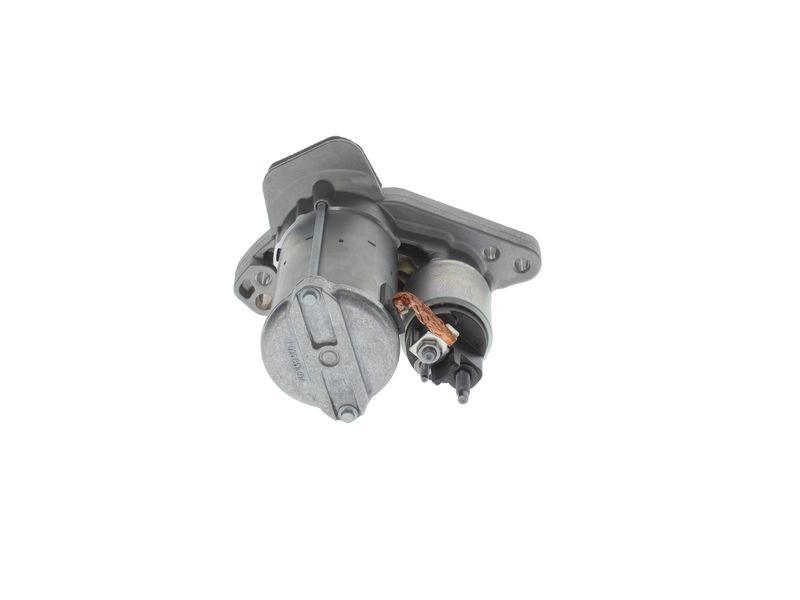

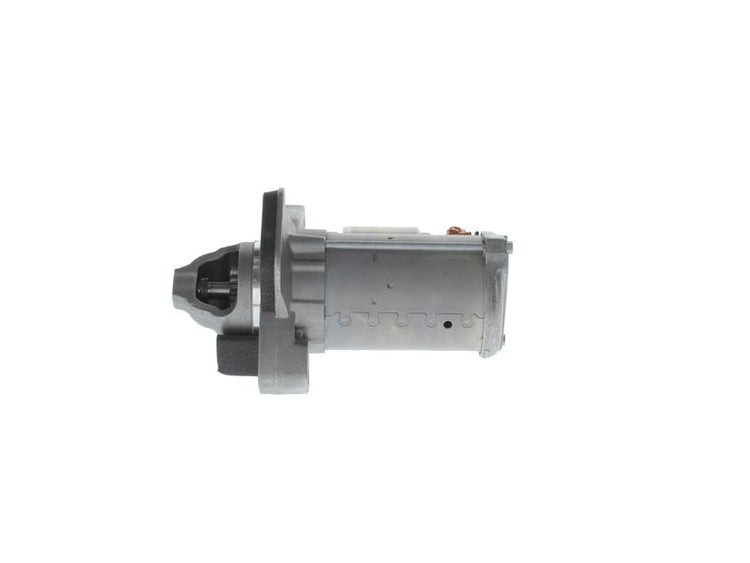

Bosch 1986S00214 Starter Motor

SKU: 1986S00214
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£214.58 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ
A-CLASS (W177)
Description Cylinder Capacity Horse Power Year
A 200 (177.087) 1332 CCM 163 HP From 03/2018
A 180 (177.084) 1332 CCM 136 HP From 06/2018
A 160 (177.082) 1332 CCM 109 HP From 06/2018
A 200 (177.087) 1332 CCM 150 HP From 06/2018
A-CLASS Saloon (V177)
Description Cylinder Capacity Horse Power Year
A 200 (177.187) 1332 CCM 163 HP From 09/2018
A 180 (177.184) 1332 CCM 136 HP From 04/2019
A 200 (177.187) 1332 CCM 150 HP From 09/2018
B-CLASS Sports Tourer (W247)
Description Cylinder Capacity Horse Power Year
B 180 (247.084) 1332 CCM 136 HP From 12/2018
B 200 (247.087) 1332 CCM 163 HP From 12/2018
B 160 (247.082) 1332 CCM 109 HP From 04/2019
B 200 (247.087) 1332 CCM 150 HP From 01/2019
CLA (C118)
Description Cylinder Capacity Horse Power Year
CLA 180 (118.384) 1332 CCM 136 HP From 03/2019
CLA 200 (118.387) 1332 CCM 163 HP From 03/2019
CLA 200 (118.387) 1332 CCM 150 HP From 03/2019
CLA Shooting Brake (X118)
Description Cylinder Capacity Horse Power Year
CLA 180 (118.684) 1332 CCM 136 HP From 06/2019
CLA 200 (118.687) 1332 CCM 163 HP From 06/2019
CLA 200 (118.687) 1332 CCM 150 HP From 06/2019
GLA (H247)
Description Cylinder Capacity Horse Power Year
GLA 200 (247.787) 1332 CCM 163 HP From 02/2020
GLA 180 (247.784) 1332 CCM 136 HP From 07/2020
GLB (X247)
Description Cylinder Capacity Horse Power Year
GLB 200 (247.687) 1332 CCM 163 HP From 08/2019
GLB 180 (247.684) 1332 CCM 136 HP From 04/2020

The Bosch 1986S00214 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.4 kW rated power, 11 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 1.4
Number of mounting bores : 0
Number of threaded holes : 3
Number of Teeth : 11
Clamp : 30, 50
Flange Diameter [mm] : 62
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 19.8
Starter Type : Self-supporting
Thread Size : M10X1,5
Thread Size 1 : M10X1,5
Thread Size 2 : M10X1,5
Length [mm] : 200
Position/Degree : rechts
Mounting Angle [degrees] : 14
Jaw opening angle measurement [Degree] : 45
Mounting bore angle measurement [degree] : 14
Construction Year to : 09.2022
  • Vendor BOSCH
  • SKU 1986S00214
  • Barcode 4047026579826
  • MERCEDES-BENZ : A 282 906 11 00 A 282 906 19 00 A 282 906 20 00 A 282 906 24 00 282 906 11 00 282 906 19 00 282 906 20 00 282 906 24 00
  • RENAULT : 23 30 009 68R
  • Carwood Group : BREF032117021
  • Carwood Group : BREF0321986S00214
  • LUCAS : LRS04256
  • WAI : 31083N
  • BOSCH : ST 12V 1,4KW (R)
