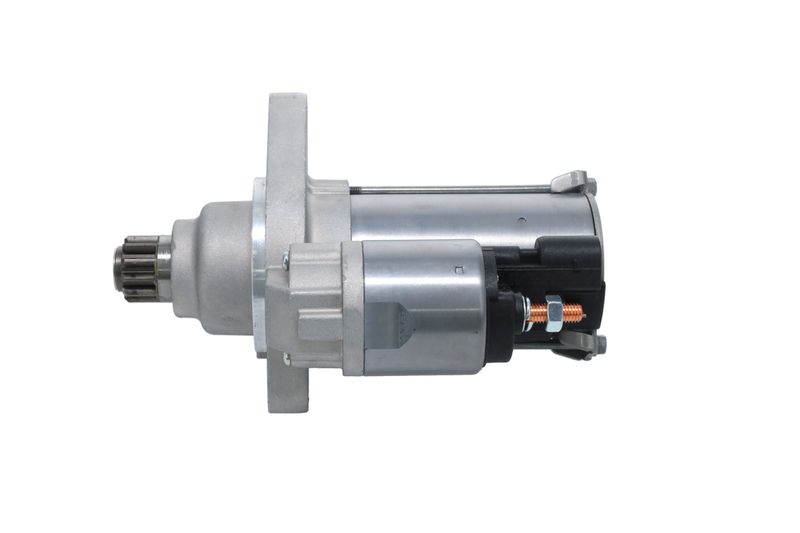

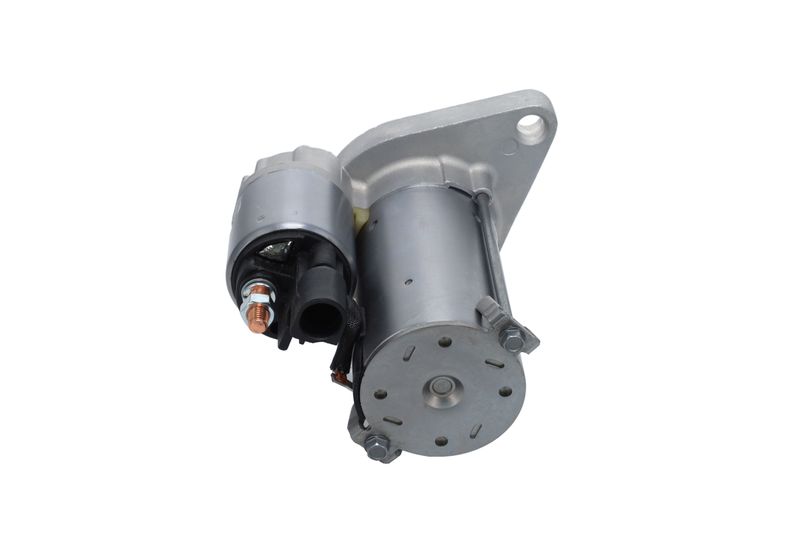

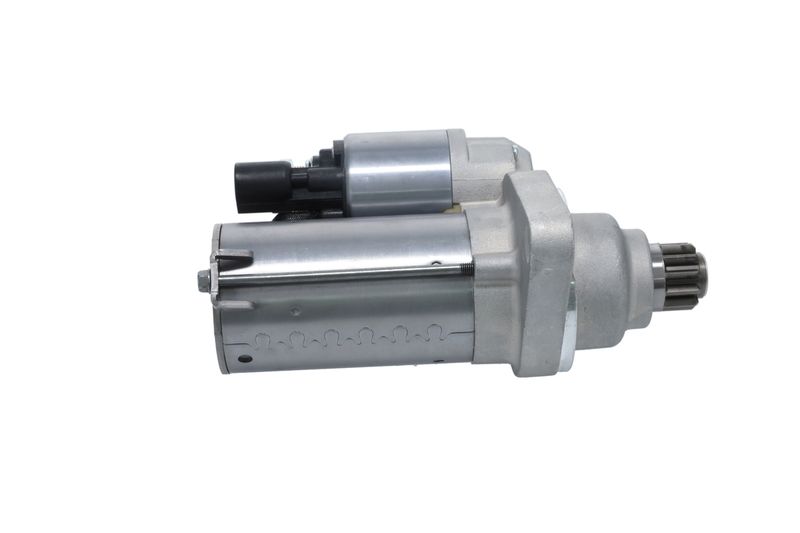

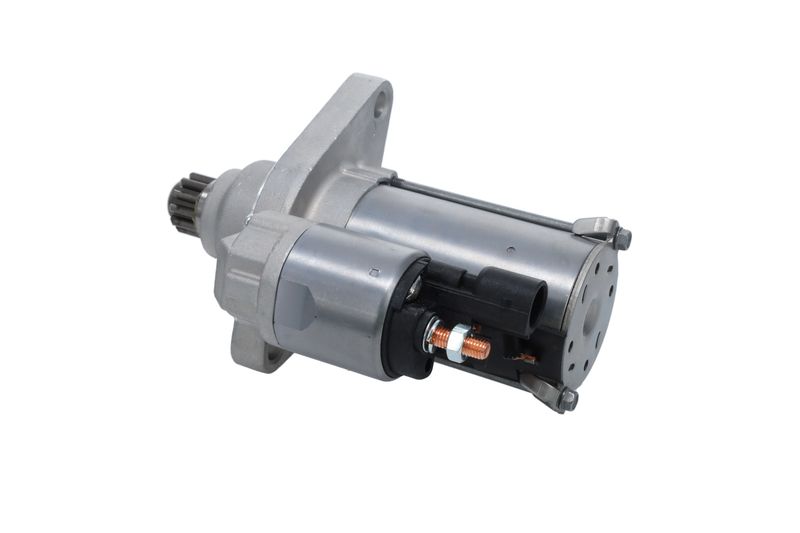

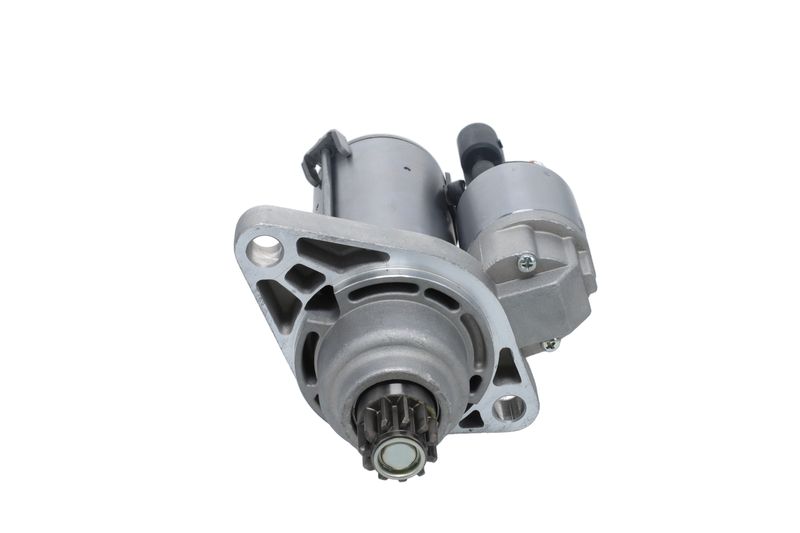

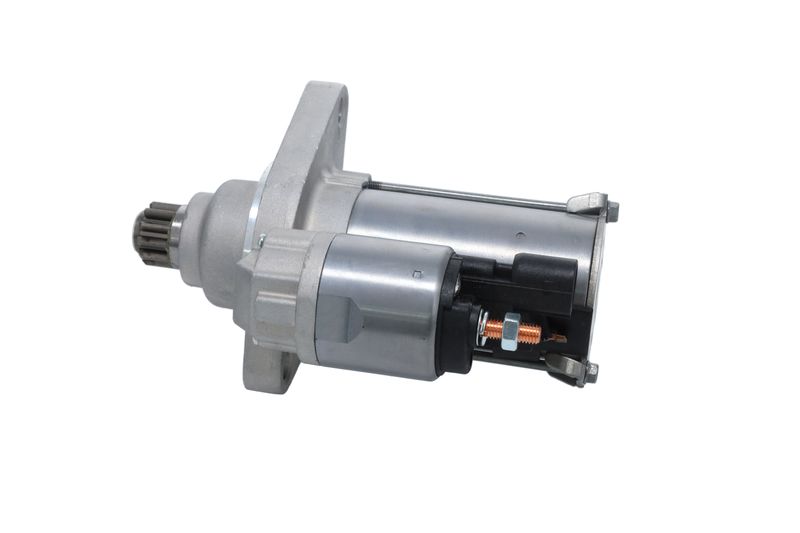

Bosch 1986S00586 Starter Motor

SKU: 1986S00586

Your selected vehicle

Out of stock

Out of Stock

£197.31 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

The Bosch 1986S00586 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.2 kW rated power, 11 teeth, and dual-Clutch Transmission and Automatic Transmission transmission. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter

Voltage [V] : 12

Rated Power [kW] : 1.2

Number of mounting bores : 2

Number of threaded holes : 0

Number of Teeth : 11

Clamp : 30,50

Flange Diameter [mm] : 79

Rotation Direction : Anticlockwise rotation

Pinion Rest Position [mm] : 62.5

Bore Diameter [mm] : 12.6

Bore Diameter 2 [mm] : 12.6

Length [mm] : 212

Position/Degree : rechts

Mounting Angle [degrees] : 47

Mounting bore angle measurement [degree] : 47

Engine Code : CAXA

Vehicle Equipment : for vehicles without start-stop function

Transmission Type : Dual-Clutch Transmission

Engine Code : CNVA

Construction Year from : 11.2011

Engine Code : CZCA

Transmission Type : Automatic Transmission

Engine Code : CZDD

Construction Year from : 05.2015

Engine Code : CAVG

Engine Code : CTHG

Construction Year from : 05.2012

Bosch 1986S00586 Starter Motor
