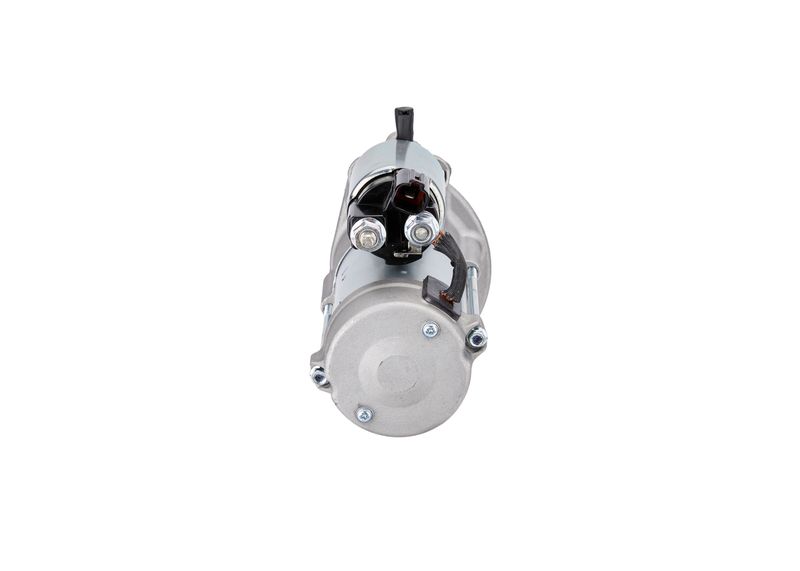

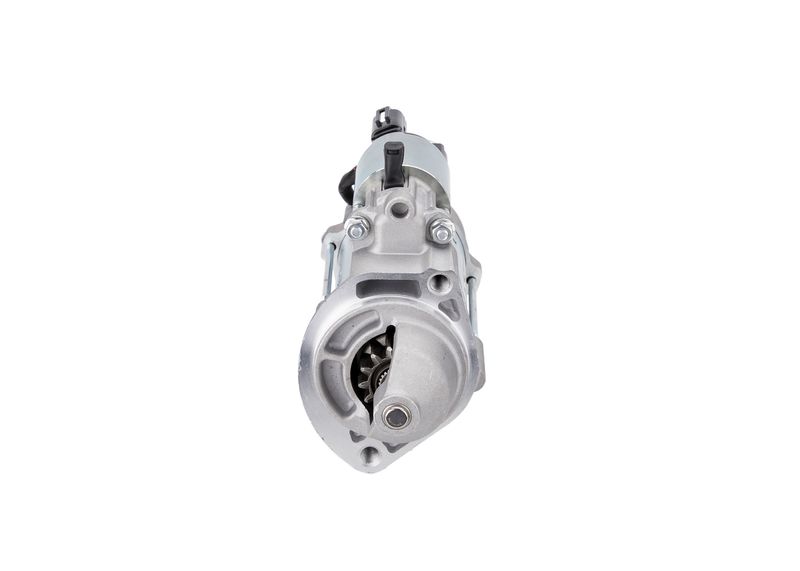

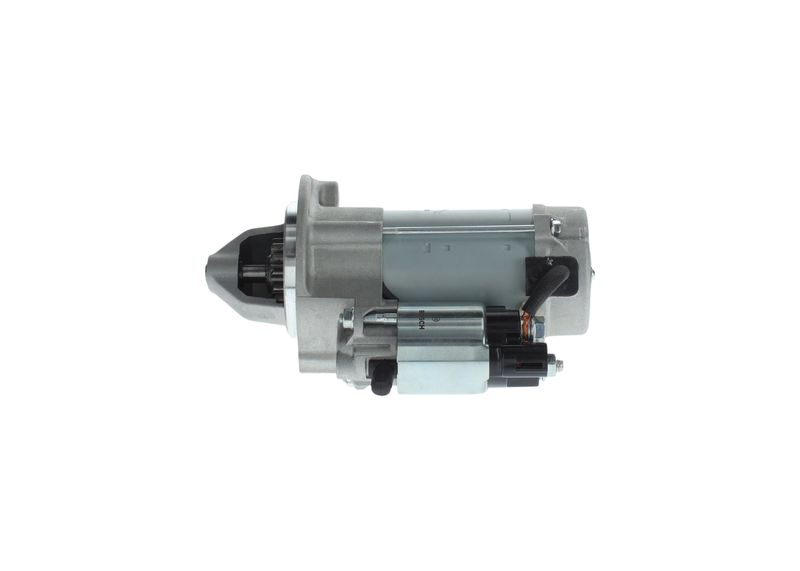

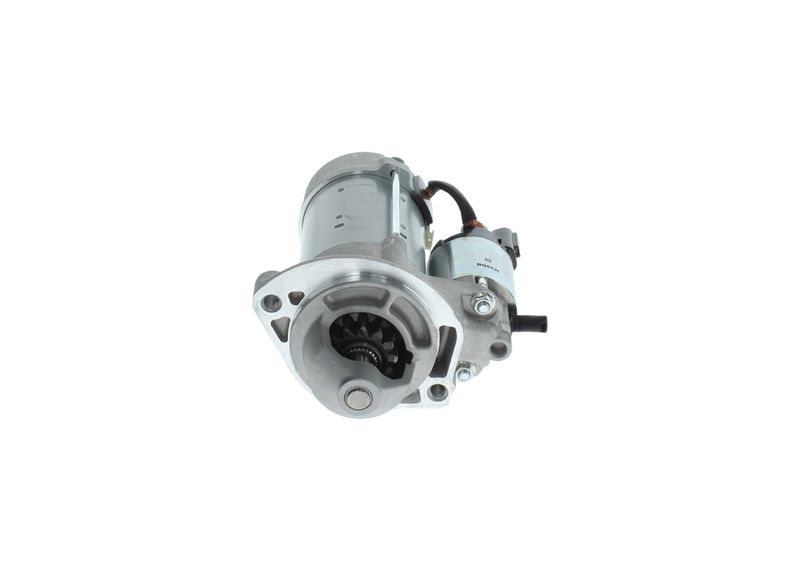

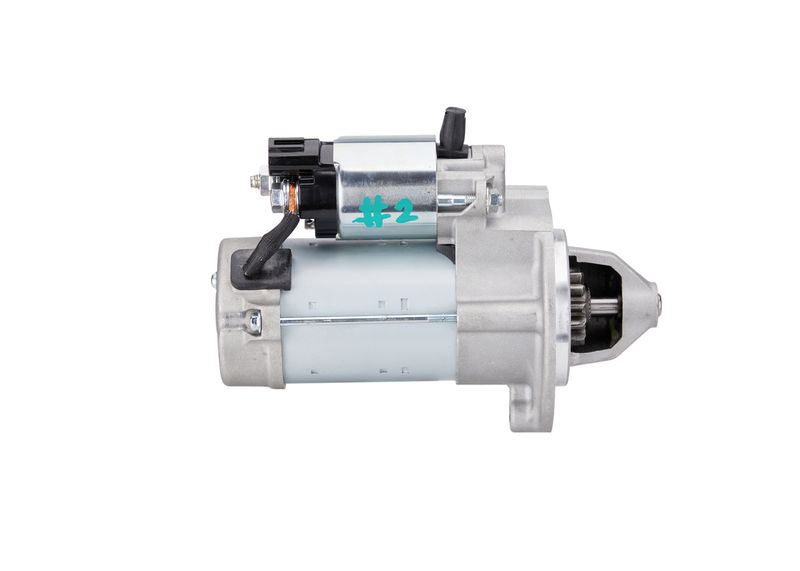

Bosch 1986S00601 Starter Motor
Your selected vehicle
Regular price
£161.37
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 1986S00601 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.9 kW rated power, 13 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
1.9
Number of mounting bores :
0
Number of threaded holes :
2
Number of Teeth :
13
Clamp :
30,50
Flange Diameter [mm] :
77
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
17
Starter Type :
Self-supporting
Thread Size :
M10x1,25
Thread Size 1 :
M10x1,25
Length [mm] :
217
Position/Degree :
rechts
Mounting Angle [degrees] :
28
Jaw opening angle measurement [Degree] :
200
Mounting bore angle measurement [degree] :
28
Construction Year to :
02.2015
Vehicle Equipment :
for vehicles with start-stop function
- Vendor BOSCH
- SKU 1986S00601
- HYUNDAI : 36100 2A550
- KIA : 36100 2A550
- APEC : ASM1553
- BOSCH : 0 986 029 220
- Carwood Group : BREF0320986029220
- Carwood Group : BREF032116255
- Carwood Group : BREF0321986S00601
- NAPA : NSM1553
- VALEO : 445624
- WAI : 33600N
- WAI : S130.485
- BOSCH : ST 12V 1,9kW (R)
