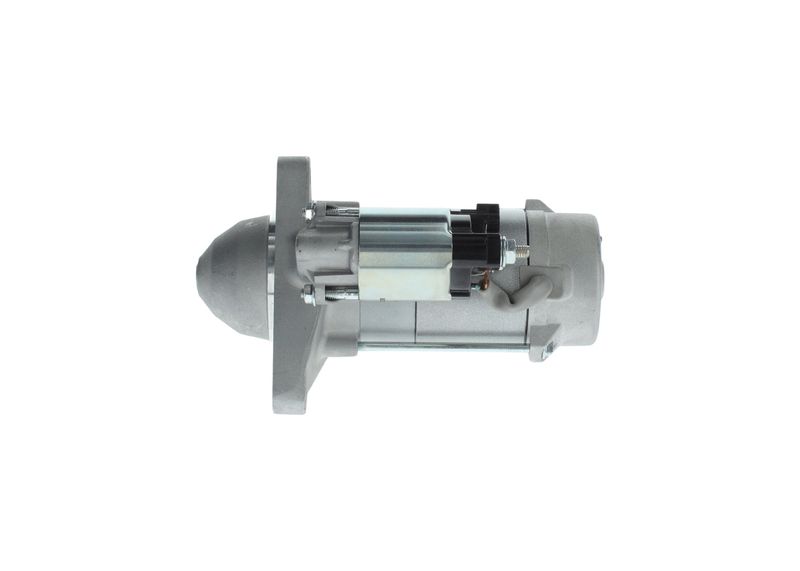

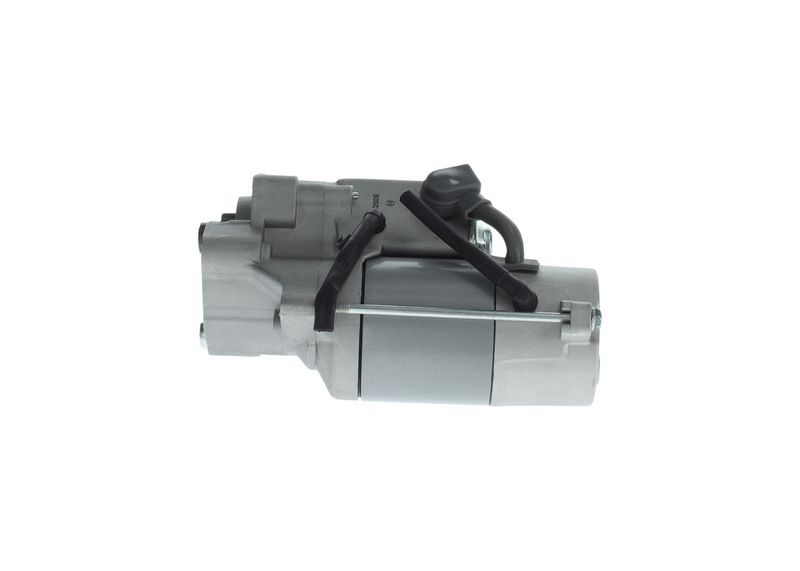

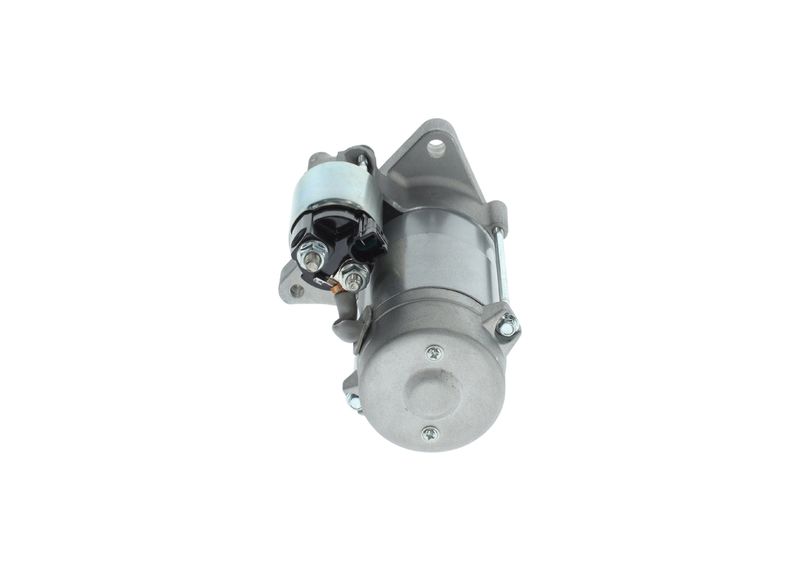

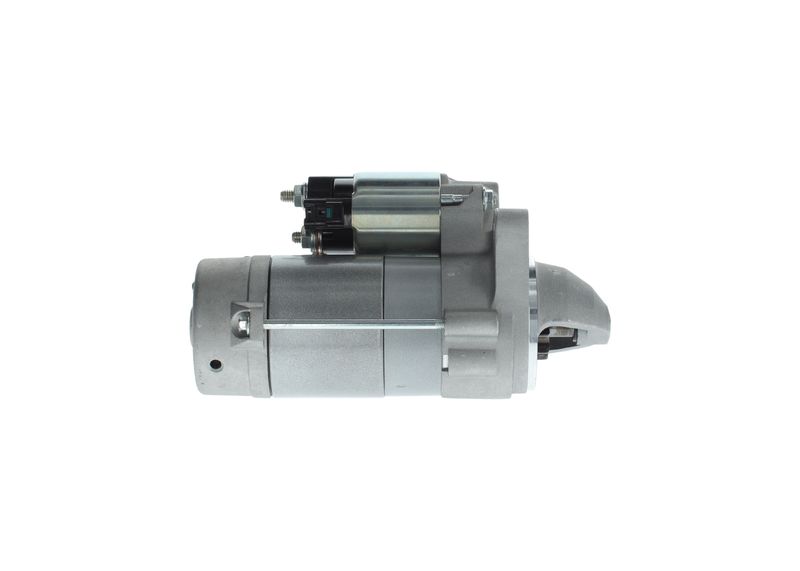

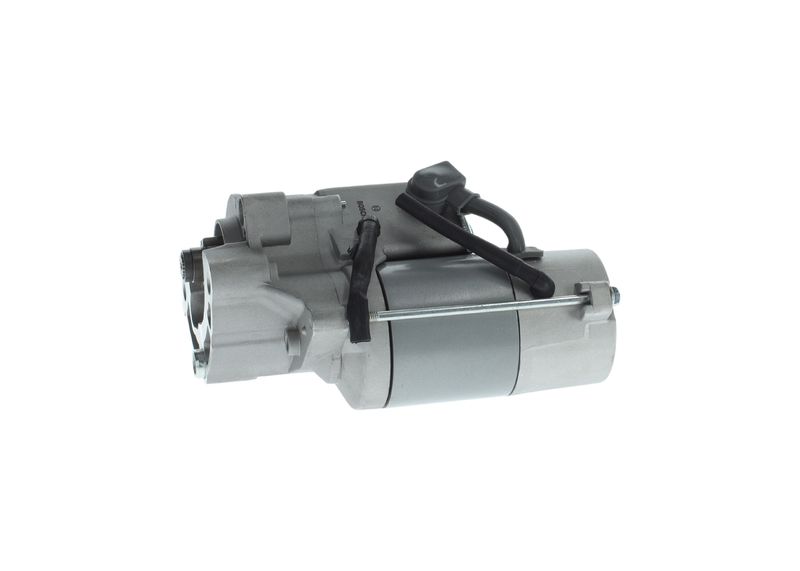

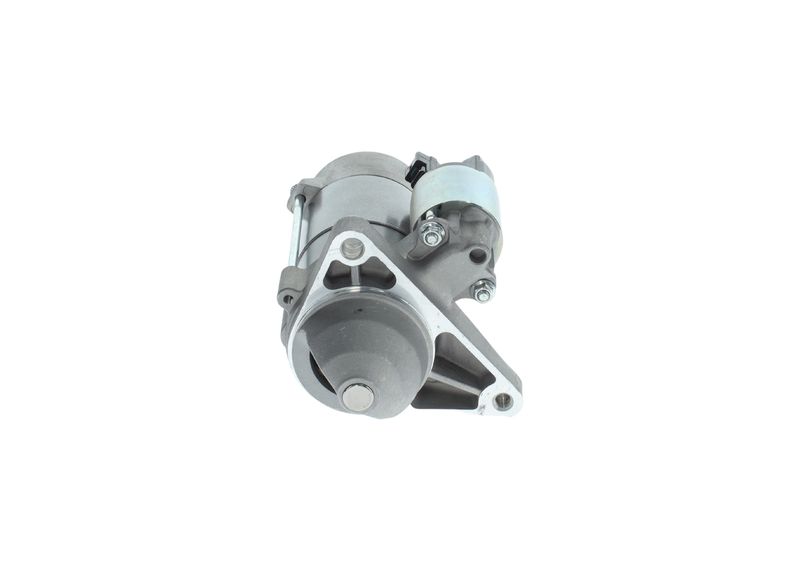

Bosch 1986S00626 Starter Motor
Your selected vehicle
Regular price
£223.28
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 1986S00626 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2 kW rated power, Floating pinion starter type, and automatic Transmission transmission. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
2
Number of mounting bores :
0
Number of threaded holes :
3
Number of Teeth :
9
Clamp :
30,50
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
-5
Starter Type :
Floating pinion
Thread Size :
M10x1,5
Thread Size 1 :
M10x1,5
Thread Size 2 :
M10x1,5
Length [mm] :
220
Position/Degree :
rechts
Mounting Angle [degrees] :
47
Mounting bore angle measurement [degree] :
47
Construction Year to :
08.2017
Transmission Type :
Automatic Transmission
Vehicle Equipment :
for vehicles without start-stop function
Engine Code :
DW12BTED4
- Vendor BOSCH
- SKU 1986S00626
- FORD : 6G9N11000NA 6G9N11000NB
- ROVER : LR003469 LR007373
- LAND ROVER : LR003469 LR007373 6G9N11000NA 6G9N11000NB
- APEC : ASM1666
- Carwood Group : BREF032115468
- Carwood Group : BREF0321986S00626
- HELLA : 8EA 011 613-021
- NAPA : NSM1666
- WAI : 30160N
- WAI : S133.036
