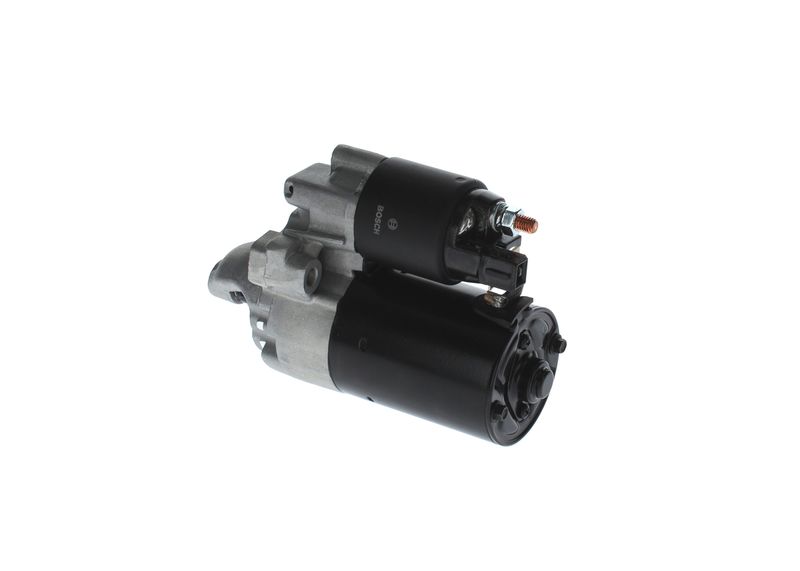

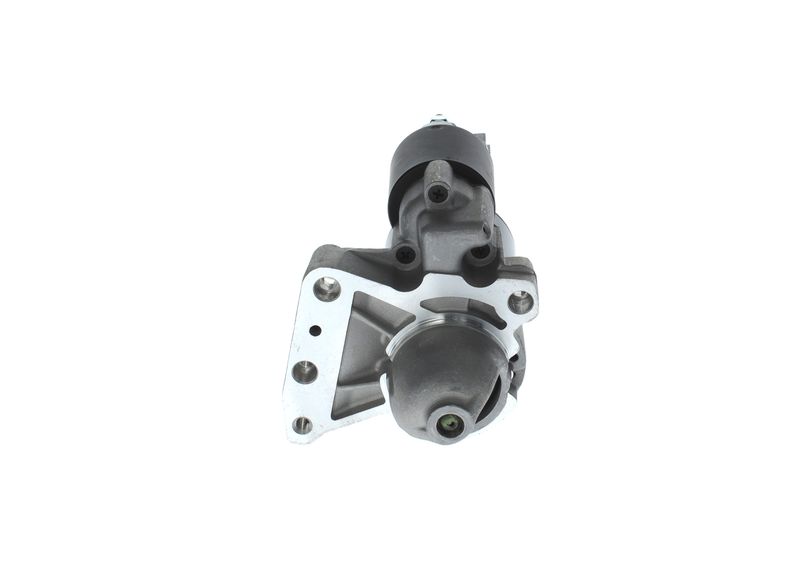

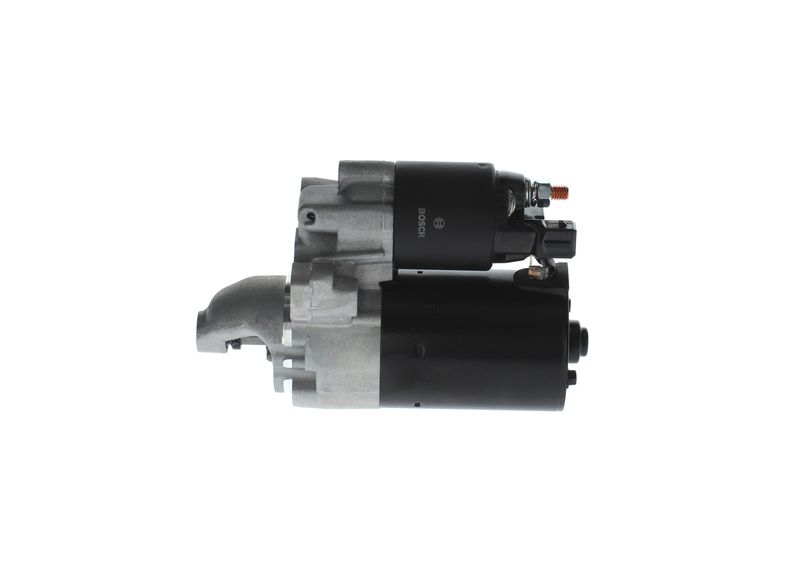

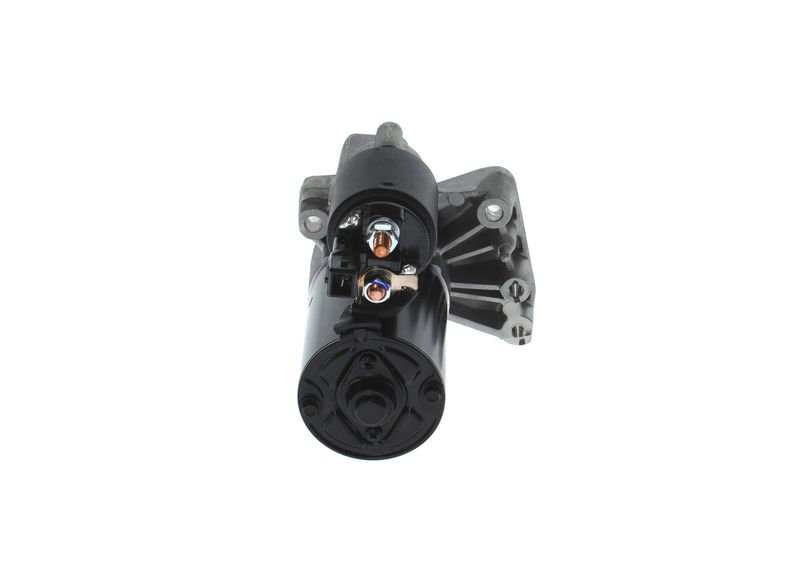

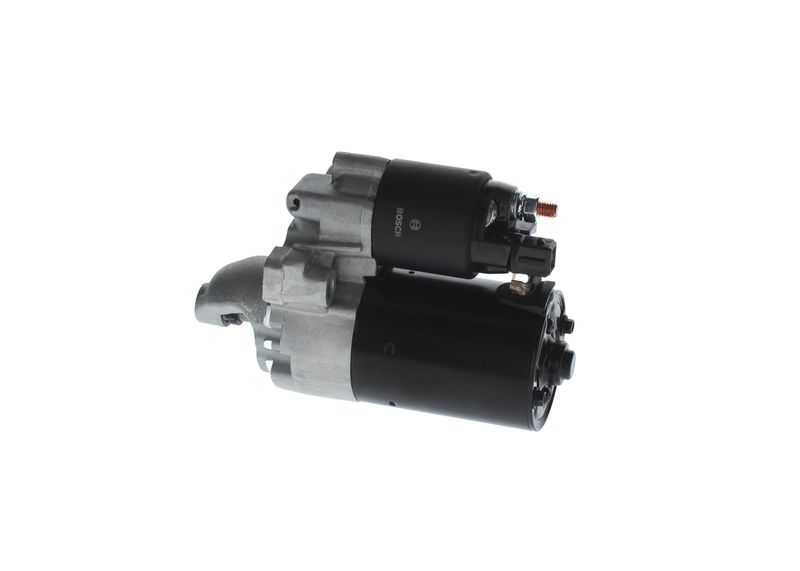

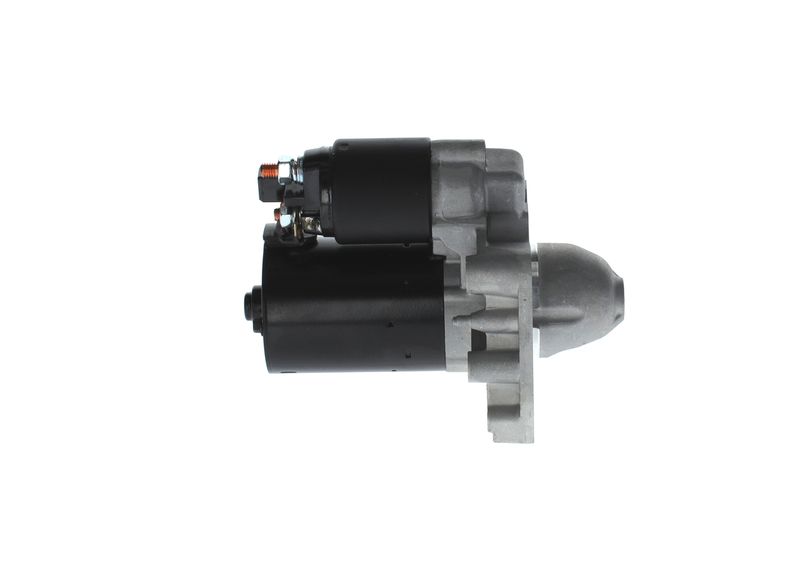

Bosch 1986S00652 Starter Motor
Your selected vehicle
Regular price
£165.11
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 1986S00652 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 0.9 kW rated power, 10 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
0.9
Number of mounting bores :
2
Number of threaded holes :
1
Number of Teeth :
10
Clamp :
30,50
Flange Diameter [mm] :
60
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
13.7
Starter Type :
Self-supporting
Thread Size 2 :
M8X1.25
Bore Diameter [mm] :
9
Bore Diameter 2 [mm] :
9
Length [mm] :
199
Position/Degree :
links
Jaw opening angle measurement [Degree] :
46
Construction Year to :
12.2018
Engine Code :
HMR (EB2FA)
Construction Year from :
04.2018
Construction Year to :
12.2024
Vehicle Equipment :
for vehicles without start-stop function
Transmission Code :
BE4R
Engine Code :
HMZ (EB2F)
- Vendor BOSCH
- SKU 1986S00652
- BMW : 12 41 7 540 897 12 41 7 550 017 12 41 7 552 105 12 41 7 582 308 12 41 7 582 309 75 50 0 178 004
- CITROËN : V764559080 5802 AR 5802 EV
- PEUGEOT : V754089780 V755001780 V755210580 V764559080 5802 AR 5802 EV
- STEYR : 7540897 7552105
- MINI : 12 41 7 552 105
- BOSCH : ST 12V 0,9KW (R)
