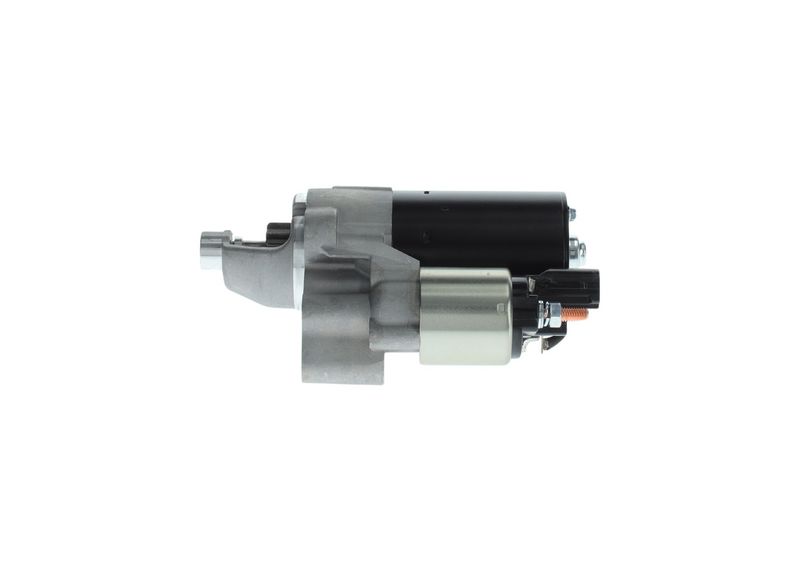

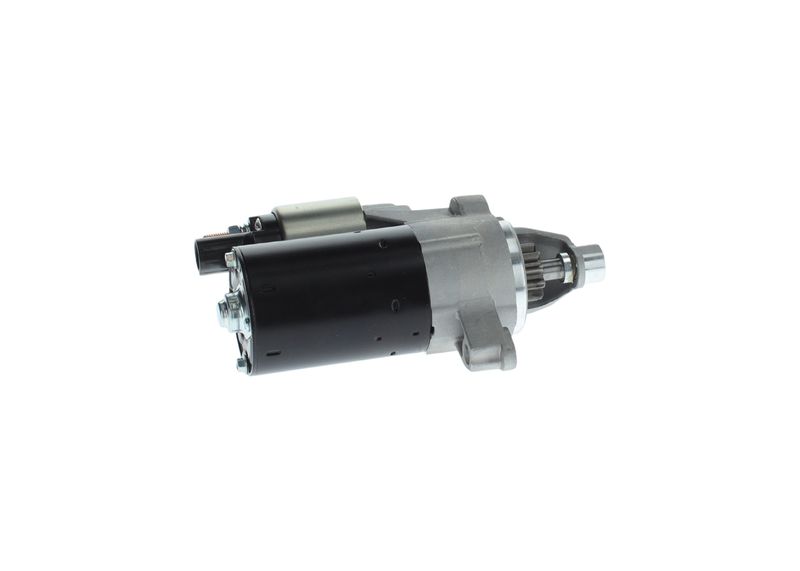

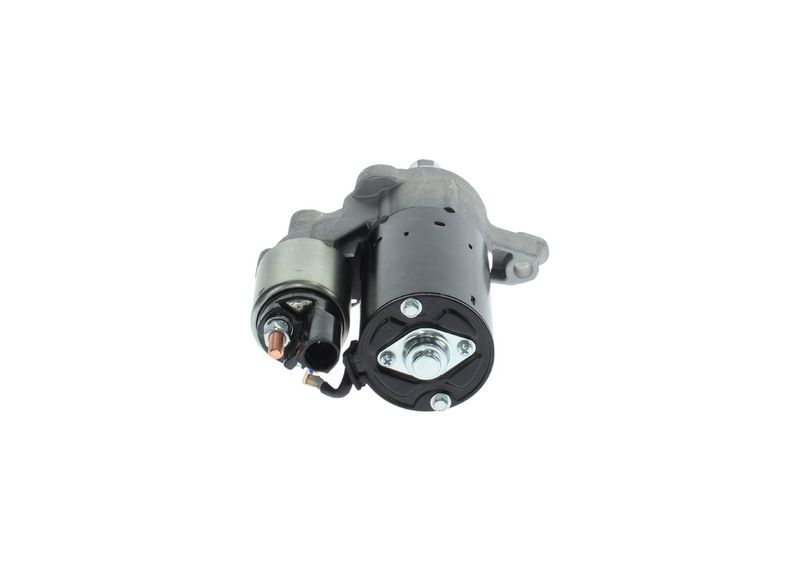

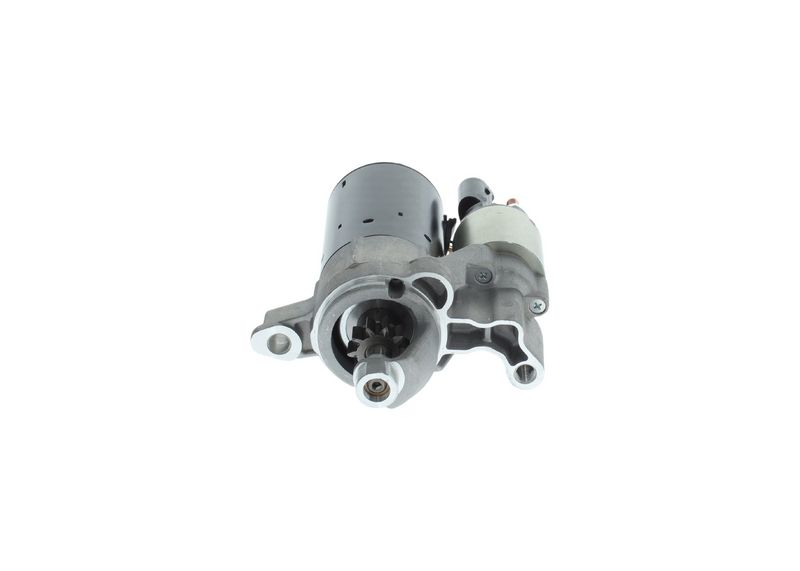

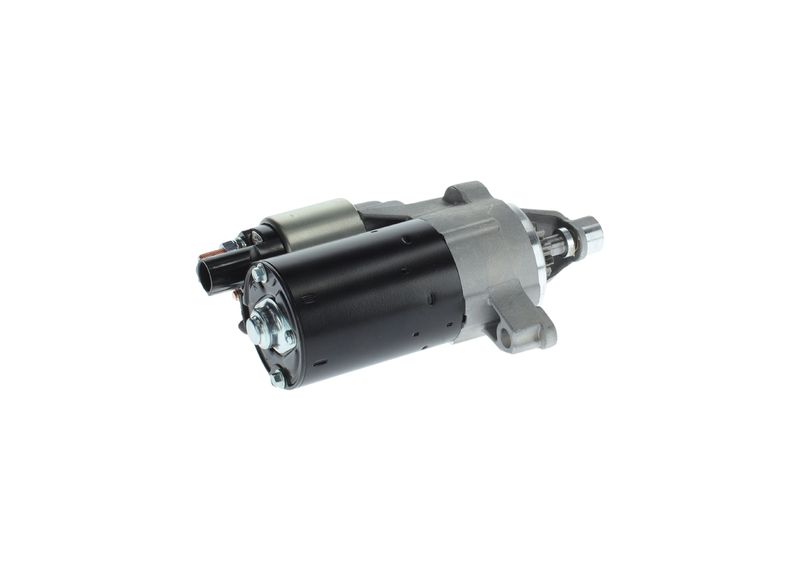

Bosch 1986S00689 Starter Motor

SKU: 1986S00689
Your selected vehicle
Out of stock
Out of Stock
£219.54 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

AUDI
A4 B8 (8K2)
Description Cylinder Capacity Horse Power Year
1.8 TFSI 1798 CCM 170 HP 11/2011 - 12/2015
1.8 TFSI quattro 1798 CCM 170 HP 11/2011 - 12/2015
1.8 TFSI 1798 CCM 160 HP 11/2007 - 03/2012
1.8 TFSI 1798 CCM 120 HP 01/2008 - 12/2015
A4 B8 Avant (8K5)
Description Cylinder Capacity Horse Power Year
1.8 TFSI 1798 CCM 170 HP 11/2011 - 12/2015
1.8 TFSI quattro 1798 CCM 170 HP 11/2011 - 12/2015
1.8 TFSI 1798 CCM 160 HP 11/2007 - 03/2012
2.0 TFSI 1984 CCM 211 HP 06/2008 - 05/2013
1.8 TFSI 1798 CCM 120 HP 04/2008 - 12/2015
A4 Allroad B8 (8KH)
Description Cylinder Capacity Horse Power Year
2.0 TFSI quattro 1984 CCM 211 HP 04/2009 - 05/2016
2.0 TFSI quattro 1984 CCM 220 HP 05/2013 - 05/2016
2.0 TFSI quattro 1984 CCM 224 HP 05/2013 - 05/2016
A5 (8T3)
Description Cylinder Capacity Horse Power Year
1.8 TFSI 1798 CCM 170 HP 10/2007 - 04/2016
2.0 TFSI 1984 CCM 180 HP 05/2008 - 03/2012
2.0 TFSI 1984 CCM 211 HP 06/2008 - 11/2013
A5 Sportback (8TA)
Description Cylinder Capacity Horse Power Year
1.8 TFSI 1798 CCM 170 HP 08/2011 - 04/2016
2.0 TFSI 1984 CCM 180 HP 09/2009 - 03/2012
2.0 TFSI quattro 1984 CCM 211 HP 09/2009 - 12/2013
1.8 TFSI 1798 CCM 160 HP 11/2009 - 09/2011
2.0 TFSI 1984 CCM 211 HP 09/2009 - 11/2013
A5 Convertible (8F7)
Description Cylinder Capacity Horse Power Year
1.8 TFSI 1798 CCM 170 HP 09/2011 - 03/2016
2.0 TFSI 1984 CCM 180 HP 03/2009 - 03/2012
2.0 TFSI 1984 CCM 211 HP 02/2009 - 12/2013
2.0 TFSI quattro 1984 CCM 211 HP 08/2009 - 12/2013
A6 C7 (4G2, 4GC)
Description Cylinder Capacity Horse Power Year
2.0 TFSI 1984 CCM 180 HP 05/2011 - 09/2018
2.0 TFSI 1984 CCM 211 HP 03/2011 - 05/2013
A6 C7 Avant (4G5, 4GD)
Description Cylinder Capacity Horse Power Year
2.0 TFSI 1984 CCM 180 HP 06/2011 - 09/2018
Q5 (8RB)
Description Cylinder Capacity Horse Power Year
2.0 TFSI quattro 1984 CCM 211 HP 11/2008 - 09/2012
2.0 TFSI quattro 1984 CCM 180 HP 08/2009 - 05/2017
2.0 TFSI quattro 1984 CCM 224 HP 06/2012 - 05/2016
PORSCHE
MACAN (95B)
Description Cylinder Capacity Horse Power Year
2.0 1984 CCM 237 HP 05/2014 - 09/2018
2.0 1984 CCM 252 HP From 05/2015

The Bosch 1986S00689 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.1 kW rated power, 10 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 1.1
Number of mounting bores : 1
Number of threaded holes : 1
Number of Teeth : 10
Clamp : 30,50
Flange Diameter [mm] : 66
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 23.2
Starter Type : Self-supporting
Thread Size : M12x1.75
Bore Diameter 2 [mm] : 11
Length [mm] : 217
Position/Degree : rechts
Jaw opening angle measurement [Degree] : 62
Engine Code : CPMA
Construction Year from : 03.2012
Construction Year to : 05.2013
Vehicle Equipment : for vehicles without start-stop function
Engine Code : CDNC
Construction Year to : 04.2016
  • Vendor BOSCH
  • SKU 1986S00689
  • Barcode 4047023070869
  • BOSCH : 0 986 024 010
  • Carwood Group : BREF0320986024010
  • Carwood Group : BREF032115394
  • Carwood Group : BREF0321986S00689
  • HELLA : 8EA 011 611-311
  • LUCAS : LRS02443
  • BOSCH : ST 12V 1,1KW (R)
