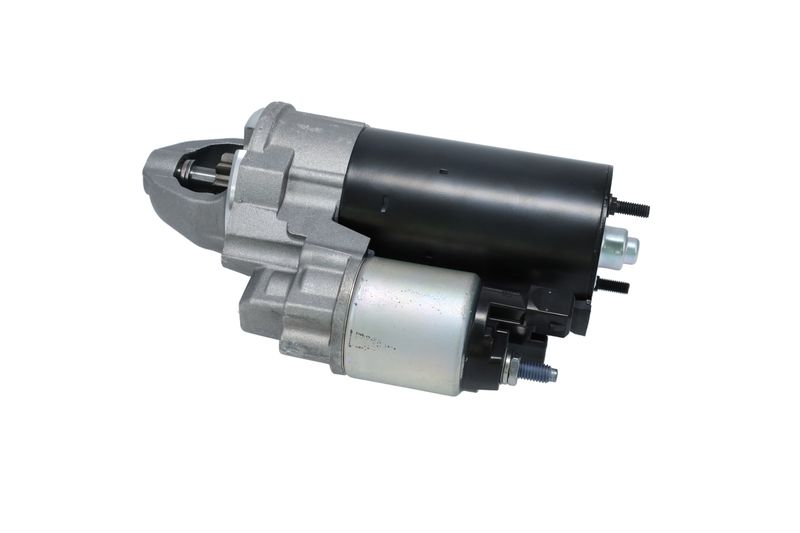

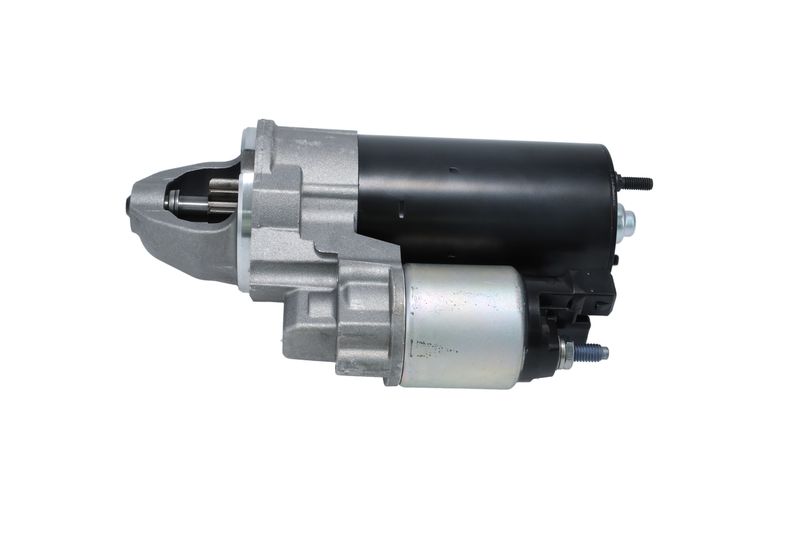

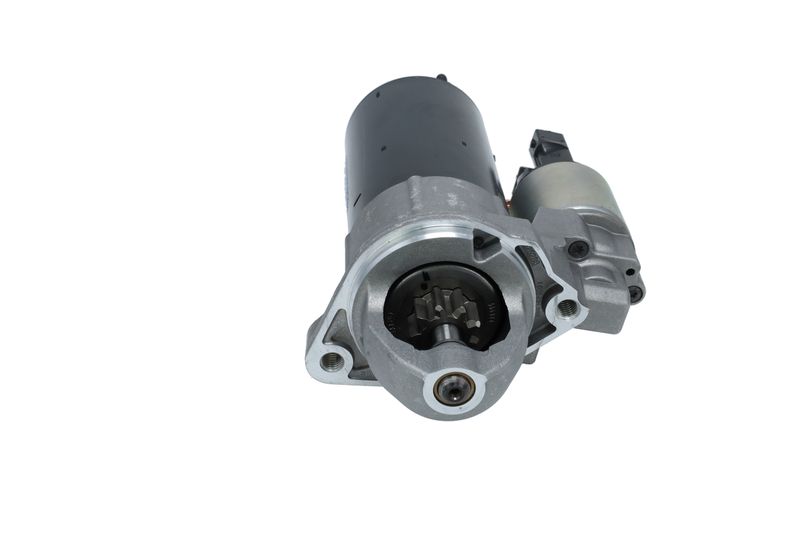

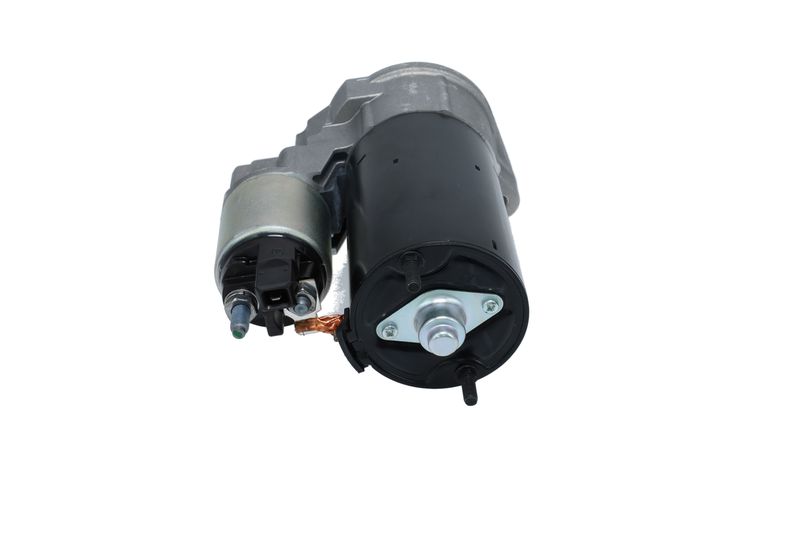

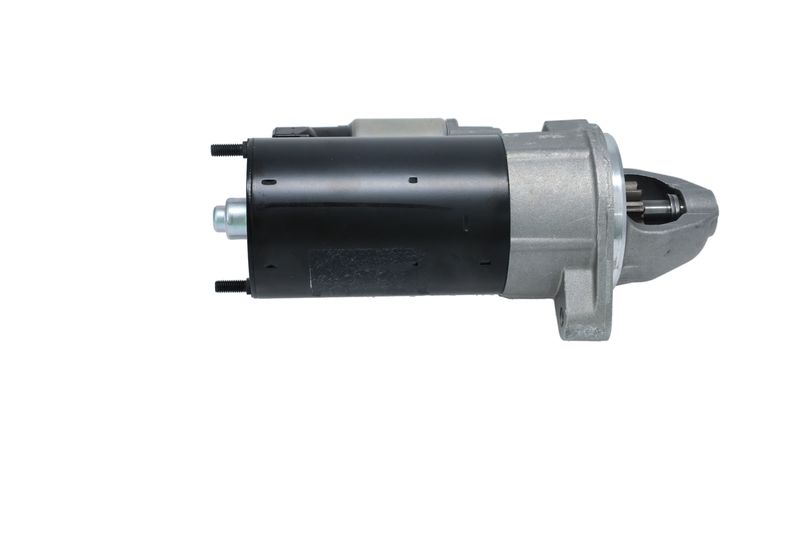

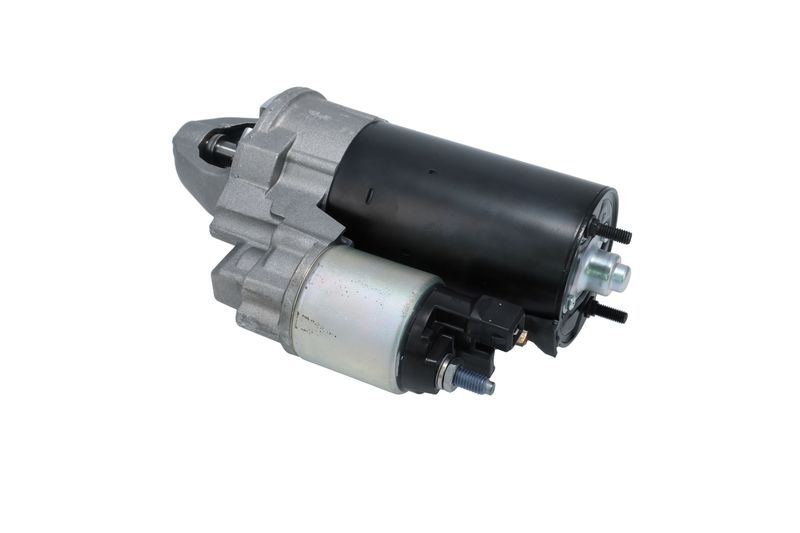

Bosch 1986S00712 Starter Motor

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 1986S00712

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£240.57 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

BMW
5 (E60)
Description Cylinder Capacity Horse Power Year
545 i 4398 CCM 333 HP 07/2003 - 08/2005
540 i 4000 CCM 306 HP 03/2007 - 12/2009
550 i 4799 CCM 367 HP 09/2005 - 12/2009
5 Touring (E61)
Description Cylinder Capacity Horse Power Year
545 i 4398 CCM 333 HP 06/2004 - 12/2010
550 i 4799 CCM 367 HP 07/2005 - 12/2010
6 (E63)
Description Cylinder Capacity Horse Power Year
645 Ci 4398 CCM 333 HP 09/2003 - 08/2005
650 i 4799 CCM 367 HP 09/2005 - 08/2010
6 Convertible (E64)
Description Cylinder Capacity Horse Power Year
645 Ci 4398 CCM 333 HP 04/2004 - 08/2005
650 i 4799 CCM 367 HP 09/2005 - 08/2010
7 (E65, E66, E67)
Description Cylinder Capacity Horse Power Year
760 i, Li 5972 CCM 445 HP 01/2003 - 08/2008
740 i, Li 4000 CCM 306 HP 03/2005 - 08/2008
750 i, Li 4799 CCM 367 HP 03/2005 - 08/2008
ROLLS-ROYCE
PHANTOM VII (RR1)
Description Cylinder Capacity Horse Power Year
V12 6749 CCM 460 HP 01/2003 - 07/2017
PHANTOM VII Drophead Coupe (RR2)
Description Cylinder Capacity Horse Power Year
6.75 V12 6749 CCM 460 HP 06/2007 - 07/2017
PHANTOM VII Coupe (RR3)
Description Cylinder Capacity Horse Power Year
6.75 V12 6749 CCM 460 HP 06/2008 - 07/2017

The Bosch 1986S00712 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.7 kW rated power, 9 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 1.7
Number of mounting bores : 0
Number of threaded holes : 2
Number of Teeth : 9
Clamp : 30,50
Flange Diameter [mm] : 76.2
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 21
Starter Type : Self-supporting
Thread Size : M10x1,5
Thread Size 1 : M10x1,5
Length [mm] : 237
Position/Degree : links
Mounting Angle [degrees] : 9
Jaw opening angle measurement [Degree] : 171
Mounting bore angle measurement [degree] : 9
Left-/right-hand drive vehicles : for right-hand drive vehicles
  • Vendor BOSCH
  • SKU 1986S00712
  • Barcode 4047026541328
  • BMW : 12 41 7 525 294 12 41 7 536 691 12 41 7 537 514 12 41 7 610 345 12 41 7 610 347 12 41 7 610 354 7 610 345
  • ROLLS-ROYCE : 12 41 7 610 347
  • Carwood Group : BREF0321986S00712
  • LUCAS : LRS03707
  • WAI : 30001N
  • BOSCH : ST 12V 1,7KW (R)
