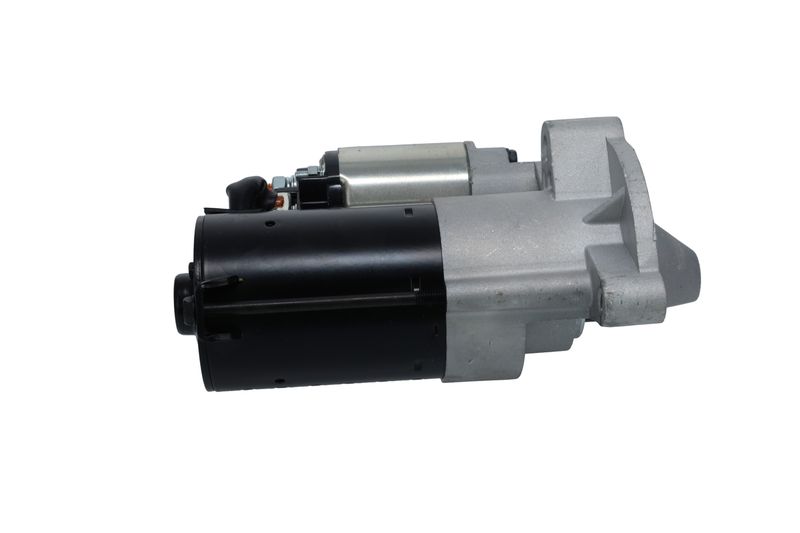

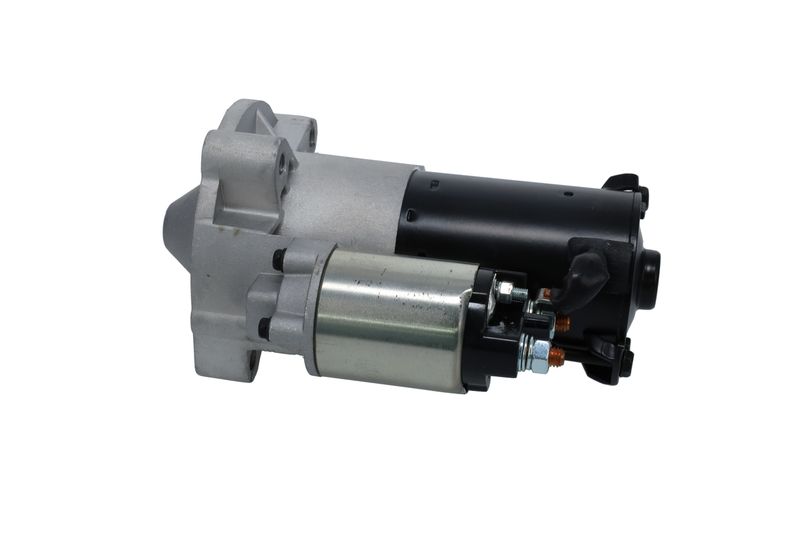

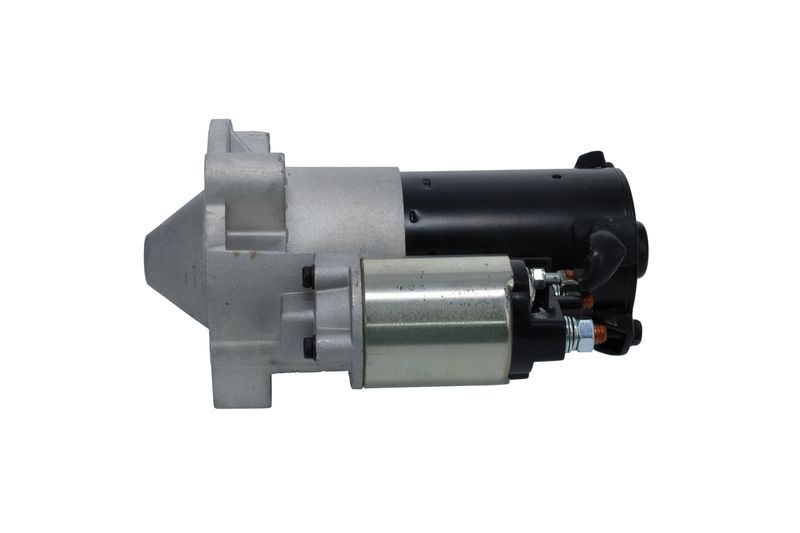

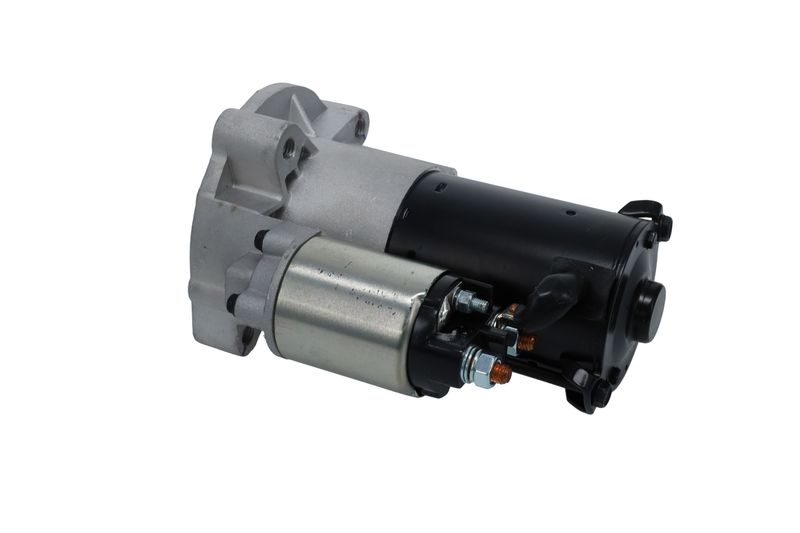

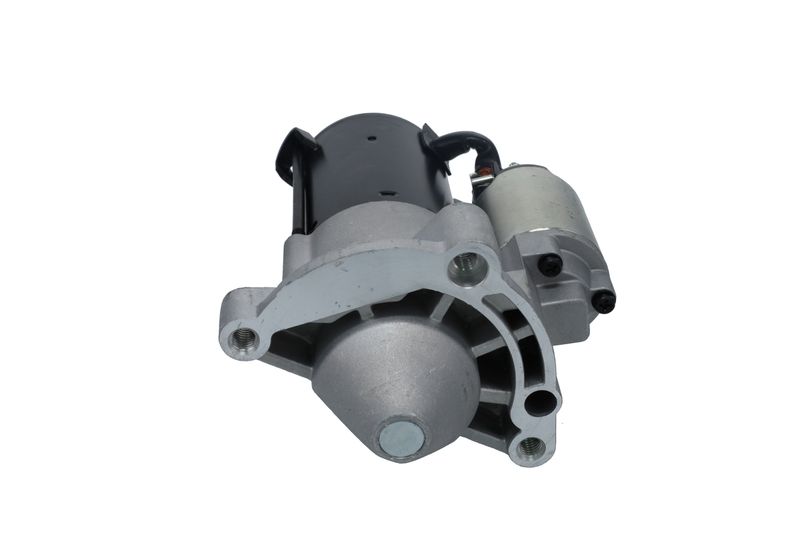

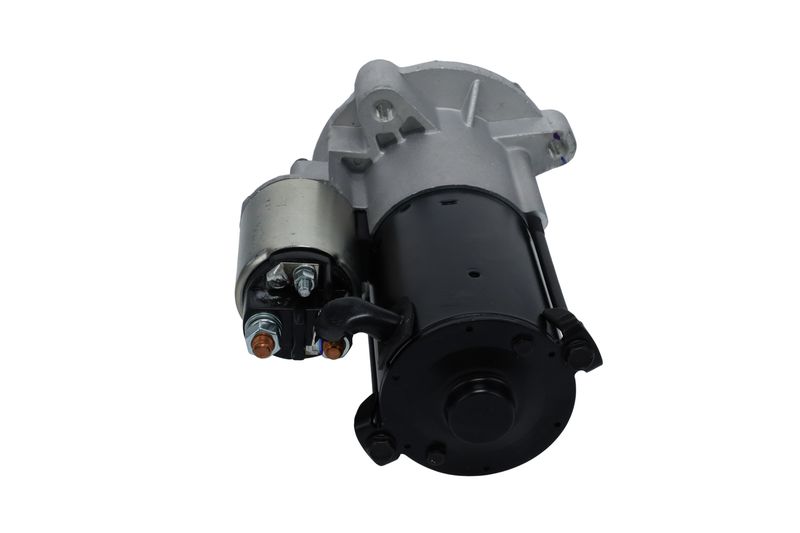

Bosch 1986S00714 Starter Motor
Your selected vehicle
Regular price
£100.17
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 1986S00714 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.4 kW rated power, 13 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
1.4
Number of mounting bores :
0
Number of threaded holes :
3
Number of Teeth :
13
Clamp :
30,50
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
-4.8
Starter Type :
Self-supporting
Thread Size :
M10x1.5
Thread Size 1 :
M10x1.5
Thread Size 2 :
M10x1.5
Length [mm] :
218
Position/Degree :
links
Jaw opening angle measurement [Degree] :
37
- Vendor BOSCH
- SKU 1986S00714
- CITROËN : 5802 FJ 5802 M3 5802 M7 5802 S3 5802 V5 5802 W4 5802 W5 5802 W9 96 253 825 96 481 116 98 270 071 80
- DAF : 1516779R
- FIAT : K1342792080 K9625382580 K9625382680 K9625383080 K9656262780 K9656299480 1342792080 71716562 71716563 71716565 71719600 71719608 71719609 71723361 71723362 71728811 71738330 71782363 71785217 71785219 9625382580 9625382680 9625383080 9656262780 9656299480
- LANCIA : K9625382580 K9625382680 71719608 71728811 9625382580 9625382680
- MITSUBISHI : 1810A101
- PEUGEOT : 5802 FJ 5802 M3 5802 M7 5802 S3 5802 V5 5802 W4 5802 W5 5802 W8 96 253 825 96 481 116 96 481 116 80 98 270 071 80
- BOSCH : ST 12V 1,4kW (R)
