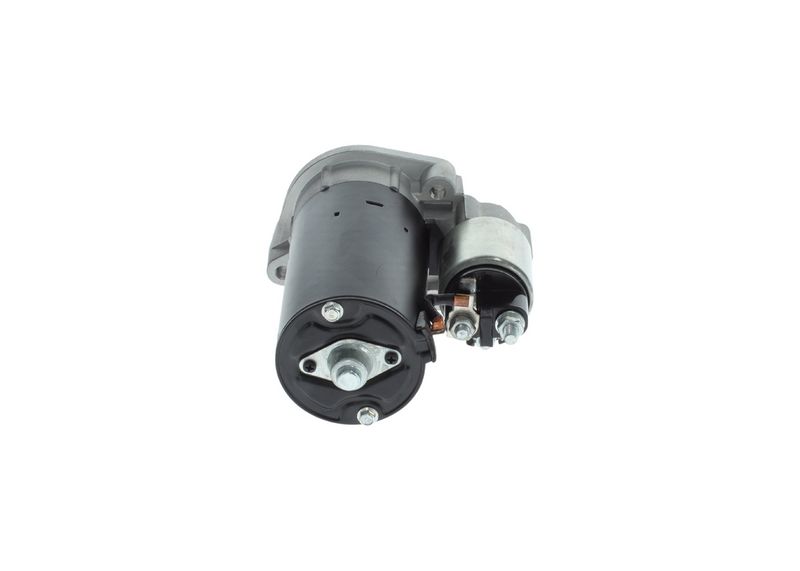

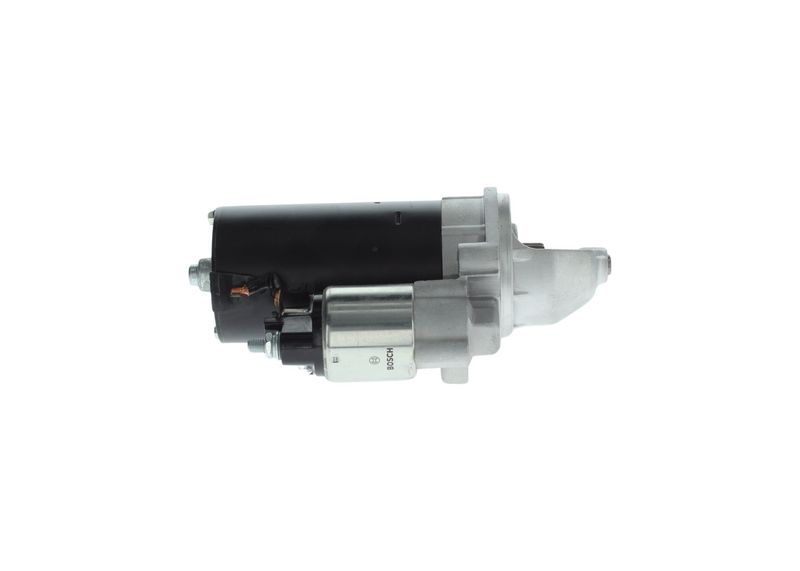

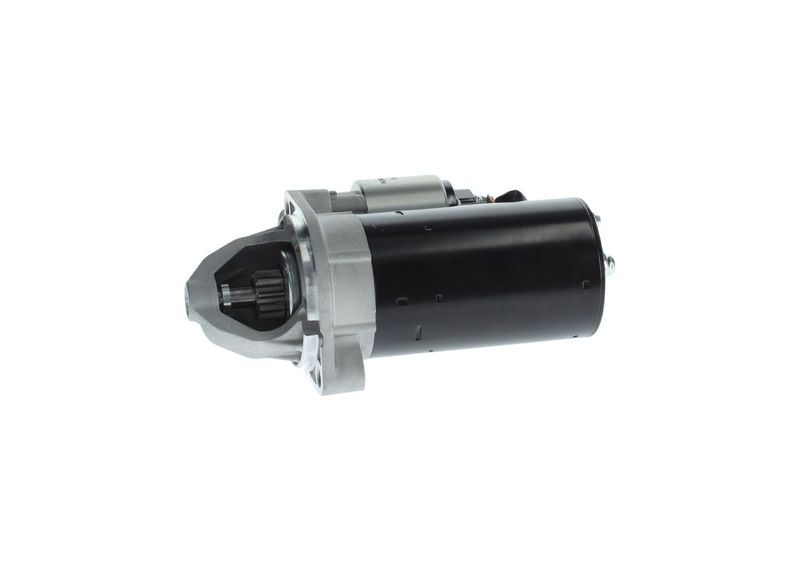

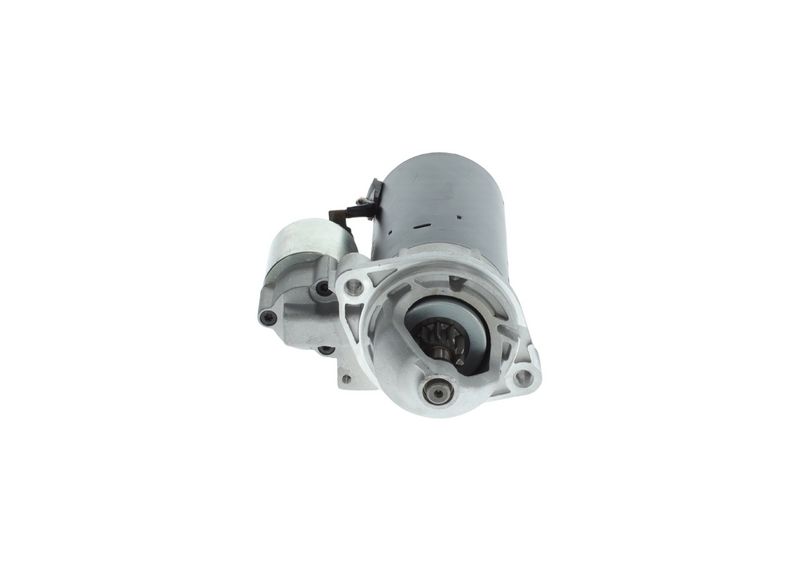

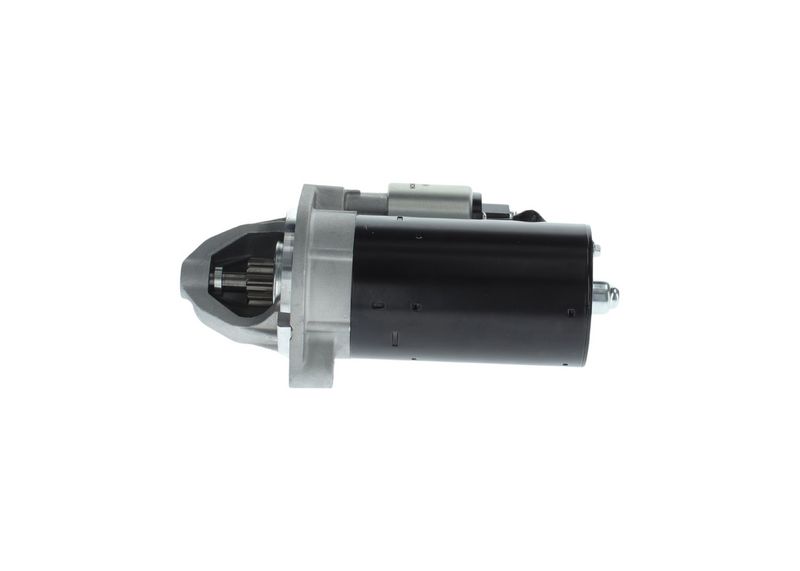

Bosch 1986S00731 Starter Motor
Your selected vehicle
Regular price
£153.86
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 1986S00731 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2.2 kW rated power, 10 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
2.2
Number of mounting bores :
0
Number of threaded holes :
2
Number of Teeth :
10
Clamp :
30,50
Flange Diameter [mm] :
82.5
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
26
Starter Type :
Self-supporting
Thread Size :
M10x1.5
Thread Size 1 :
M10x1.5
Length [mm] :
238
Position/Degree :
rechts
Jaw opening angle measurement [Degree] :
31
Construction Year from :
09.1989
- Vendor BOSCH
- SKU 1986S00731
- CHRYSLER : 05073 919AA 05103 581AA 05103 581AB 05134 510AA 05134 510AB 5073 919AA 5103 581AA 5103 581AB 5134 510AA 5134 510AB
- DAF : 1516655R 1516671R 1516688R 1516718R 1516735R
- DODGE : 00011 09250 0011 09250 05134 510AA 5134 510AA
- MERCEDES-BENZ : A 003 151 00 01 A 003 151 50 01 A 004 151 21 01 A 004 151 30 01 A 004 151 45 01 A 004 151 51 01 A 004 151 56 01 A 004 151 63 01 A 004 151 65 01 A 004 151 66 01 A 004 151 70 01 A 004 151 71 01 A 004 151 89 01 A 004 151 92 01 A 005 151 13 01 A 005 151 29 01 A 005 151 66 01 A 006 151 30 01 003 151 00 01 003 151 50 01 004 151 21 01 004 151 30 01 004 151 45 01 004 151 51 01 004 151 56 01 004 151 63 01 004 151 65 01 004 151 66 01 004 151 70 01 004 151 71 01 004 151 89 01 004 151 92 01 005 151 13 01 005 151 29 01 005 151 66 01 006 151 30 01
- MULTICAR : 0051511301
- VW : 000 110 925 0 001911023 02A 911 023 L 020 911 023 F
- FREIGHTLINER : 5134510AA
- SSANGYONG : 004 151 70 01
- STEYR : 0041516601 0041517101
- DAEWOO : 0041517001
- LISTER : 18360
- BOSCH : ST 12V 2,2KW (R)
