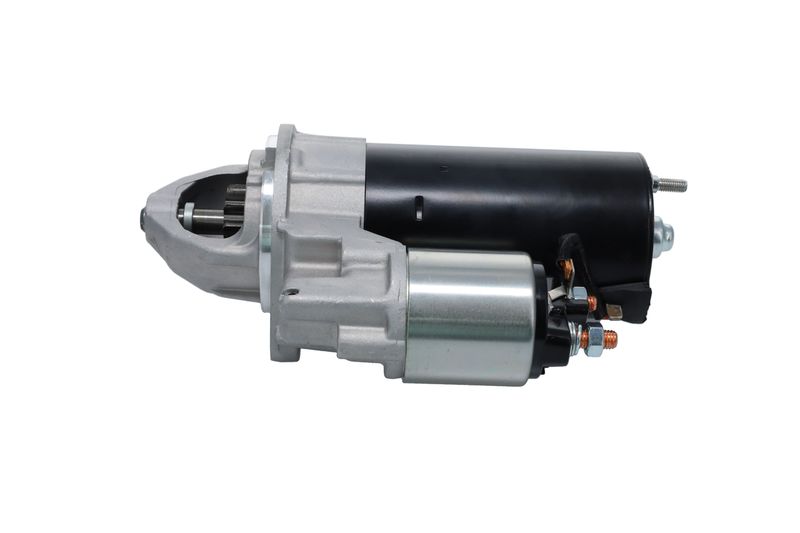

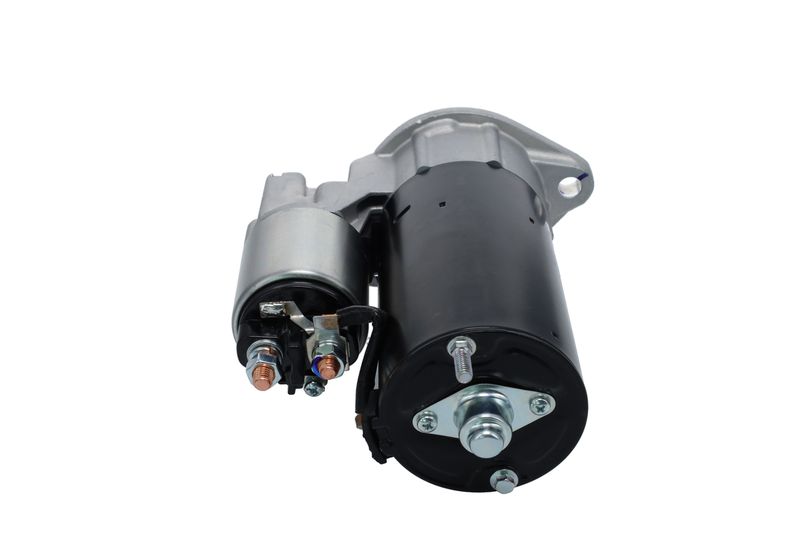

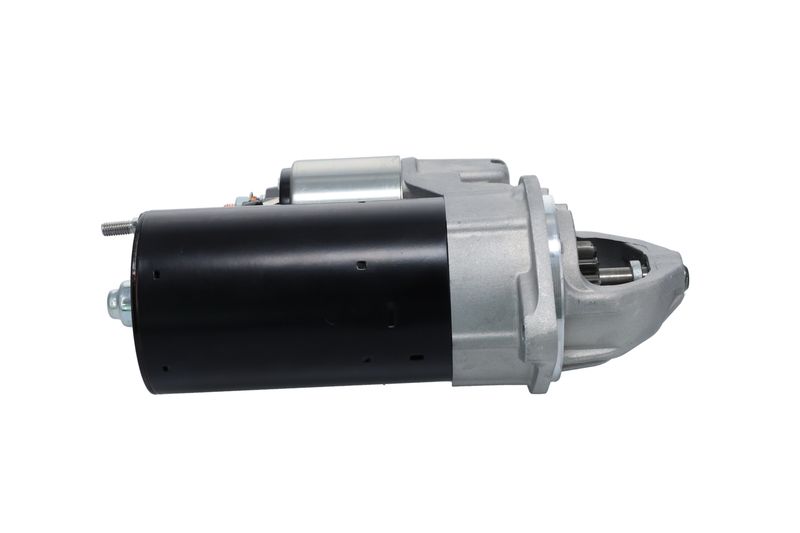

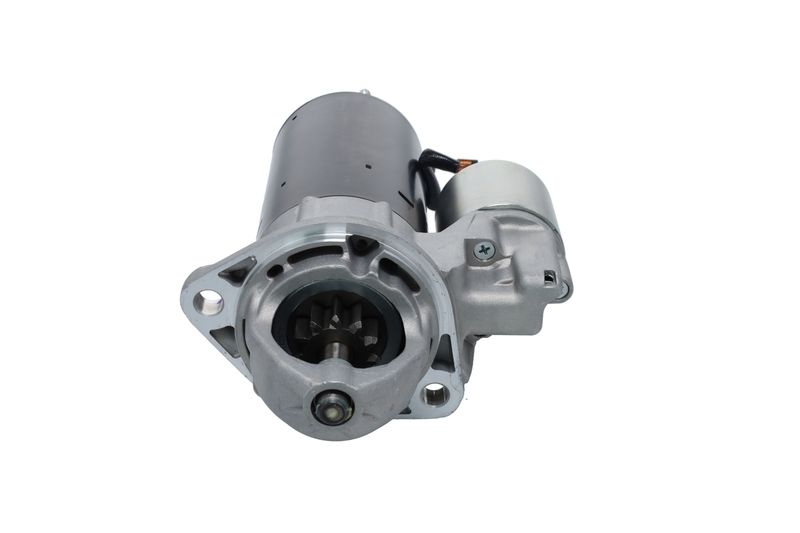

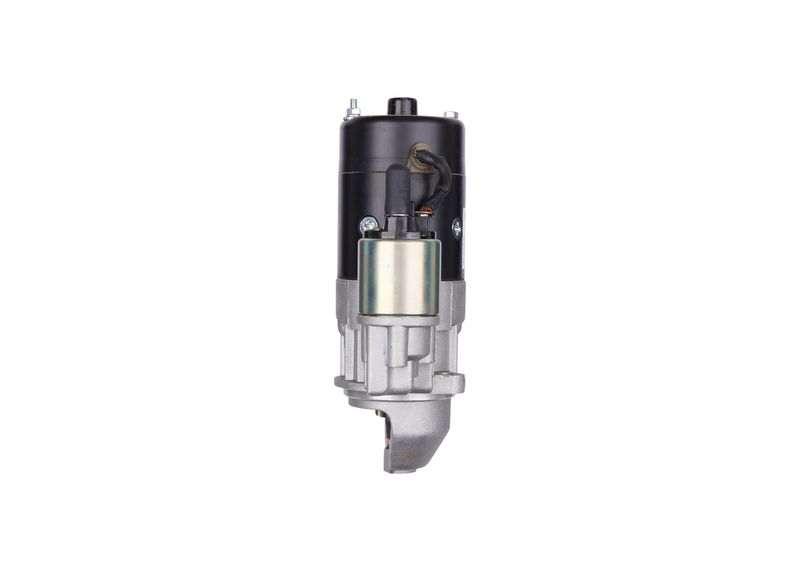

Bosch 1986S00756 Starter Motor
Your selected vehicle
Regular price
£247.66
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 1986S00756 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2.5 kW rated power, 11 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
2.5
Number of mounting bores :
2
Number of threaded holes :
0
Number of Teeth :
11
Clamp :
30,50
Flange Diameter [mm] :
82.5
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
23.5
Starter Type :
Self-supporting
Bore Diameter [mm] :
11
Bore Diameter 2 [mm] :
11
Length [mm] :
247
Position/Degree :
rechts
Jaw opening angle measurement [Degree] :
185
- Vendor BOSCH
- SKU 1986S00756
- MAGIRUS-DEUTZ : 01180180 01180995 02934613 11180180 118 0180 118 0995 293 4613
- VOLVO : 9002904386
- VW : 069 911 023 F
- LISTER : 18230N
- APEC : ASM1001
- BOSCH : 0 986 018 290
- Carwood Group : BREF0320986018290
- Carwood Group : BREF032111855
- Carwood Group : BREF0321986S00756
- HELLA : 8EA 015 642-011
- NAPA : NSM1001
- WAI : 18230N
- WAI : S133.231
- BOSCH : ST 12V 2,5KW (R)
