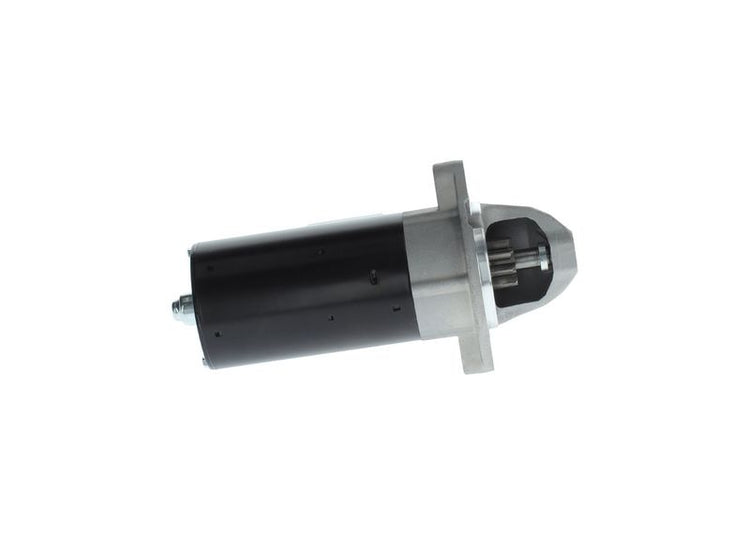

Bosch 1986S00764 Starter - 1

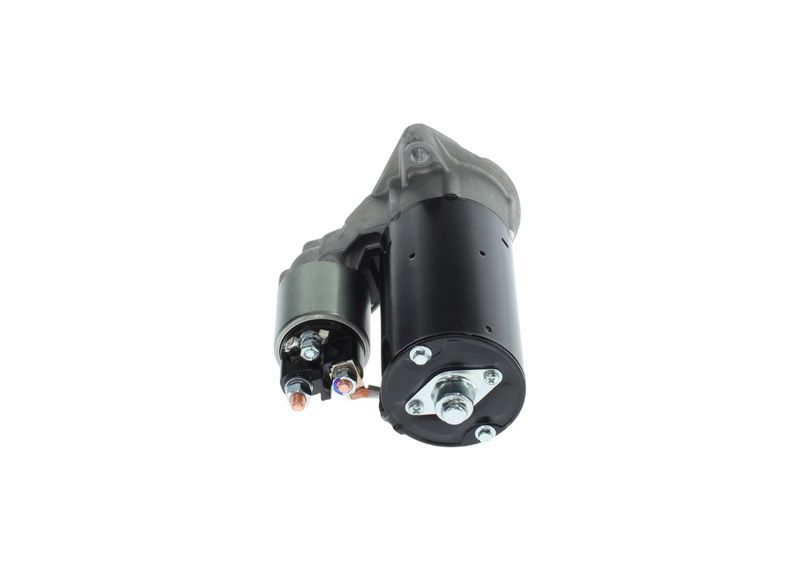

Bosch 1986S00764 Starter - 2

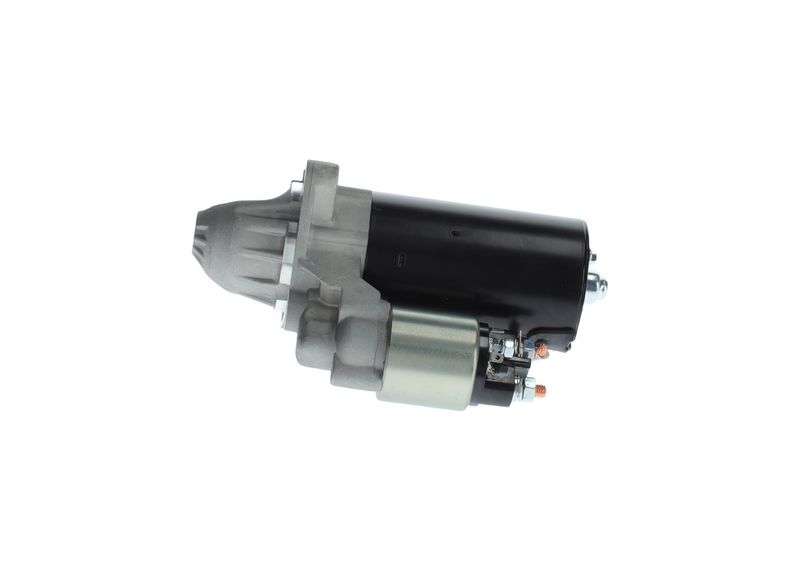

Bosch 1986S00764 Starter - 3

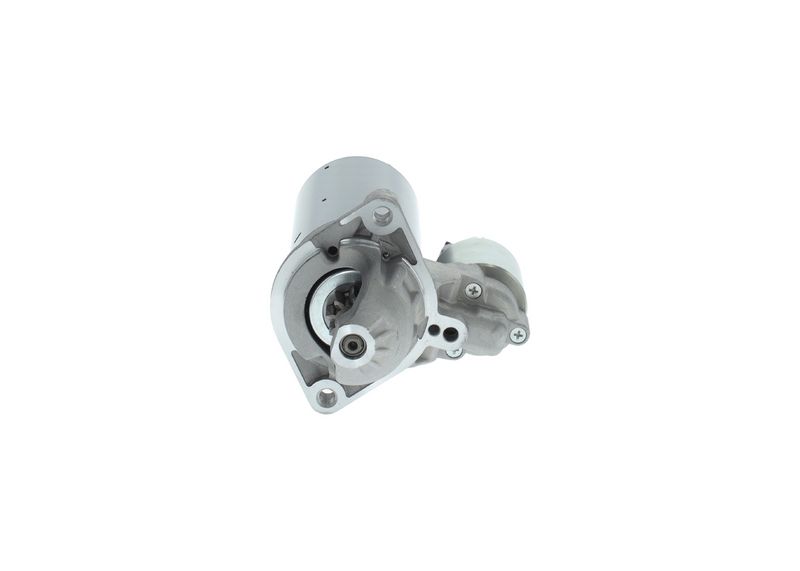

Bosch 1986S00764 Starter - 4

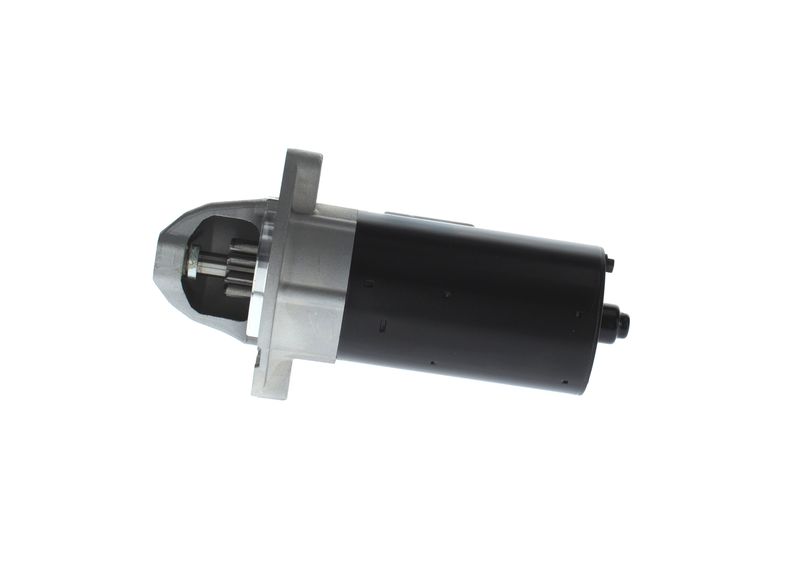

Bosch 1986S00764 Starter - 5

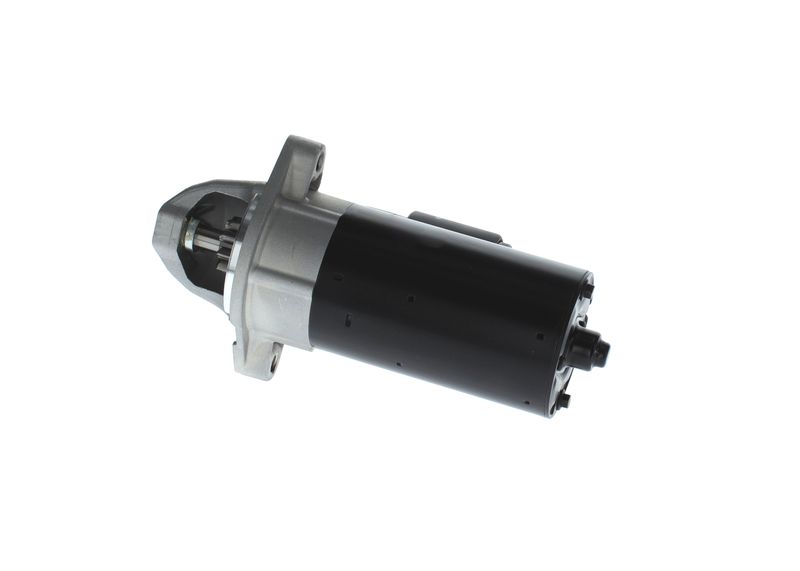

Bosch 1986S00764 Starter - 6
Bosch 1986S00764 Starter - 1
Bosch 1986S00764 Starter - 2
Bosch 1986S00764 Starter - 3
Bosch 1986S00764 Starter - 4
Bosch 1986S00764 Starter - 5
Bosch 1986S00764 Starter - 6
BOSCH

Bosch 1986S00764 Starter Motor

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 1986S00764

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Out of stock
Out of Stock
£167.54 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

BMW
1 (E87)
Description Cylinder Capacity Horse Power Year
118 d 1995 CCM 122 HP 06/2004 - 02/2007
3 (E90)
Description Cylinder Capacity Horse Power Year
320 d 1995 CCM 163 HP 12/2004 - 10/2011
318 d 1995 CCM 122 HP 03/2005 - 08/2007
330 d 2993 CCM 231 HP 09/2005 - 09/2008
330 xd 2993 CCM 231 HP 09/2005 - 08/2008
335 d 2993 CCM 286 HP 09/2006 - 12/2011
3 Touring (E91)
Description Cylinder Capacity Horse Power Year
320 d 1995 CCM 163 HP 06/2005 - 06/2012
330 d 2993 CCM 231 HP 12/2004 - 08/2008
330 xd 2993 CCM 231 HP 09/2005 - 06/2012
318 d 1995 CCM 122 HP 09/2005 - 08/2007
3 Coupe (E92)
Description Cylinder Capacity Horse Power Year
335 d 2993 CCM 286 HP 03/2006 - 03/2013
330 d 2993 CCM 231 HP 03/2006 - 08/2008
330 xd 2993 CCM 231 HP 03/2006 - 08/2008
325 d 2993 CCM 197 HP 02/2007 - 02/2010
3 Convertible (E93)
Description Cylinder Capacity Horse Power Year
330 d 2993 CCM 231 HP 03/2007 - 12/2013
325 d 2993 CCM 197 HP 03/2007 - 12/2010
5 (E60)
Description Cylinder Capacity Horse Power Year
520 d 1995 CCM 163 HP 09/2005 - 12/2009
530 d 2993 CCM 231 HP 09/2005 - 03/2007
5 Touring (E61)
Description Cylinder Capacity Horse Power Year
530 d 2993 CCM 231 HP 02/2005 - 02/2007
530 xd 2993 CCM 231 HP 02/2005 - 02/2007
520 d 1995 CCM 163 HP 04/2005 - 05/2010
6 (E63)
Description Cylinder Capacity Horse Power Year
635 d 2993 CCM 286 HP 07/2007 - 07/2010
6 Convertible (E64)
Description Cylinder Capacity Horse Power Year
635 d 2993 CCM 286 HP 07/2007 - 07/2010
7 (E65, E66, E67)
Description Cylinder Capacity Horse Power Year
730 Ld 2993 CCM 231 HP 07/2005 - 08/2008
X3 (E83)
Description Cylinder Capacity Horse Power Year
xDrive 30 d 2993 CCM 211 HP 09/2008 - 08/2010
3.0 d 2993 CCM 218 HP 09/2005 - 08/2008
3.0 sd 2993 CCM 286 HP 09/2006 - 08/2008
X5 (E70)
Description Cylinder Capacity Horse Power Year
3.0 d 2993 CCM 235 HP 12/2006 - 09/2008
3.0 sd 2993 CCM 286 HP 10/2007 - 09/2008
xDrive 30 d 2993 CCM 235 HP 10/2008 - 03/2010
xDrive 35 d 2993 CCM 286 HP 10/2008 - 07/2013
3.0 3.0d 2993 CCM 211 HP 02/2007 - 09/2008
X6 (E71, E72)
Description Cylinder Capacity Horse Power Year
xDrive 30 d 2993 CCM 235 HP 04/2008 - 03/2010
xDrive 35 d 2993 CCM 286 HP 01/2008 - 03/2010

The Bosch 1986S00764 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.8 kW rated power, 9 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 1.8
Number of mounting bores : 1
Number of threaded holes : 2
Number of Teeth : 9
Clamp : 30,50
Flange Diameter [mm] : 74
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 21
Starter Type : Self-supporting
Thread Size 1 : M10x1.5
Thread Size 2 : M10x1.5
Bore Diameter [mm] : 8
Length [mm] : 235
Position/Degree : mittig
Jaw opening angle measurement [Degree] : 90
for OE number : 12 41 7 796 892
Construction Year from : 09.2004
Engine Code : M47 D20 (204D4)
Construction Year to : 03.2007
  • Vendor BOSCH
  • SKU 1986S00764
  • Barcode 4047023070937
  • BMW : 12 41 7 794 952 12 41 7 796 892 12 41 7 798 035 12 41 7 798 036
  • STEYR : 7794952 7796892
  • APEC : ASM1060
  • BOSCH : 0 986 021 230
  • Carwood Group : BREF0320986021230
  • Carwood Group : BREF032114091
  • Carwood Group : BREF0321986S00764
  • DENSO : DSN3106
  • FEBI BILSTEIN : 101626
  • HELLA : 8EA 012 527-951
  • LUCAS : LRS02224
  • NAPA : NSM1060
  • WAI : 32802N
  • WAI : S131.954
  • BOSCH : ST 12V 1,8KW (R)
