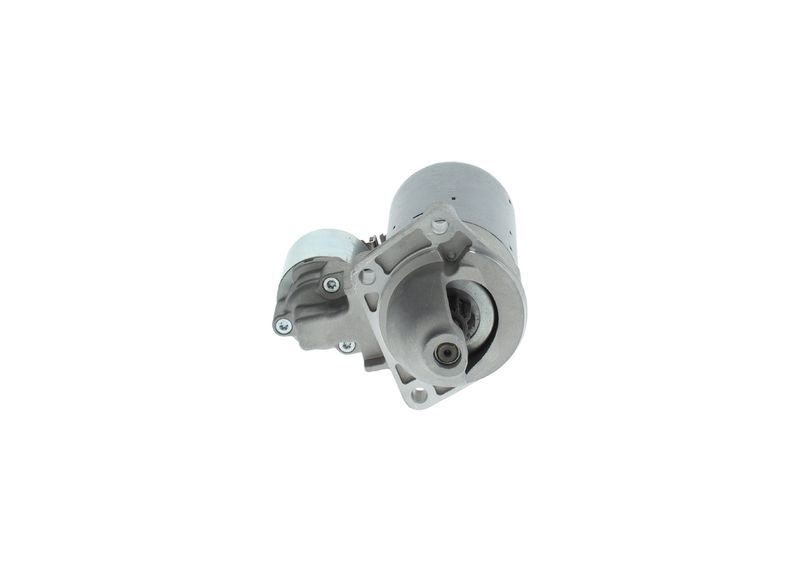

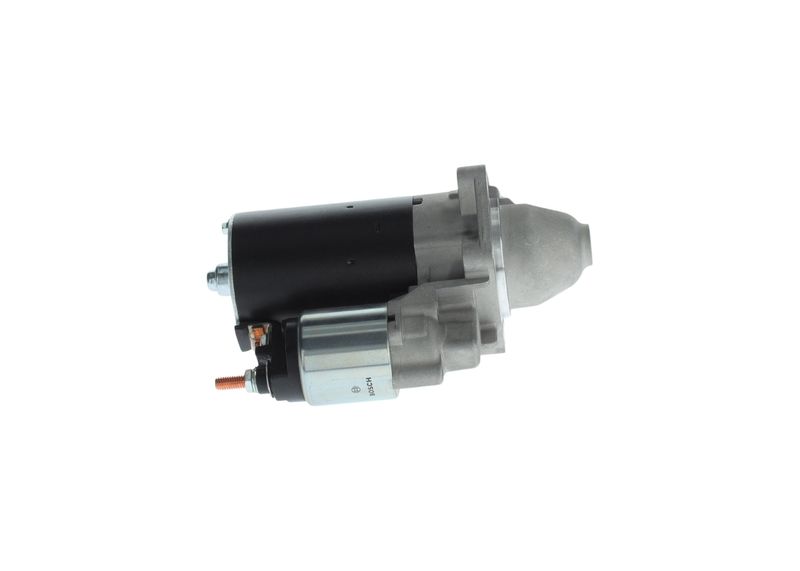

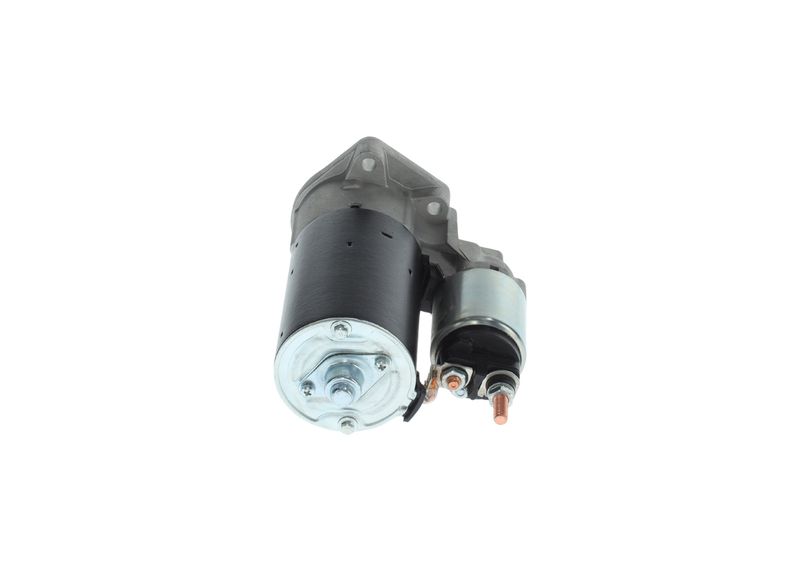

Bosch 1986S00826 Starter Motor

SKU: 1986S00826

Your selected vehicle

Out of stock

Out of Stock

£175.13 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

ALFA ROMEO

MITO (955_)

Description	Cylinder Capacity	Horse Power	Year
0.9 TwinAir (955.AXW1B)	875 CCM	86 HP	07/2011 - 12/2013

FIAT

500 (312_)

Description	Cylinder Capacity	Horse Power	Year
0.9 (312AXG1A, 312.AXG11)	875 CCM	86 HP	From 07/2010
0.9 (312AXH1A)	964 CCM	65 HP	From 09/2012
0.9 (312AXM1B)	875 CCM	105 HP	From 10/2013
0.9 (312AXP1A)	964 CCM	60 HP	From 12/2013
0.9 (312AXN1A)	875 CCM	80 HP	From 12/2013

500 C (312_)

Description	Cylinder Capacity	Horse Power	Year
0.9 (312AG1A)	875 CCM	86 HP	From 09/2009
0.9 (312AXH1A)	964 CCM	65 HP	From 09/2012
0.9 (312AXM1B)	875 CCM	105 HP	From 12/2013
0.9 (312AXN1A, 312AXN11)	875 CCM	80 HP	From 12/2013
0.9 (312AXP1A)	964 CCM	60 HP	From 12/2013

500L (351_, 352_)

Description	Cylinder Capacity	Horse Power	Year
0.9 (199LYC1B)	875 CCM	105 HP	From 09/2012
0.9 Natural Power (199LYC1B)	875 CCM	86 HP	From 03/2013
0.9 Natural Power (199LYC1B)	875 CCM	80 HP	From 04/2017

PANDA (312_, 319_)

Description	Cylinder Capacity	Horse Power	Year
0.9 (312PXG1A)	875 CCM	86 HP	From 02/2012
0.9 (312PXH1A)	964 CCM	65 HP	From 02/2012
0.9 (312PXN1A, 312PXN11)	875 CCM	78 HP	From 02/2012
0.9 Natural Power (312PXG1A, 312PYC1A)	875 CCM	86 HP	From 07/2012
0.9 4x4 (312PXG1A)	875 CCM	86 HP	From 09/2012
0.9 (312PXP1A)	964 CCM	60 HP	From 12/2013
0.9 (312PXN1A, 312PXN11)	875 CCM	80 HP	From 12/2013
0.9 4x4 (312PXR2B)	875 CCM	90 HP	From 06/2014
0.9 Natural Power (312PXN1A)	875 CCM	80 HP	From 01/2015

PANDA VAN (312_, 519_)

Description	Cylinder Capacity	Horse Power	Year
0.9 (312CXH1A, 312DXH1A)	964 CCM	65 HP	From 02/2012
0.9 4x4 (312CXG2B)	875 CCM	86 HP	From 09/2012
0.9 Natural Power (312DXG1A)	875 CCM	86 HP	From 07/2012

PUNTO Hatchback Van (199_)

Description	Cylinder Capacity	Horse Power	Year
0.9 Twinair Turbo	875 CCM	86 HP	From 03/2012

PUNTO (199_)

Description	Cylinder Capacity	Horse Power	Year
0.9 Bifuel	875 CCM	86 HP	From 03/2012
0.9 Twinair Turbo	875 CCM	86 HP	From 03/2012
0.9	875 CCM	105 HP	From 07/2013
0.9	875 CCM	101 HP	From 12/2013

LANCIA

YPSILON (312_)

Description	Cylinder Capacity	Horse Power	Year
0.9 CNG (312.YXG1A)	875 CCM	86 HP	From 05/2011
0.9 TwinAir (312.YXN11, 312.YXN1A)	875 CCM	80 HP	12/2013 - 12/2018

The Bosch 1986S00826 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.1 kW rated power, 10 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter

Voltage [V] : 12

Rated Power [kW] : 1.1

Number of mounting bores : 3

Number of threaded holes : 0

Number of Teeth : 10

Clamp : 30,50

Flange Diameter [mm] : 76.2

Rotation Direction : Clockwise rotation

Pinion Rest Position [mm] : 19.8

Starter Type : Self-supporting

Bore Diameter [mm] : 8.5

Bore Diameter 2 [mm] : 8.5

Bore Ø 3 [mm] : 8.5

Length [mm] : 216

Position/Degree : rechts

Mounting Angle [degrees] : 38

Jaw opening angle measurement [Degree] : 90

Mounting bore angle measurement [degree] : 38
