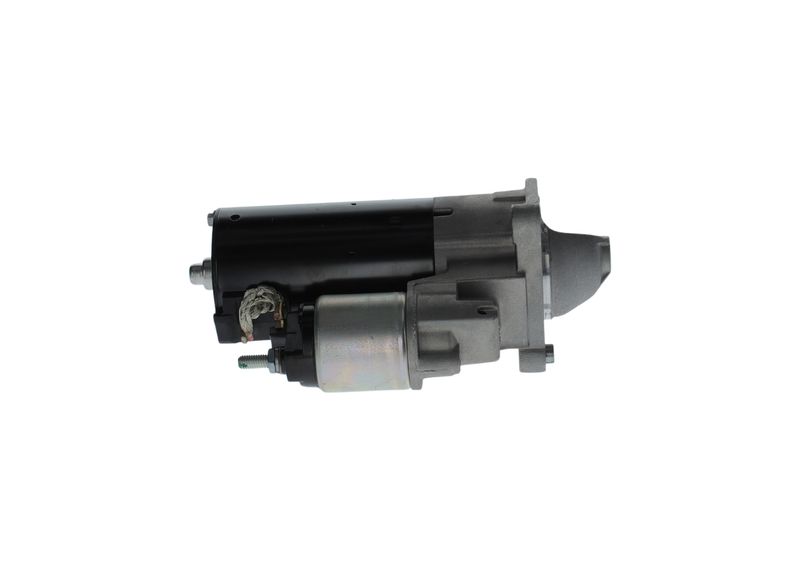

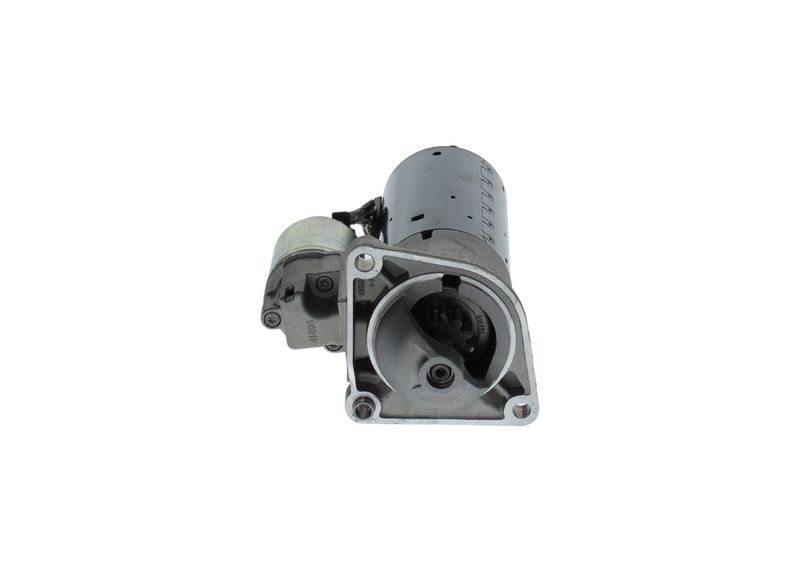

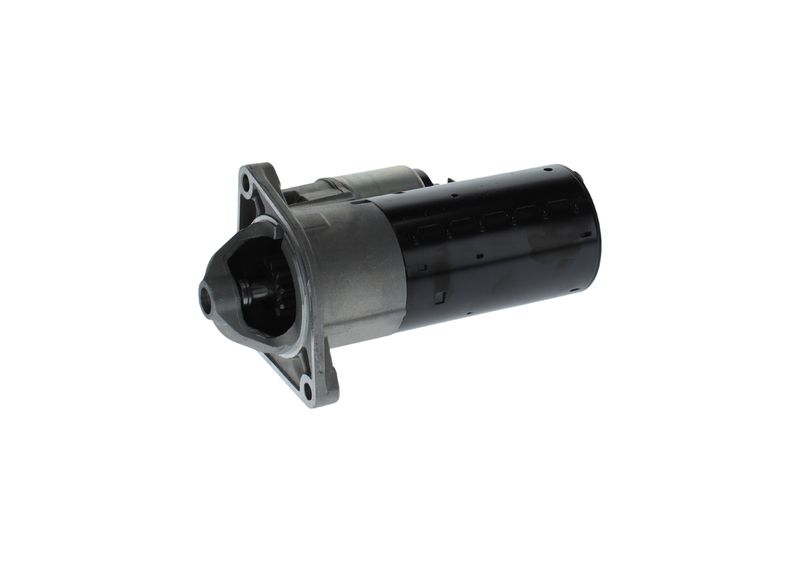

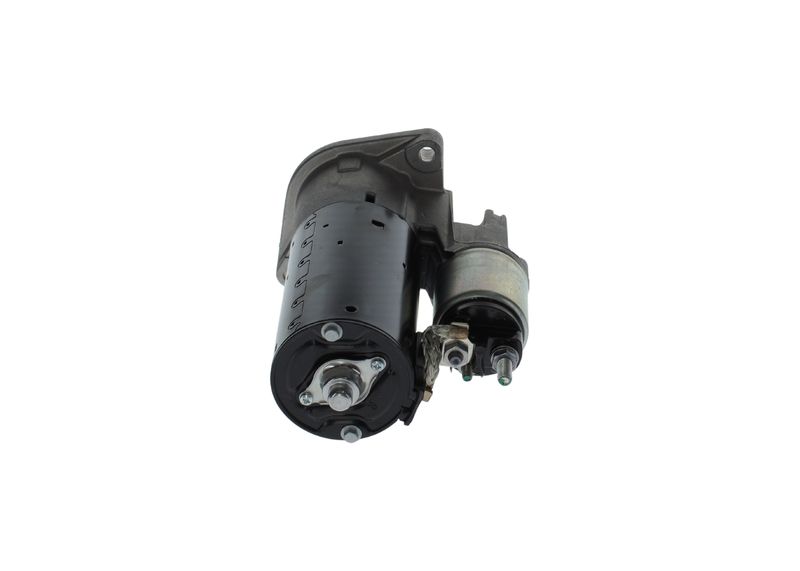

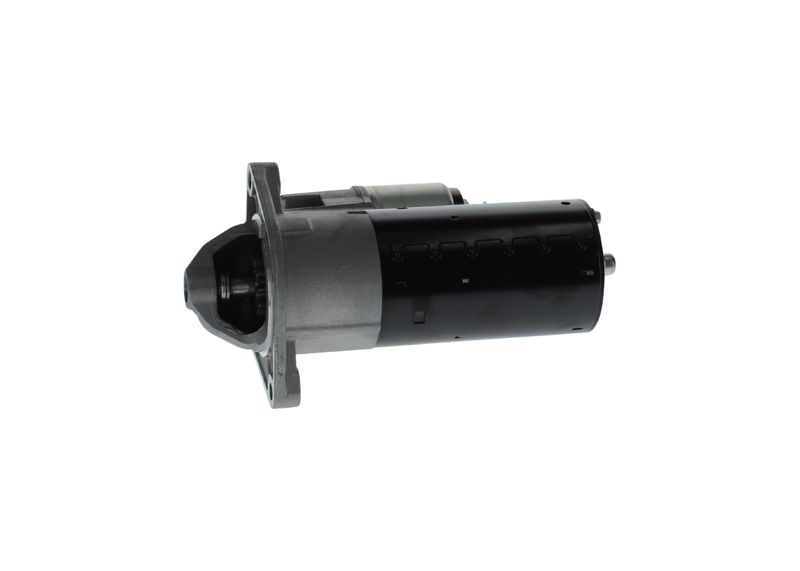

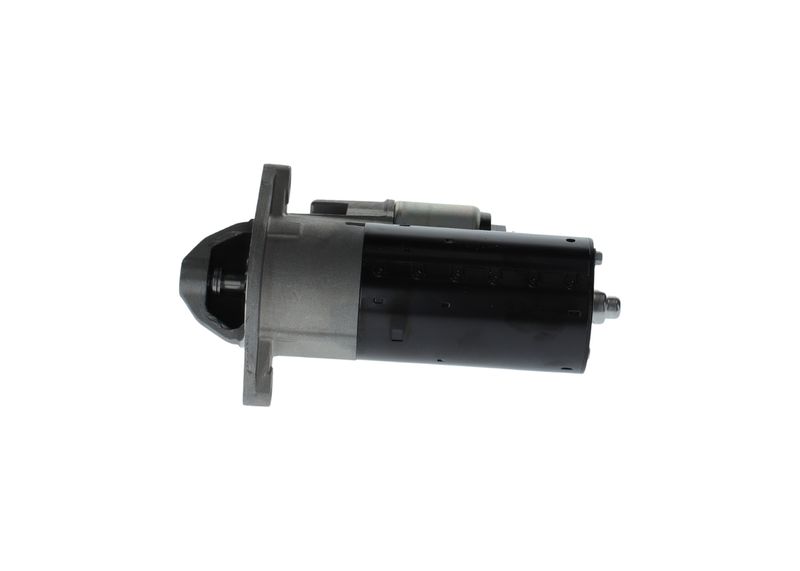

Bosch 1986S00839 Starter Motor
Your selected vehicle
Regular price
£250.95
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 1986S00839 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2.2 kW rated power, 10 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
2.2
Number of mounting bores :
3
Number of threaded holes :
0
Number of Teeth :
10
Clamp :
30,50
Flange Diameter [mm] :
82
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
3.1
Starter Type :
Self-supporting
Bore Diameter [mm] :
8.5
Bore Diameter 2 [mm] :
9
Bore Ø 3 [mm] :
9
Length [mm] :
244
Position/Degree :
links
Mounting Angle [degrees] :
36
Jaw opening angle measurement [Degree] :
45
Mounting bore angle measurement [degree] :
36
Construction Year from :
05.2010
Construction Year to :
12.2014
- Vendor BOSCH
- SKU 1986S00839
- APEC : ASM1744
- BOSCH : 0 986 027 000
- Carwood Group : BREF0320986027000
- Carwood Group : BREF032116370
- Carwood Group : BREF0321986S00839
- HELLA : 8EA 011 612-861
- HELLA : 8EA 011 612-991
- NAPA : NSM1744
- VALEO : 438539
- VALEO : 438576
- WAI : 33122N
- WAI : S132.999
- BOSCH : ST 12V 2,5kW (R)
