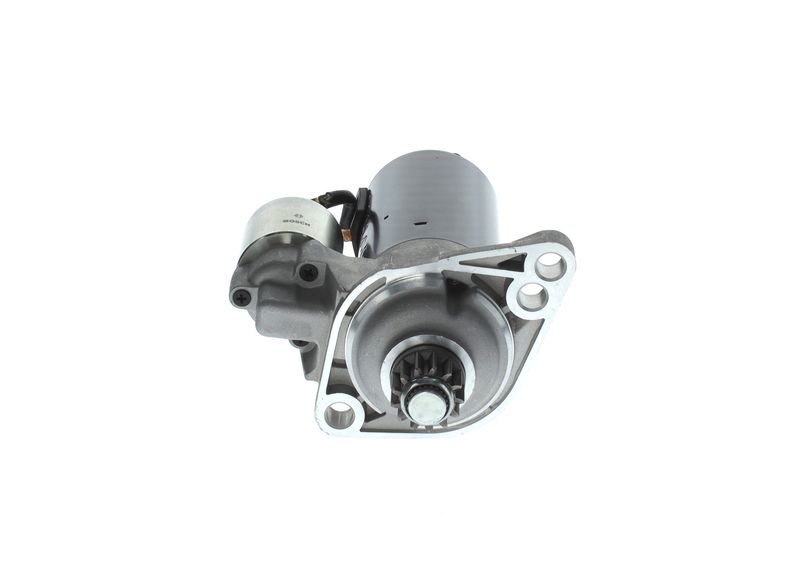

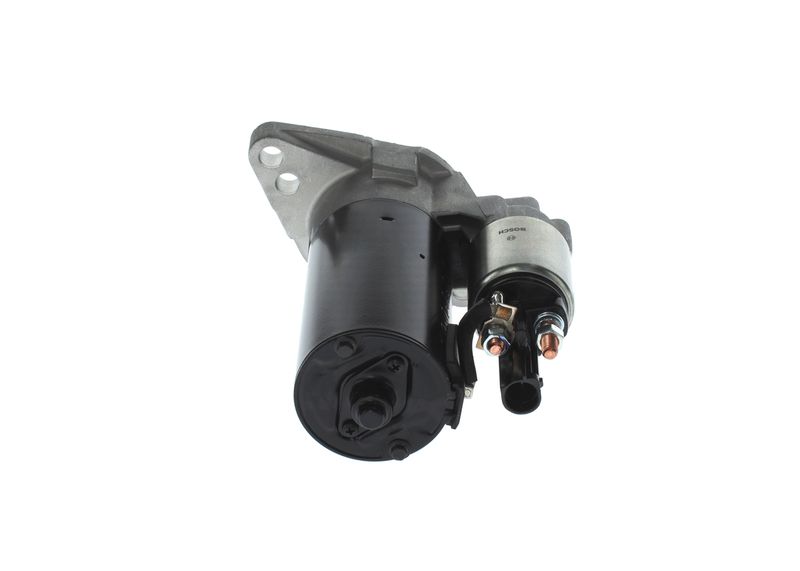

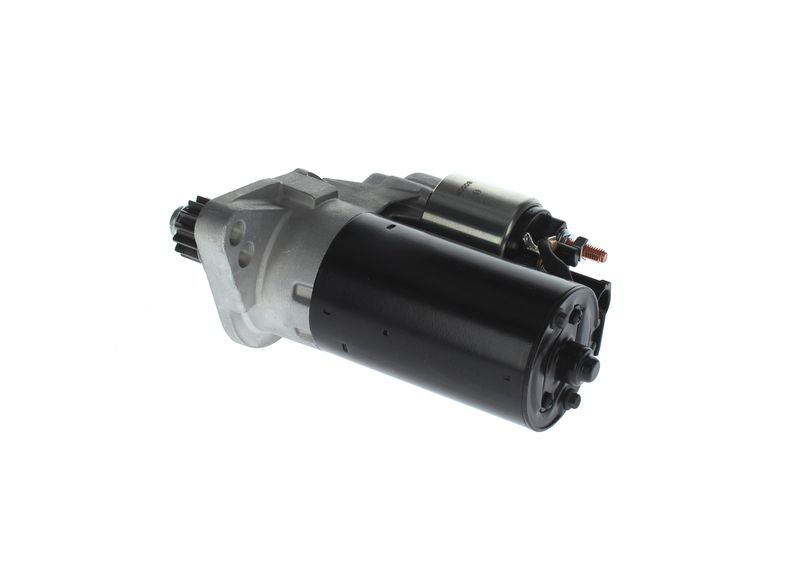

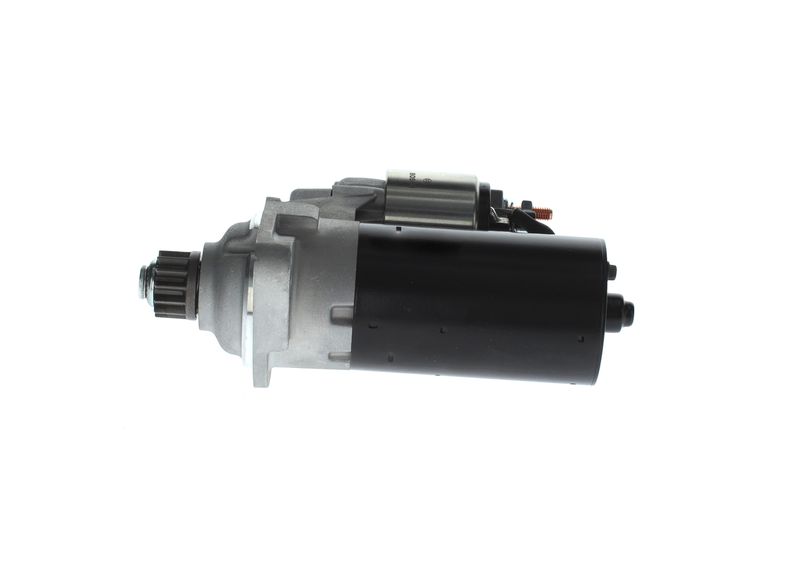

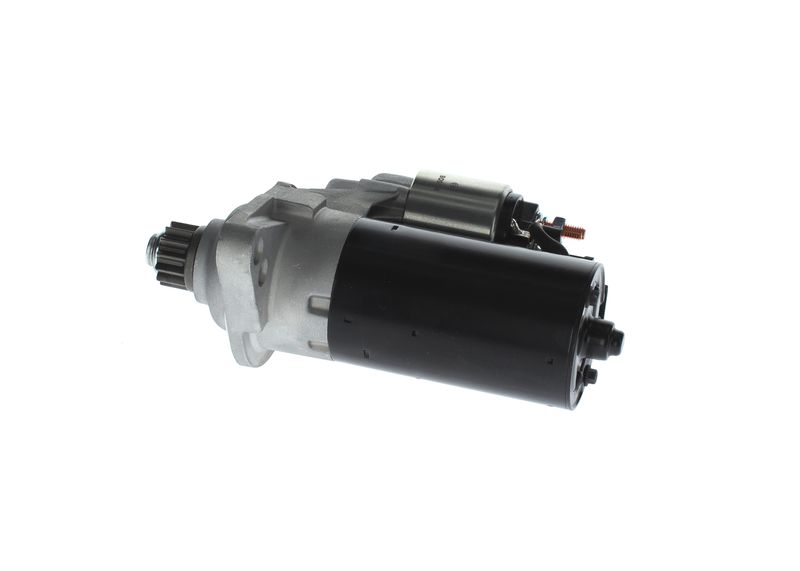

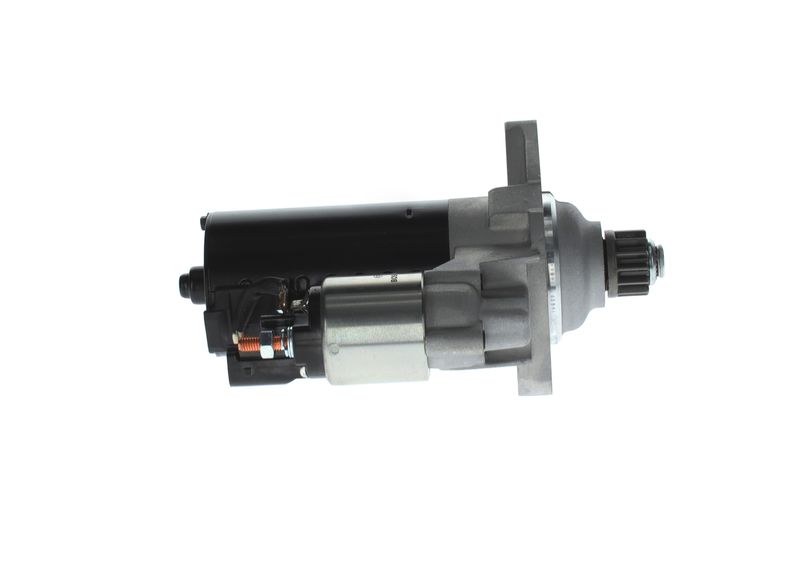

Bosch 1986S00870 Starter Motor
Your selected vehicle
Regular price
£187.85
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 1986S00870 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2.2 kW rated power, Floating pinion starter type, and manual Transmission transmission. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
2.2
Number of mounting bores :
2
Number of threaded holes :
0
Number of Teeth :
13
Clamp :
30,50
Flange Diameter [mm] :
79
Rotation Direction :
Anticlockwise rotation
Pinion Rest Position [mm] :
52.1
Starter Type :
Floating pinion
Bore Diameter [mm] :
12.5
Bore Diameter 2 [mm] :
12.5
Length [mm] :
246
Position/Degree :
links
Mounting Angle [degrees] :
46
Mounting bore angle measurement [degree] :
46
Transmission Type :
Manual Transmission
Vehicle Equipment :
for vehicles with start-stop function
- Vendor BOSCH
- SKU 1986S00870
- AUDI : 02Z 911 021 C 02Z 911 021 K 02Z 911 023 S 02Z 911 023 SX 02Z 911 024 A 02Z 911 024 B 02Z 911 024 H 02Z 911 024 L
- SEAT : 02Z 911 021 C 02Z 911 021 K 02Z 911 024 A 02Z 911 024 B 02Z 911 024 H 02Z 911 024 L
- SKODA : 02Z 911 021 C 02Z 911 021 K 02Z 911 024 A 02Z 911 024 B 02Z 911 024 H 02Z 911 024 L
- VW : 02Z 911 021 C 02Z 911 021 K 02Z 911 023 S 02Z 911 023 SX 02Z 911 024 A 02Z 911 024 B 02Z 911 024 H 02Z 911 024 HX 02Z 911 024 L 2X0911023
- BOSCH : ST 12V 2,2KW (L)
