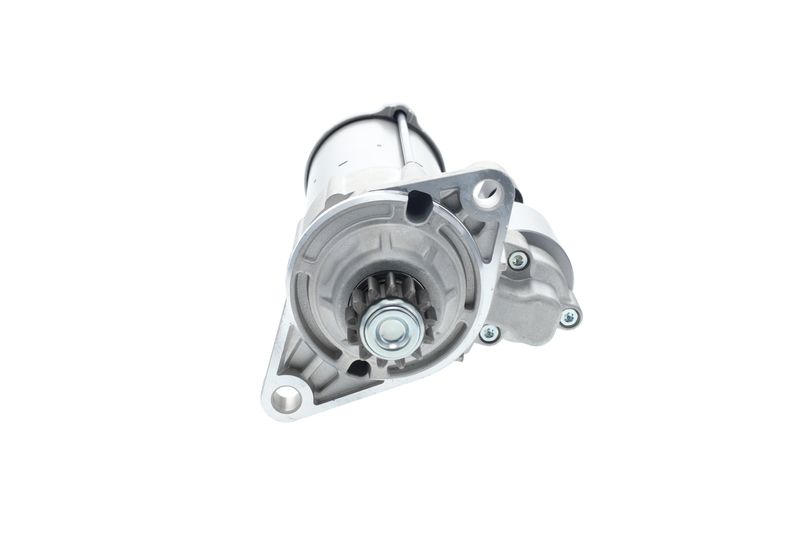

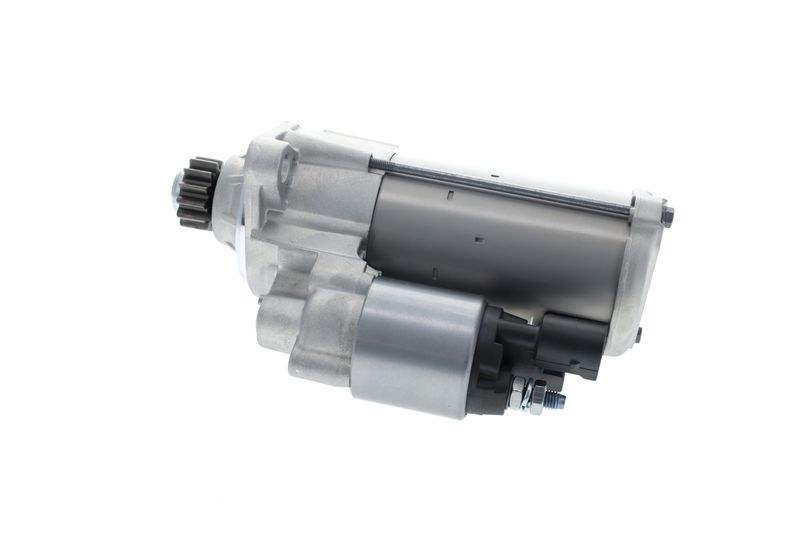

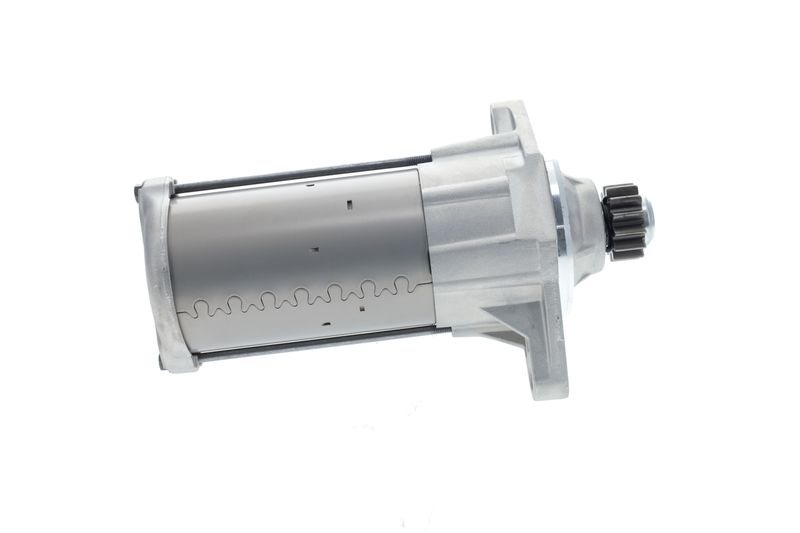

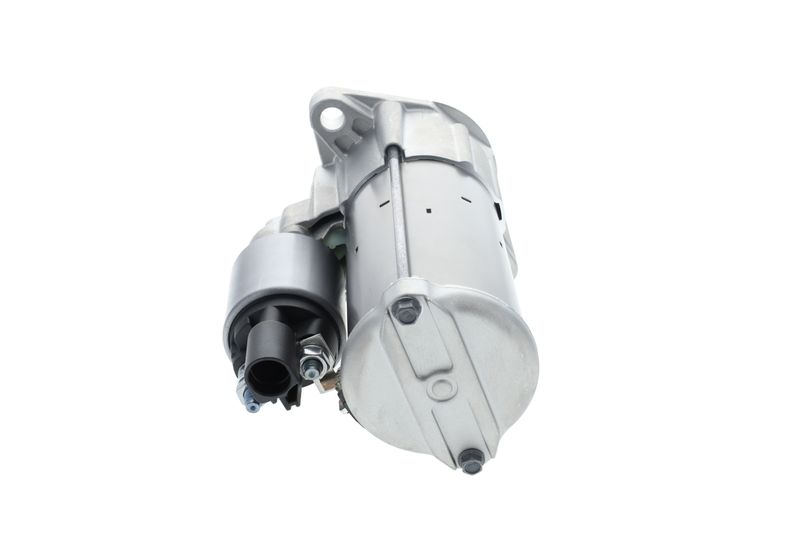

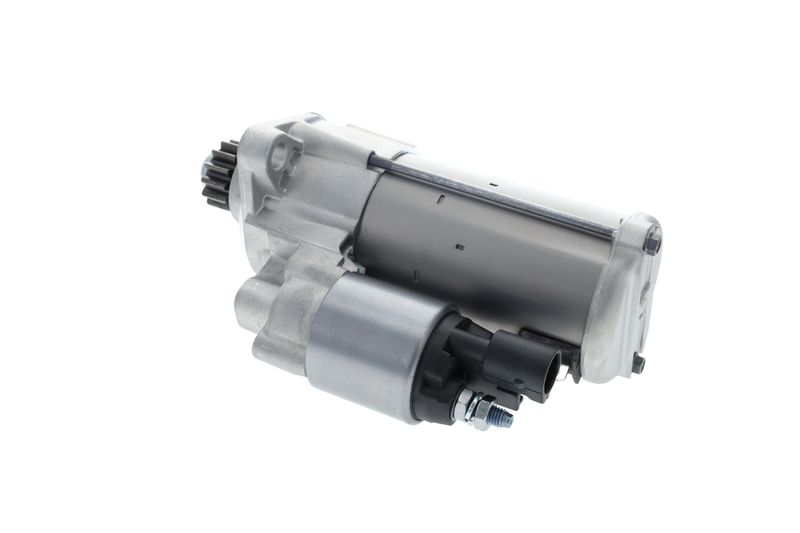

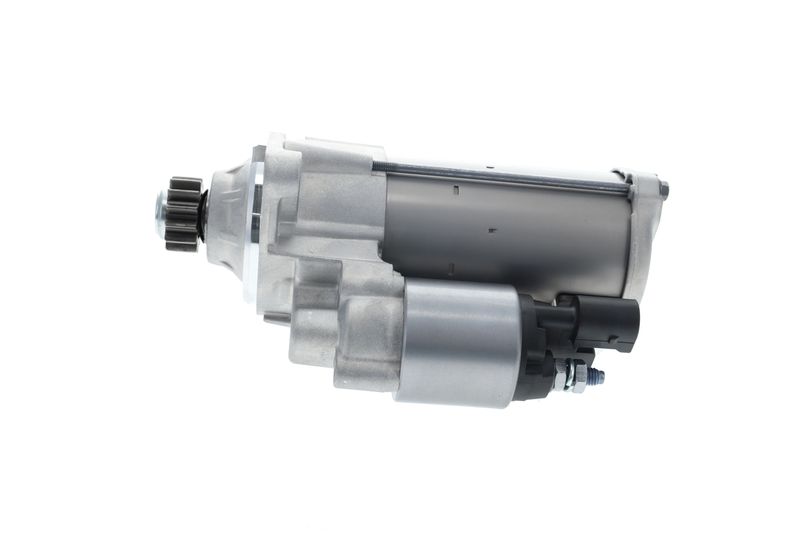

Bosch 1986S00886 Starter Motor
Your selected vehicle
Regular price
£218.09
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 1986S00886 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.5 kW rated power, 79 mm flange diameter, and 6-Speed Automatic Transmission transmission. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
1.5
Number of mounting bores :
2
Number of threaded holes :
63
Clamp :
30,50
Flange Diameter [mm] :
79
Rotation Direction :
Anticlockwise rotation
Pinion Rest Position [mm] :
42.42
Bore Diameter [mm] :
11
Bore Diameter 2 [mm] :
11
Length [mm] :
177
Position/Degree :
links
Mounting Angle [degrees] :
63
Mounting bore angle measurement [degree] :
63
Engine Code :
DKZC
Construction Year to :
11.2020
Transmission Type :
6-Speed Automatic Transmission
Manufacturer Restriction :
Bosch
- Vendor BOSCH
- SKU 1986S00886
- BOSCH : ST 12V 1,5KW (R)
