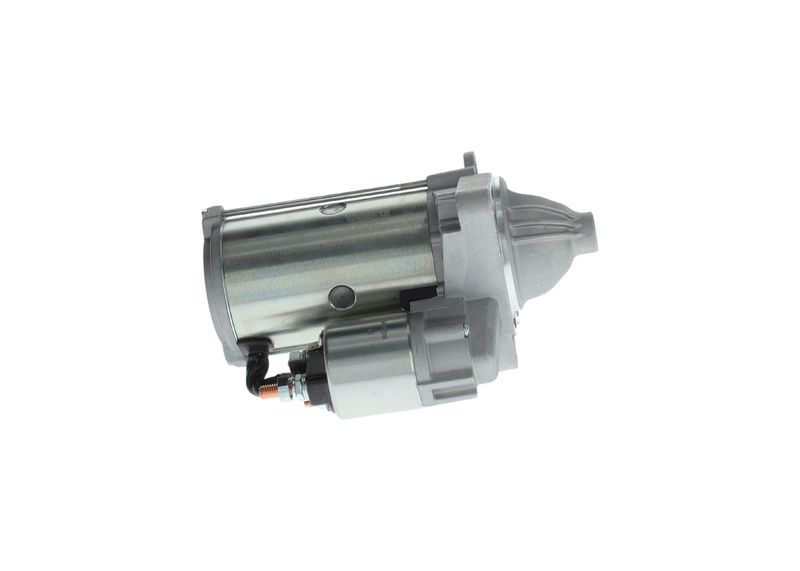

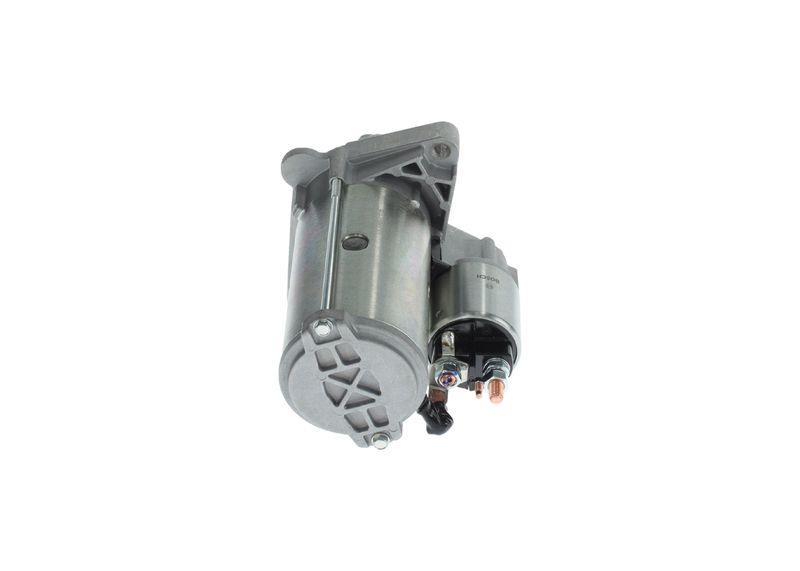

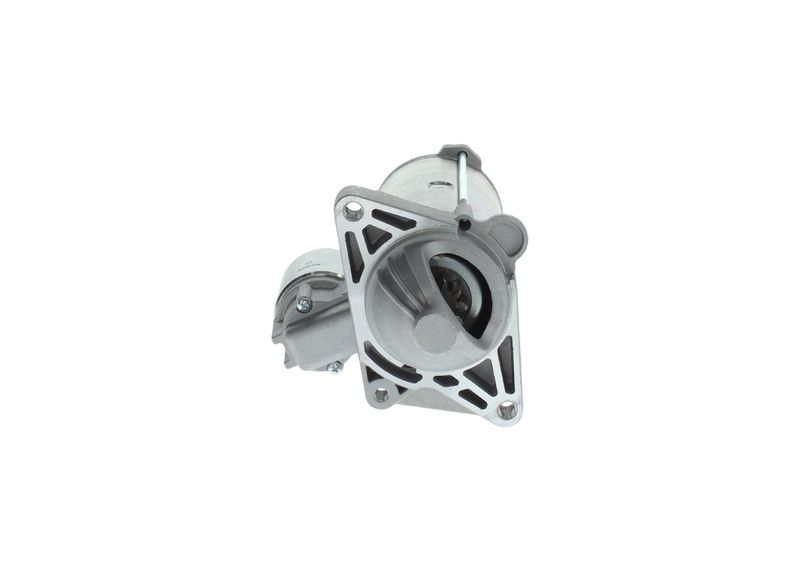

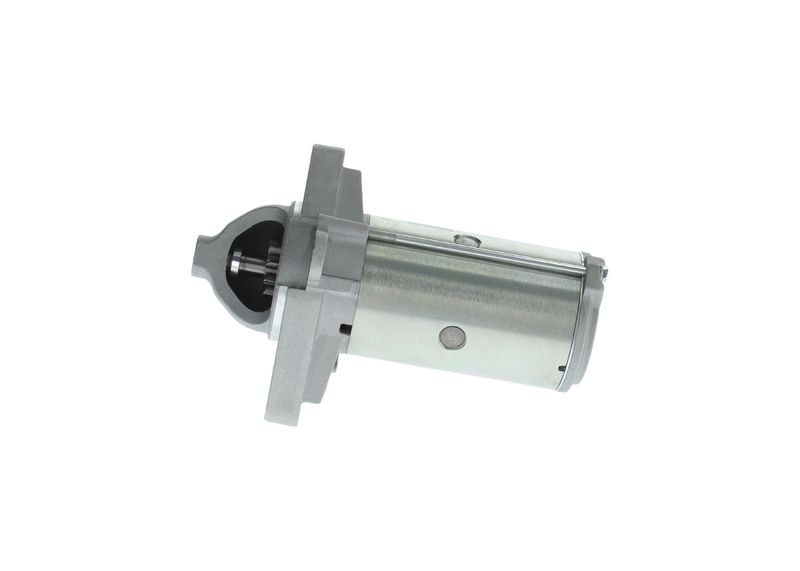

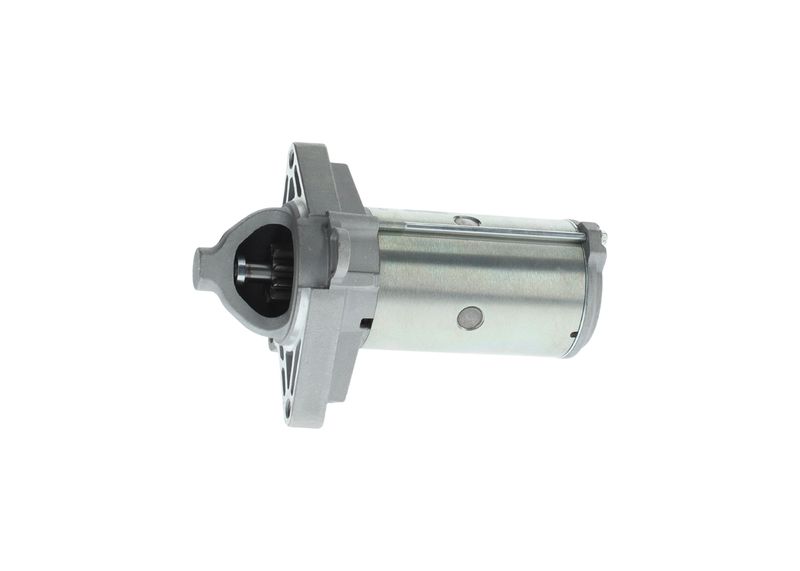

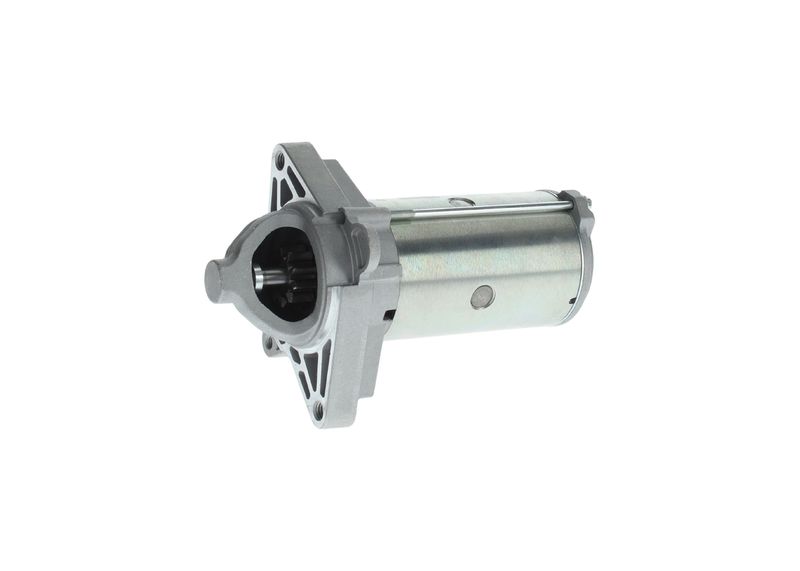

Bosch 1986S00926 Starter Motor
Your selected vehicle
Regular price
£186.09
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 1986S00926 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2.2 kW rated power, Self-supporting starter type, and automatic Transmission transmission. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
2.2
Number of mounting bores :
3
Number of threaded holes :
3
Number of Teeth :
10
Clamp :
30,50
Flange Diameter [mm] :
76.5
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
14.13
Starter Type :
Self-supporting
Thread Size :
M8x1,25
Thread Size 1 :
M10x1,5
Thread Size 2 :
M10x1,5
Length [mm] :
216
Position/Degree :
links
Mounting Angle [degrees] :
36
Jaw opening angle measurement [Degree] :
84
Mounting bore angle measurement [degree] :
36
Construction Year from :
11.2015
Construction Year to :
06.2019
Transmission Type :
Automatic Transmission
Engine Code :
YS23<dCi>
Construction Year from :
12.2015
Engine Code :
YS23DDTT
- Vendor BOSCH
- SKU 1986S00926
- NISSAN : 23300JG70A 23300JG70B 2330000QOA 2330000QOD 2330000Q0A 2330000Q0D 2330000Q3E 23300340A9 233003400A9
- OPEL : 44 16 774 44 17 538 44 21 624 44175380 93169459 93456401 93857703 93859136 93861155 93863426 95518998
- RENAULT : 23 30 0JG 70A 23 30 0JG 70B 23 30 001 57R 23 30 026 54R 23 30 033 30R 74 85 143 838 77 11 497 026 82 00 402 016 82 00 458 765 82 00 568 535 82 00 621 305 82 00 628 430 82 01 268 218 8200568535E 8200621305A
- VAUXHALL : R1530110 93456401 93857703 93859136 93863426 95518998
- BOSCH : ST 12V 2,2kW (R)
