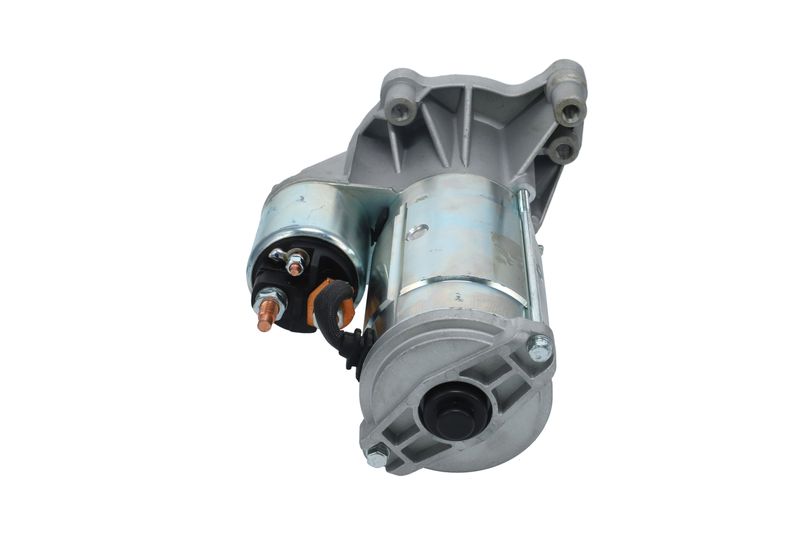

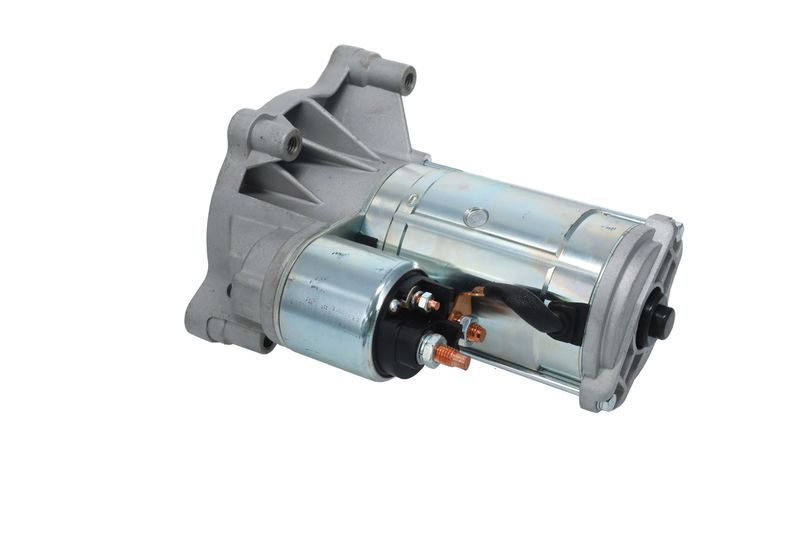

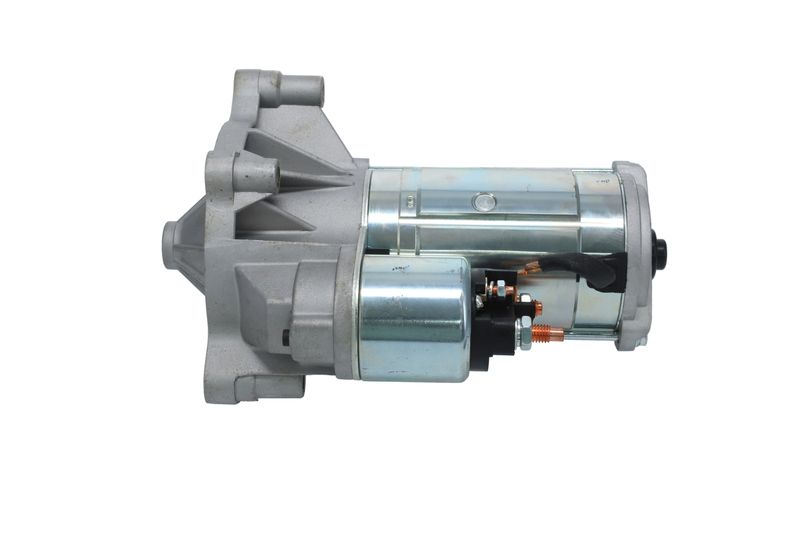

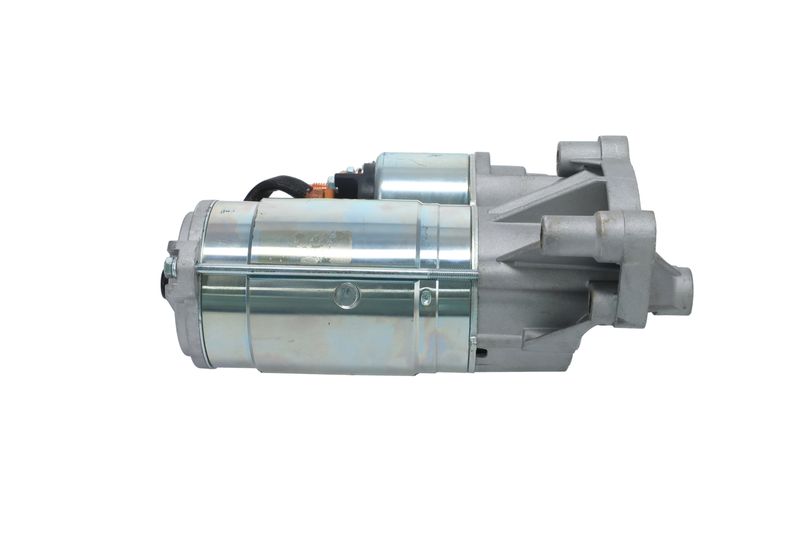

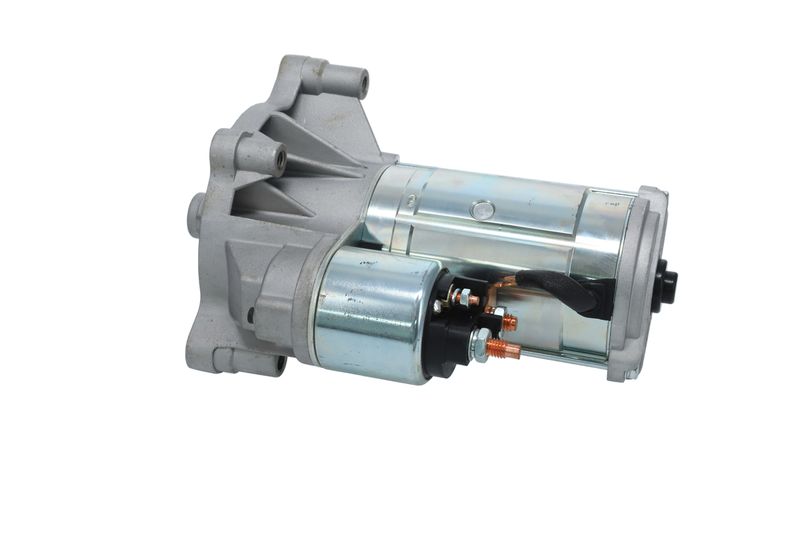

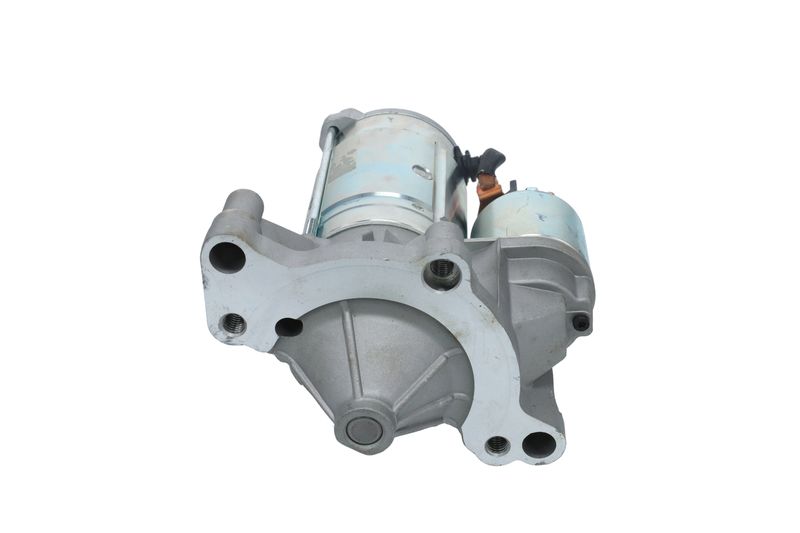

Bosch 1986S00928 Starter Motor
Your selected vehicle
Regular price
£218.72
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 1986S00928 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2.5 kW rated power, Floating pinion starter type, and automatic Transmission transmission. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
2.5
Number of mounting bores :
0
Number of threaded holes :
3
Number of Teeth :
11
Clamp :
30,50
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
-5
Starter Type :
Floating pinion
Thread Size :
M10x1.5
Thread Size 1 :
M10x1.5
Thread Size 2 :
M10x1.5
Length [mm] :
238
Position/Degree :
links
Mounting Angle [degrees] :
58
Jaw opening angle measurement [Degree] :
34
Mounting bore angle measurement [degree] :
58
Construction Year to :
12.2011
Transmission Type :
Automatic Transmission
- Vendor BOSCH
- SKU 1986S00928
- BOSCH : ST 12V 2,5kW (R)
