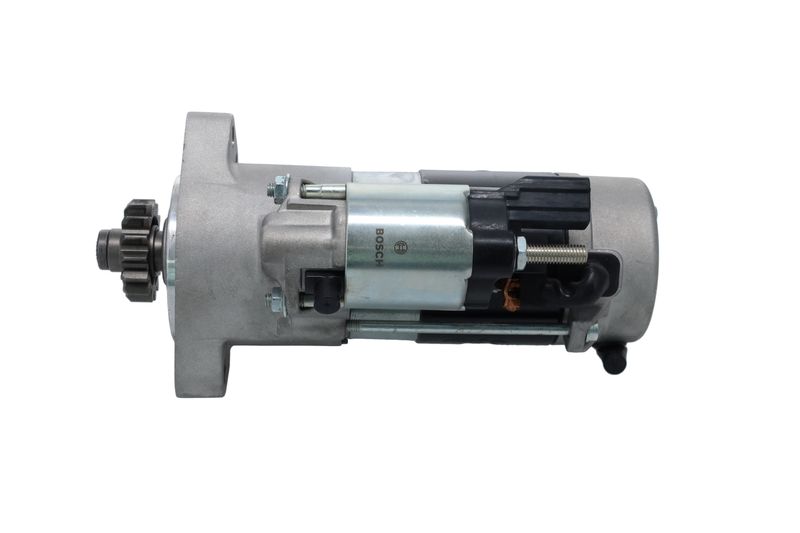

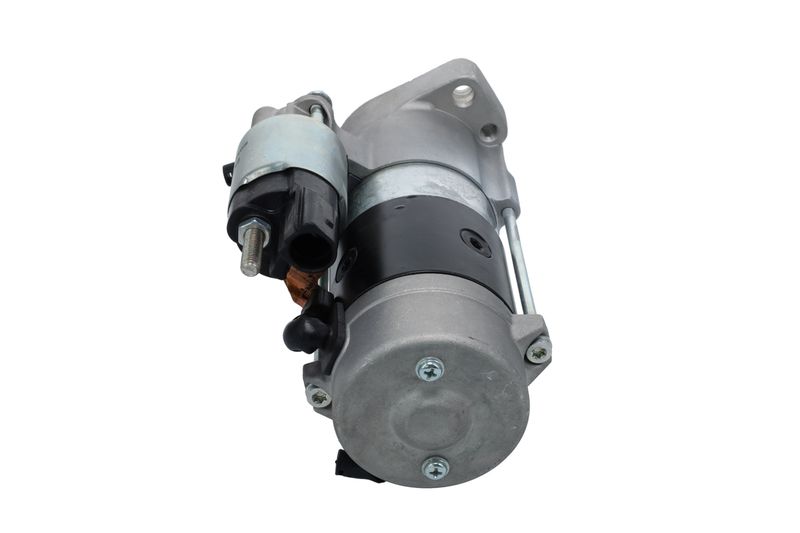

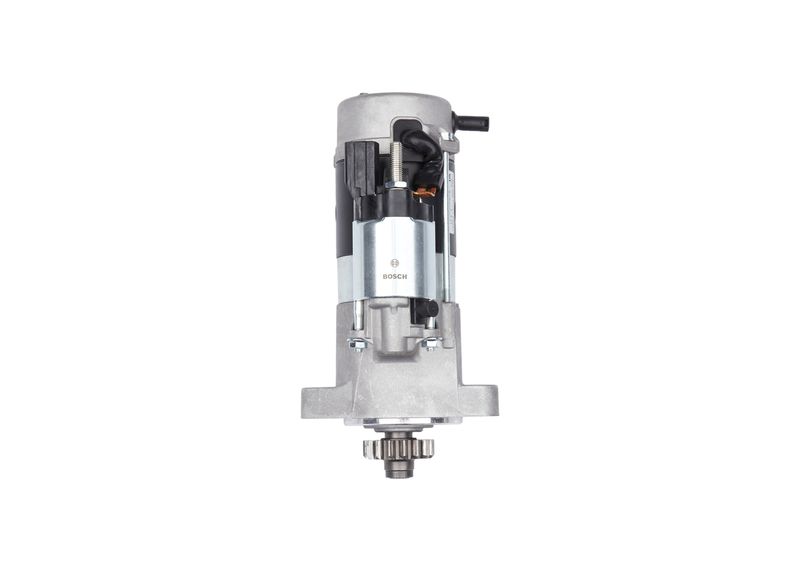

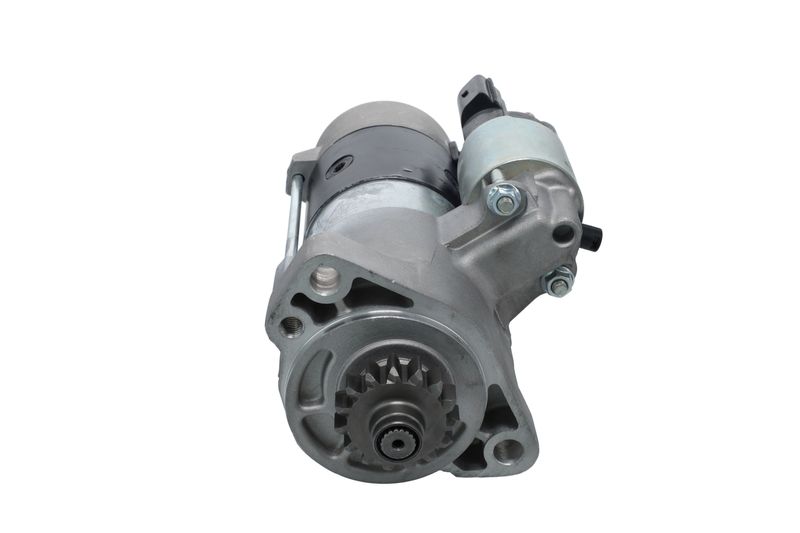

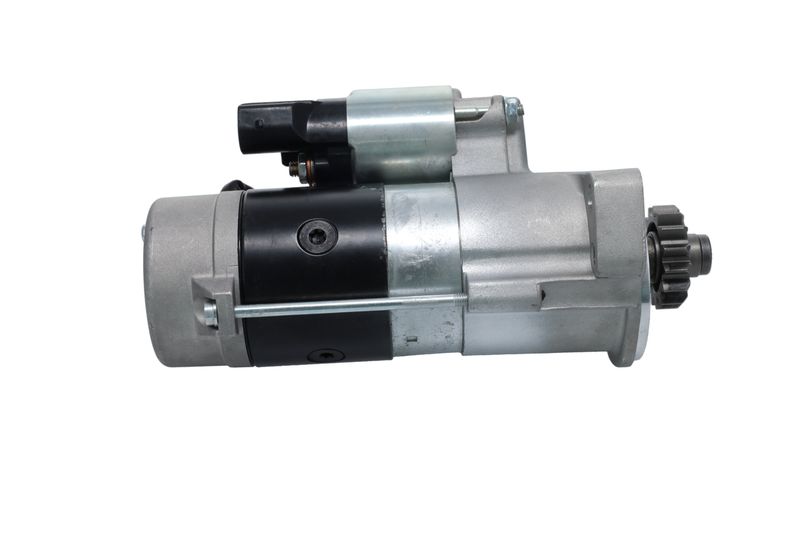

Bosch 1986S00978 Starter Motor
Your selected vehicle
Regular price
£234.77
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 1986S00978 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2 kW rated power, 15 teeth, and Floating pinion starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
2
Number of mounting bores :
2
Number of threaded holes :
1
Number of Teeth :
15
Clamp :
30,50
Flange Diameter [mm] :
76.2
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
26
Starter Type :
Floating pinion
Thread Size 2 :
M10x1.5
Bore Diameter [mm] :
11.5
Bore Diameter 2 [mm] :
11
Length [mm] :
247
Position/Degree :
rechts
Manufacturer Restriction :
DENSO
Engine Code :
CJGA
Construction Year from :
05.2010
Construction Year to :
05.2011
Engine Code :
CNRB
Construction Year from :
05.2012
Vehicle Equipment :
for vehicles with start-stop function
Engine Code :
CJGD
Engine Code :
CLZB
Engine Code :
CRCA
- Vendor BOSCH
- SKU 1986S00978
- AUDI : 059 911 024 K
- PORSCHE : 958 604 109 00
- VW : 059 911 024 K
- APEC : ASM1641
- BOSCH : 0 986 027 710
- Carwood Group : BREF032116000
- Carwood Group : BREF0321986S00978
- FEBI BILSTEIN : 197122
- NAPA : NSM1641
- VALEO : 445653
- WAI : 19989N
- WAI : S132.402
- BOSCH : ST 12V 2KW (R)
