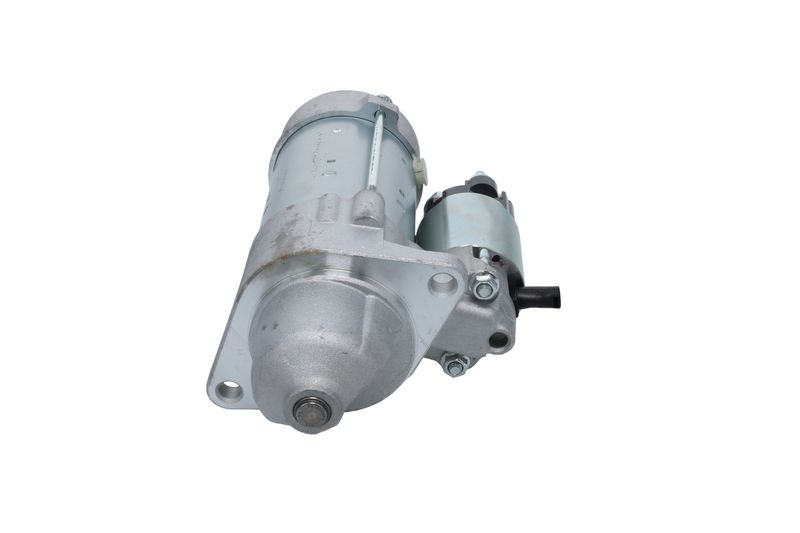

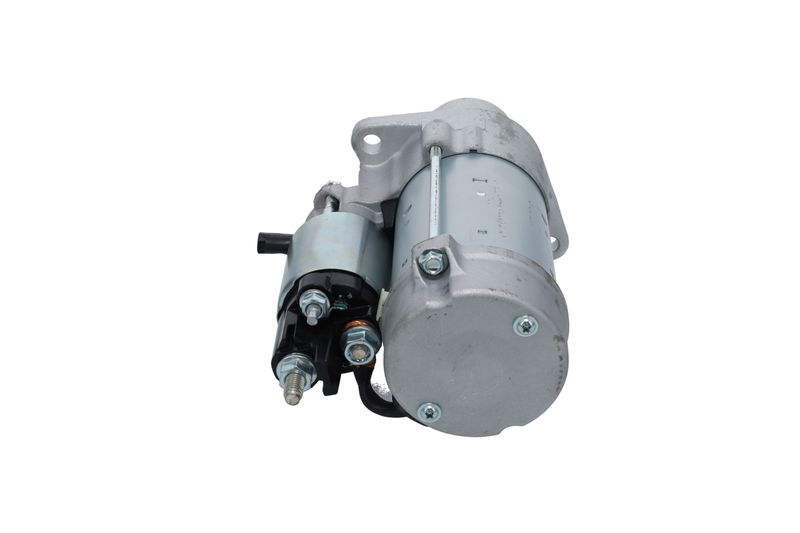

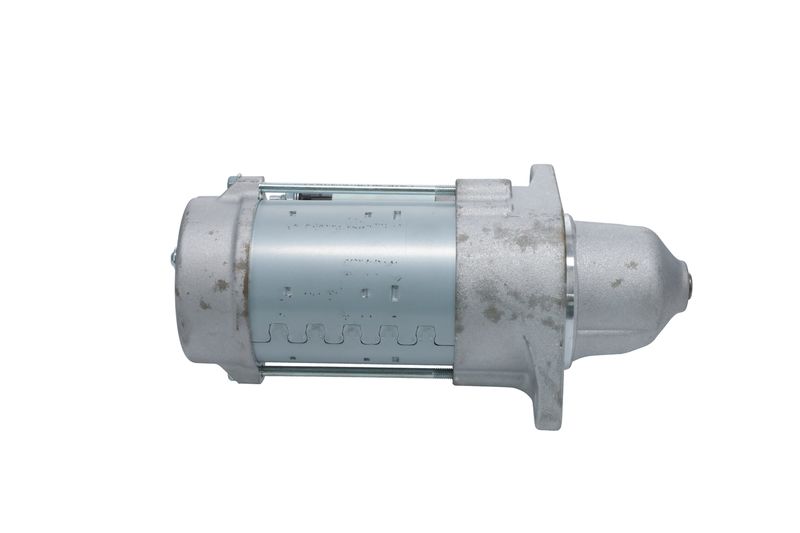

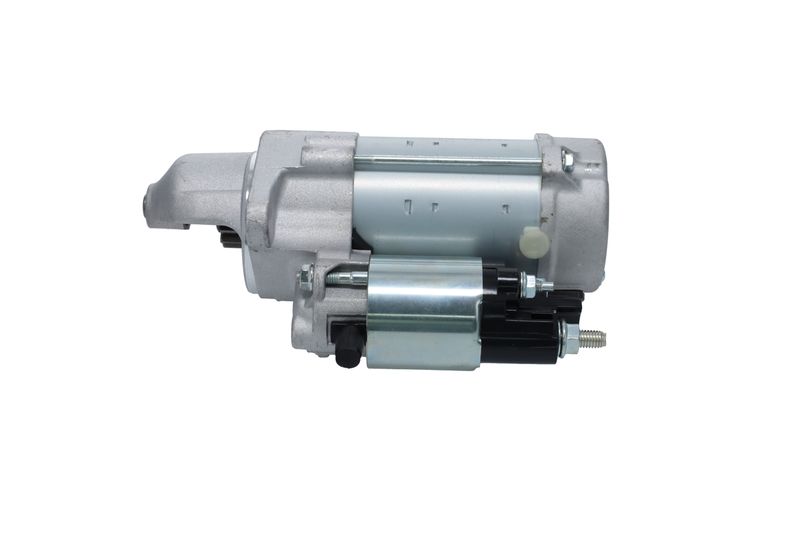

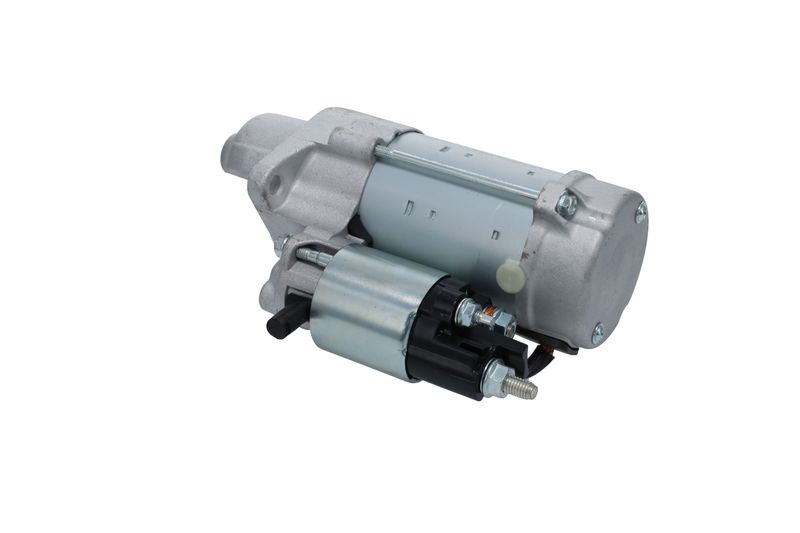

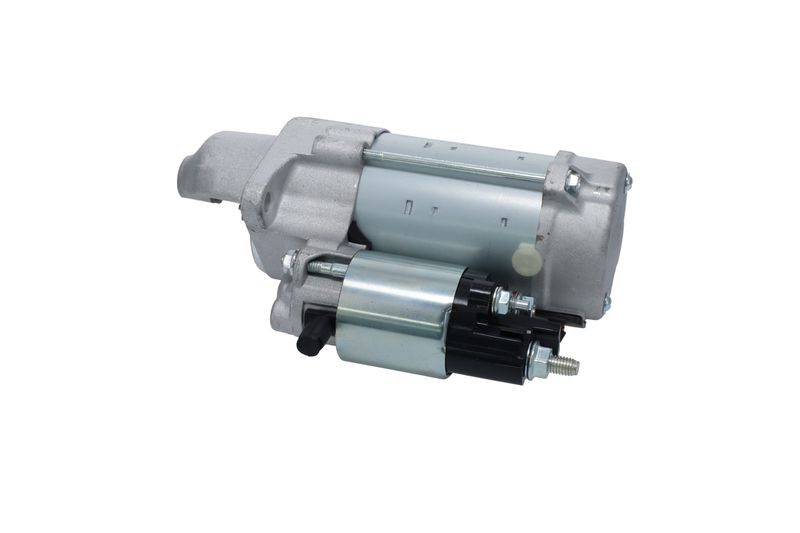

Bosch 1986S00999 Starter Motor
Your selected vehicle
Regular price
£167.69
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 1986S00999 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.7 kW rated power, 15 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
1.7
Number of mounting bores :
2
Number of threaded holes :
0
Number of Teeth :
15
Clamp :
30,50
Flange Diameter [mm] :
68
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
18.5
Starter Type :
Self-supporting
Bore Diameter [mm] :
9
Bore Diameter 2 [mm] :
9
Length [mm] :
218
Position/Degree :
links
Mounting Angle [degrees] :
47
Jaw opening angle measurement [Degree] :
315
Mounting bore angle measurement [degree] :
47
Vehicle Equipment :
for vehicles with start-stop function
Construction Year from :
09.2012
Construction Year to :
12.2020
- Vendor BOSCH
- SKU 1986S00999
- BOSCH : 0 986 027 680
- Carwood Group : BREF0320986027680
- Carwood Group : BREF032116257
- Carwood Group : BREF0321986S00999
- BOSCH : ST 12V 1,7KW (R)
