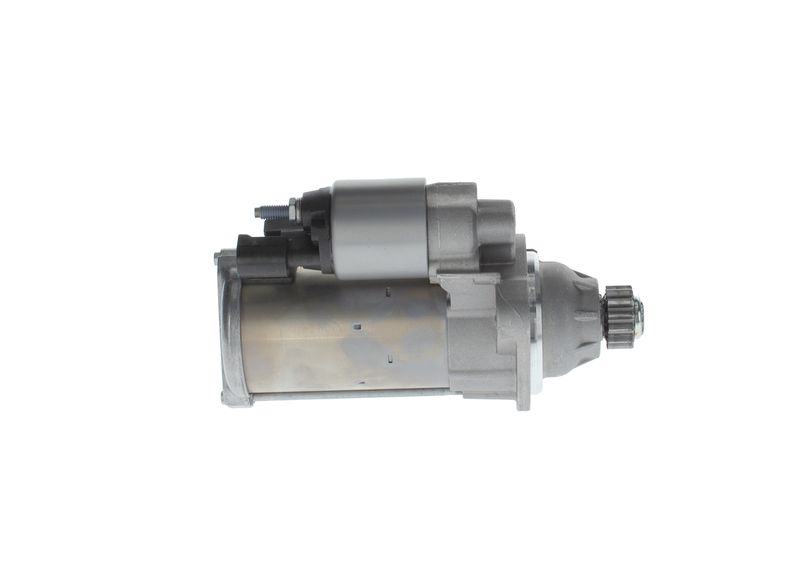

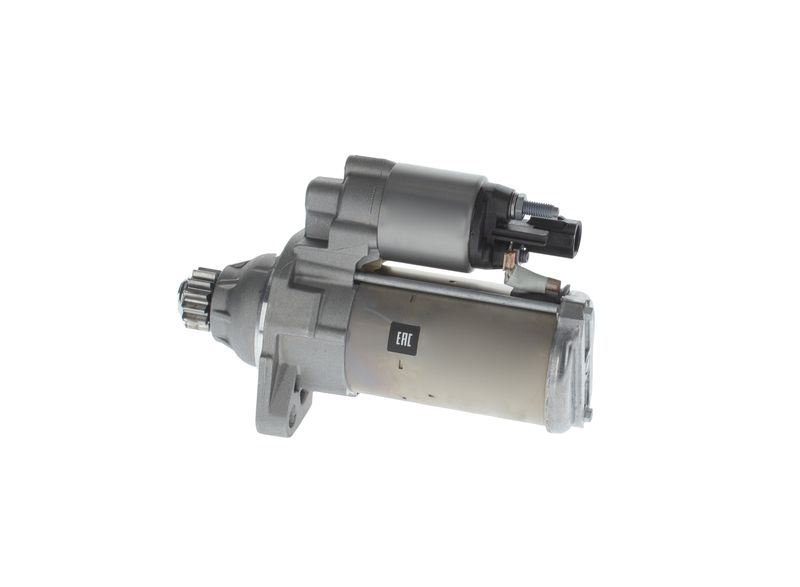

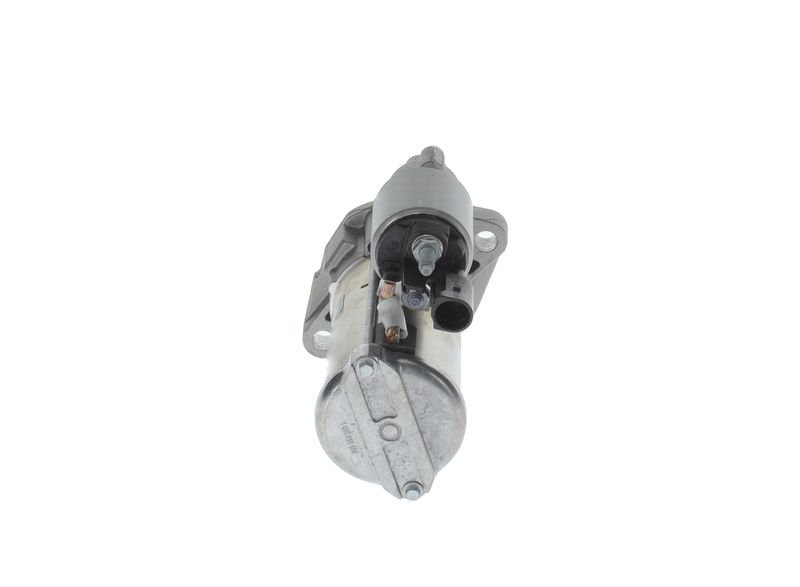

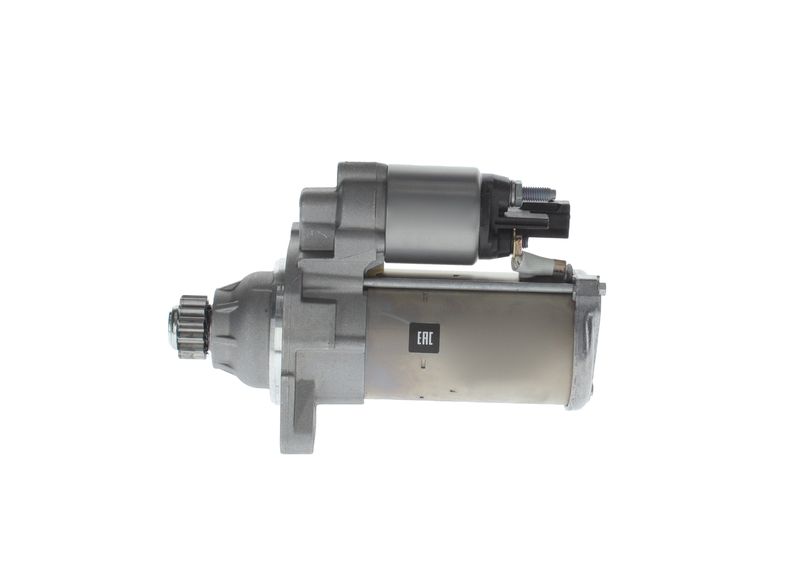

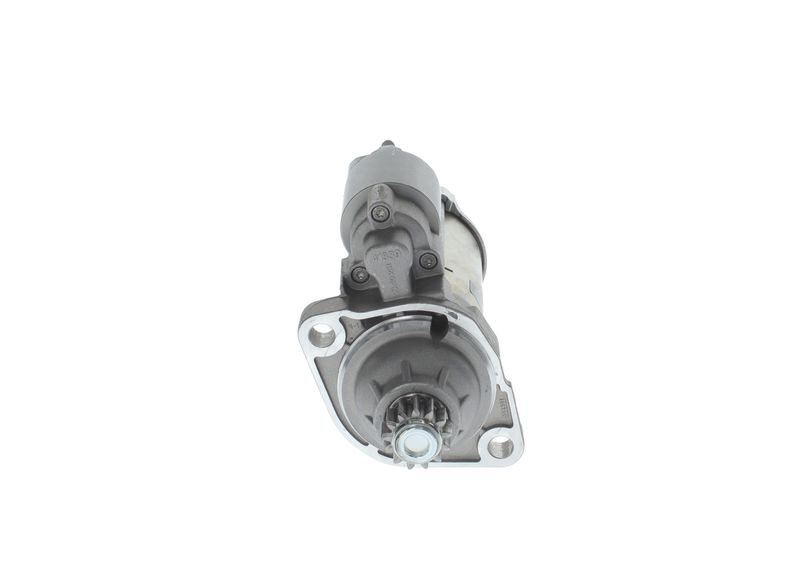

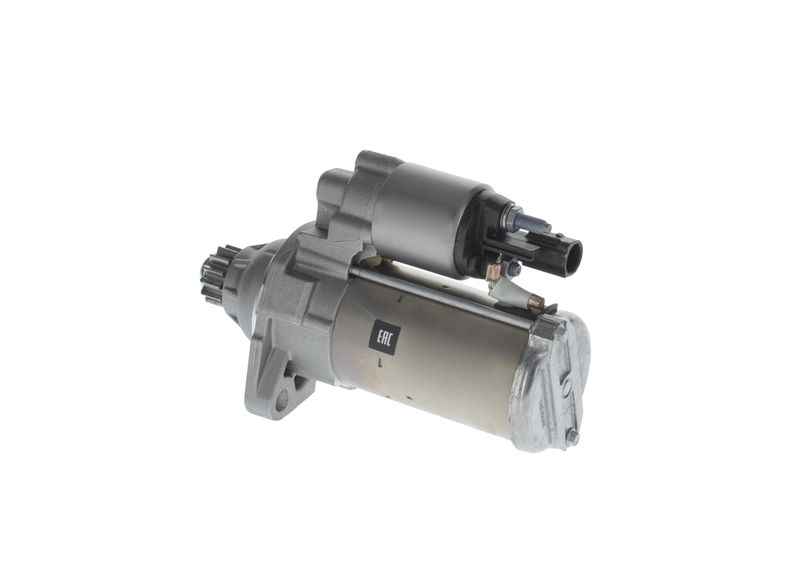

Bosch 1986S01048 Starter Motor
Your selected vehicle
Regular price
£222.86
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 1986S01048 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2 kW rated power, 13 teeth, and Floating pinion starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
2
Number of mounting bores :
2
Number of threaded holes :
0
Number of Teeth :
13
Clamp :
30,50
Flange Diameter [mm] :
79
Rotation Direction :
Anticlockwise rotation
Pinion Rest Position [mm] :
27.4
Starter Type :
Floating pinion
Bore Diameter [mm] :
13.5
Bore Diameter 2 [mm] :
13.5
Length [mm] :
225
Position/Degree :
links
Mounting Angle [degrees] :
45
Mounting bore angle measurement [degree] :
45
- Vendor BOSCH
- SKU 1986S01048
- SKODA : 0AH 911 023 J
- VW : 0AH 911 023 J 0AH 911 023 JX
- BOSCH : 1 986 S01 124
- Carwood Group : BREF032116756
- Carwood Group : BREF0321986S01124
- VALEO : 438569
- BOSCH : ST 12V 2KW (L)
