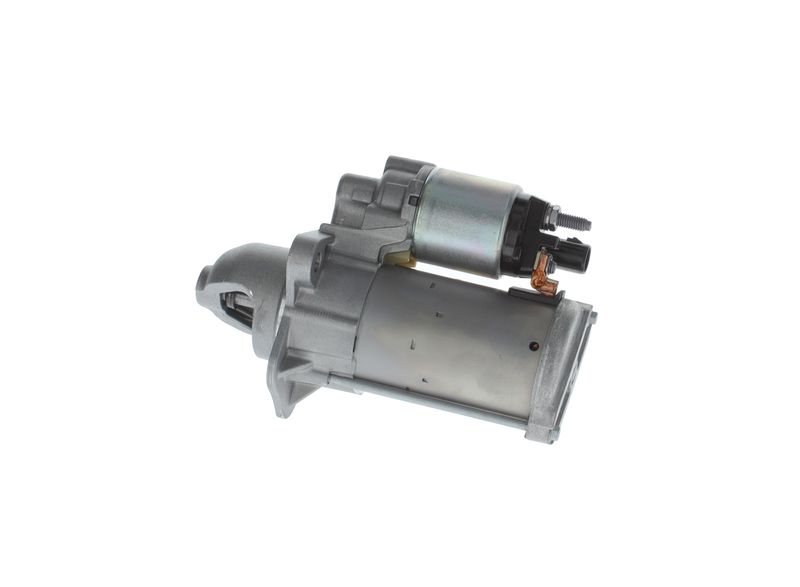

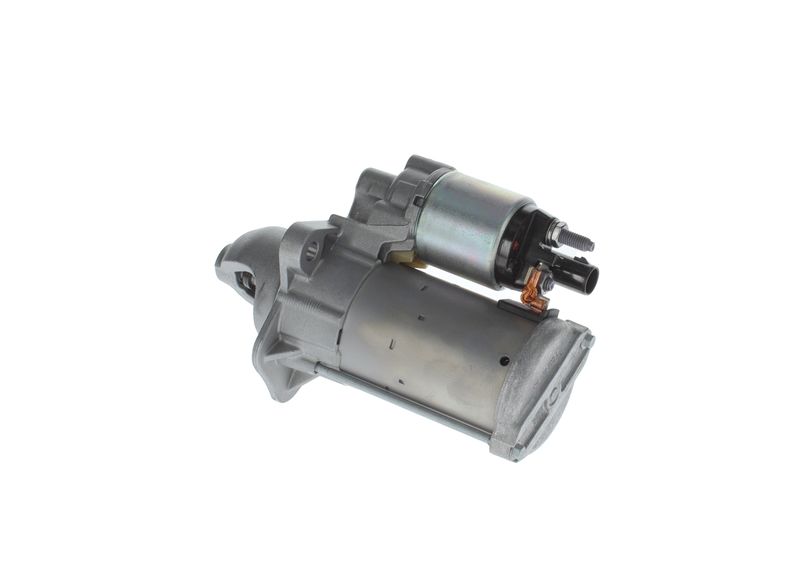

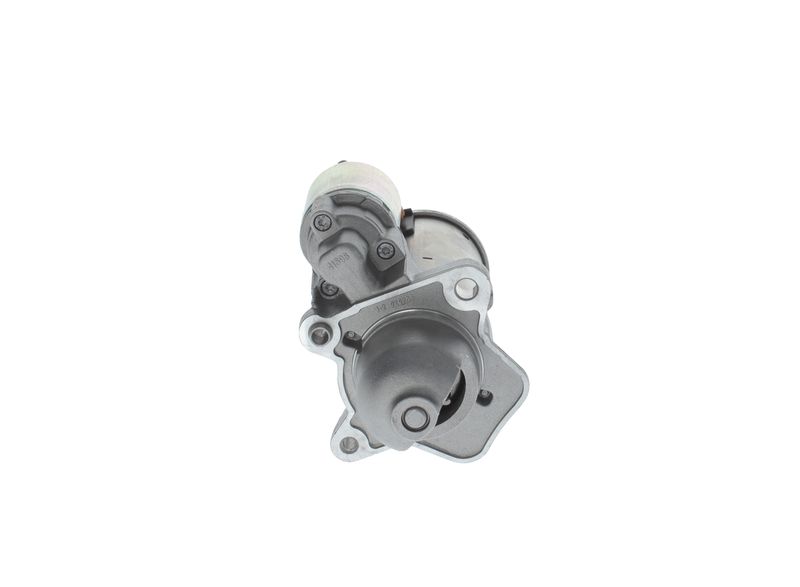

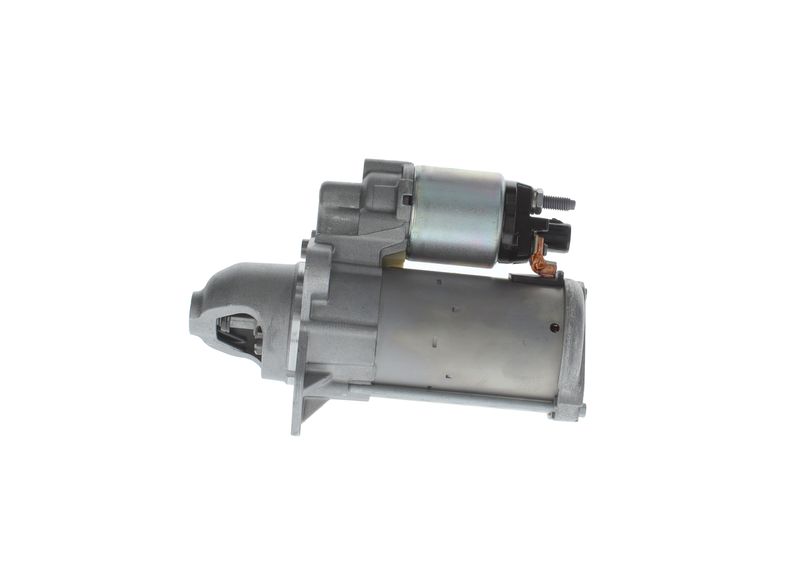

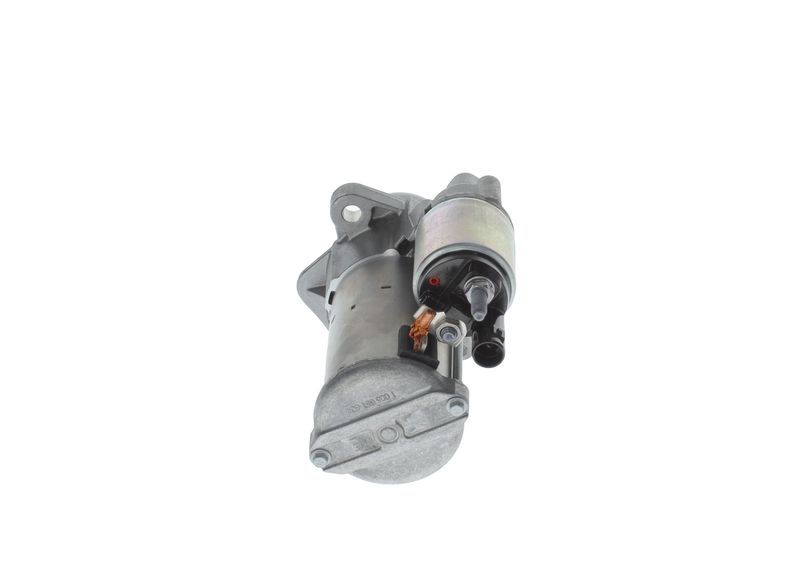

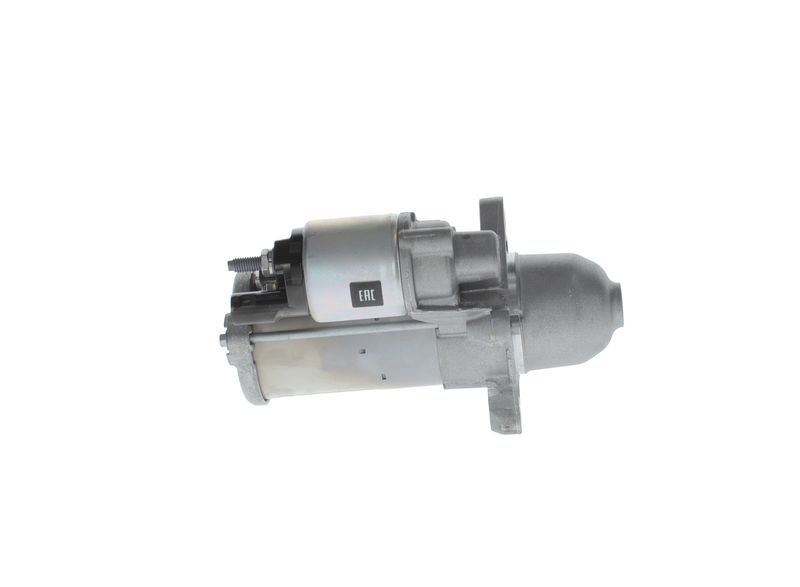

Bosch 1986S01052 Starter Motor
Your selected vehicle
Regular price
£172.09
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 1986S01052 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.2 kW rated power, 66 mm flange diameter, and 8.6 mm bore diameter. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
1.2
Number of mounting bores :
2
Number of threaded holes :
1
Clamp :
50
Clamp :
30
Flange Diameter [mm] :
66
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
23
Thread Size :
M10X1,25
Bore Diameter [mm] :
8.6
Bore Diameter 2 [mm] :
10.5
Position/Degree :
links
Mounting Angle [degrees] :
33
Mounting bore angle measurement [degree] :
33
Engine Code :
552 73 835
- Vendor BOSCH
- SKU 1986S01052
- VALEO : 438604
- BOSCH : ST 12V 1,2KW (R)
