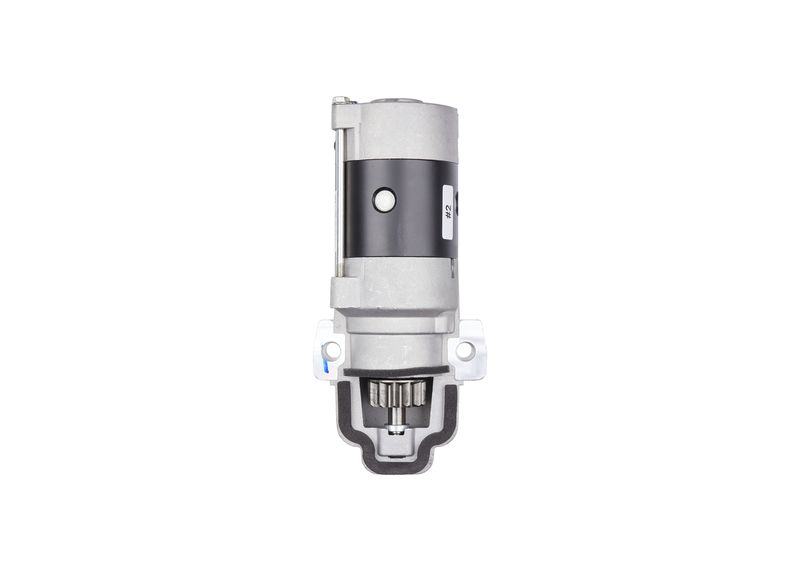

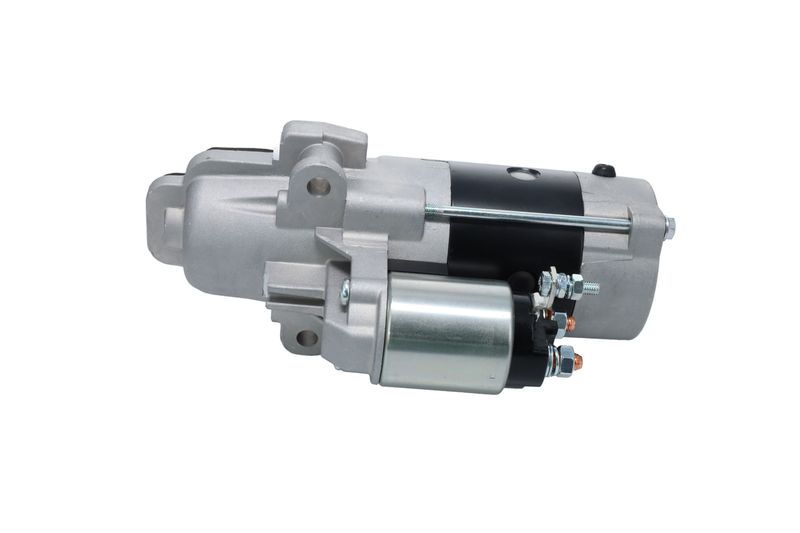

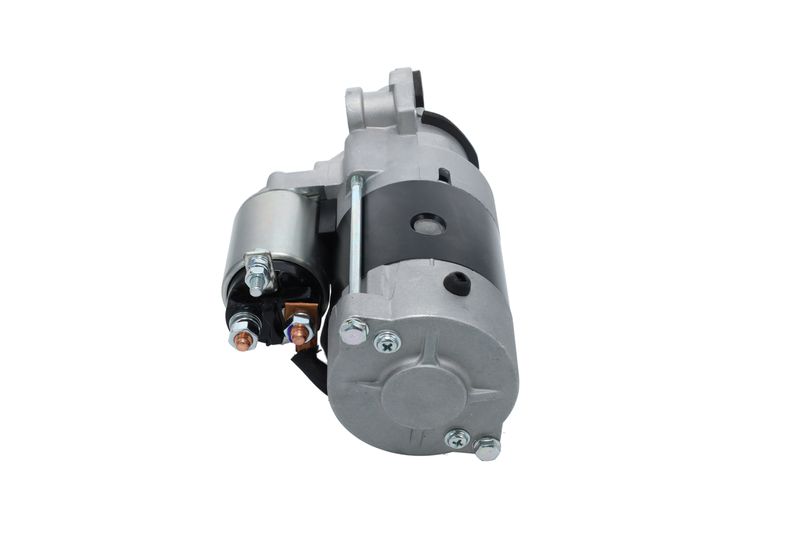

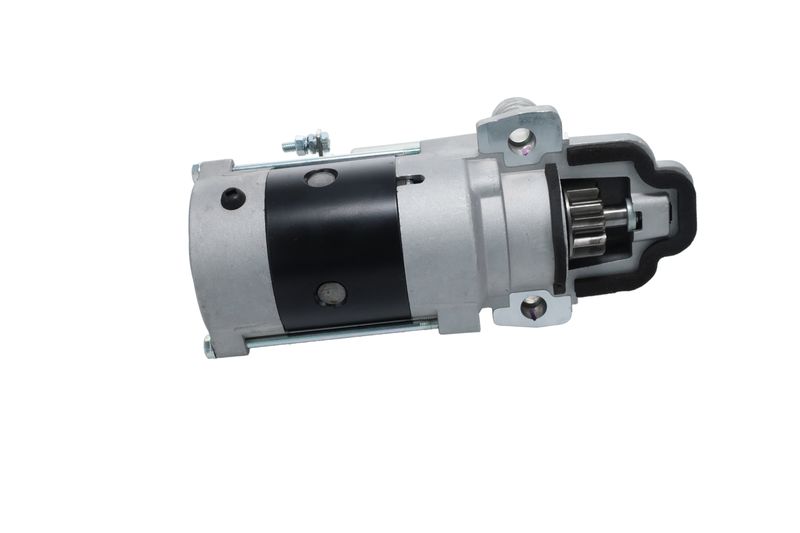

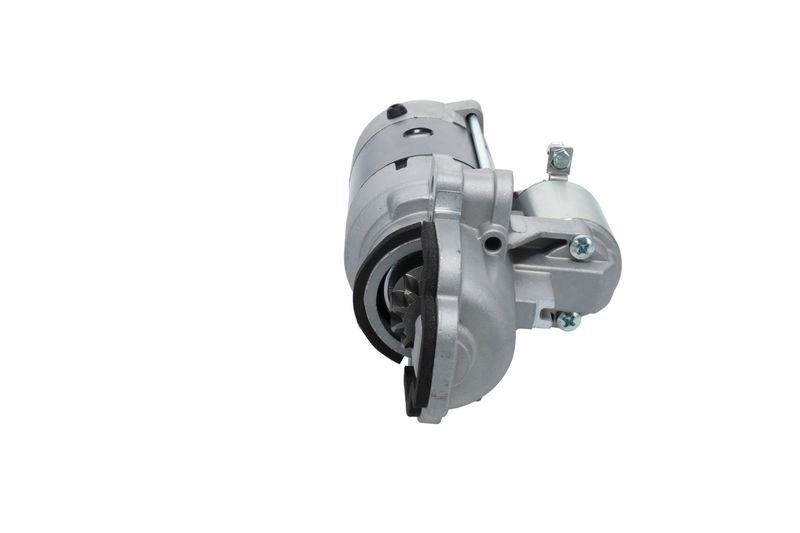

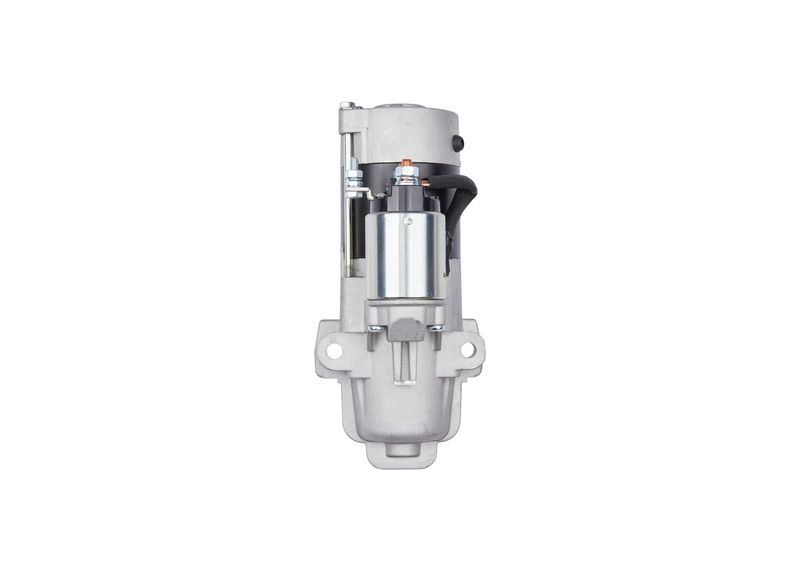

Bosch 1986S01091 Starter Motor
Your selected vehicle
Regular price
£225.15
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 1986S01091 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2.6 kW rated power, 12 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
2.6
Number of mounting bores :
2
Number of Teeth :
12
Clamp :
30,50
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
35
Starter Type :
Self-supporting
Bore Diameter [mm] :
10.5
Bore Diameter 2 [mm] :
10.5
Length [mm] :
248
Jaw opening angle measurement [Degree] :
90
Engine Code :
GBVAJQW
Construction Year from :
09.2011
Vehicle Equipment :
for vehicles without start-stop function
- Vendor BOSCH
- SKU 1986S01091
- FORD : AB3911000BA EB3T11000BD 1720327
- MITSUBISHI : M002TA0172ZT
- Carwood Group : BREF032116955
- Carwood Group : BREF0321986S01091
- BOSCH : ST 12V 2,6KW (R)
