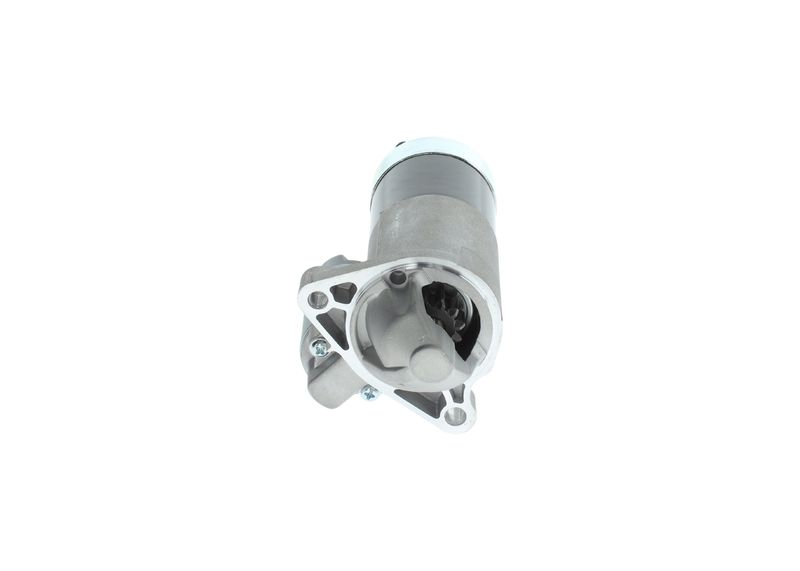

Bosch 1986S01119 Starter - 2

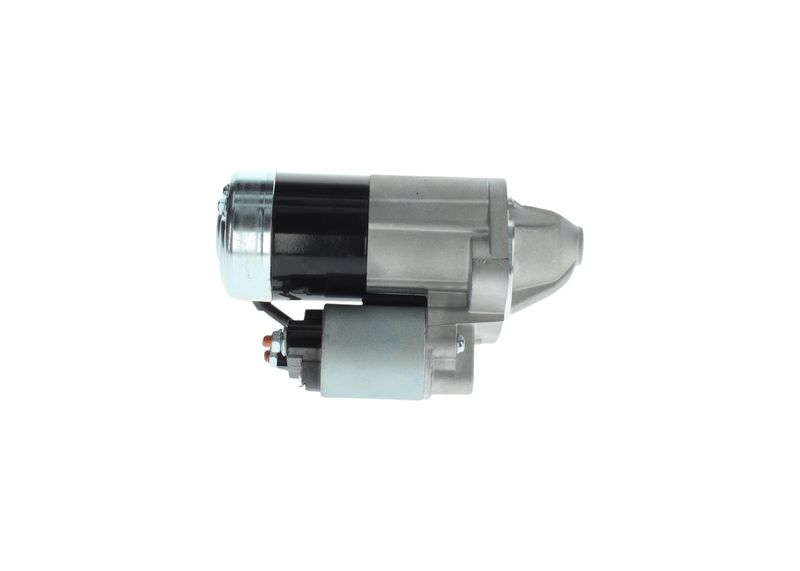

Bosch 1986S01119 Starter - 3

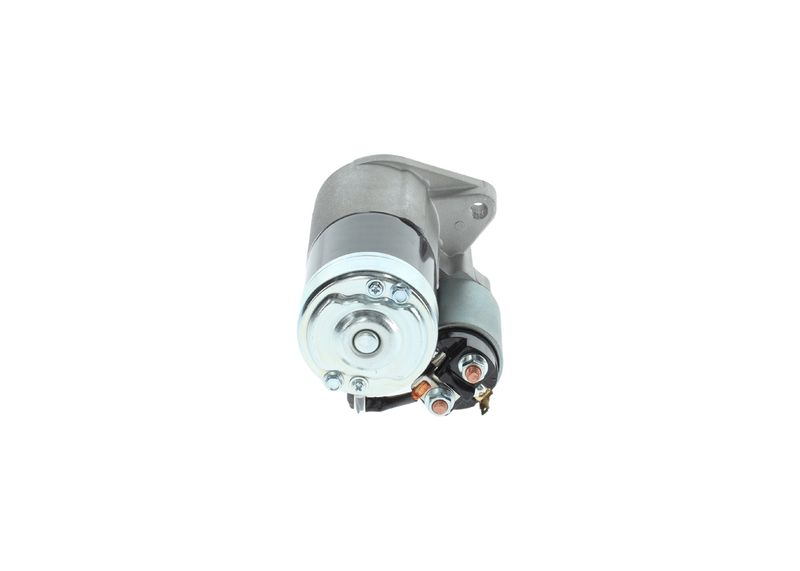

Bosch 1986S01119 Starter - 4

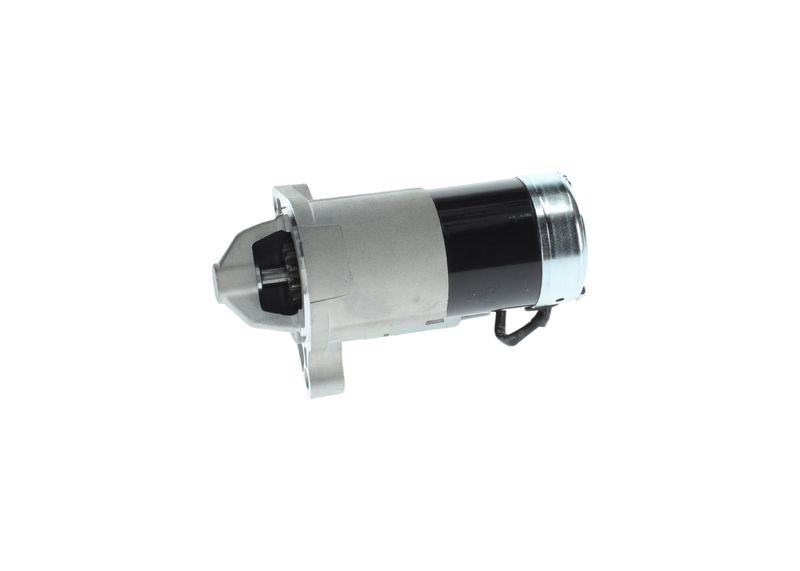

Bosch 1986S01119 Starter - 5

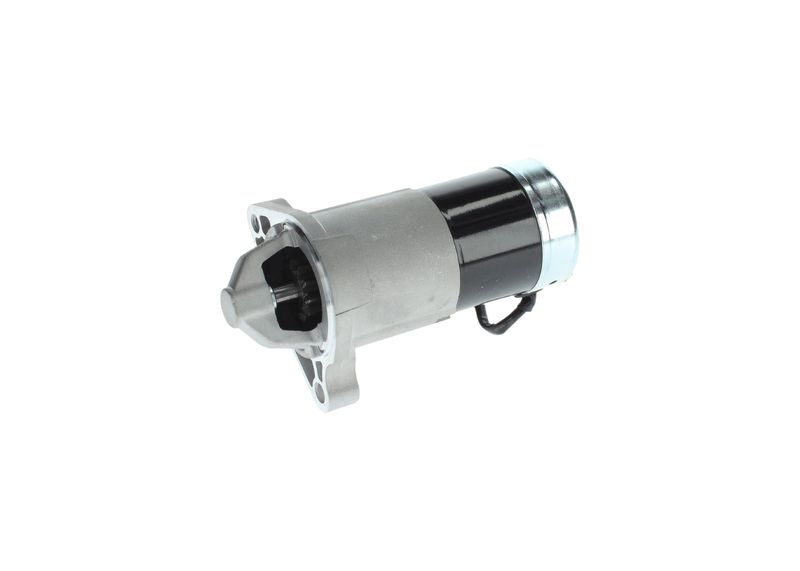

Bosch 1986S01119 Starter - 6
Bosch 1986S01119 Starter - 1
Bosch 1986S01119 Starter - 2
Bosch 1986S01119 Starter - 3
Bosch 1986S01119 Starter - 4
Bosch 1986S01119 Starter - 5
Bosch 1986S01119 Starter - 6
BOSCH

Bosch 1986S01119 Starter Motor

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 1986S01119

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£142.56 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MAZDA
2 Hatchback (DL, DJ)
Description Cylinder Capacity Horse Power Year
1.5 SKYACTIV-G (DJLFS) 1496 CCM 115 HP From 08/2014
1.5 1496 CCM 75 HP From 08/2014
1.5 SKYACTIV-G 1496 CCM 90 HP From 08/2014
1.5 (DJ2HA) 1496 CCM 107 HP From 11/2014
3 (BM, BN)
Description Cylinder Capacity Horse Power Year
1.5 1496 CCM 100 HP 09/2013 - 05/2019
2.0 1998 CCM 120 HP 09/2013 - 05/2019
2.0 1998 CCM 165 HP 07/2013 - 05/2019
1.5 1496 CCM 120 HP 10/2013 - 05/2019
3 Saloon (BM_, BN_)
Description Cylinder Capacity Horse Power Year
2.0 1998 CCM 120 HP 09/2013 - 05/2019
1.5 1496 CCM 100 HP 10/2014 - 05/2019
1.5 1496 CCM 120 HP 10/2013 - 05/2019
6 Estate (GJ, GL)
Description Cylinder Capacity Horse Power Year
2.0 (GJEFW) 1998 CCM 146 HP From 01/2013
2.0 (GJEFW) 1998 CCM 165 HP From 01/2013
2.5 2488 CCM 192 HP From 12/2012
2.5 2488 CCM 194 HP From 03/2018
6 Saloon (GJ, GL)
Description Cylinder Capacity Horse Power Year
2.0 (GJ2, GL2, GL6) 1998 CCM 146 HP From 01/2013
2.0 (GJEFP) 1998 CCM 165 HP From 01/2013
2.5 (GJ5FP, GL1032, GL1033) 2488 CCM 192 HP From 01/2013
2.0 1998 CCM 150 HP 12/2012 - 02/2018
2.5 2488 CCM 194 HP From 03/2018
2.5 (GJ5FP, GL1032, GL1033) 2488 CCM 190 HP From 03/2018
CX-3 (DK)
Description Cylinder Capacity Horse Power Year
2.0 SKYACTIV-G (DK5W, DK6W) 1998 CCM 120 HP From 05/2015
2.0 SKYACTIV-G AWD (DK4W7, DKEAW) 1998 CCM 150 HP From 05/2015
2.0 SKYACTIV-G 1998 CCM 121 HP From 02/2018
2.0 SKYACTIV-G (DK2W7, DKEFW) 1998 CCM 150 HP From 05/2018
CX-5 (KE, GH)
Description Cylinder Capacity Horse Power Year
2.0 (KEEFW) 1998 CCM 165 HP 11/2011 - 02/2017
2.0 AWD (KEEAW) 1998 CCM 160 HP 11/2011 - 02/2017
2.5 AWD 2488 CCM 192 HP 02/2015 - 02/2017
CX-5 (KF)
Description Cylinder Capacity Horse Power Year
2.0 1998 CCM 165 HP From 05/2017
2.0 AWD 1998 CCM 160 HP From 05/2017
2.5 AWD 2488 CCM 194 HP From 05/2017
2.0 AWD 1998 CCM 165 HP From 06/2018
2.0 1998 CCM 150 HP From 03/2018
2.0 AWD 1998 CCM 150 HP From 03/2018
2.5 2488 CCM 194 HP 03/2019 - 11/2022
2.0 SKYACTIV-G 1998 CCM 163 HP From 03/2018
2.0 SKYACTIV-G AWD 1998 CCM 163 HP From 03/2018

The Bosch 1986S01119 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.2 kW rated power, 11 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 1.2
Number of mounting bores : 1
Number of threaded holes : 1
Number of Teeth : 11
Clamp : 50
Clamp : 30
Flange Diameter [mm] : 74
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 7
Starter Type : Self-supporting
Thread Size : M10X1,5
Bore Diameter 2 [mm] : 10.5
Length [mm] : 174
Position/Degree : rechts
Mounting Angle [degrees] : 60
Jaw opening angle measurement [Degree] : 100
Mounting bore angle measurement [degree] : 60
Engine Code : P5Y5
Engine Code : P5Y8
Engine Code : P5X2
Construction Year from : 10.2014
Construction Year to : 12.2019
Vehicle Equipment : for vehicles with start-stop function
Engine Code : P5X0
Engine Code : P5Z7
Engine Code : P5Z8
Engine Code : P5Z9
Construction Year from : 03.2018
Construction Year to : 01.2023
Engine Code : P5Y6
Engine Code : P5Z2
Engine Code : P5Z3
Construction Year from : 01.2015
Construction Year to : 03.2018
  • Vendor BOSCH
  • SKU 1986S01119
  • Barcode 4047026707731
  • MAZDA : PE09-18-400 P55W-18-400
  • Carwood Group : BREF032116251
  • Carwood Group : BREF0321986S01119
  • VALEO : 438654
