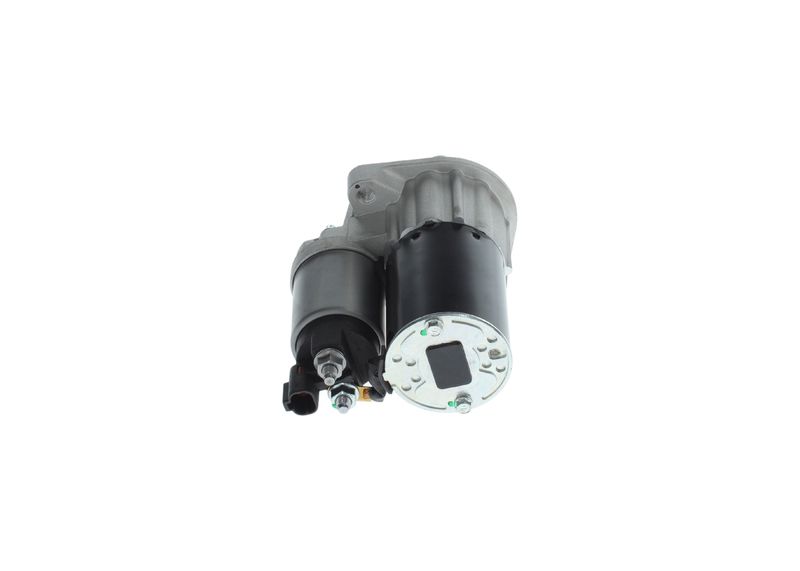

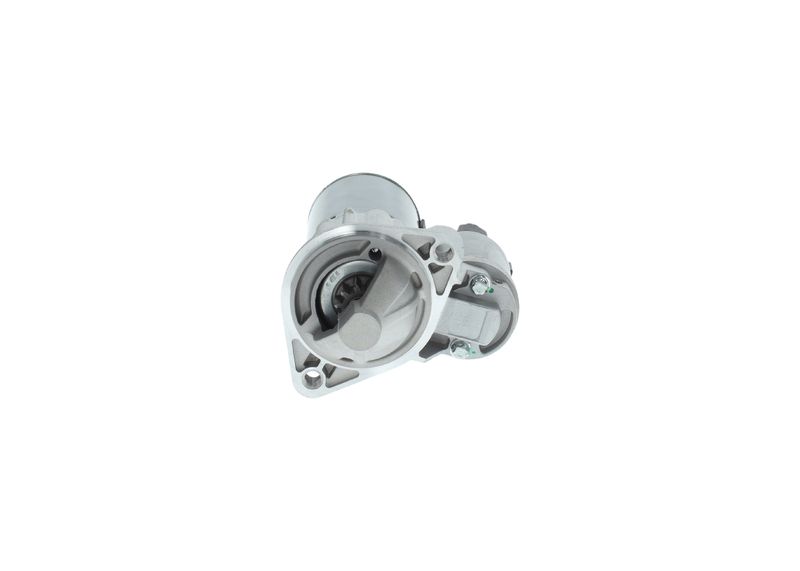

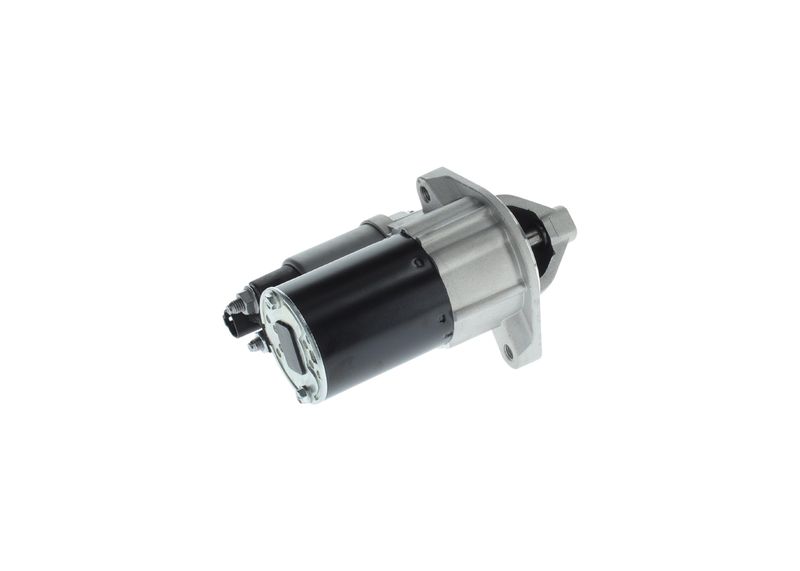

Bosch 1986S01131 Starter Motor
Your selected vehicle
Regular price
£134.17
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 1986S01131 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1 kW rated power, 10 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
1
Number of mounting bores :
2
Number of Teeth :
10
Clamp :
30, 50
Flange Diameter [mm] :
75
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
14.7
Starter Type :
Self-supporting
Thread Size :
M10X1,25
Thread Size 1 :
M10X1,25
Length [mm] :
182
Position/Degree :
links
Mounting Angle [degrees] :
47
Jaw opening angle measurement [Degree] :
115
Mounting bore angle measurement [degree] :
47
Construction Year from :
06.2013
Construction Year to :
09.2013
Construction Year from :
04.2013
Construction Year to :
12.2014
Vehicle Equipment :
for vehicles without start-stop function
Construction Year from :
01.2013
- Vendor BOSCH
- SKU 1986S01131
- HYUNDAI : 36100 03201 36100 03402
- KIA : 36100 03201 36100 03402
- BOSCH : 0 986 026 470
- Carwood Group : BREF0320986026470
- Carwood Group : BREF0321986S01131
- FEBI BILSTEIN : 193208
- BOSCH : ST 12V 1KW (R)
