BOSCH

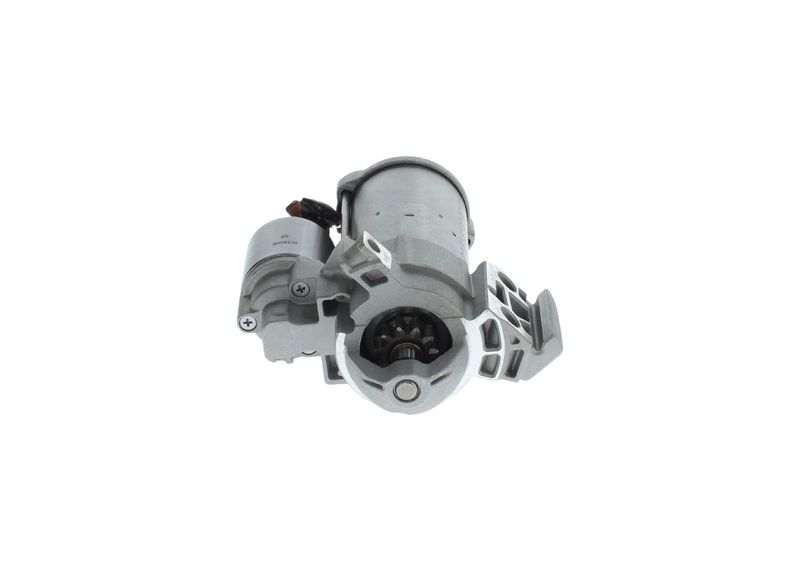

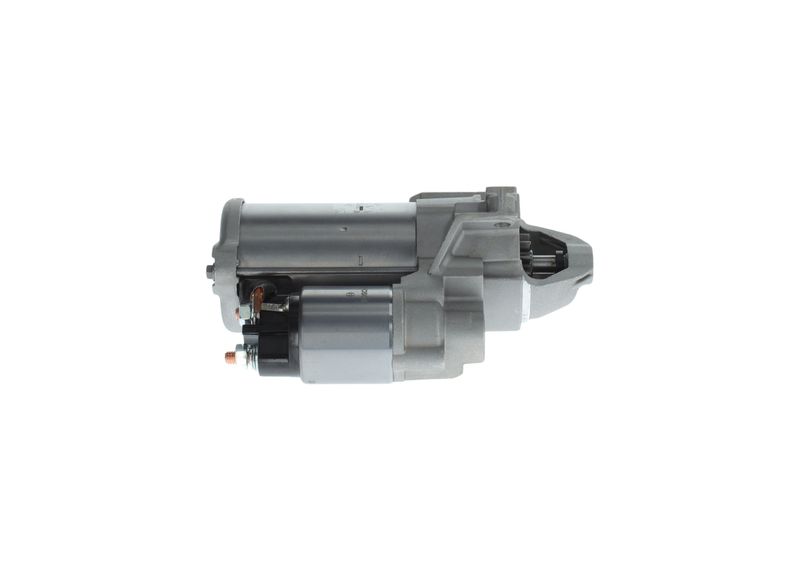

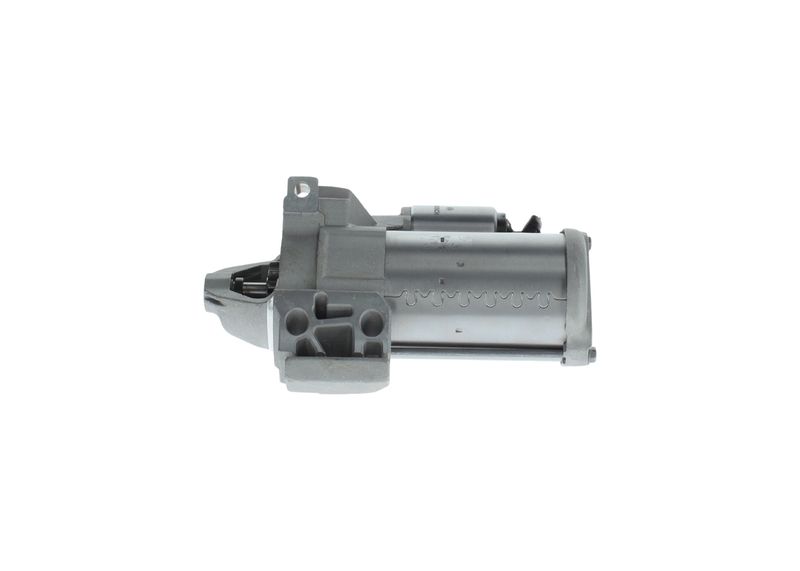

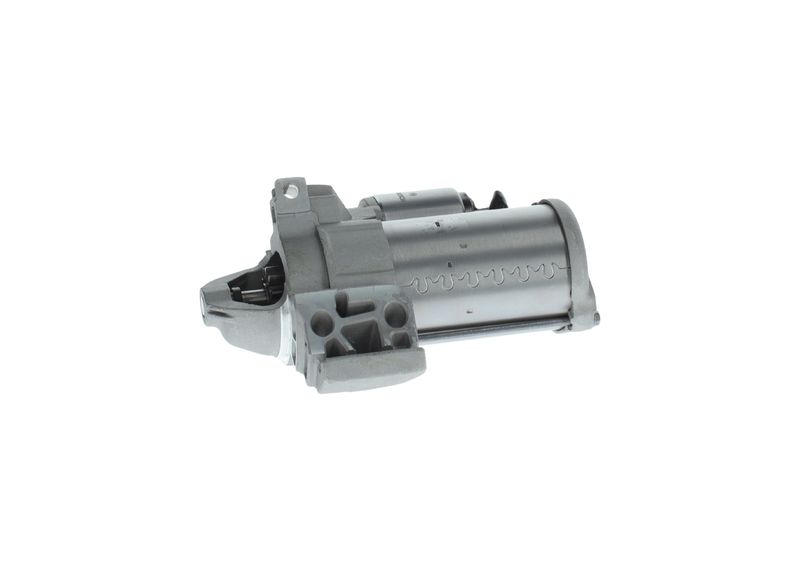

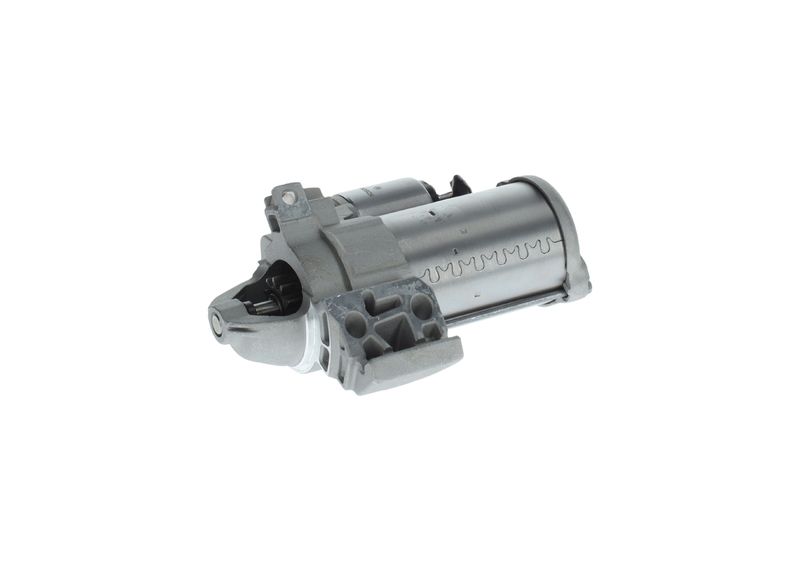

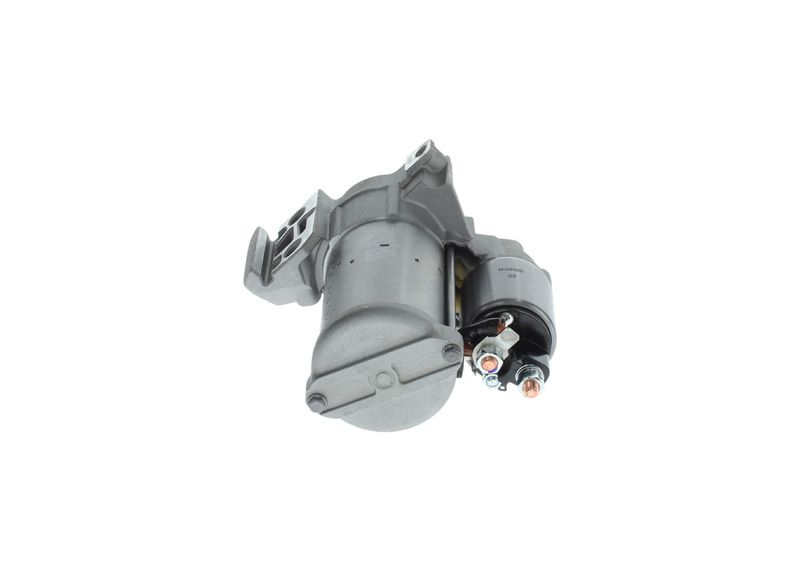

Bosch 1986S01169 Starter Motor

SKU: 1986S01169

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£152.64 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW

2 Coupe (F22, F87)

Description	Cylinder Capacity	Horse Power	Year
218 i	1499 CCM	136 HP	03/2015 - 06/2021
220 i	1998 CCM	184 HP	09/2015 - 06/2021

2 Convertible (F23)

Description	Cylinder Capacity	Horse Power	Year
218 i	1499 CCM	136 HP	03/2015 - 06/2021
220 i	1998 CCM	184 HP	09/2015 - 06/2021
230 i	1998 CCM	252 HP	07/2016 - 06/2021
218 i	1998 CCM	136 HP	11/2020 - 06/2021

3 (G20, G80, G28)

Description	Cylinder Capacity	Horse Power	Year
320 i 1.6	1597 CCM	170 HP	From 03/2019

4 Coupe (G22, G82)

Description	Cylinder Capacity	Horse Power	Year
420 i 1.6	1597 CCM	170 HP	From 11/2020

5 (G30, F90)

Description	Cylinder Capacity	Horse Power	Year
530 i	1998 CCM	252 HP	09/2016 - 06/2020
530 i xDrive	1998 CCM	252 HP	09/2016 - 06/2020

5 Touring (G31)

Description	Cylinder Capacity	Horse Power	Year
530 i	1998 CCM	252 HP	03/2017 - 06/2020
530 i xDrive	1998 CCM	252 HP	07/2017 - 06/2020
520 i	1998 CCM	184 HP	07/2017 - 06/2020
520 i	1998 CCM	163 HP	07/2017 - 06/2020

6 Gran Turismo (G32)

Description	Cylinder Capacity	Horse Power	Year
630 i	1998 CCM	258 HP	07/2017 - 06/2020
630 i	1998 CCM	249 HP	06/2017 - 06/2020

X3 (G01, F97, G08)

Description	Cylinder Capacity	Horse Power	Year
xDrive 30 i	1998 CCM	252 HP	From 08/2017
xDrive 20 i	1998 CCM	184 HP	From 12/2017
sDrive 20 i	1998 CCM	184 HP	From 12/2017

X4 (G02, F98)

Description	Cylinder Capacity	Horse Power	Year
xDrive 20 i	1998 CCM	184 HP	From 04/2018
xDrive 30 i	1998 CCM	252 HP	From 04/2018

The Bosch 1986S01169 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.6 kW rated power, Self-supporting starter type, and automatic Transmission and Manual Transmission transmission. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter

Voltage [V] : 12

Rated Power [kW] : 1.6

Number of mounting bores : 3

Number of threaded holes : 0

Number of Teeth : 11

Clamp : 50

Clamp : 30

Flange Diameter [mm] : 66

Rotation Direction : Clockwise rotation

Pinion Rest Position [mm] : 5

Starter Type : Self-supporting

Bore Diameter [mm] : 9

Bore Diameter 2 [mm] : 9

Bore Ø 3 [mm] : 9

Length [mm] : 212

Jaw opening angle measurement [Degree] : 0

Construction Year to : 05.2019

Transmission Type : Automatic Transmission

Transmission Type : Manual Transmission

Bosch 1986S01169 Starter Motor
