BOSCH

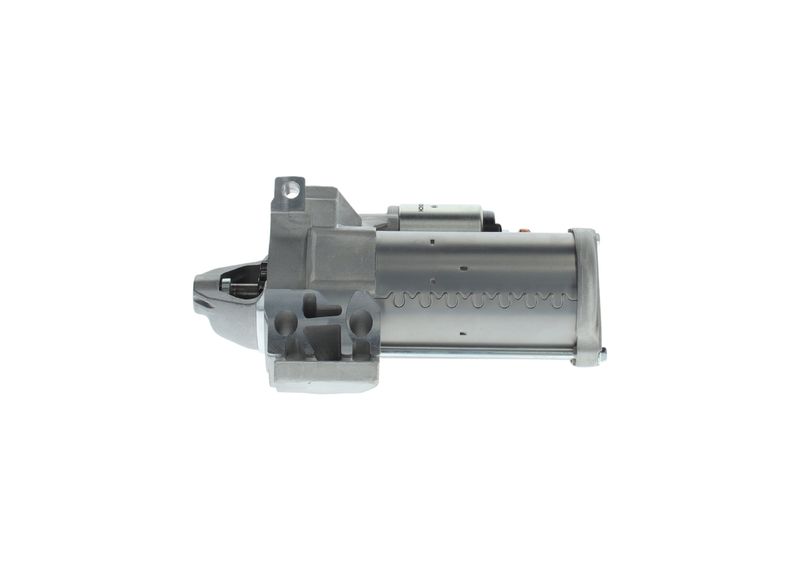

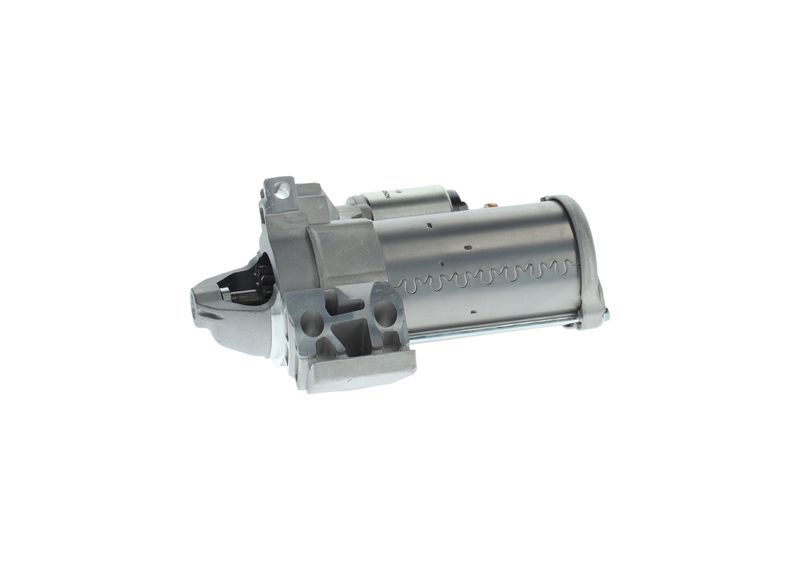

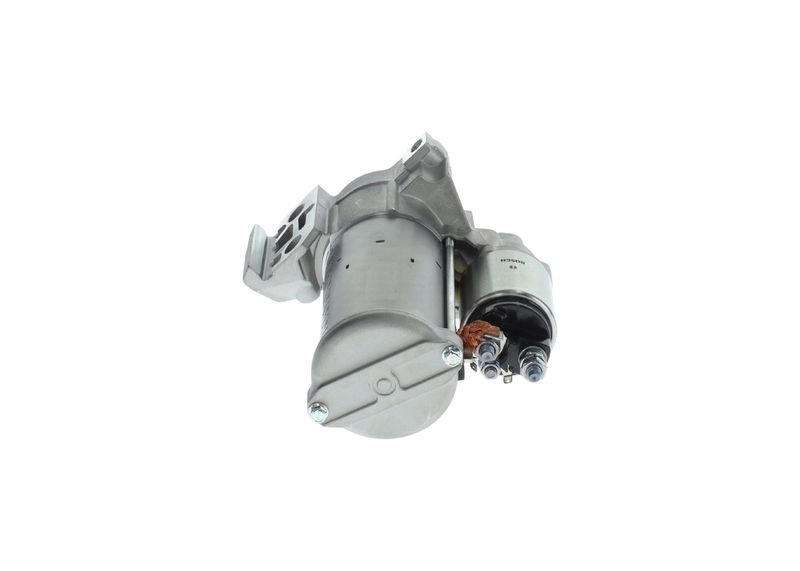

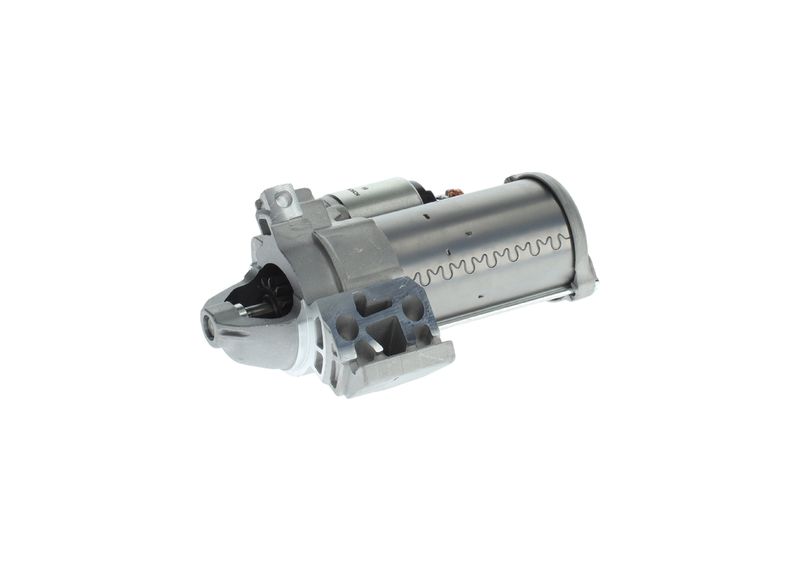

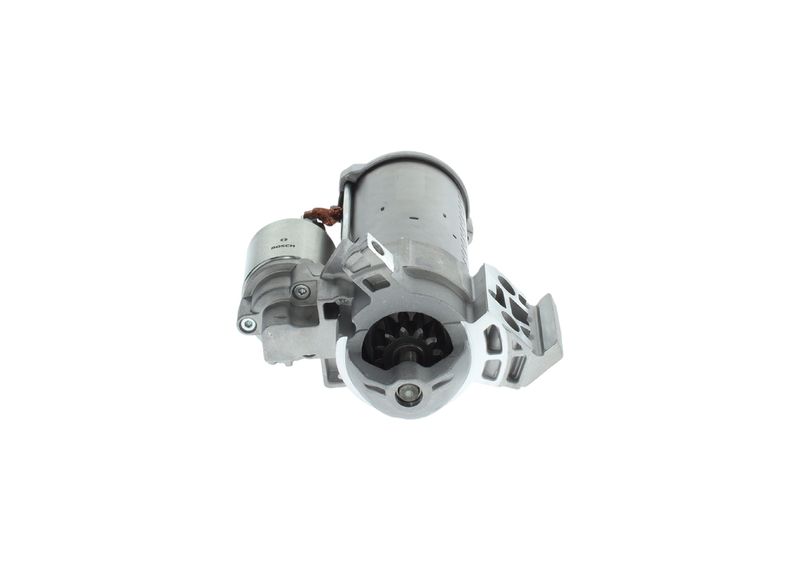

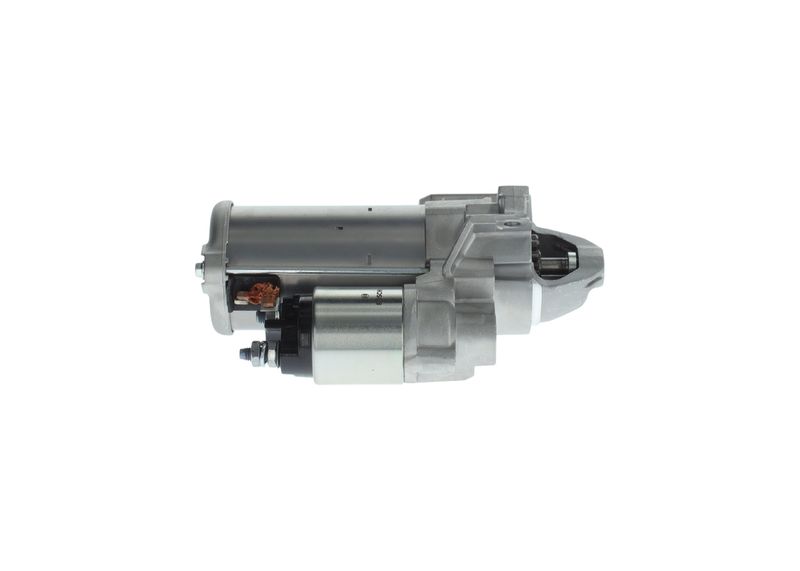

Bosch 1986S01266 Starter Motor

5.0/5 65 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 1986S01266

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Out of stock
Out of Stock
£160.57 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

BMW
2 Coupe (F22, F87)
Description Cylinder Capacity Horse Power Year
220 d 1995 CCM 190 HP 03/2014 - 09/2020
220 d xDrive 1995 CCM 190 HP 06/2014 - 09/2020
218 d 1995 CCM 150 HP 07/2015 - 09/2020
225 d 1995 CCM 224 HP 07/2015 - 05/2019
2 Convertible (F23)
Description Cylinder Capacity Horse Power Year
220 d 1995 CCM 190 HP 03/2014 - 09/2020
218 d 1995 CCM 150 HP 07/2015 - 09/2020
225 d 1995 CCM 224 HP 07/2015 - 05/2019
220 d 1995 CCM 205 HP 03/2014 - 09/2020
3 (F30, F80)
Description Cylinder Capacity Horse Power Year
320 d 1995 CCM 163 HP 11/2011 - 10/2018
316 d 1995 CCM 116 HP 03/2012 - 10/2018
3 Touring (F31)
Description Cylinder Capacity Horse Power Year
316 d 1995 CCM 116 HP 11/2012 - 06/2019
320 d 1995 CCM 163 HP 07/2012 - 06/2019
4 Convertible (F33, F83)
Description Cylinder Capacity Horse Power Year
420 d 1995 CCM 190 HP 07/2015 - 07/2020
5 (G30, F90)
Description Cylinder Capacity Horse Power Year
520 d 1995 CCM 190 HP 09/2016 - 06/2023
520 d xDrive 1995 CCM 190 HP 09/2016 - 06/2023
520 d 1995 CCM 163 HP 09/2016 - 06/2023
520 d xDrive 1995 CCM 163 HP 09/2016 - 06/2023
5 Touring (G31)
Description Cylinder Capacity Horse Power Year
520 d 1995 CCM 190 HP From 03/2017
520 d 1995 CCM 163 HP From 03/2017
525 d 1995 CCM 231 HP 07/2017 - 06/2019
520 d xDrive 1995 CCM 190 HP From 07/2017
525 d 1995 CCM 211 HP 07/2017 - 06/2019
7 (G11, G12)
Description Cylinder Capacity Horse Power Year
725 d, Ld 1995 CCM 231 HP 07/2016 - 02/2019
X3 (G01, F97, G08)
Description Cylinder Capacity Horse Power Year
xDrive 20 d 1995 CCM 190 HP 08/2017 - 03/2020
xDrive 20 d 1995 CCM 163 HP 08/2017 - 03/2020
xDrive 25 d 1995 CCM 231 HP From 04/2018
sDrive 18 d 1995 CCM 150 HP 04/2018 - 06/2020
sDrive 18 d 1995 CCM 136 HP 04/2018 - 06/2020
xDrive 25 d 1995 CCM 211 HP From 04/2018
X3 Van (G01)
Description Cylinder Capacity Horse Power Year
sDrive 18 d 1995 CCM 150 HP From 04/2018
X4 (G02, F98)
Description Cylinder Capacity Horse Power Year
xDrive 20 d 1995 CCM 190 HP 04/2018 - 03/2020
xDrive 25 d 1995 CCM 231 HP From 04/2018
xDrive 20 d 1995 CCM 163 HP 04/2018 - 03/2020
xDrive 25 d 1995 CCM 211 HP From 04/2018

The Bosch 1986S01266 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.8 kW rated power, Self-supporting starter type, and manual Transmission transmission. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 1.8
Number of mounting bores : 3
Number of threaded holes : 0
Number of Teeth : 12
Clamp : 50
Clamp : 30
Flange Diameter [mm] : 66
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 5
Starter Type : Self-supporting
Bore Diameter [mm] : 9
Bore Diameter 2 [mm] : 9
Bore Ø 3 [mm] : 9
Length [mm] : 223
Mounting Angle [degrees] : 50
Jaw opening angle measurement [Degree] : 0
Mounting bore angle measurement [degree] : 50
Transmission Type : Manual Transmission
not for vehicle equipment line/variant : Sporting
Vehicle Equipment Line/Variant : Sporting
Manufacturer Restriction : VALEO
Construction Year to : 05.2019
  • Vendor BOSCH
  • SKU 1986S01266
  • Barcode 4047026655629
  • BMW : 12 41 8 582 673 12 41 8 583 451 12 41 8 583 673 12 41 8 588 898 12 41 8 588 902
  • Carwood Group : BREF032116415
  • Carwood Group : BREF0321986S01266
  • FEBI BILSTEIN : 1005774
  • HELLA : 8EA 011 612-701
  • VALEO : 438343
  • VALEO : 438636
  • BOSCH : ST 12V 1,8KW (R)
