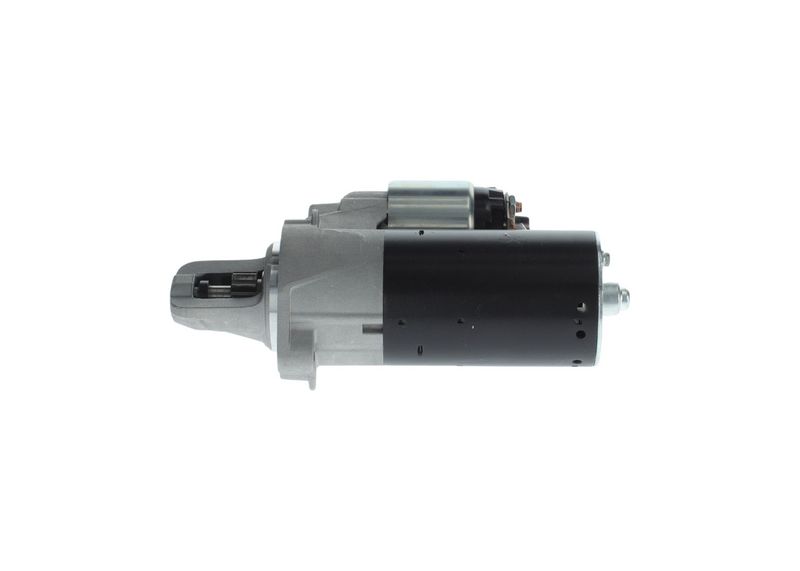

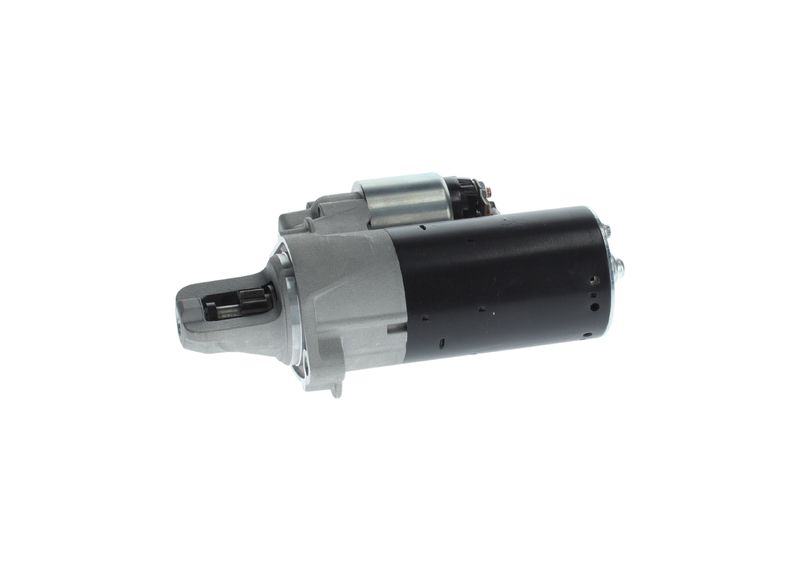

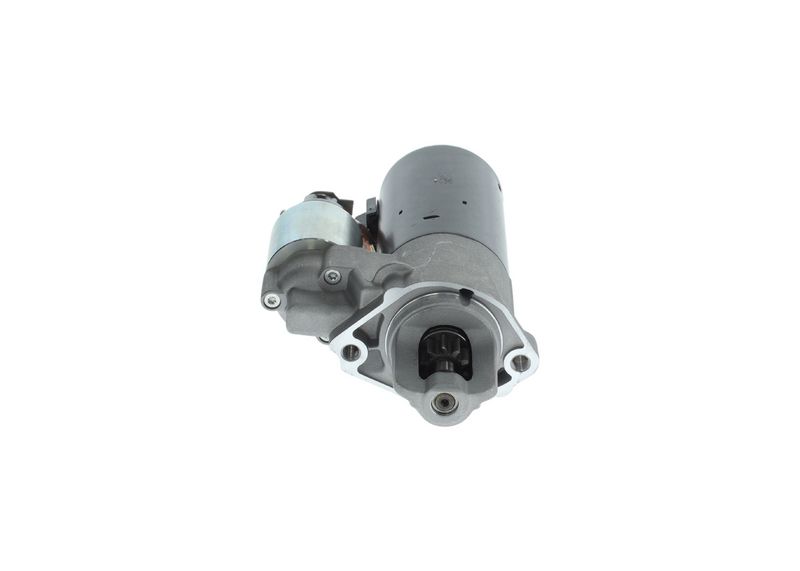

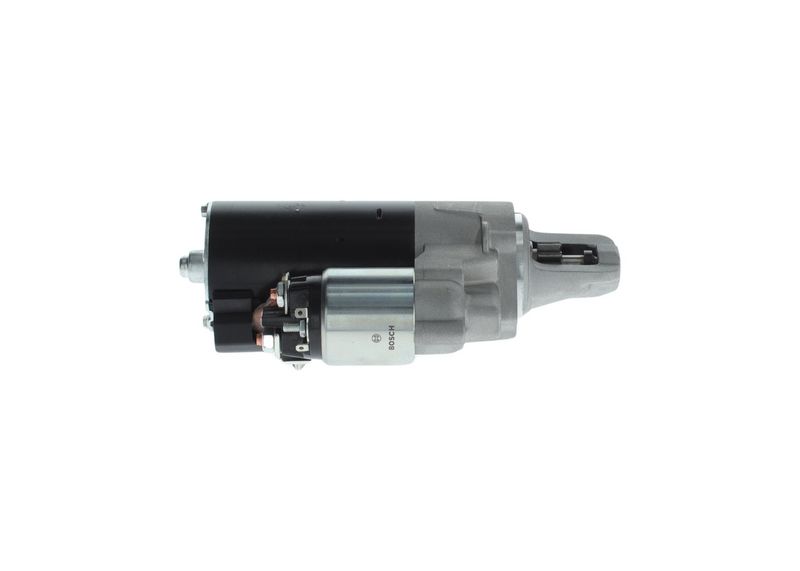

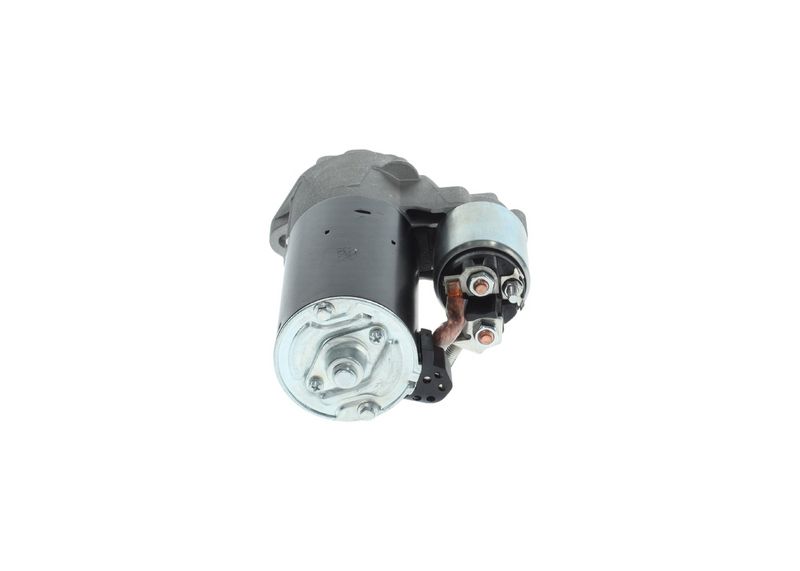

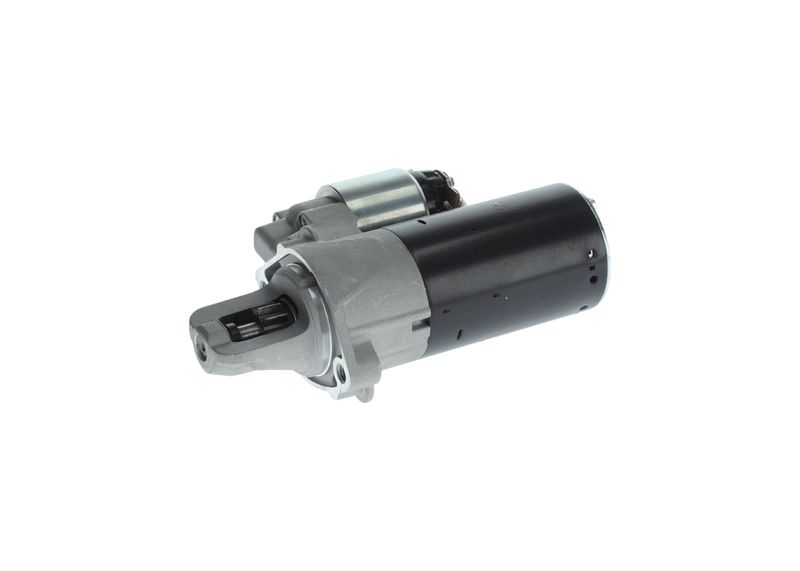

Bosch 1986S01345 Starter Motor
Your selected vehicle
Regular price
£321.97
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 1986S01345 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.7 kW rated power, 78 mm flange diameter, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
1.7
Number of mounting bores :
1
Number of threaded holes :
1
Clamp :
50
Clamp :
30
Flange Diameter [mm] :
78
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
27.4
Starter Type :
Self-supporting
Thread Size :
M12X1,75
Bore Diameter [mm] :
10.8
Length [mm] :
232
Position/Degree :
links
Mounting Angle [degrees] :
53
Jaw opening angle measurement [Degree] :
112
Mounting bore angle measurement [degree] :
53
- Vendor BOSCH
- SKU 1986S01345
- BOSCH : ST 12V 1,7KW (R)
