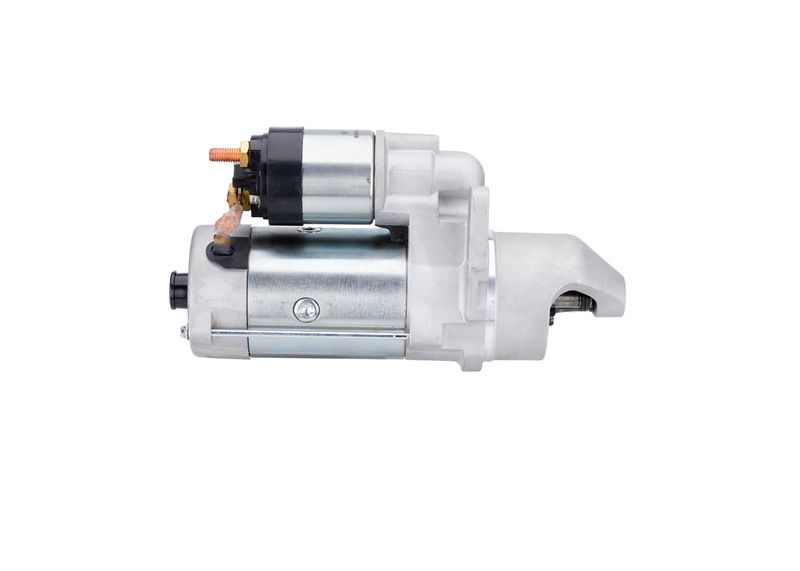

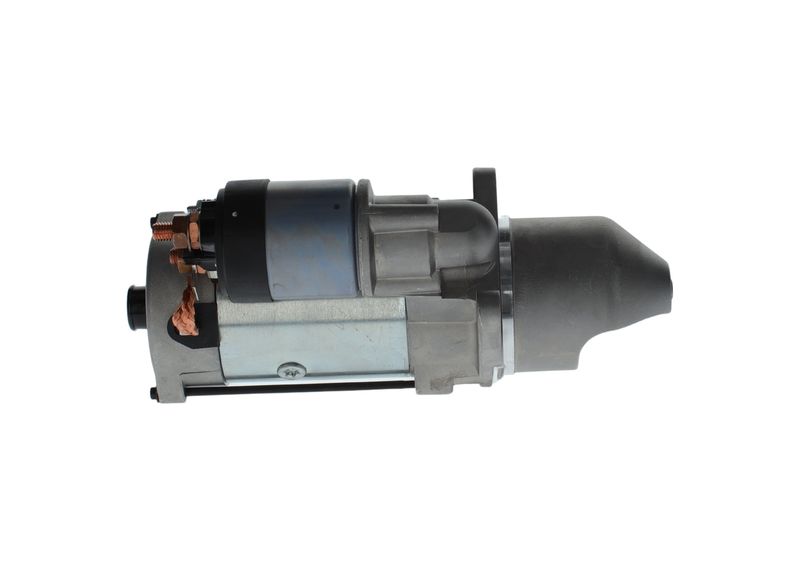

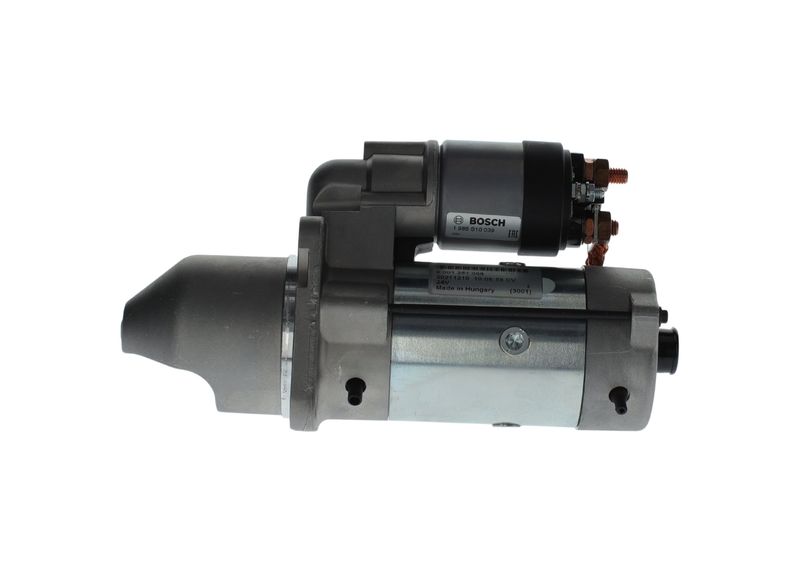

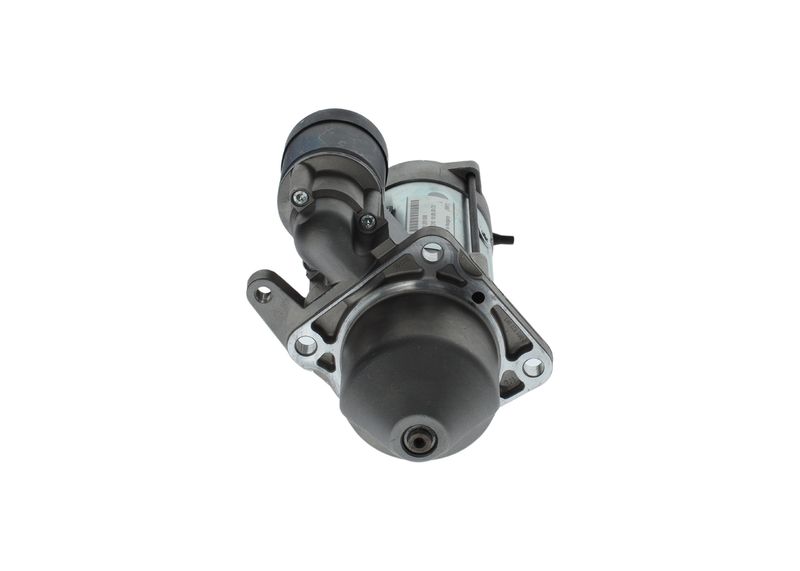

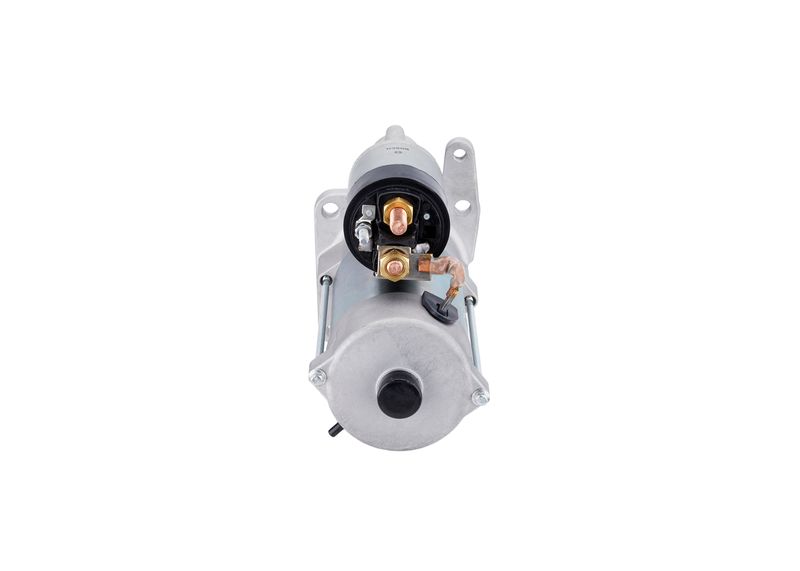

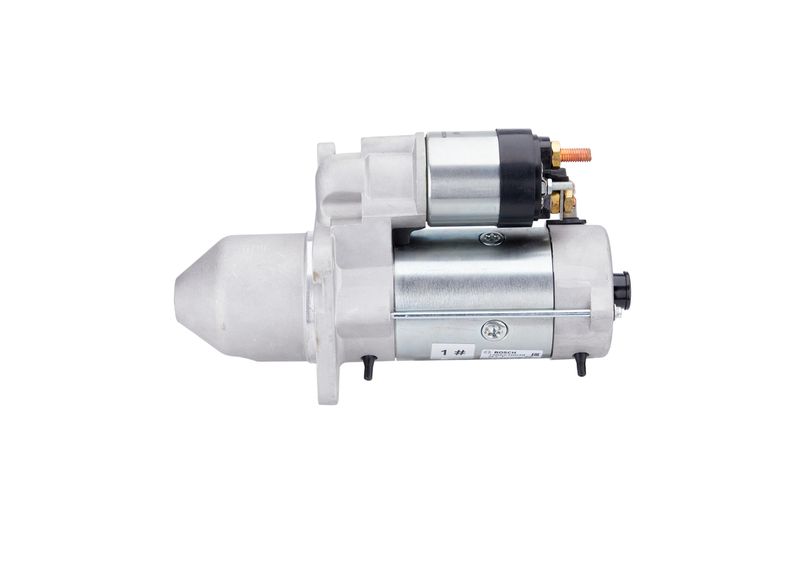

Bosch 1986S10039 Starter Motor
Your selected vehicle
Regular price
£281.32
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 1986S10039 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 24 V electrical rating, 4 kW rated power, 10 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
24
Rated Power [kW] :
4
Number of mounting bores :
3
Number of Teeth :
10
Clamp :
30,50
Flange Diameter [mm] :
89
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
48.1
Starter Type :
Self-supporting
Bore Diameter [mm] :
11
Bore Diameter 2 [mm] :
11
Bore Ø 3 [mm] :
11
Length [mm] :
302
Position/Degree :
rechts
Jaw opening angle measurement [Degree] :
130
- Vendor BOSCH
- SKU 1986S10039
- LEYLAND : AENC483
- BOSCH : 0 986 027 700
- Carwood Group : BREF032116742
- Carwood Group : BREF0321986S10039
- HELLA : 8EA 012 586-761
- LUCAS : LRS04431
- MAHLE : MS 1234
- WAI : 31175N
- BOSCH : ST 24V 4,3KW (R)
