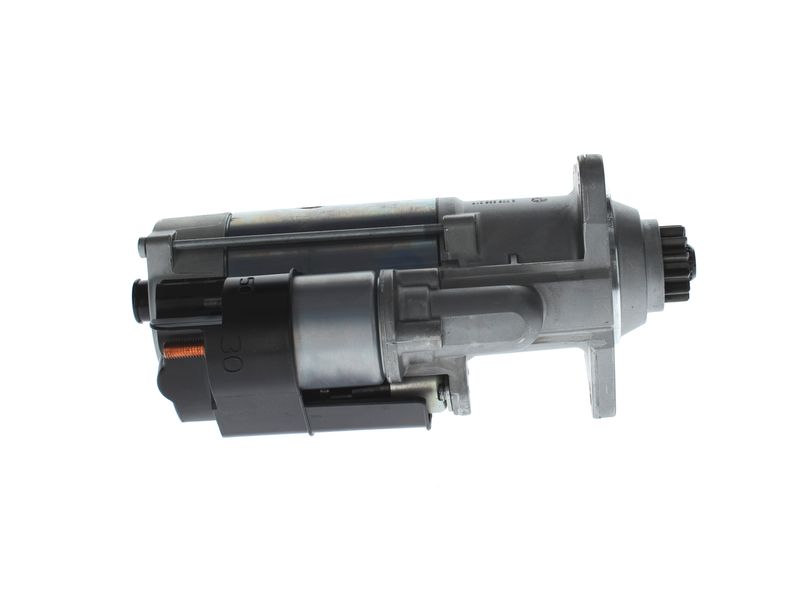

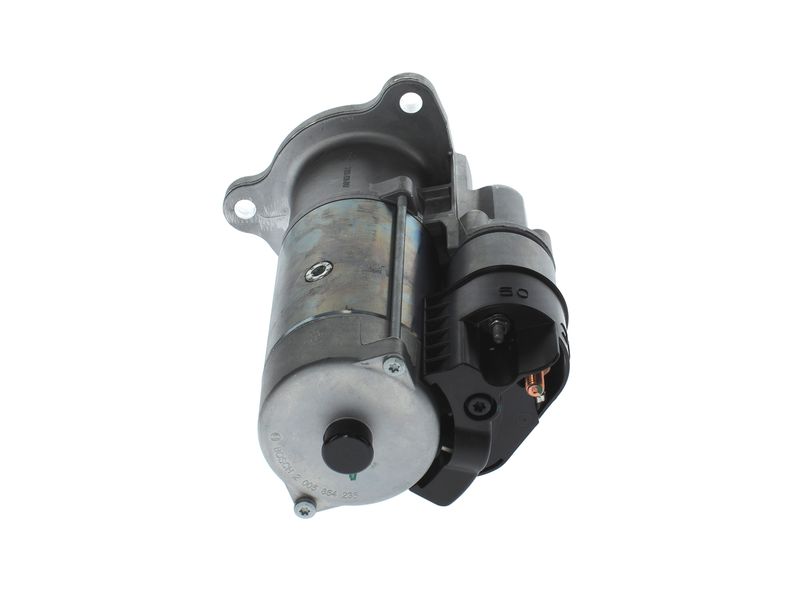

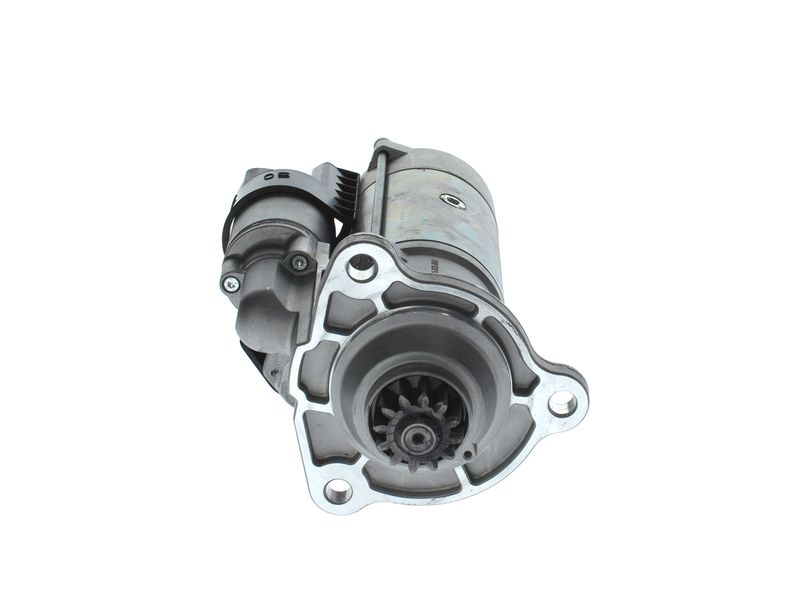

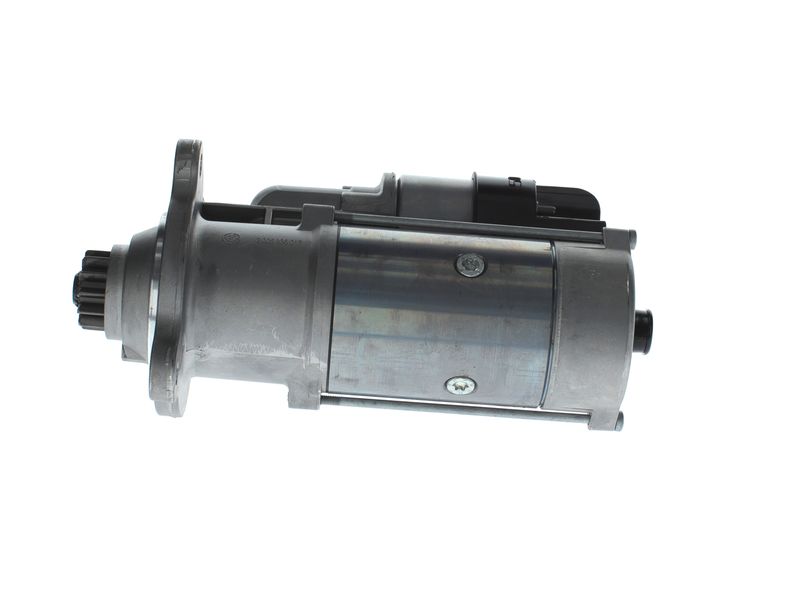

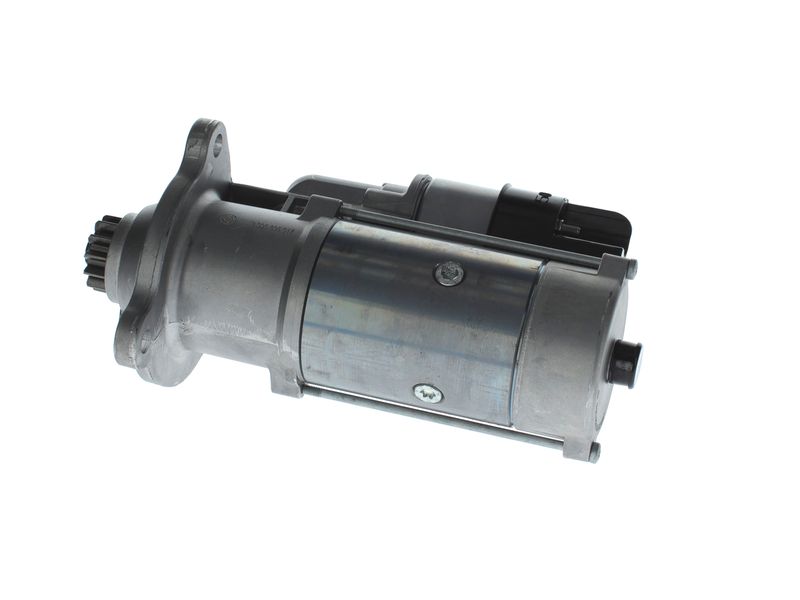

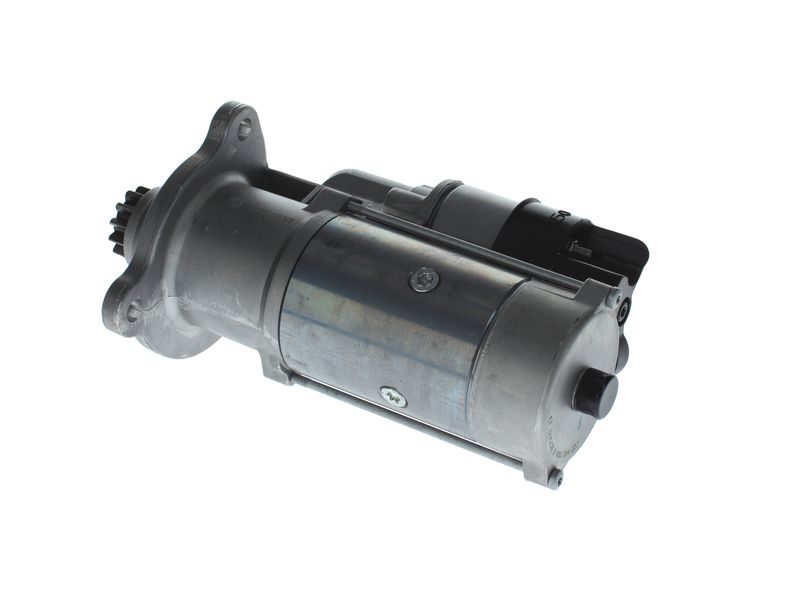

Bosch 1986S10047 Starter Motor
Your selected vehicle
Regular price
£323.25
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 1986S10047 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 24 V electrical rating, 5.5 kW rated power, 12 teeth, and Floating pinion starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
24
Rated Power [kW] :
5.5
Number of mounting bores :
3
Number of Teeth :
12
Clamp :
30,50
Flange Diameter [mm] :
92
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
48
Starter Type :
Floating pinion
Bore Diameter [mm] :
13.5
Bore Diameter 2 [mm] :
13.5
Bore Ø 3 [mm] :
13.5
Length [mm] :
325
Position/Degree :
links
- Vendor BOSCH
- SKU 1986S10047
- BOSCH : 0 986 021 480
- Carwood Group : BREF0320986021480
- Carwood Group : BREF032113891
- Carwood Group : BREF0321986S10047
- FEBI BILSTEIN : 180664
- FEBI BILSTEIN : 48990
- HELLA : 8EA 012 586-101
- LUCAS : LRS02272
- MAHLE : MS 758
- VALEO : 203047
- VALEO : 438284
- WAI : 19802N
- BOSCH : ST 24V 5,5KW (R)
