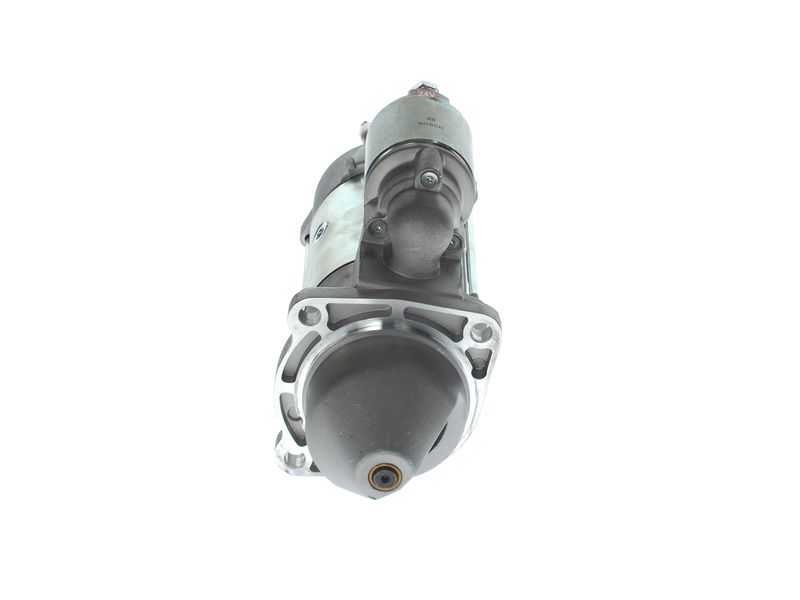

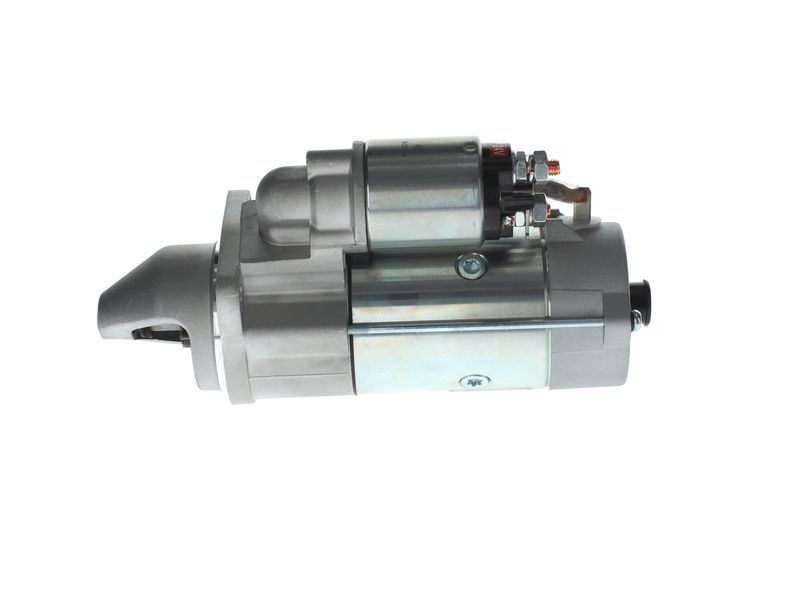

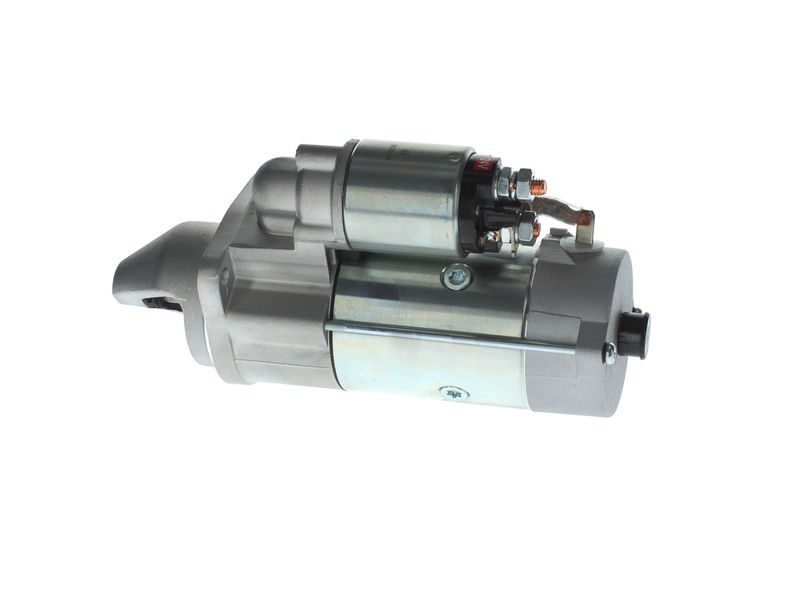

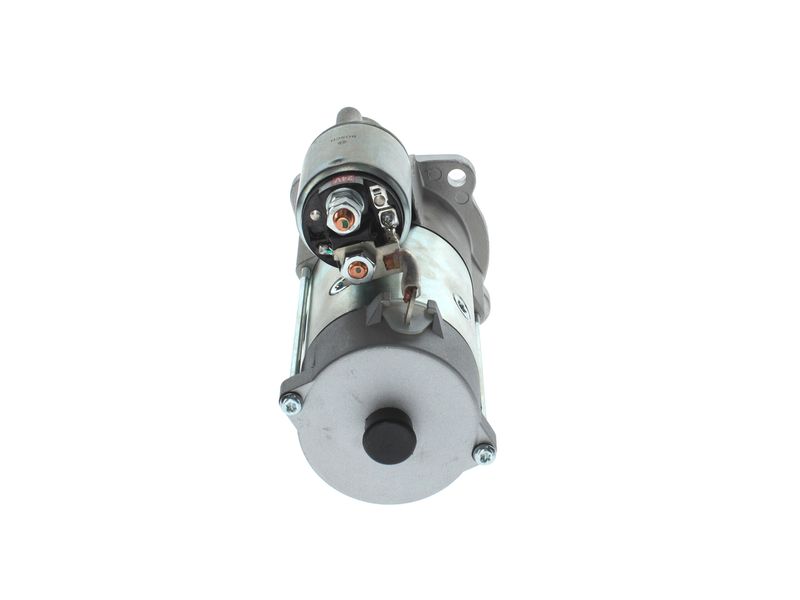

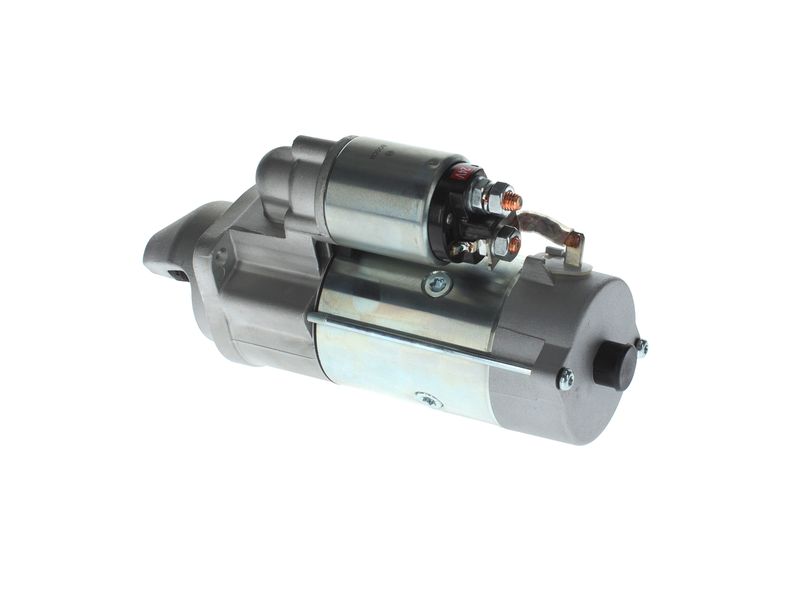

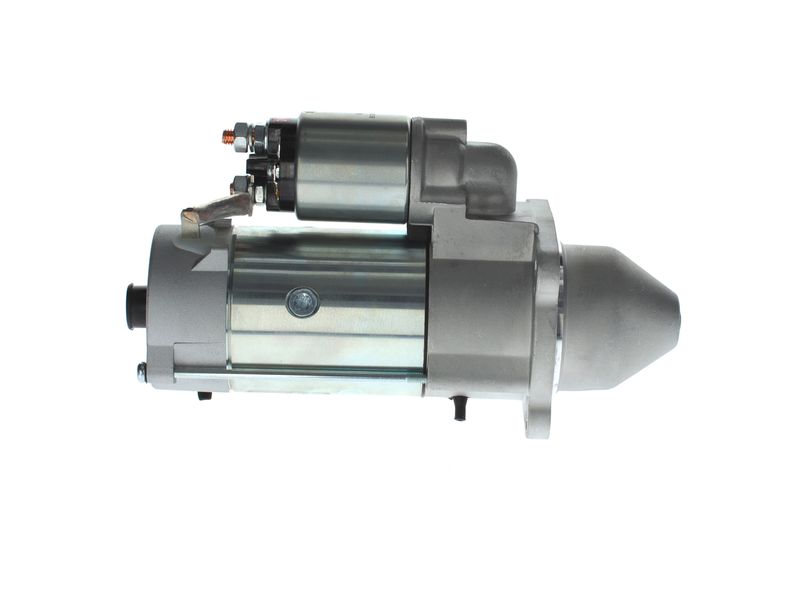

Bosch 1986S10050 Starter Motor
Your selected vehicle
Regular price
£330.09
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 1986S10050 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 24 V electrical rating, 4 kW rated power, 9 teeth, and Self-supporting starter type. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
24
Rated Power [kW] :
4
Number of mounting bores :
3
Number of Teeth :
9
Clamp :
30,50
Flange Diameter [mm] :
89
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
28
Starter Type :
Self-supporting
Bore Diameter [mm] :
10.9
Bore Diameter 2 [mm] :
10.9
Bore Ø 3 [mm] :
10.9
Length [mm] :
314
Position/Degree :
links
Jaw opening angle measurement [Degree] :
45
- Vendor BOSCH
- SKU 1986S10050
- DAF : 1516762R
- INTERNATIONAL HARV. : U641511
- IVECO : 1163626 42522942
- MAGIRUS-DEUTZ : 01163626 01179586 01180999 01180999KZ 01182235 01183239 01183681 01183716 116 3626 117 9586 118 0999 118 2235 118 3239 118 3681 118 3716
- FAUN : 4159 015
- BOMAG : 057 109 30 057 261 91
- CASE IH : 1480963
- POCLAIN : U0641511
- LIEBHERR : 620 08 27
- LISTER : 18958
- BOSCH : 0 986 021 000
- Carwood Group : BREF0320986021000
- Carwood Group : BREF032112494
- Carwood Group : BREF0321986S10050
- HELLA : 8EA 012 586-611
- LUCAS : LRS01936
- MAHLE : MS 232
- VALEO : 203004
- VALEO : 438593
- WAI : 18958N
- WAI : 31082N
- BOSCH : ST 24V 4KW (R)
