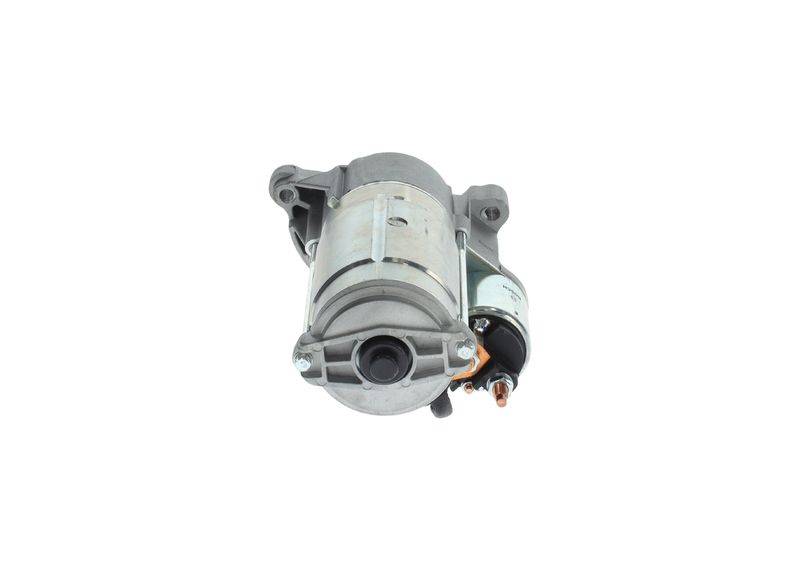

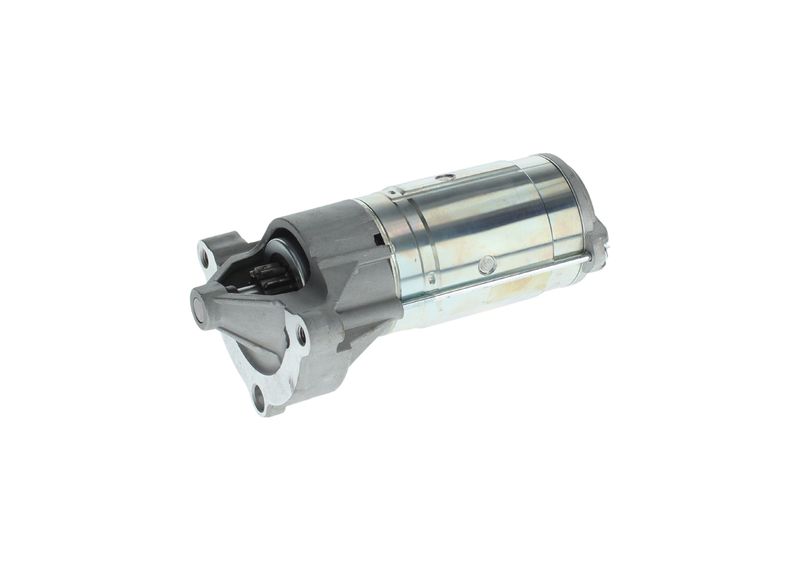

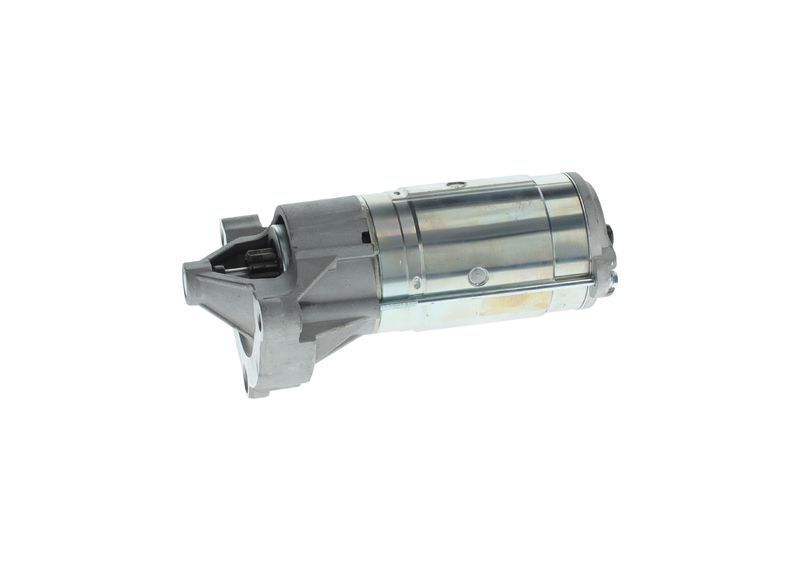

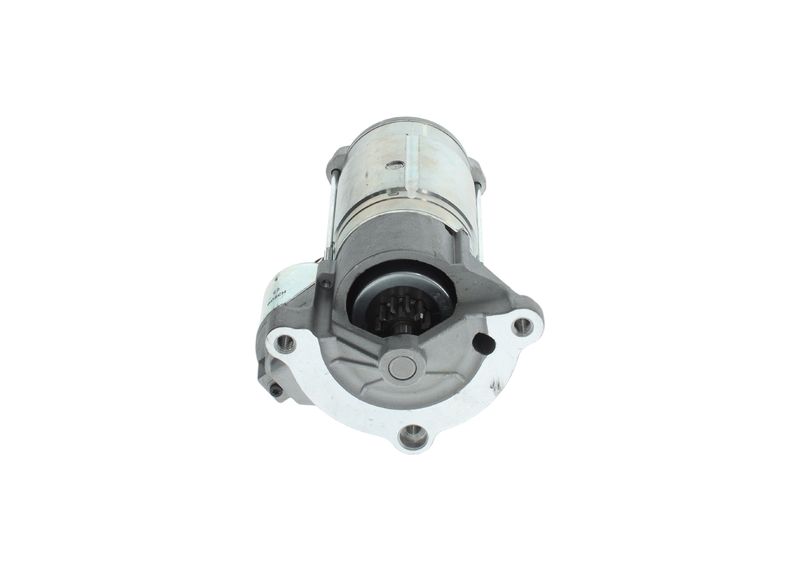

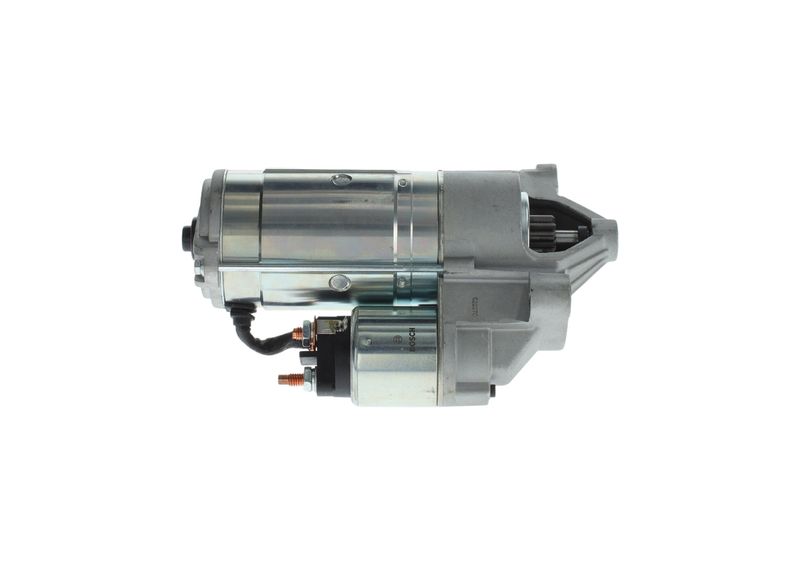

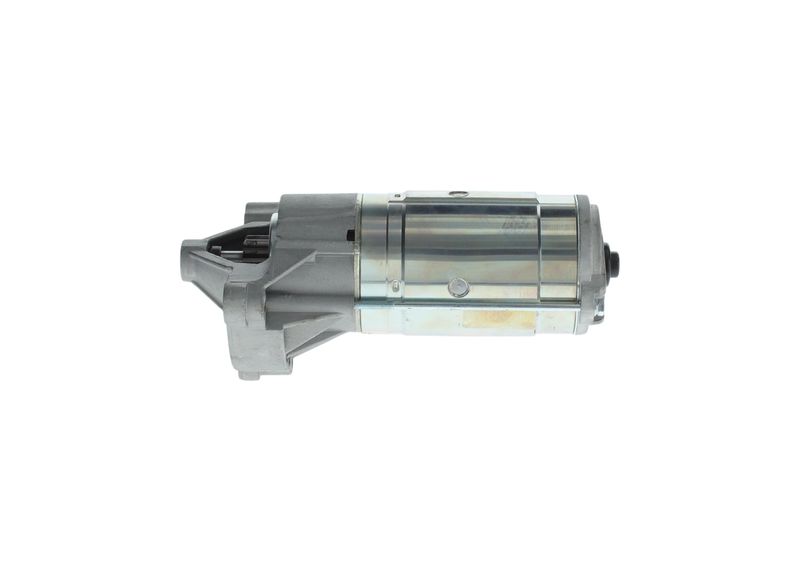

Bosch 1986S10069 Starter Motor
Your selected vehicle
Regular price
£218.72
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 1986S10069 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 1.9 kW rated power, Self-supporting starter type, and manual Transmission transmission. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.
Function :
Starter
Voltage [V] :
12
Rated Power [kW] :
1.9
Number of mounting bores :
0
Number of threaded holes :
3
Number of Teeth :
11
Clamp :
30,50
Rotation Direction :
Clockwise rotation
Pinion Rest Position [mm] :
-5.39
Starter Type :
Self-supporting
Thread Size :
M10x1.5
Thread Size 1 :
M10x1.5
Thread Size 2 :
M10x1.5
Length [mm] :
238
Position/Degree :
links
Jaw opening angle measurement [Degree] :
35
Construction Year to :
12.2011
Transmission Type :
Manual Transmission
Engine Code :
AHV (DW10FD)
Construction Year to :
12.2018
- Vendor BOSCH
- SKU 1986S10069
- CITROËN : 5802 EA 5802 EF 5802 Z5 5802 Z6 5802 Z7 95 555 076 80
- FIAT : K9647157980 71722353 9635659780 9647157980
- LANCIA : 71722353 9635659780
- OPEL : 5802EF
- PEUGEOT : 5802 EA 5802 EF 5802 X9 5802 Z5 5802 Z6 5802 Z7 95 555 076 95 555 076 80 96 469 722 80 96 482 421 80
- VAUXHALL : 5802EF
- DS : 5802EF 5802Z5
- BOSCH : ST 12V kW (R)
