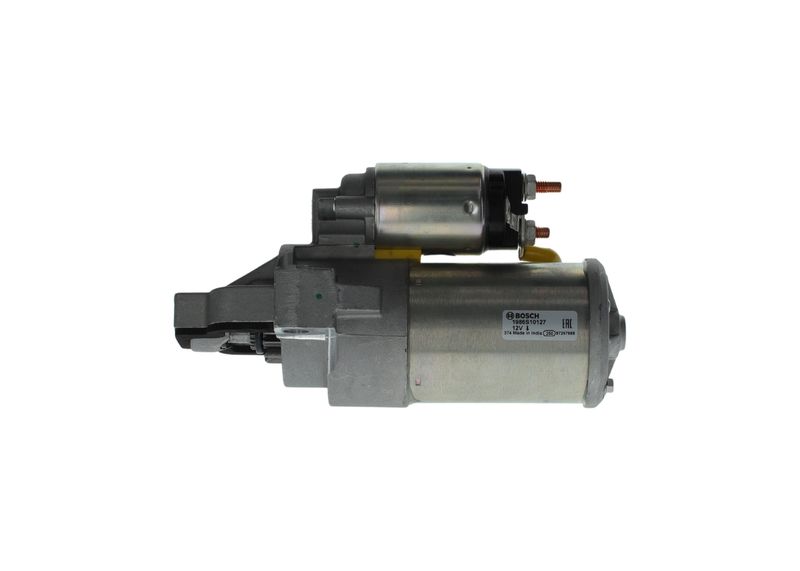

Bosch 1986S10127 Starter - 1

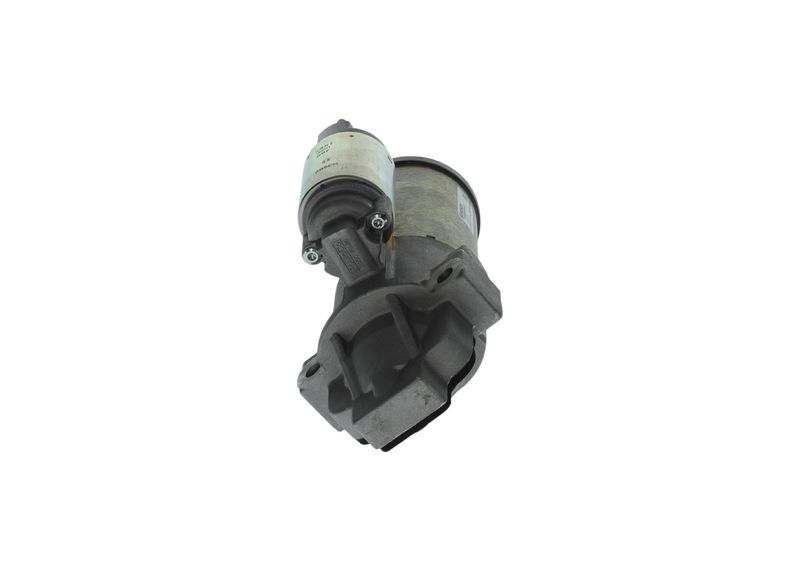

Bosch 1986S10127 Starter - 2

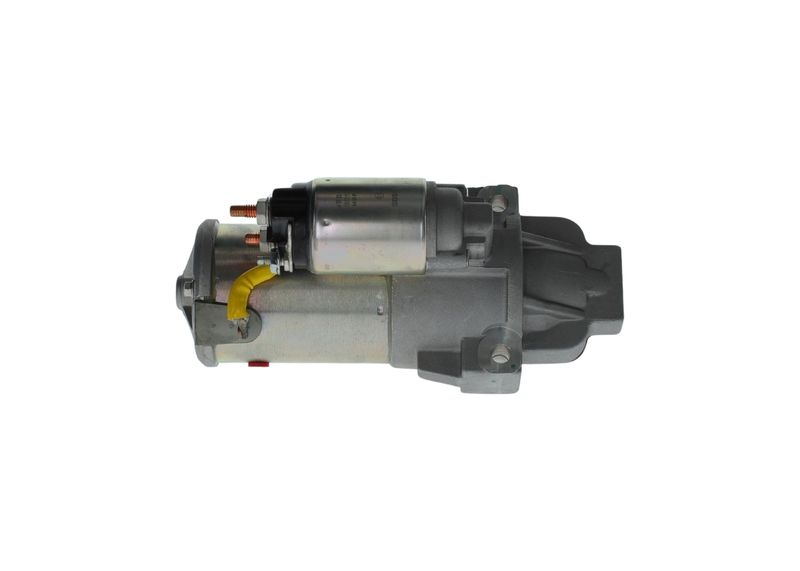

Bosch 1986S10127 Starter - 3

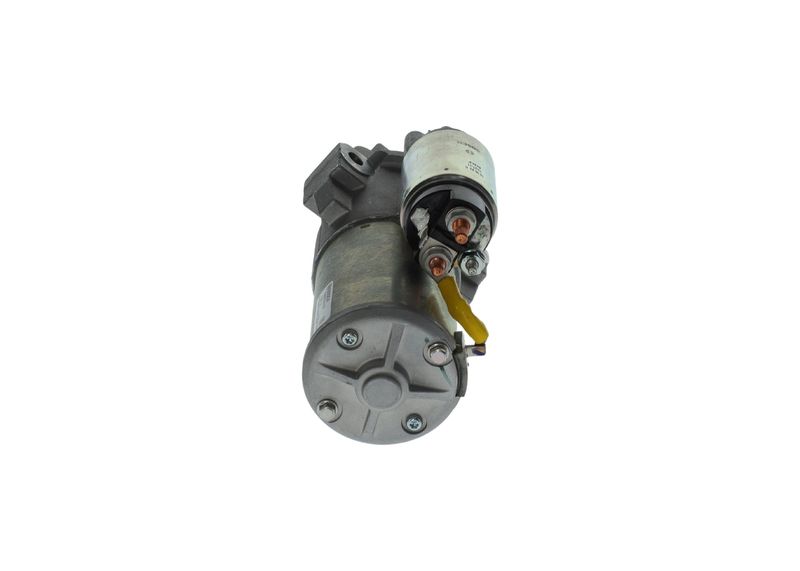

Bosch 1986S10127 Starter - 4

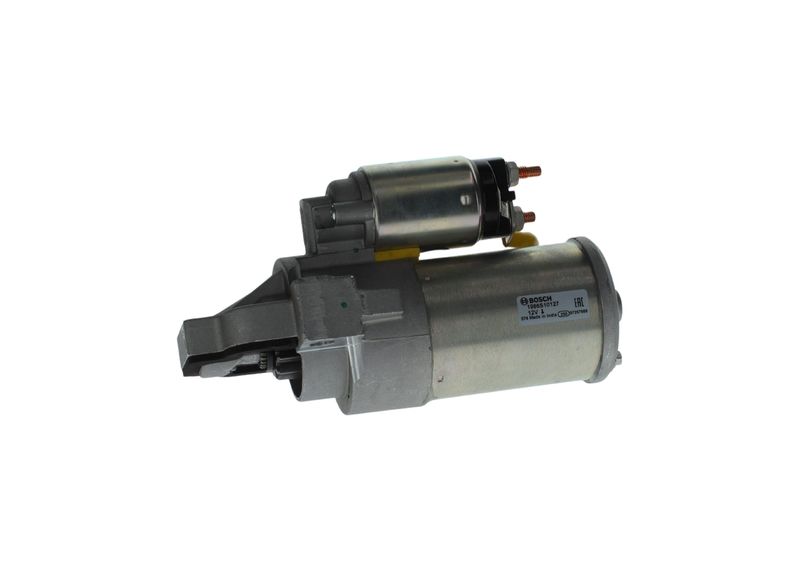

Bosch 1986S10127 Starter - 5

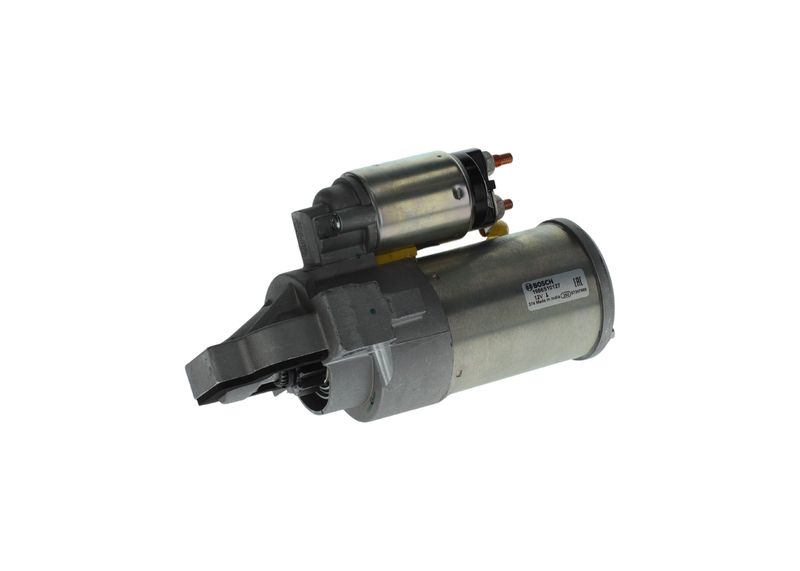

Bosch 1986S10127 Starter - 6
Bosch 1986S10127 Starter - 1
Bosch 1986S10127 Starter - 2
Bosch 1986S10127 Starter - 3
Bosch 1986S10127 Starter - 4
Bosch 1986S10127 Starter - 5
Bosch 1986S10127 Starter - 6
BOSCH

Bosch 1986S10127 Starter Motor

SKU: 1986S10127
Your selected vehicle
Out of stock
Out of Stock
£237.98 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
TOURNEO CUSTOM V362 Bus (F3)
Description Cylinder Capacity Horse Power Year
2.0 EcoBlue 1995 CCM 130 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 170 HP 12/2015 - 12/2023
TRANSIT CUSTOM V362 Bus (F3)
Description Cylinder Capacity Horse Power Year
2.0 EcoBlue 1995 CCM 130 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 170 HP 12/2015 - 12/2023
TRANSIT CUSTOM V362 Van (FY, FZ)
Description Cylinder Capacity Horse Power Year
2.0 EcoBlue 1995 CCM 105 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 130 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 170 HP 12/2015 - 12/2023
TRANSIT V363 Platform/Chassis (FED, FFD)
Description Cylinder Capacity Horse Power Year
2.0 EcoBlue 1995 CCM 105 HP From 03/2016
2.0 EcoBlue 1995 CCM 130 HP From 03/2016
2.0 EcoBlue 1995 CCM 170 HP 03/2016 - 06/2024
2.0 EcoBlue RWD 1995 CCM 105 HP From 03/2016
2.0 EcoBlue RWD 1995 CCM 130 HP From 03/2016
2.0 EcoBlue RWD 1995 CCM 170 HP 03/2016 - 06/2024
TRANSIT V363 Bus (FAD, FBD)
Description Cylinder Capacity Horse Power Year
2.0 EcoBlue 1995 CCM 105 HP From 03/2016
2.0 EcoBlue 1995 CCM 130 HP From 03/2016
2.0 EcoBlue 1995 CCM 170 HP 03/2016 - 06/2024
TRANSIT V363 Van (FCD, FDD)
Description Cylinder Capacity Horse Power Year
2.0 EcoBlue 1995 CCM 130 HP From 03/2016
2.0 EcoBlue 1995 CCM 105 HP From 03/2016
2.0 EcoBlue 1995 CCM 170 HP 03/2016 - 06/2024
2.0 EcoBlue RWD 1995 CCM 105 HP From 03/2016
2.0 EcoBlue RWD 1995 CCM 130 HP From 03/2016
2.0 EcoBlue RWD 1995 CCM 170 HP 03/2016 - 06/2024
2.0 EcoBlue 4x4 1995 CCM 130 HP From 01/2017

The Bosch 1986S10127 Starter Motor is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 12 V electrical rating, 2.2 kW rated power, Self-supporting starter type, and 10.5 mm bore diameter. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

Function : Starter
Voltage [V] : 12
Rated Power [kW] : 2.2
Number of mounting bores : 2
Number of threaded holes : 80
Clamp : 30,50
Rotation Direction : Clockwise rotation
Pinion Rest Position [mm] : 20
Starter Type : Self-supporting
Bore Diameter [mm] : 10.5
Bore Diameter 2 [mm] : 10.5
Length [mm] : 220
Position/Degree : rechts
Mounting Angle [degrees] : 80
Jaw opening angle measurement [Degree] : 80
Mounting bore angle measurement [degree] : 80
  • Vendor BOSCH
  • SKU 1986S10127
  • Barcode 4047026649581
  • FORD : GK2T11000DA GK2T11000DB 2120265 2225623
  • Carwood Group : BREF032116758
  • Carwood Group : BREF0321986S10127
  • HELLA : 8EA 011 612-961
  • VALEO : 438634
  • WAI : 31194N
  • BOSCH : ST 12V 2,2KW (R)
