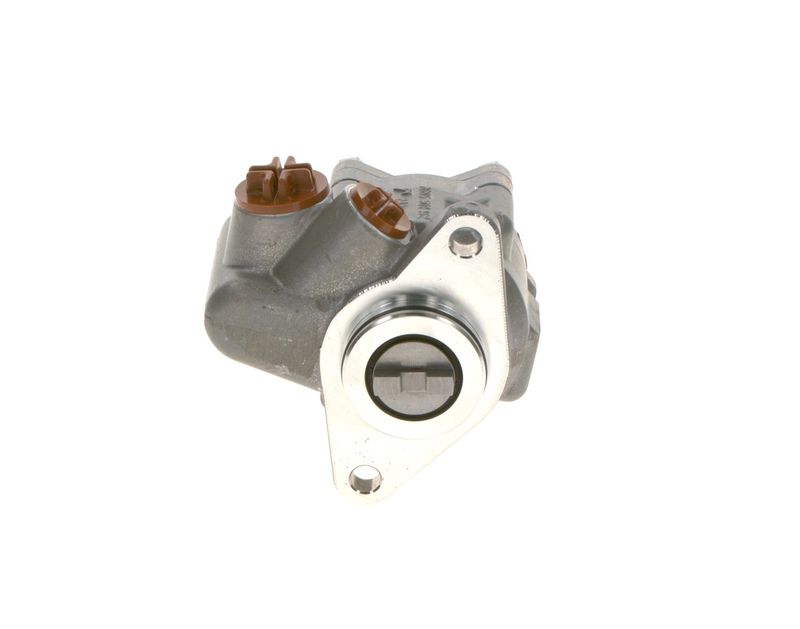

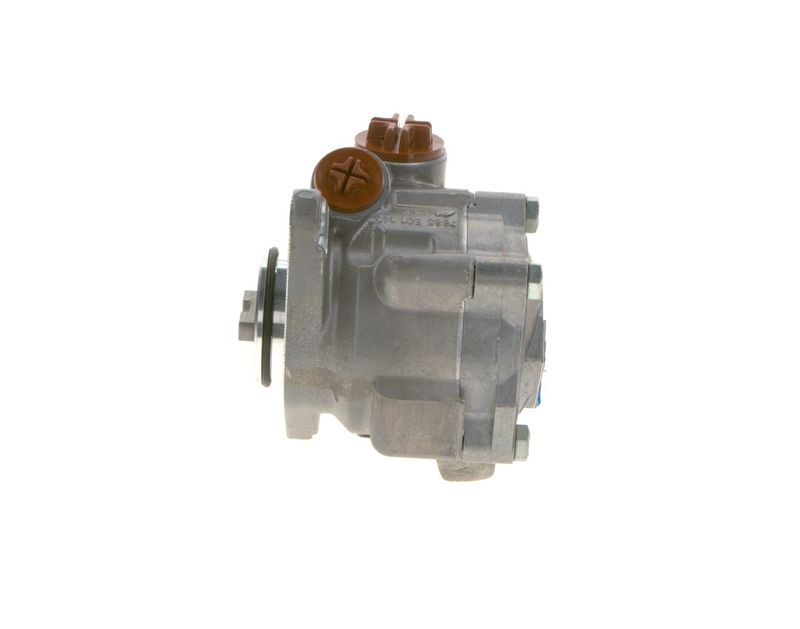

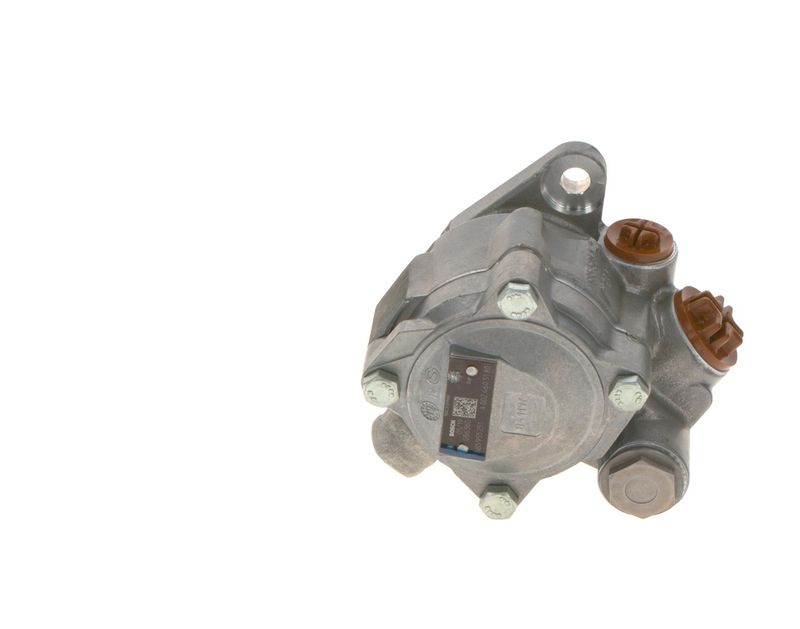

Bosch KS01000394 Hydraulic Pump, steering
Your selected vehicle
Regular price
£412.48
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch KS01000394 Hydraulic Pump, steering is a replacement power-steering hydraulic component that supplies pressurised fluid assistance to the steering system. Its catalogue specification records hydraulic operation, Vane Pump pump type, 165 bar pressure, and M 26 x 1,5 thread size 1. Match the reference, pressure, rotation, pulley or connections, fluid specification and vehicle application before fitting; flush contamination and bleed the system to the manufacturer's procedure.
Function :
Hydraulic Pump, steering
Operating Mode :
hydraulic
Pump Type :
Vane Pump
Pressure [bar] :
165
Rotation Direction :
Anticlockwise rotation
Thread Size 1 :
M 26 x 1,5
Bolt Hole Circle Ø [mm] :
104
Thread Size 2 :
M 18 x 1,5
Number of mounting bores :
2
- Vendor BOSCH
- SKU KS01000394
- MERCEDES-BENZ : A 002 460 24 80 A 002 460 51 80 002 460 24 80 002 460 51 80 24602480 24605180
- SETRA : 0024605180
- BOSCH : K S00 000 424
- FEBI BILSTEIN : 105938
- HELLA : 8TL 359 000-861
