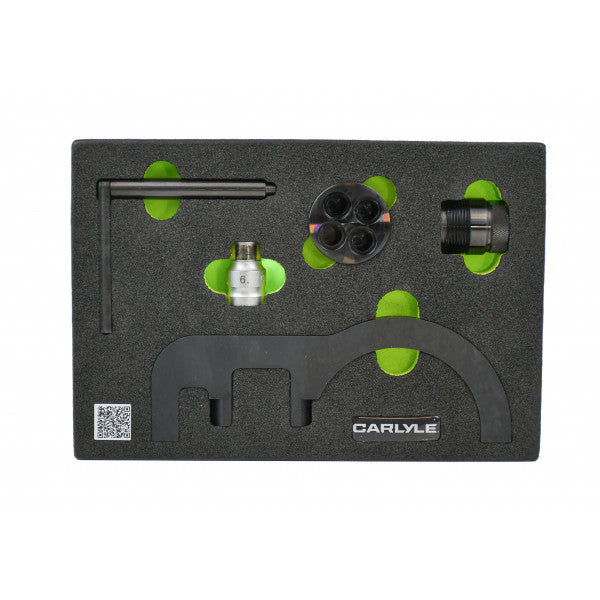

Engine Locking Tool BMW , MIN Chain -Diesel

The Engine Locking Tool BMW , MIN Chain -Diesel is a workshop tool or accessory that is intended for the task and working range stated in its catalogue specification. Use Carlyle hand tools reference C5010 when cross-checking the part. Check the reference, dimensions, drive or working size, material and included pieces before ordering, and always use the tool within its stated rating with suitable personal protective equipment.

• 1WW, N47 C16U1, N47 D16, N47 D16C, N47 C20A/K1, N47 C20K1, N47 C20U1, N47 D20A, N47 D20A/K0, N47 D20A/O0, N47 D20A/U0, N47 D20C N47 D20C/0, N47 D20C/01, N47 D20C/K1, N47 D20C/O1, N47 D20C/U1, N47 D20D, N47 D20D/T1, N47 D20O0, N47 D20U0, N47S D20B/D/T0 N47T D20K1, N47T D20O1, N47T D20U1, N57 D30, N57 D30A, N57 D30A/O0, N57 D30A/O1, N57 D30A0/O0, N57 D30B, N57 D30B/T0 N57 D30B/T1, N57 D30C, N57 D30C/S1, N57 D30O0, N57 D30O1, N57 D30T0, N57 D30TO, N57 D30U0, N57 D30UO
• C5010 contains the tools required for setting and locking the 1.6 / 2.0 / 3.0 (N47/N57) Diesel Engines when undertaking Timing Chain replacement and also High Pressure Fuel Pump removal.
• BMW, Mini, Toyota
• BMW: 114d (F20/21)(11-), 116d (E81/82/87/88)(04-14), 116d (F20/21)(11-), 118d (E81/82/87/88)(04-14), 118d/xDrive (F20/21)(11-), 120d (E81/82/87/88)(04-14), 120d/xDrive (F20/21)(11-) 123d (E81/82/87/88)(04-14), 125d (F20/21)(11-), 218d (F22)(14-), 220d (F22)(14-), 225d (F22)(14-), 316d (E90/91/92/93(05-14), 316d (F30/31)(12-), 318d (E90/91/92/93(05-14), 318d/xDrive (F30/31/34)(12-) 320d (E90/91/92/93(05-14), 320d (F30/31)(12-), 320d/xDrive (F30/31/34)(12-), 325d (E90/91/92/93(05-14) 325d (F30/31/34)(12-), 330d (E90/91/92/93(05-14), 330d/xDrive (F30/31/34)(12-), 335d/xDrive (F30/31/34)(12-) 418d (F36)(14-), 420d (F33)(14-), 420d/xDrive (F32/36)(13-), 425d (F32/33)(13-), 430d/xDrive (F32/33/36)(13-)(14-), 435d/xDrive (F32/33/36)(13-)(14-), 520d GT (F07)(09-), 520d/xDrive (E60/61/F10/11)(10-) 525d/xDrive (F10/11)(10-), 530d/xDrive (F10/11)(10-), 530d/xDrive GT (F07)(09-), 535d/xDrive (F10/11)(10-), 535d/xDrive GT (F07)(09-), 640d/xDrive (F06/12/13)(11-), 730d/xDrive (F01/02/04)(08-15), 740d/xDrive (F01/02/04)(08-15) 750d/xDrive (F01/02/04)(08-15), X1 (E84)(09-15), X3 (E83)(03-10), X3 (F25)(10-), X4 (F26)(14-), X5 (E70)(06-13), X5 (F15)(13-), X6 (E71)(08-14), X6 (F16)(14-) Mini: Clubman (R55) (07-14), Clubvan (R55) (12-14), Countryman (R60) (10-17), Coupe (R58) (11-15), Mini (R56/57) (06-15), Paceman (R61) (13-17), Roadster (R59) (12-15) Toyota: Auris (12-19), Avensis (09-18), Verso / Sportsvan (09-18)
• Equivalent to OE reference: 11.5.320, 11.8.760, 11.6.480, 11.8.740
