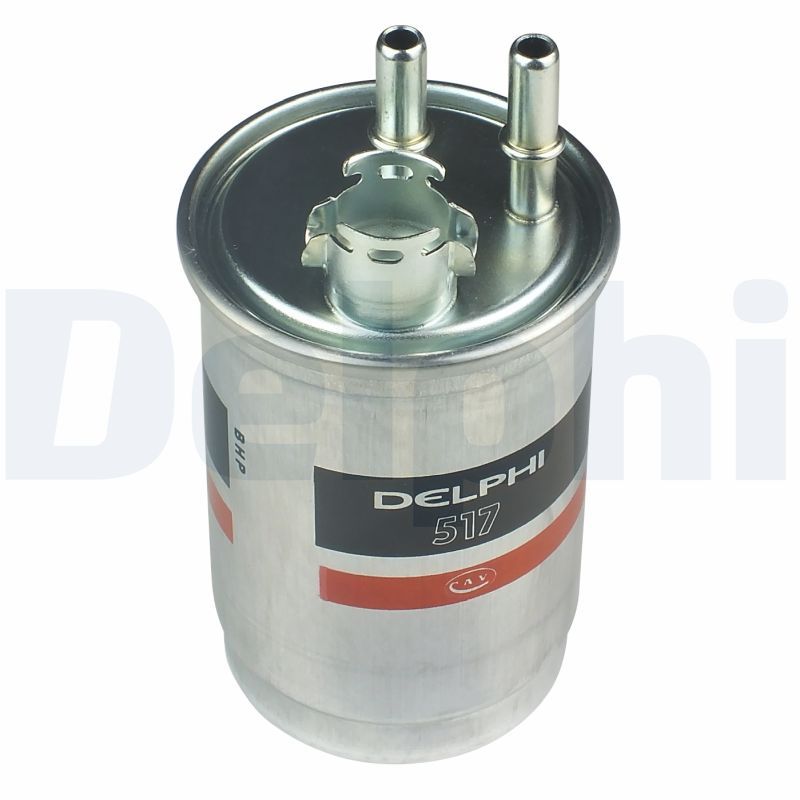

Delphi HDF517 Fuel Filter - 1

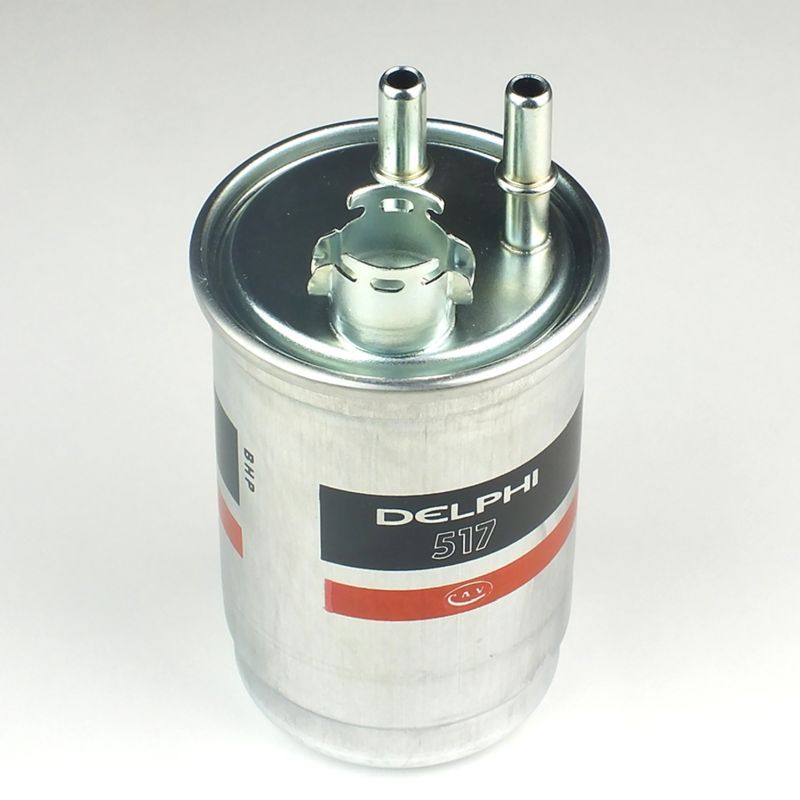

Delphi HDF517 Fuel Filter - 2

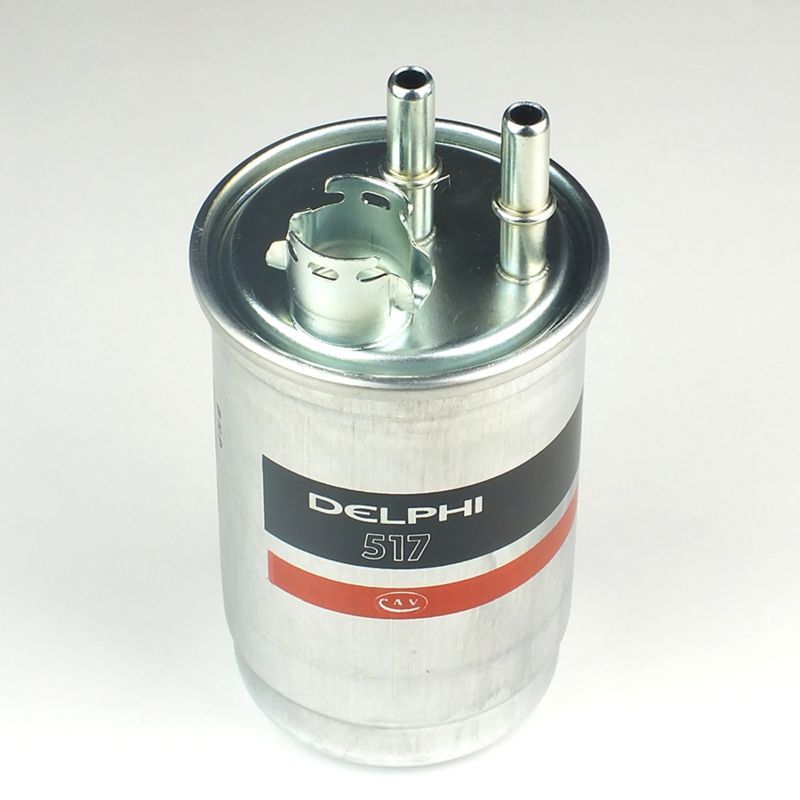

Delphi HDF517 Fuel Filter - 3

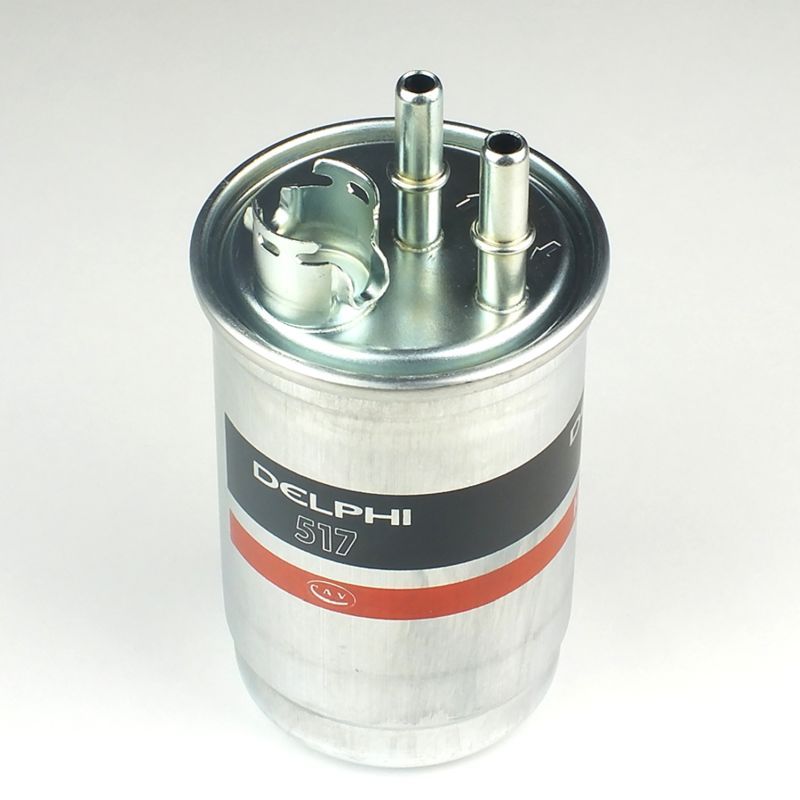

Delphi HDF517 Fuel Filter - 4

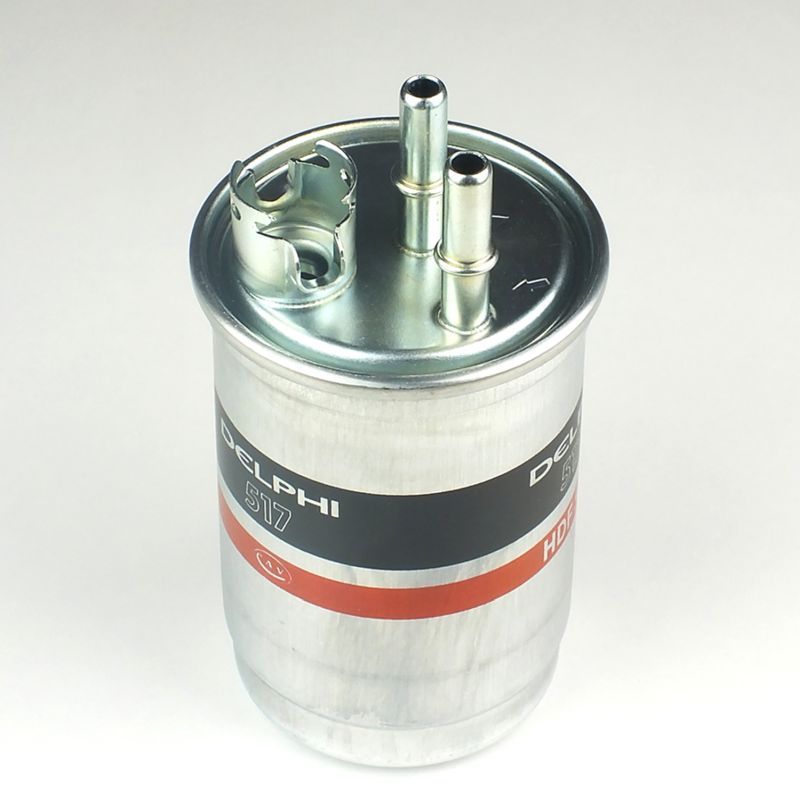

Delphi HDF517 Fuel Filter - 5

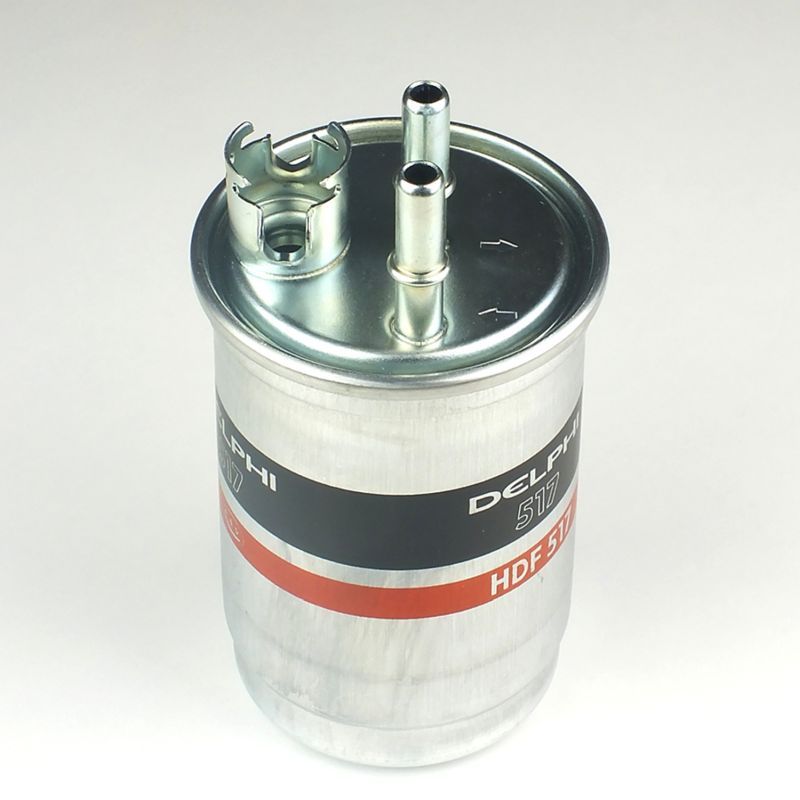

Delphi HDF517 Fuel Filter - 6
Delphi HDF517 Fuel Filter video
Delphi HDF517 Fuel Filter - 1
Delphi HDF517 Fuel Filter - 2
Delphi HDF517 Fuel Filter - 3
Delphi HDF517 Fuel Filter - 4
Delphi HDF517 Fuel Filter - 5
Delphi HDF517 Fuel Filter - 6
Delphi HDF517 Fuel Filter video
DELPHI

Delphi HDF517 Fuel Filter

SKU: HDF517
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£12.77 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
COURIER Box Body/MPV (J5_, J3_)
Description Cylinder Capacity Horse Power Year
1.8 DI 1753 CCM 75 HP 09/2000 - 08/2003
COURIER Hatchback Van (JV_)
Description Cylinder Capacity Horse Power Year
TD 1.8 1753 CCM 75 HP 03/2000 - 08/2003
FIESTA Mk IV (JA_, JB_)
Description Cylinder Capacity Horse Power Year
1.8 DI 1753 CCM 75 HP 04/2000 - 01/2002
FOCUS I Estate Van (DNW)
Description Cylinder Capacity Horse Power Year
1.8 TDDi 1753 CCM 75 HP 08/1999 - 03/2005
1.8 TDDi 1753 CCM 90 HP 08/1998 - 03/2005
FOCUS I (DAW, DBW)
Description Cylinder Capacity Horse Power Year
1.8 Turbo DI / TDDi 1753 CCM 90 HP 10/1998 - 11/2004
1.8 DI / TDDi 1753 CCM 75 HP 08/1999 - 11/2004
FOCUS I Turnier (DNW)
Description Cylinder Capacity Horse Power Year
1.8 Turbo DI / TDDi 1753 CCM 90 HP 02/1999 - 11/2004
1.8 DI / TDDi 1753 CCM 75 HP 08/1999 - 11/2004
FOCUS I Saloon (DFW)
Description Cylinder Capacity Horse Power Year
1.8 Turbo DI / TDDi 1753 CCM 90 HP 02/1999 - 11/2004
1.8 Turbo DI / TDDi 1753 CCM 75 HP 08/2001 - 03/2005
MONDEO III (B5Y)
Description Cylinder Capacity Horse Power Year
2.0 16V DI / TDDi / TDCi 1998 CCM 90 HP 10/2000 - 03/2007
2.0 16V TDDi / TDCi 1998 CCM 115 HP 10/2000 - 03/2007
MONDEO III Turnier (BWY)
Description Cylinder Capacity Horse Power Year
2.0 16V DI / TDDi / TDCi 1998 CCM 90 HP 10/2000 - 03/2007
2.0 16V TDDi / TDCi 1998 CCM 115 HP 10/2000 - 03/2007
MONDEO Mk III Saloon (B4Y)
Description Cylinder Capacity Horse Power Year
2.0 16V DI / TDDi / TDCi 1998 CCM 90 HP 10/2000 - 03/2007
2.0 16V TDDi / TDCi 1998 CCM 115 HP 10/2000 - 03/2007
TOURNEO CONNECT
Description Cylinder Capacity Horse Power Year
1.8 TDCi /TDDi /DI 1753 CCM 75 HP 06/2002 - 12/2013
1.8 TDCi 1753 CCM 90 HP 06/2002 - 12/2013
TRANSIT CONNECT (P65_, P70_, P80_)
Description Cylinder Capacity Horse Power Year
1.8 Di 1753 CCM 75 HP 06/2002 - 12/2013
RENAULT
LAGUNA I Estate (K56_)
Description Cylinder Capacity Horse Power Year
1.9 dCi (K56W) 1870 CCM 107 HP 09/1999 - 03/2001

The Delphi HDF517 Fuel Filter is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records 88 mm diameter, plastic construction, with quick coupling filter design, and 166 mm height. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.

Function : Fuel Filter
Diameter [mm] : 88
Material : Plastic
Filter type : with quick coupling
Height [mm] : 166
  • Vendor DELPHI
  • SKU HDF517
  • Barcode 5050100005301
  • FORD : XS4Q9176AB 2S419B072CA 2S419B072CB 2S4J9155AA 1088053 XS4J9176AA XS4Q9155CB XS4Q9176AA 2S419155AB XS4Q9155CC 1079271 2S419155AA 1069073 1203201 1150868 1230621 1253789 2042989 2042992 1069071
  • BORG & BECK : BFF8056
  • BOSCH : 0 450 906 357
  • HELLA : 8ZF 366 111-161
  • HENGST FILTER : H124WK
  • LUCAS : LFDF137
  • MAHLE : KL 173
  • MAHLE : KL 483
  • MANN-FILTER : WK 853/7
  • NAPA : NFF2186
  • UFI : 24.409.00
  • UFI : 24.450.00
  • VALEO : 587518
  • WIX FILTERS : WF8197
  • User manual
