DELPHI

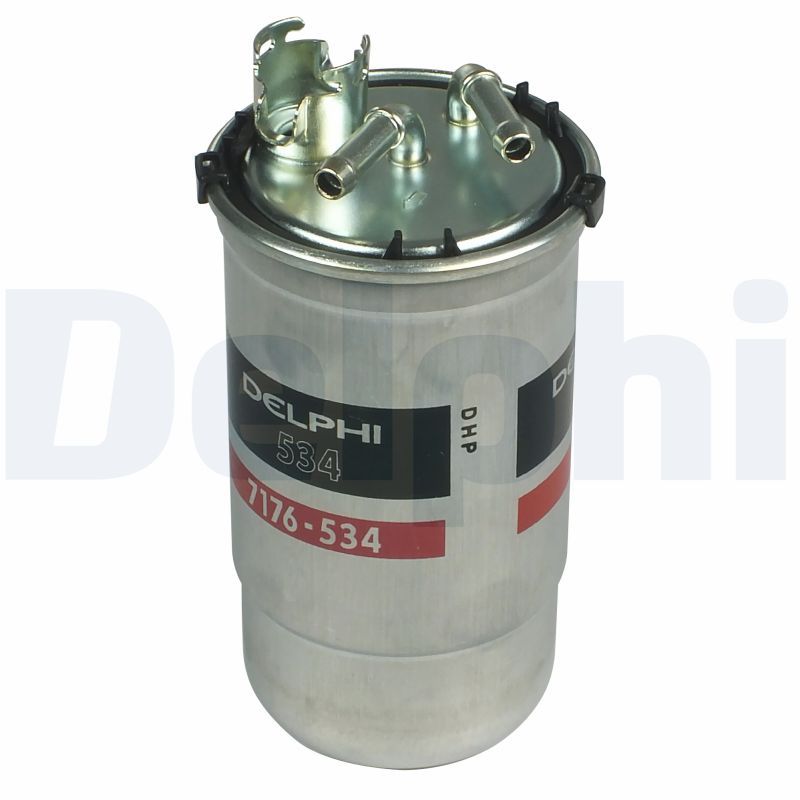

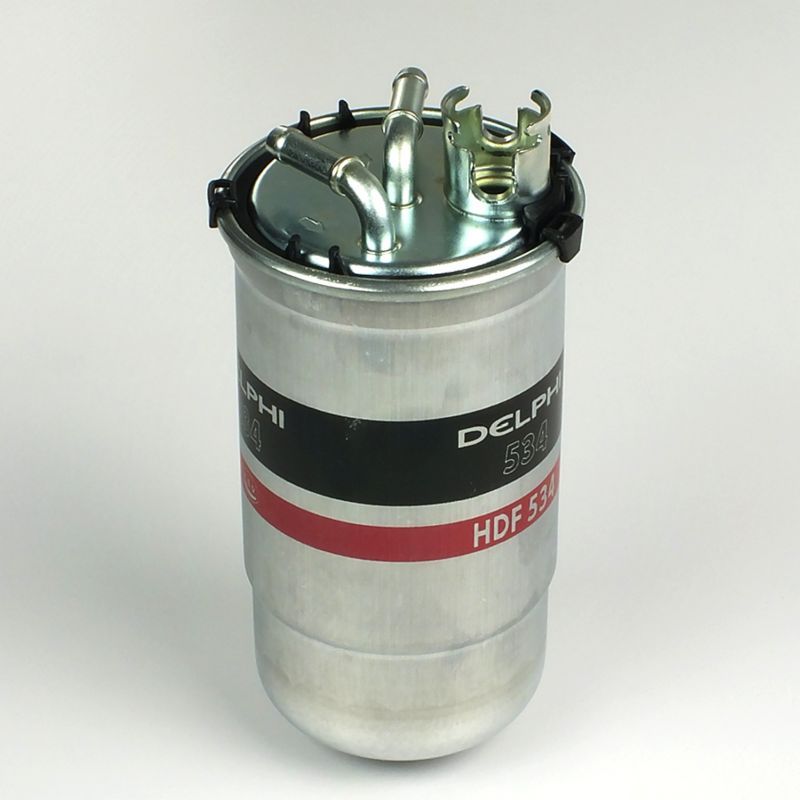

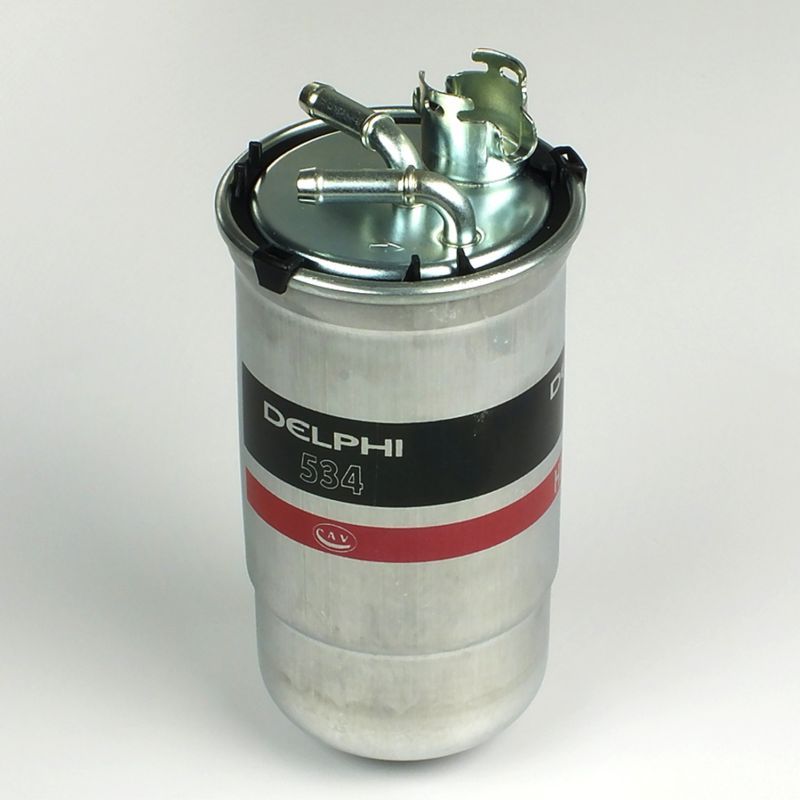

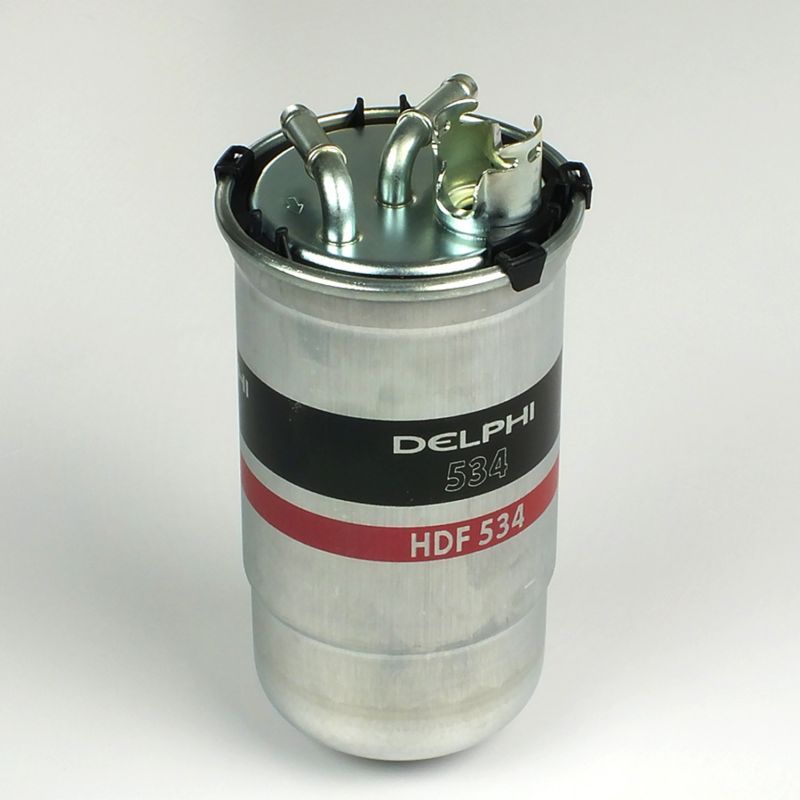

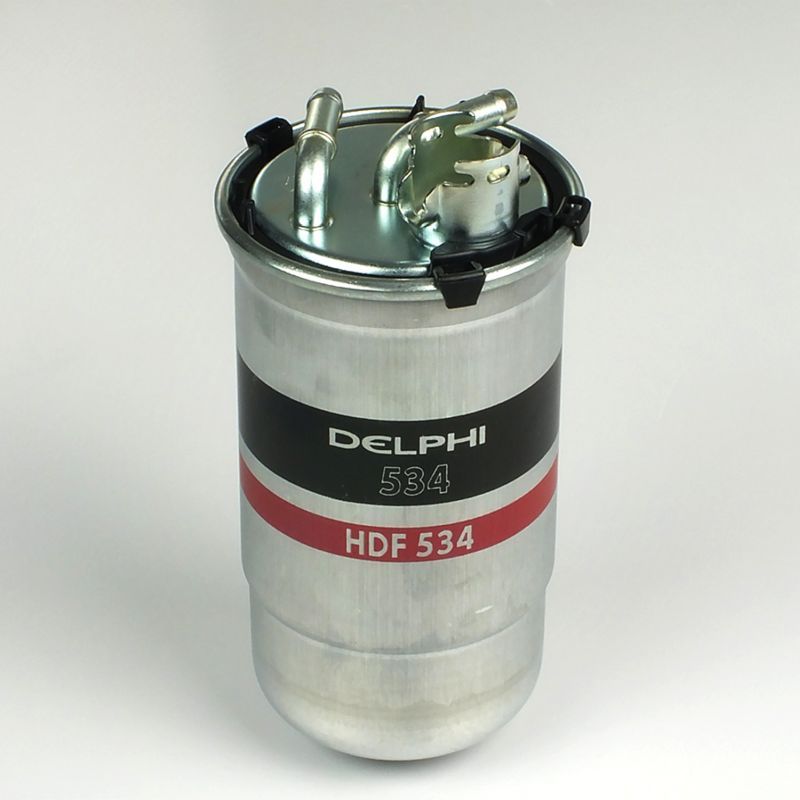

Delphi HDF534 Fuel Filter

SKU: HDF534
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£16.61 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SEAT
CORDOBA (6L2)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 131 HP 10/2002 - 11/2009
1.9 TDI 1896 CCM 100 HP 09/2002 - 11/2009
1.9 SDI 1896 CCM 64 HP 09/2002 - 11/2009
1.4 TDI 1422 CCM 75 HP 10/2002 - 12/2005
IBIZA Mk III (6L1)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 100 HP 02/2002 - 11/2009
1.9 TDI 1896 CCM 131 HP 02/2002 - 11/2009
1.9 SDI 1896 CCM 64 HP 02/2002 - 12/2005
1.4 TDI 1422 CCM 75 HP 05/2002 - 12/2005
1.9 TDI Cupra R 1896 CCM 160 HP 03/2004 - 02/2008
SKODA
FABIA I (6Y2)
Description Cylinder Capacity Horse Power Year
1.9 SDI 1896 CCM 64 HP 12/1999 - 03/2008
1.9 TDI 1896 CCM 100 HP 01/2000 - 03/2008
1.9 TDI RS 1896 CCM 130 HP 06/2003 - 03/2008
1.4 TDI 1422 CCM 75 HP 04/2003 - 03/2008
FABIA I Saloon (6Y3)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 100 HP 01/2000 - 12/2007
1.9 SDI 1896 CCM 64 HP 11/1999 - 12/2007
1.4 TDI 1422 CCM 75 HP 04/2003 - 12/2007
FABIA I Praktik (6Y5)
Description Cylinder Capacity Horse Power Year
1.9 SDI 1896 CCM 64 HP 07/2001 - 12/2007
FABIA I Combi (6Y5)
Description Cylinder Capacity Horse Power Year
1.9 SDI 1896 CCM 64 HP 04/2000 - 12/2007
1.9 TDI 1896 CCM 100 HP 04/2000 - 12/2007
1.4 TDI 1422 CCM 75 HP 04/2003 - 12/2007
VW
POLO IV (9N_, 9A_)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 101 HP 10/2001 - 11/2009
1.4 TDI 1422 CCM 75 HP 10/2001 - 06/2005
1.9 SDI 1896 CCM 64 HP 10/2001 - 11/2009
1.9 TDI 1896 CCM 130 HP 11/2003 - 11/2009
POLO IV Saloon (9A4, 9A2, 9N2, 9A6)
Description Cylinder Capacity Horse Power Year
1.9 SDI 1896 CCM 64 HP 09/2002 - 04/2012
1.4 TDI 1422 CCM 75 HP 07/2003 - 06/2005
POLO IV Saloon (9N2, 9N4)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 101 HP 07/2003 - 12/2010

The Delphi HDF534 Fuel Filter is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records 89 mm diameter, plastic construction, in-Line Filter filter design, and 198 mm height. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.

Function : Fuel Filter
Diameter [mm] : 89
Material : Plastic
Filter type : In-Line Filter
Height [mm] : 198
  • Vendor DELPHI
  • SKU HDF534
  • Barcode 5050100217032
  • BLUE PRINT : ADV182317
  • BORG & BECK : BFF8050
  • BOSCH : 0 450 906 322
  • FEBI BILSTEIN : 100482
  • HELLA : 8ZF 366 110-461
  • HENGST FILTER : H129WK
  • LUCAS : LFDF130
  • MAHLE : KL 157/1D
  • MANN-FILTER : WK 853/12
  • MANN-FILTER : WK 853/12 z
  • MEYLE : 100 127 0000
  • NAPA : NFF2035
  • VALEO : 587502
  • WIX FILTERS : WF8269
