DELPHI

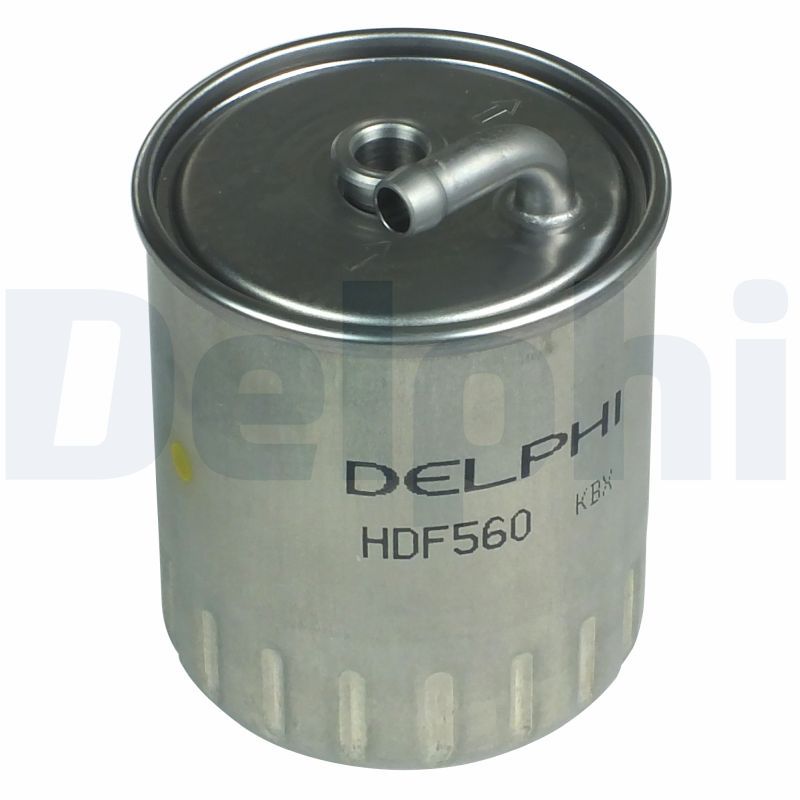

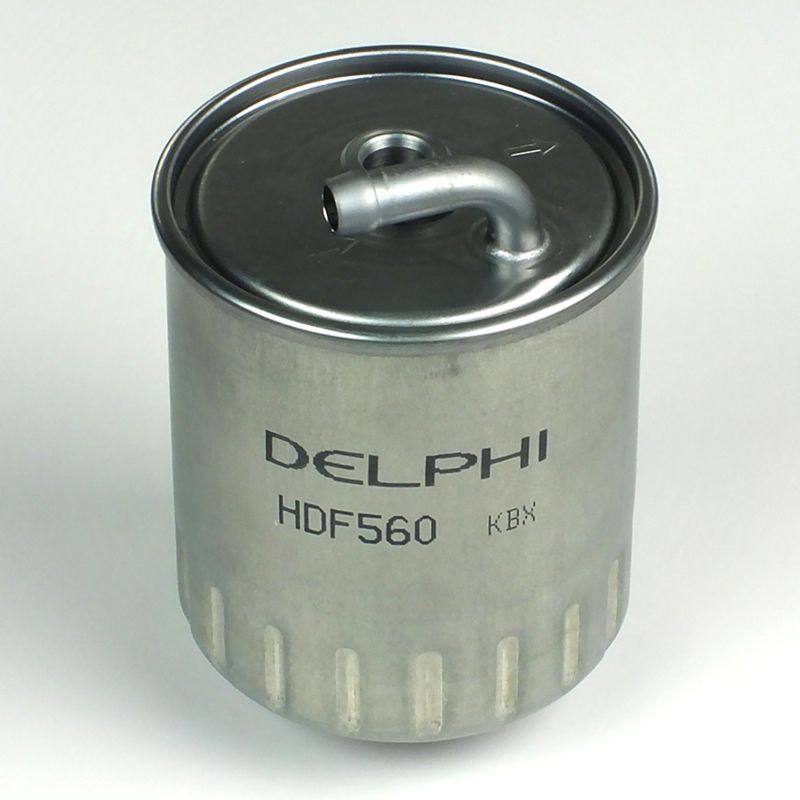

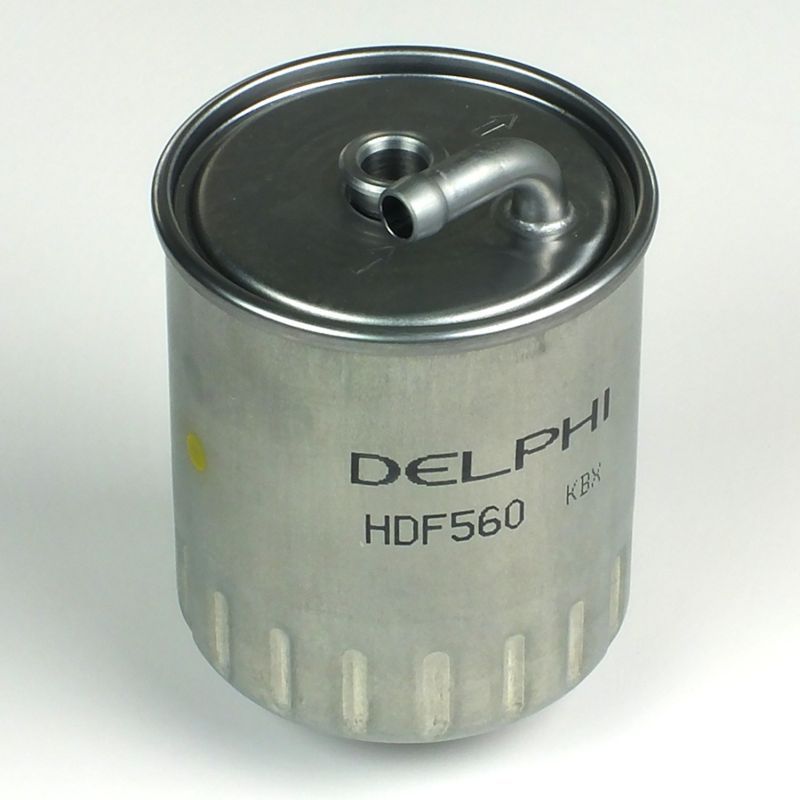

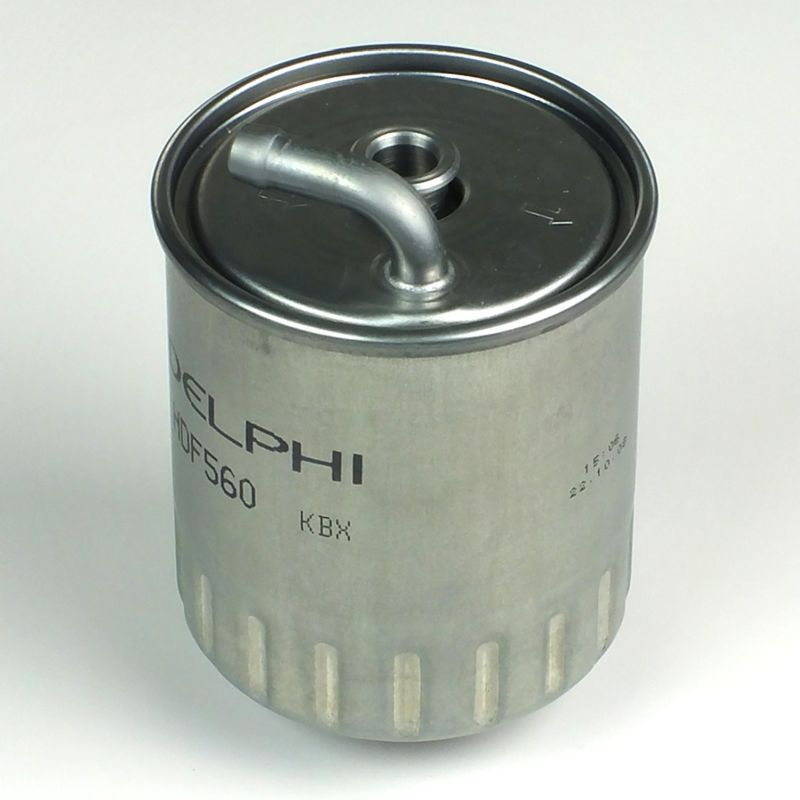

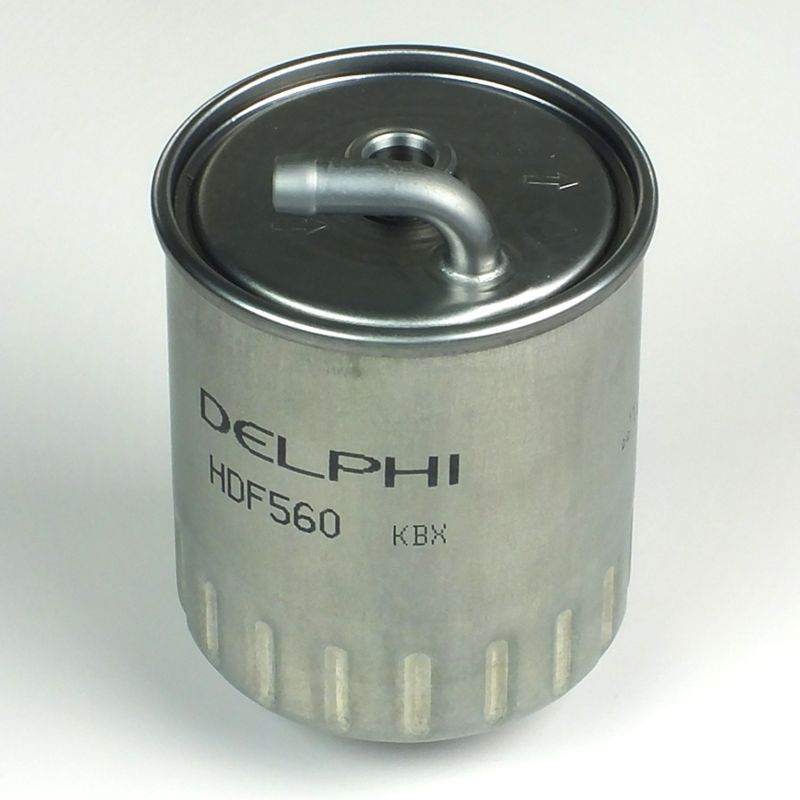

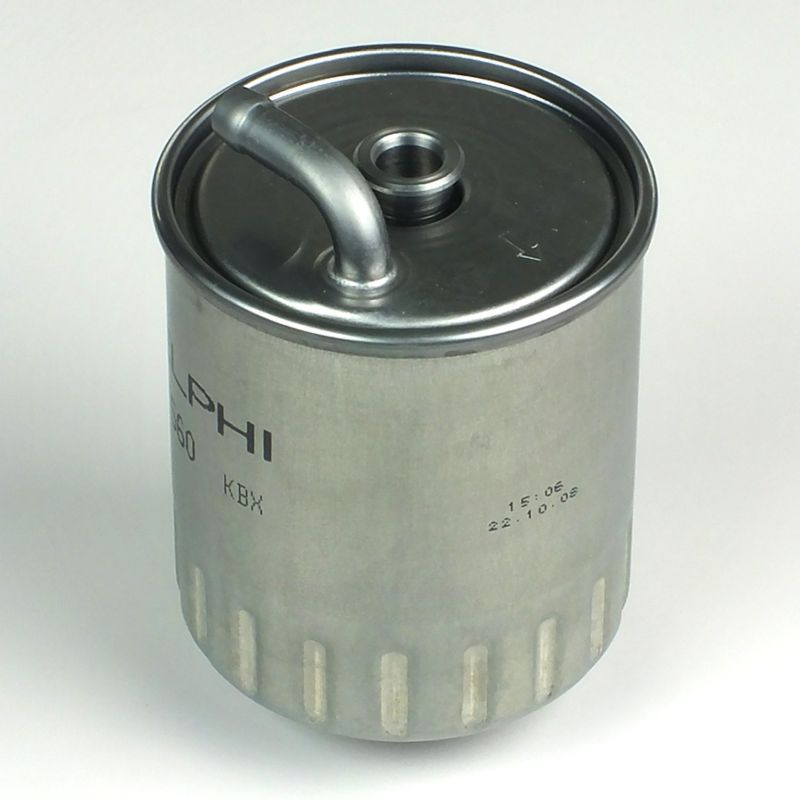

Delphi HDF560 Fuel Filter

SKU: HDF560
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£16.00 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ
C-CLASS (W203)
Description Cylinder Capacity Horse Power Year
C 200 CDI (203.004) 2148 CCM 116 HP 09/2000 - 06/2003
C 270 CDI (203.016) 2685 CCM 170 HP 12/2000 - 02/2007
C 220 CDI (203.006, 203.008) 2148 CCM 143 HP 05/2000 - 02/2007
C 200 CDI (203.004) 2148 CCM 102 HP 02/2001 - 06/2003
C 30 CDI AMG (203.018) 2950 CCM 231 HP 01/2003 - 02/2007
C-CLASS T-Model (S203)
Description Cylinder Capacity Horse Power Year
C 200 CDI (203.204) 2148 CCM 116 HP 03/2001 - 08/2007
C 220 CDI (203.206, 203.208) 2148 CCM 143 HP 03/2001 - 08/2007
C 270 CDI (203.216) 2685 CCM 170 HP 03/2001 - 08/2007
C 200 CDI (203.204) 2148 CCM 102 HP 03/2001 - 08/2007
C 30 CDI AMG (203.218) 2950 CCM 231 HP 01/2003 - 08/2007
C-CLASS Coupe (CL203)
Description Cylinder Capacity Horse Power Year
C 220 CDI (203.706) 2148 CCM 143 HP 03/2001 - 01/2004
C 30 CDI AMG (203.718) 2950 CCM 231 HP 09/2002 - 05/2008
CLK (C209)
Description Cylinder Capacity Horse Power Year
CLK 270 CDI (209.316) 2685 CCM 170 HP 10/2002 - 05/2009
G-CLASS (W461)
Description Cylinder Capacity Horse Power Year
G 270 CDI 2685 CCM 156 HP 01/2003 - 12/2006
M-CLASS (W163)
Description Cylinder Capacity Horse Power Year
ML 270 CDI (163.113) 2685 CCM 163 HP 12/1999 - 06/2005

The Delphi HDF560 Fuel Filter is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records 91 mm diameter, plastic construction, in-Line Filter filter design, and 127 mm height. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.

Function : Fuel Filter
Diameter [mm] : 91
Material : Plastic
Filter type : In-Line Filter
Height [mm] : 127
  • Vendor DELPHI
  • SKU HDF560
  • Barcode 5050100238808
  • MERCEDES-BENZ : A611 090 1252 A611 092 0001 611092000167 611 092 0701 611 092 0001 611 090 1252 A611 092 0701
  • BLUE PRINT : ADV182359
  • BORG & BECK : BFF8086
  • FEBI BILSTEIN : 103810
  • HELLA : 8ZF 366 110-311
  • HENGST FILTER : H128WK
  • LUCAS : LFDF225
  • MAHLE : KL 179
  • MANN-FILTER : WK 822/1
  • MEYLE : 014 323 0012
  • NAPA : NFF2037
  • VALEO : 587714
  • WIX FILTERS : WF8272
