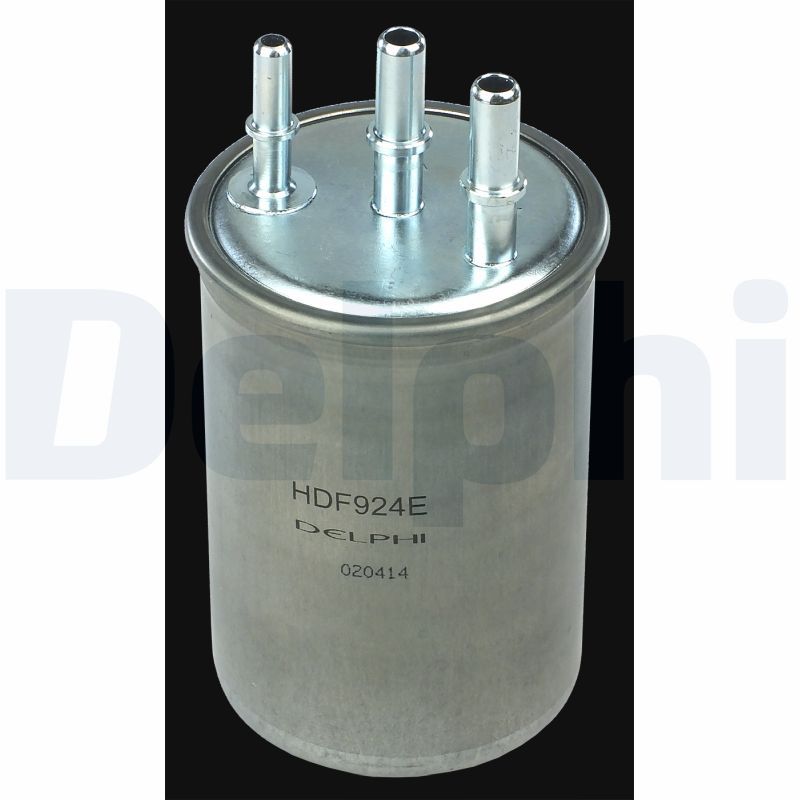

Delphi HDF924E Fuel Filter - 1

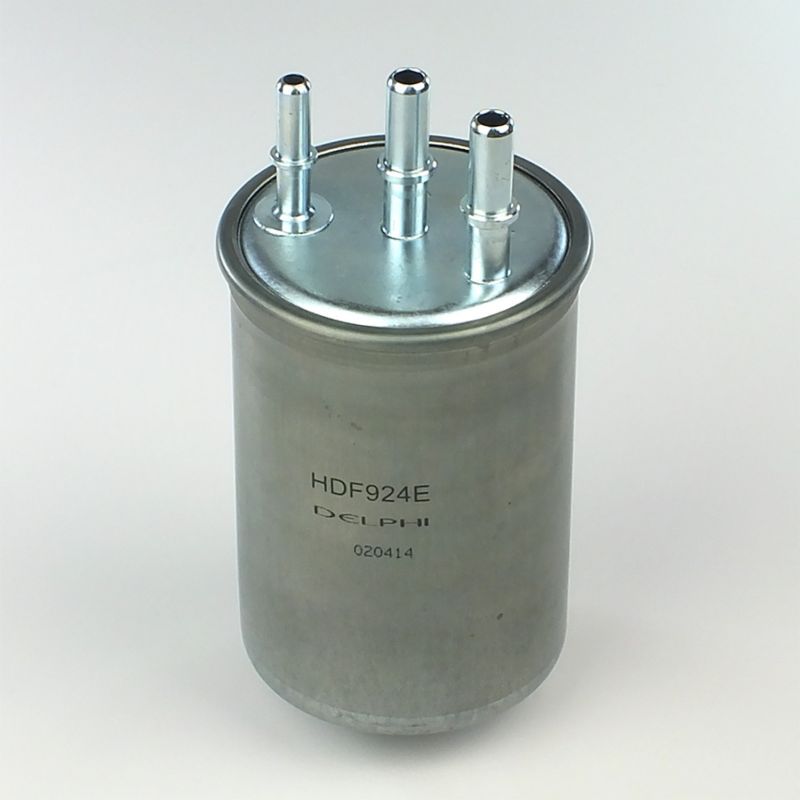

Delphi HDF924E Fuel Filter - 2

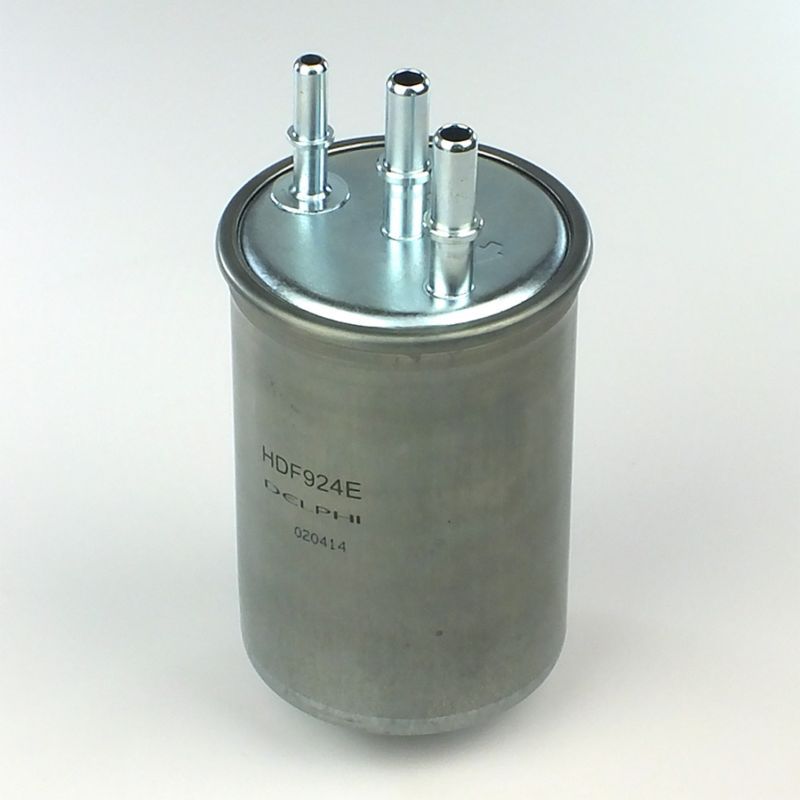

Delphi HDF924E Fuel Filter - 3

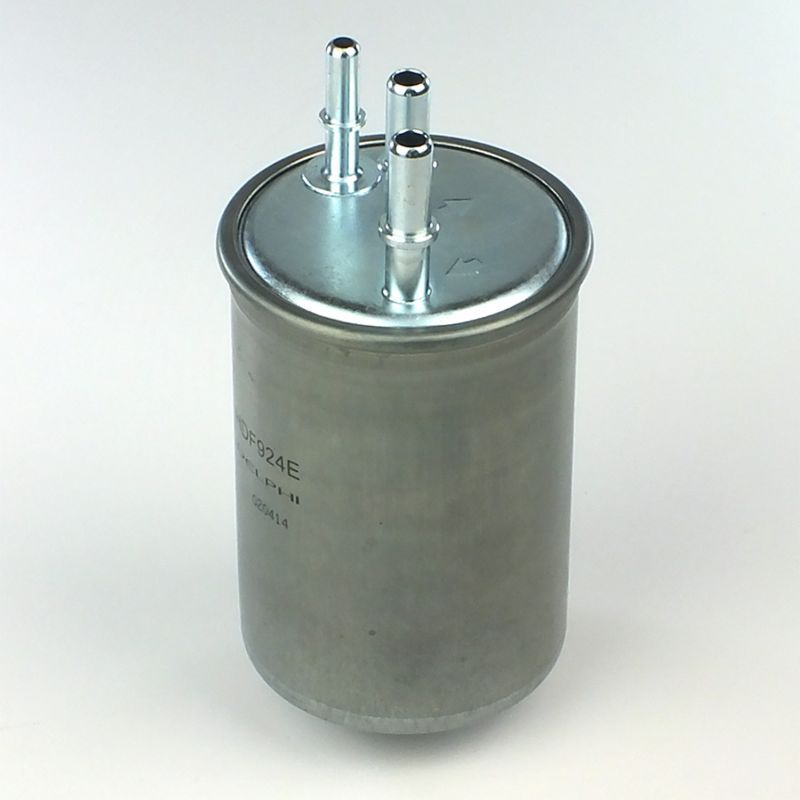

Delphi HDF924E Fuel Filter - 4

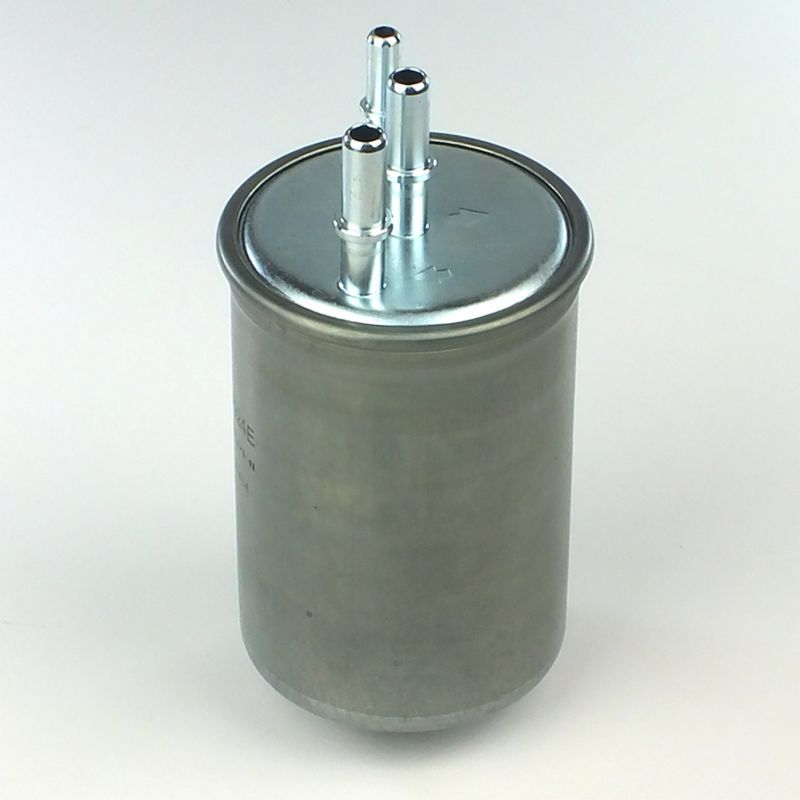

Delphi HDF924E Fuel Filter - 5

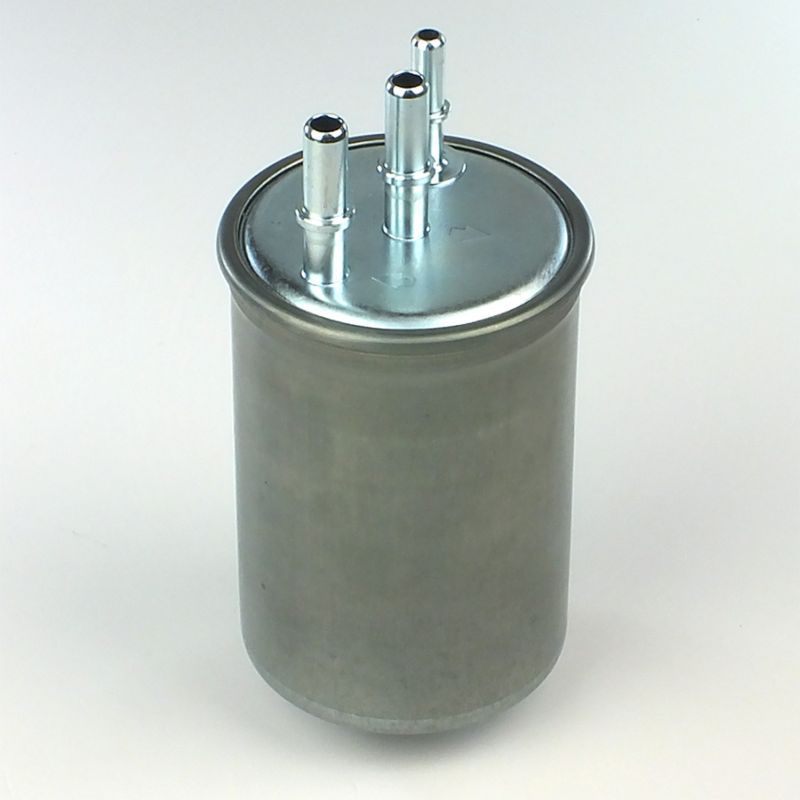

Delphi HDF924E Fuel Filter - 6
Delphi HDF924E Fuel Filter video

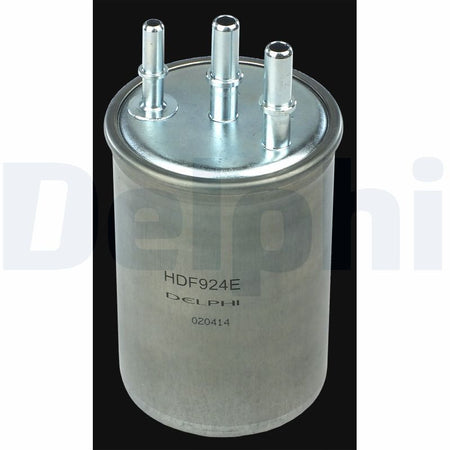

Delphi HDF924E Fuel Filter - 1

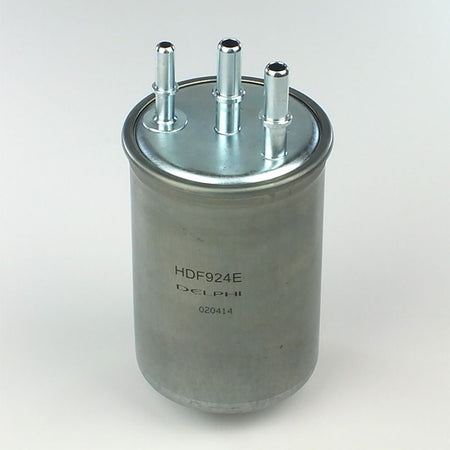

Delphi HDF924E Fuel Filter - 2
Delphi HDF924E Fuel Filter - 3
Delphi HDF924E Fuel Filter - 4
Delphi HDF924E Fuel Filter - 5
Delphi HDF924E Fuel Filter - 6
Delphi HDF924E Fuel Filter video
DELPHI

Delphi HDF924E Fuel Filter

SKU: HDF924E
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£13.77 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
FOCUS I Estate Van (DNW)
Description Cylinder Capacity Horse Power Year
1.8 TDCi 1753 CCM 101 HP 08/2002 - 03/2005
1.8 TDCi 1753 CCM 116 HP 08/2001 - 03/2005
FOCUS I (DAW, DBW)
Description Cylinder Capacity Horse Power Year
1.8 TDCi 1753 CCM 115 HP 03/2001 - 11/2004
1.8 TDCi 1753 CCM 100 HP 08/2002 - 11/2004
FOCUS I Turnier (DNW)
Description Cylinder Capacity Horse Power Year
1.8 TDCi 1753 CCM 115 HP 03/2001 - 11/2004
1.8 TDCi 1753 CCM 100 HP 08/2002 - 11/2004
FOCUS I Saloon (DFW)
Description Cylinder Capacity Horse Power Year
1.8 TDCi 1753 CCM 115 HP 10/2001 - 04/2005
1.8 TDCi 1753 CCM 100 HP 08/2002 - 11/2004
MONDEO III (B5Y)
Description Cylinder Capacity Horse Power Year
2.0 16V DI / TDDi / TDCi 1998 CCM 90 HP 10/2000 - 03/2007
2.0 16V TDDi / TDCi 1998 CCM 115 HP 10/2000 - 03/2007
2.0 TDCi 1998 CCM 130 HP 10/2001 - 03/2007
2.2 TDCi 2198 CCM 155 HP 09/2004 - 03/2007
2.2 TDCi 2198 CCM 150 HP 09/2004 - 03/2007
2.0 DI 1998 CCM 125 HP 10/2000 - 03/2007
MONDEO III Turnier (BWY)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 150 HP 09/2004 - 03/2007
2.0 16V DI / TDDi / TDCi 1998 CCM 90 HP 10/2000 - 03/2007
2.0 16V TDDi / TDCi 1998 CCM 115 HP 10/2000 - 03/2007
2.0 TDCi 1998 CCM 130 HP 10/2001 - 03/2007
2.2 TDCi 2198 CCM 155 HP 09/2004 - 03/2007
MONDEO Mk III Saloon (B4Y)
Description Cylinder Capacity Horse Power Year
2.0 16V DI / TDDi / TDCi 1998 CCM 90 HP 10/2000 - 03/2007
2.0 16V TDDi / TDCi 1998 CCM 115 HP 10/2000 - 03/2007
2.0 TDCi 1998 CCM 130 HP 10/2001 - 03/2007
2.2 TDCi 2198 CCM 155 HP 09/2004 - 03/2007
2.2 TDCi 2198 CCM 150 HP 09/2004 - 03/2007
2.0 DI 1998 CCM 125 HP 10/2000 - 03/2007
TOURNEO CONNECT
Description Cylinder Capacity Horse Power Year
1.8 TDCi /TDDi /DI 1753 CCM 75 HP 06/2002 - 12/2013
1.8 TDCi 1753 CCM 90 HP 06/2002 - 12/2013
1.8 TDCi 1753 CCM 110 HP 08/2006 - 12/2013
TRANSIT CONNECT (P65_, P70_, P80_)
Description Cylinder Capacity Horse Power Year
1.8 Di 1753 CCM 75 HP 06/2002 - 12/2013
1.8 TDCi 1753 CCM 90 HP 06/2002 - 12/2013
1.8 TDCi 1753 CCM 110 HP 08/2006 - 12/2013
JAGUAR
X-TYPE I (X400)
Description Cylinder Capacity Horse Power Year
2.2 D 2198 CCM 150 HP 10/2005 - 11/2009
2.0 D 1998 CCM 130 HP 07/2003 - 11/2009
2.2 D 2198 CCM 155 HP 10/2005 - 11/2009
2.2 D 2198 CCM 146 HP 01/2007 - 11/2009
X-TYPE I Estate (X400)
Description Cylinder Capacity Horse Power Year
2.2 D 2198 CCM 150 HP 10/2005 - 12/2009
2.0 D 1998 CCM 130 HP 02/2004 - 12/2009
2.2 D 2198 CCM 155 HP 10/2005 - 12/2009
2.2 D 2198 CCM 146 HP 01/2007 - 12/2009
SSANGYONG
ACTYON I
Description Cylinder Capacity Horse Power Year
200 Xdi 4WD 1998 CCM 141 HP From 10/2006
2.0 Xdi 1998 CCM 141 HP From 11/2005
ACTYON SPORTS I (QJ)
Description Cylinder Capacity Horse Power Year
2.0 Xdi 4WD 1998 CCM 141 HP From 04/2007
2.0 Xdi 1998 CCM 141 HP From 04/2007
KYRON
Description Cylinder Capacity Horse Power Year
2.7 Xdi 4x4 2696 CCM 163 HP 03/2006 - 12/2014
2.0 Xdi 1998 CCM 136 HP 01/2010 - 12/2014
2.0 Xdi 4x4 1998 CCM 136 HP 01/2010 - 12/2014
2.0 Xdi 4x4 1998 CCM 141 HP 05/2005 - 12/2014
2.0 Xdi 1998 CCM 141 HP 05/2005 - 12/2014
2.7 Xdi 4x4 2696 CCM 165 HP 05/2005 - 12/2014
2.0 Xdi 4x4 1998 CCM 138 HP 05/2005 - 12/2014
REXTON / REXTON II (GAB_)
Description Cylinder Capacity Horse Power Year
2.7 Xdi 4x4 2696 CCM 160 HP 03/2011 - 04/2013
2.7 Xdi Turbo 4x4 2696 CCM 180 HP From 03/2008
2.7 Xdi 2696 CCM 163 HP From 08/2004
2.7 D 4x4 2696 CCM 186 HP From 06/2006
2.7 Xdi 2696 CCM 165 HP 03/2005 - 08/2006
2.7 Xdi 4x4 2696 CCM 165 HP 05/2004 - 05/2012
REXTON W / REXTON
Description Cylinder Capacity Horse Power Year
2.7 Xdi All-wheel Drive 2696 CCM 165 HP 07/2012 - 06/2017
2.7 Xdi All-wheel Drive 2696 CCM 186 HP 10/2012 - 06/2017
RODIUS I
Description Cylinder Capacity Horse Power Year
2.7 Xdi 2696 CCM 165 HP From 05/2005
2.7 Xdi 4WD 2696 CCM 165 HP From 05/2005
2.7 Xdi 2696 CCM 163 HP From 05/2005
2.7 Xdi 4WD 2696 CCM 163 HP From 05/2005
TATA
ARIA
Description Cylinder Capacity Horse Power Year
2.2 Di AWD 2179 CCM 140 HP From 10/2010
SAFARI (42_FD)
Description Cylinder Capacity Horse Power Year
2.2 TDiC 2179 CCM 140 HP From 07/2006
2.2 TDiC 4x4 2179 CCM 140 HP 07/2006 - 10/2012
XENON Pickup
Description Cylinder Capacity Horse Power Year
2.2 DiCOR 2179 CCM 140 HP From 01/2009
2.2 DiCOR 4x4 2179 CCM 140 HP From 01/2009
HYUNDAI
TERRACAN (HP)
Description Cylinder Capacity Horse Power Year
2.5 TD 2476 CCM 101 HP 12/2001 - 12/2006
2.9 CRDi 4WD 2902 CCM 150 HP 12/2001 - 12/2006
2.9 CRDi 4WD 2902 CCM 163 HP 11/2003 - 12/2006
TERRACAN (HP)
Description Cylinder Capacity Horse Power Year
2.5 TD 4WD 2476 CCM 101 HP 12/2001 - 12/2006
2.9 CRDi 4WD 2902 CCM 150 HP 11/2001 - 12/2006
2.9 CRDi 4WD 2902 CCM 163 HP 11/2003 - 12/2006
KIA
SEDONA I (UP, FL)
Description Cylinder Capacity Horse Power Year
2.9 TDi 2902 CCM 126 HP 08/1999 - 10/2001
SEDONA Mk II (GQ)
Description Cylinder Capacity Horse Power Year
2.9 CRDi 2902 CCM 144 HP 10/2001 - 06/2006
2.9 TDi 2902 CCM 126 HP 08/1999 - 09/2007
SEDONA Mk II (VQ)
Description Cylinder Capacity Horse Power Year
2.7 V6 2656 CCM 189 HP 06/2006 - 06/2015
2.9 CRDi 2902 CCM 185 HP 04/2006 - 06/2015

The Delphi HDF924E Fuel Filter is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records 87 mm diameter, plastic construction, with quick coupling filter design, and 188 mm height. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.

Function : Fuel Filter
Diameter [mm] : 87
Material : Plastic
Filter type : with quick coupling
Height [mm] : 188
  • Vendor DELPHI
  • SKU HDF924E
  • Barcode 5050100277661
  • BLUE PRINT : ADG02342
  • BLUE PRINT : ADG02362
  • BORG & BECK : BFF8007
  • Fahren : FFF5009
  • FEBI BILSTEIN : 33464
  • MAHLE : KL 446
  • MANN-FILTER : WK 8069
  • MANN-FILTER : WK 829/3
  • NAPA : NFF2034
  • UFI : 24.445.00
  • WIX FILTERS : WF8268
