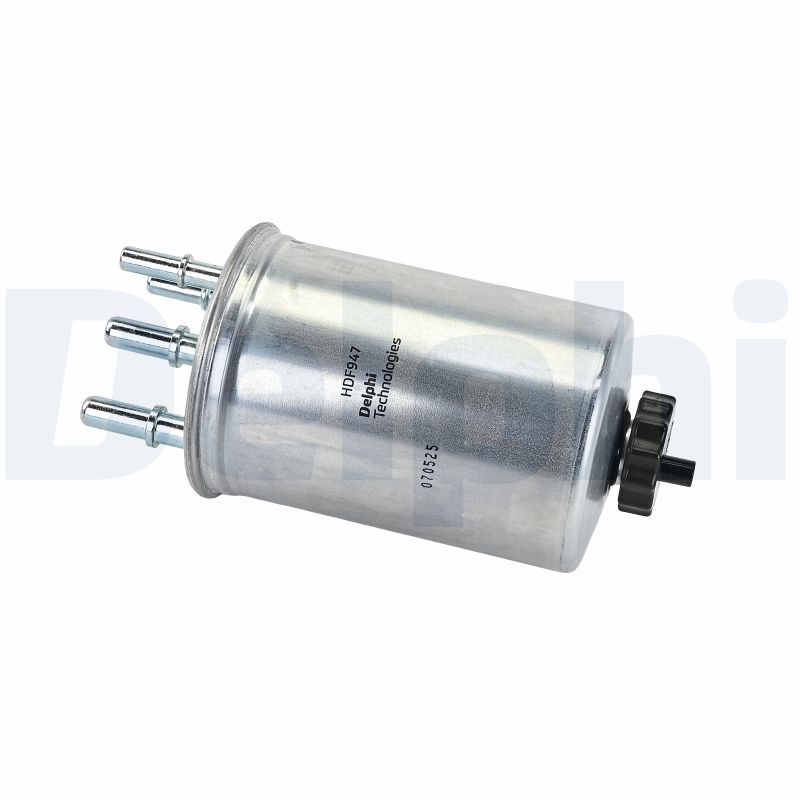

Delphi HDF947 Fuel Filter - 1

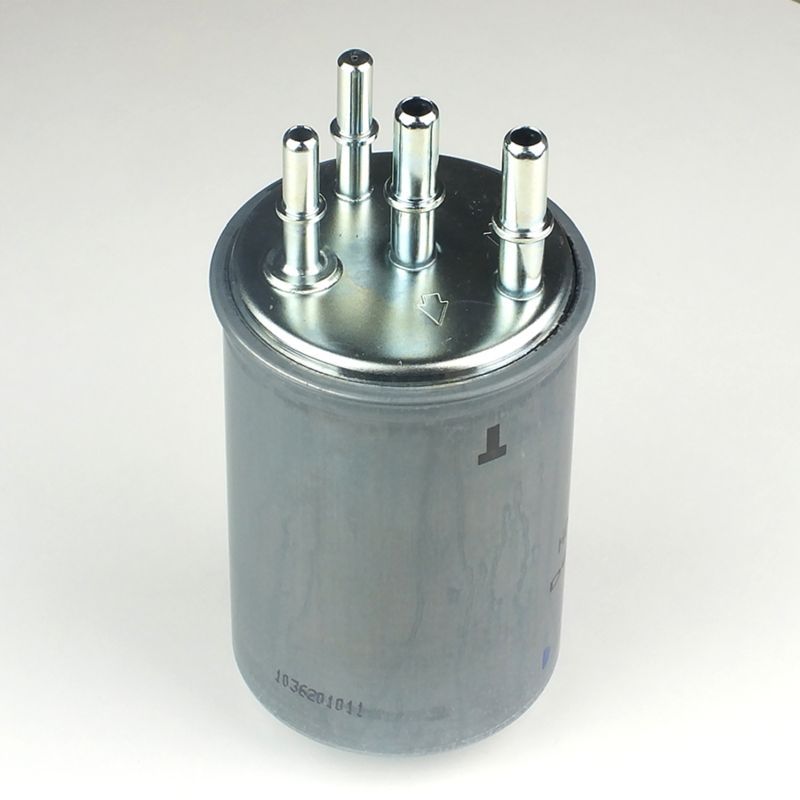

Delphi HDF947 Fuel Filter - 2

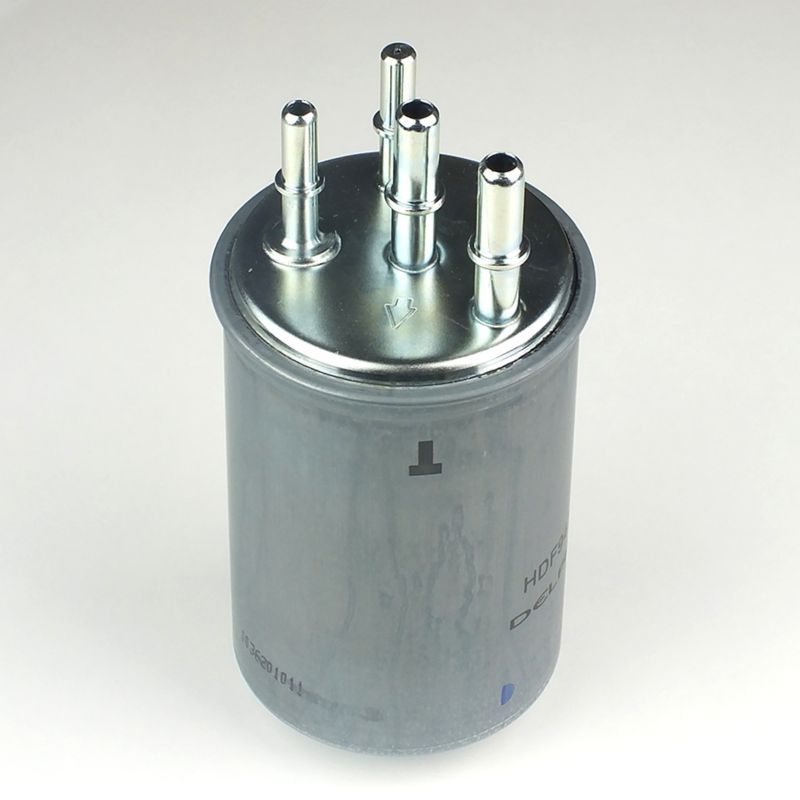

Delphi HDF947 Fuel Filter - 3

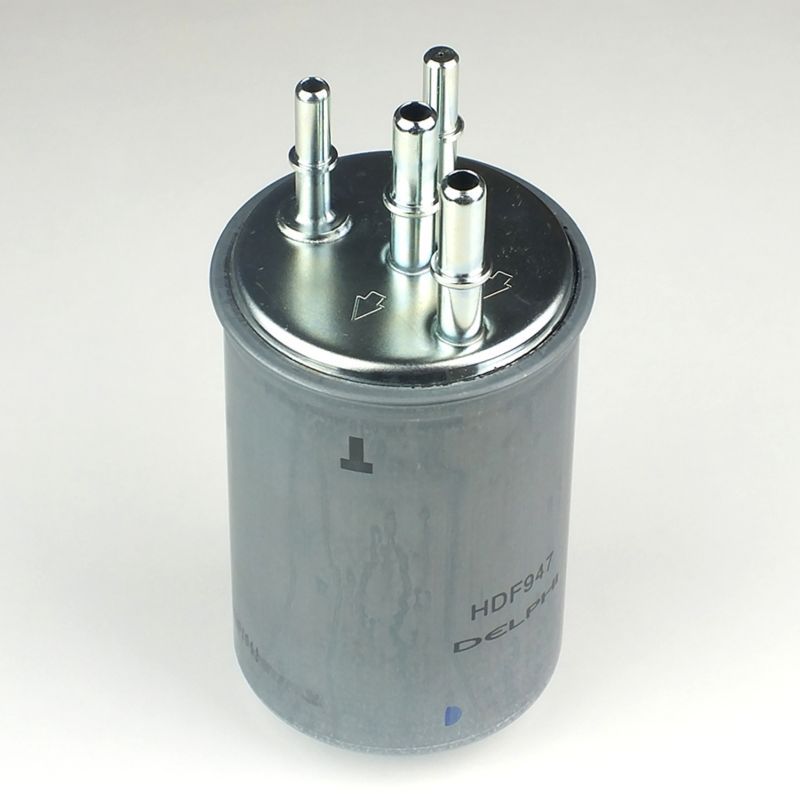

Delphi HDF947 Fuel Filter - 4

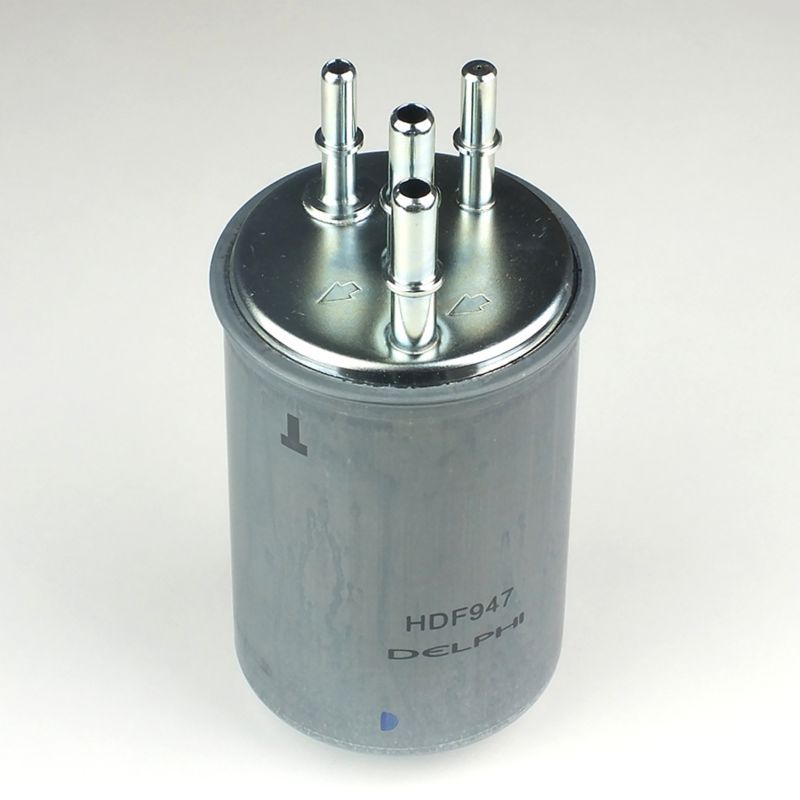

Delphi HDF947 Fuel Filter - 5

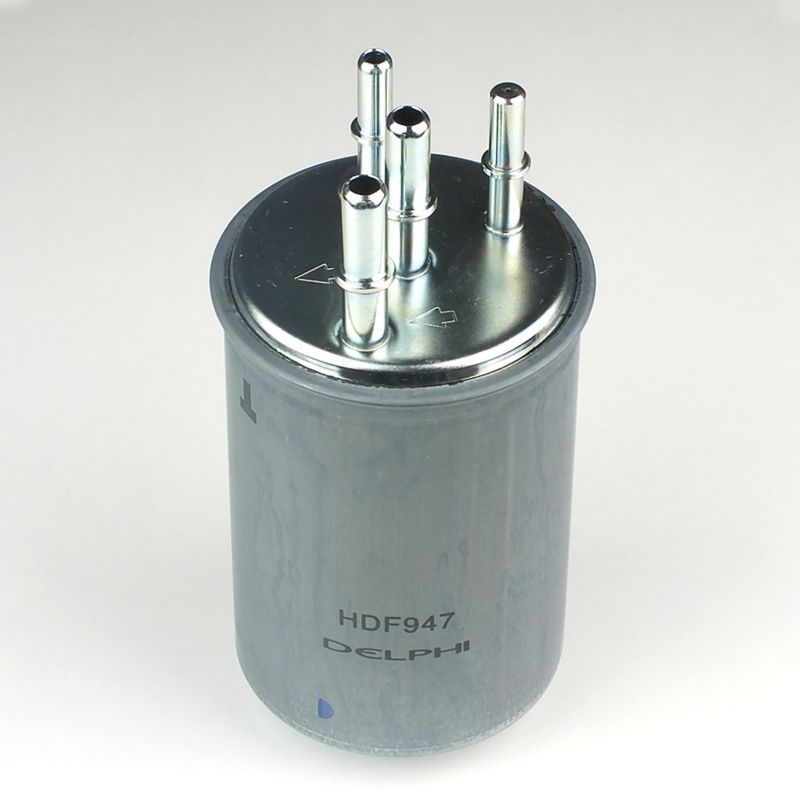

Delphi HDF947 Fuel Filter - 6
Delphi HDF947 Fuel Filter video
Delphi HDF947 Fuel Filter - 1
Delphi HDF947 Fuel Filter - 2
Delphi HDF947 Fuel Filter - 3
Delphi HDF947 Fuel Filter - 4
Delphi HDF947 Fuel Filter - 5
Delphi HDF947 Fuel Filter - 6
Delphi HDF947 Fuel Filter video
DELPHI

Delphi HDF947 Fuel Filter

SKU: HDF947
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£27.79 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

JAGUAR
S-TYPE II (X200)
Description Cylinder Capacity Horse Power Year
2.7 D 2720 CCM 207 HP 06/2004 - 10/2007
XF I (X250)
Description Cylinder Capacity Horse Power Year
2.7 D 2720 CCM 207 HP 03/2008 - 04/2015
3.0 D 2993 CCM 241 HP 03/2009 - 04/2015
3.0 D 2993 CCM 275 HP 03/2009 - 04/2015
XF SPORTBRAKE (X250)
Description Cylinder Capacity Horse Power Year
3.0 D 2993 CCM 241 HP 09/2012 - 04/2014
3.0 D 2993 CCM 275 HP 09/2012 - 04/2014
XJ (X350, X358)
Description Cylinder Capacity Horse Power Year
D 2.7 2720 CCM 207 HP 10/2005 - 03/2009

The Delphi HDF947 Fuel Filter is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records 87 mm diameter, plastic construction, with quick coupling filter design, and 188 mm height. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.

Function : Fuel Filter
Diameter [mm] : 87
Material : Plastic
Filter type : with quick coupling
Height [mm] : 188
for Model code : Drain Plug/M8
  • Vendor DELPHI
  • SKU HDF947
  • Barcode 5050100173420
  • FORD : 4R839155AA 4R839155AB
  • JAGUAR : C2C22269 C2C33299 C2C35810 XR857585 4R839155AE
  • CASE IH : 02C2C33299 02C2C35810 02XR857585
  • BLUE PRINT : ADJ132301
  • BORG & BECK : BFF8232
  • BOSCH : F 026 402 244
  • FEBI BILSTEIN : 108969
  • HELLA : 8ZF 366 111-201
  • MAHLE : KL 451
  • MANN-FILTER : WK 829/5
  • NAPA : NFF2209
  • UFI : 24.130.00
  • VALEO : 587562
  • VALEO : 587700
  • WIX FILTERS : WF8485
  • User manual
