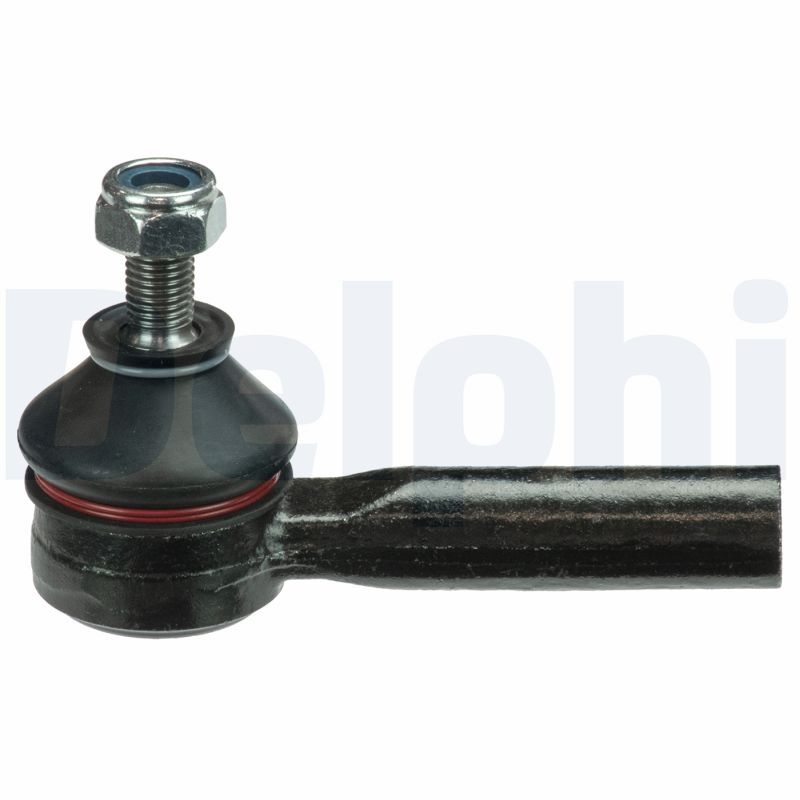

Delphi TA1030 Tie Rod End

SKU: TA1030
Your selected vehicle
Out of stock
Out of Stock
£13.40 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FIAT
PANDA (141_)
Description Cylinder Capacity Horse Power Year
750 770 CCM 34 HP 01/1986 - 10/2003
800 843 CCM 34 HP 02/1981 - 12/1985
900 903 CCM 45 HP 10/1980 - 06/1994
950 4x4 965 CCM 48 HP 09/1983 - 12/1986
1000 4x4 999 CCM 44 HP 01/1986 - 07/1989
1000 4x4 999 CCM 50 HP 01/1986 - 12/1992
1000 999 CCM 44 HP 01/1986 - 04/1992
900 899 CCM 40 HP 04/1992 - 12/1996
1000 4x4 999 CCM 45 HP 05/1986 - 12/1994
1000 i.e. Cat 999 CCM 45 HP 10/1987 - 08/1998
1100 Trekking 4x4 1108 CCM 50 HP 10/1991 - 07/2004
1100 1108 CCM 50 HP 05/1991 - 12/1999
1100 1108 CCM 54 HP 02/1995 - 09/2003
1100 4x4 1108 CCM 54 HP 02/1995 - 07/2004
1000 999 CCM 50 HP 01/1985 - 12/1992
PANDA Hatchback Van (141_)
Description Cylinder Capacity Horse Power Year
750 764 CCM 34 HP 01/1986 - 07/1992
1000 999 CCM 44 HP 01/1986 - 02/1992
1000 i.e 999 CCM 45 HP 08/1992 - 02/2004
SEAT
MARBELLA (28A)
Description Cylinder Capacity Horse Power Year
0.8 843 CCM 34 HP 08/1986 - 12/1993
0.9 903 CCM 40 HP 01/1987 - 12/1993
0.9 Cat 903 CCM 40 HP 01/1990 - 11/1996
0.9 Cat 899 CCM 41 HP 11/1996 - 10/1998
0.9 899 CCM 44 HP 07/1997 - 10/1998
MARBELLA Hatchback Van (028A)
Description Cylinder Capacity Horse Power Year
0.8 843 CCM 34 HP 01/1987 - 12/1993
0.9 903 CCM 40 HP 01/1987 - 12/1993
0.9 Cat 903 CCM 40 HP 01/1987 - 12/1993
TERRA (24)
Description Cylinder Capacity Horse Power Year
1.3 D 1272 CCM 45 HP 03/1990 - 12/1994
1.4 D 1398 CCM 48 HP 10/1990 - 12/1995
0.9 Cat 903 CCM 40 HP 02/1992 - 12/1994
0.9 903 CCM 40 HP 02/1987 - 12/1996
TERRA Estate Van (024A)
Description Cylinder Capacity Horse Power Year
1.3 D 1272 CCM 45 HP 03/1990 - 02/1992
1.4 D 1398 CCM 48 HP 10/1990 - 02/1992
0.9 Cat 903 CCM 40 HP 01/1990 - 12/1995
0.9 903 CCM 40 HP 01/1987 - 12/1995

The Delphi TA1030 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M12x1.5 thread size, with right-hand thread thread type, front axle fitting position, and 107 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M12x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 12
Fitting Position : Front Axle
Length [mm] : 107
Width [mm] : 38
Height [mm] : 65
  • Vendor DELPHI
  • SKU TA1030
  • Barcode 5012759848739
  • FIAT : 5960835 5960834
  • SEAT : 5960834 SE141162410A
  • BORG & BECK : BTR4128
  • CORTECO : 49399511
  • FEBI BILSTEIN : 12547
  • FIRST LINE : FTR4128
  • LEMFÖRDER : 20031 02
  • MEYLE : 216 010 0001
  • MONROE : L1571
  • Schaeffler FAG : 840 0903 10
  • SKF : VKDY 312045
  • TRW : JTE433
