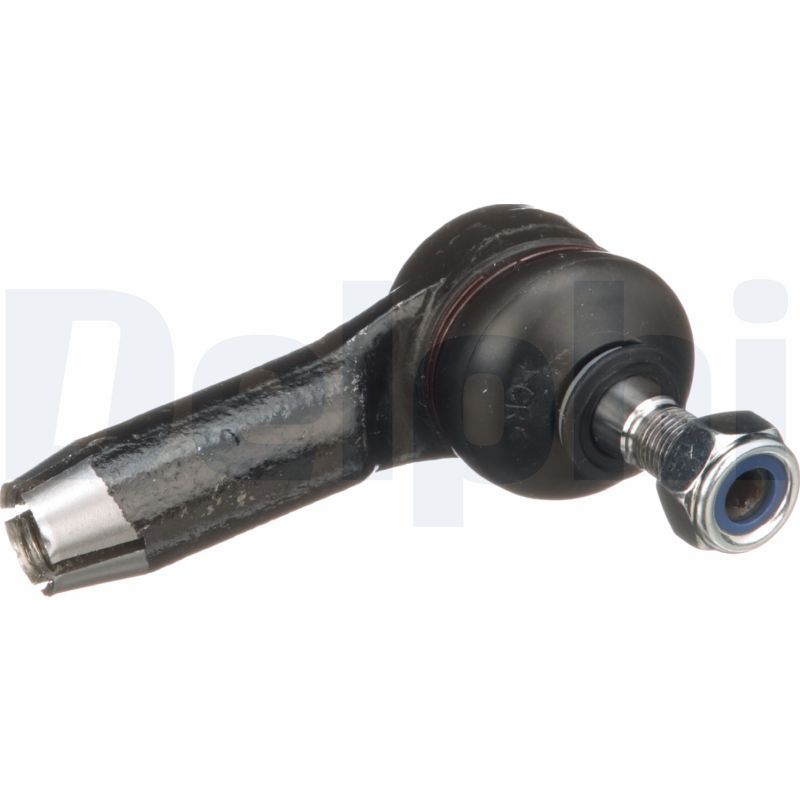

Delphi TA1069 Tie Rod End - 1

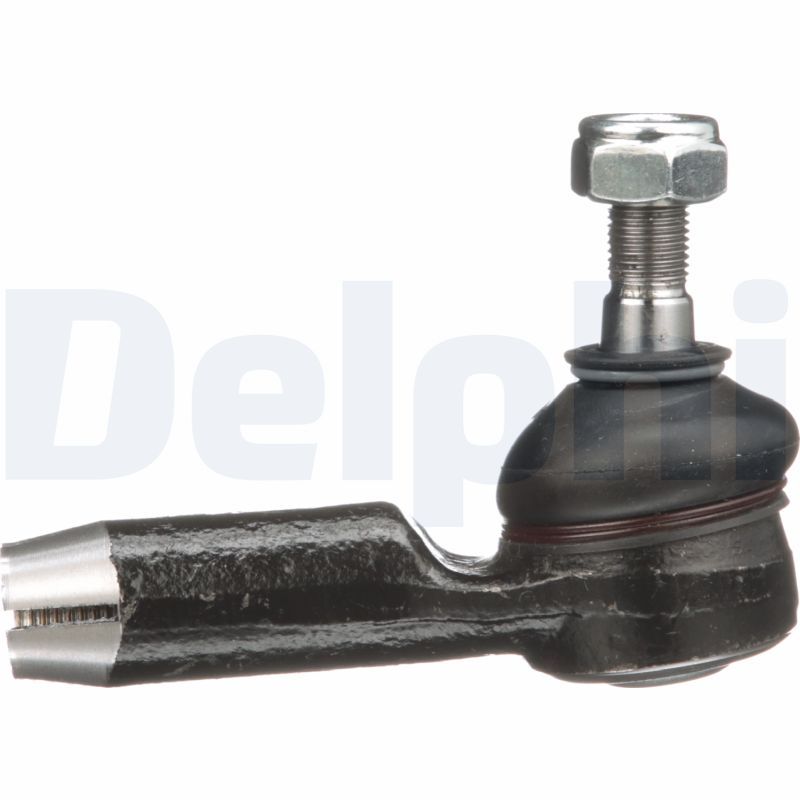

Delphi TA1069 Tie Rod End - 2

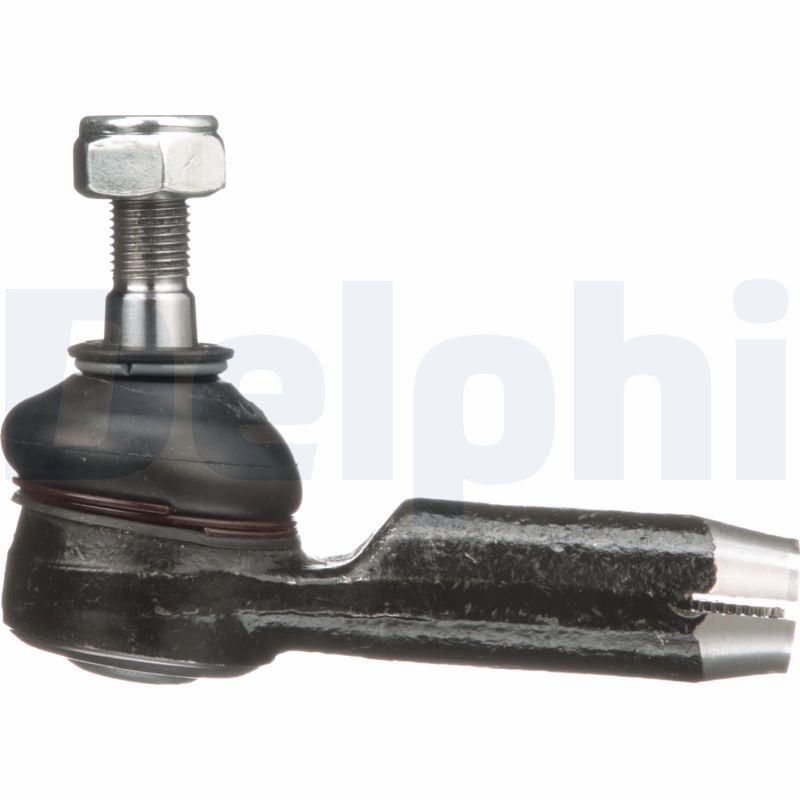

Delphi TA1069 Tie Rod End - 3

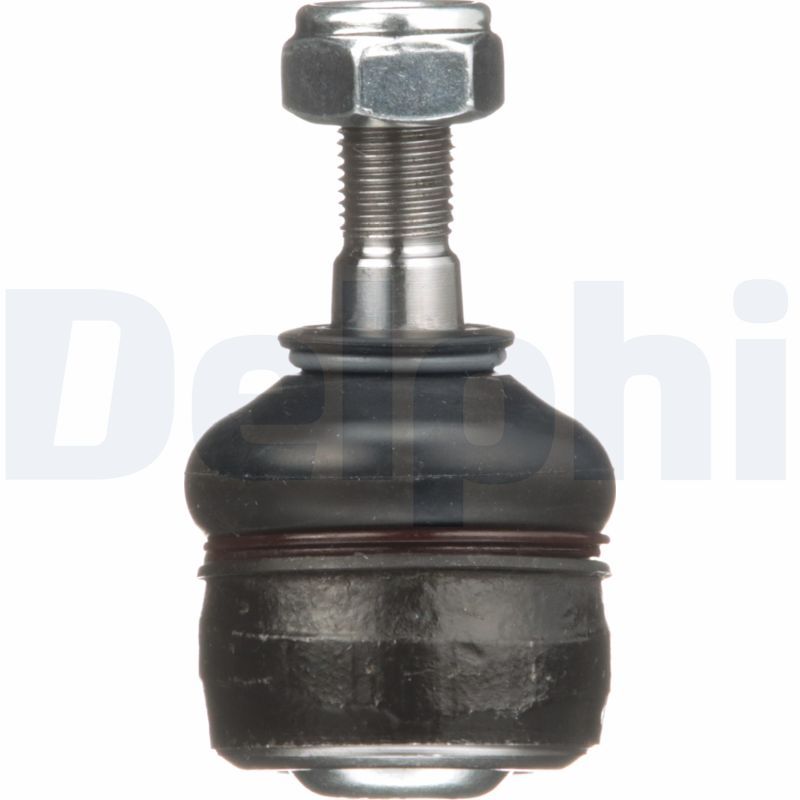

Delphi TA1069 Tie Rod End - 4

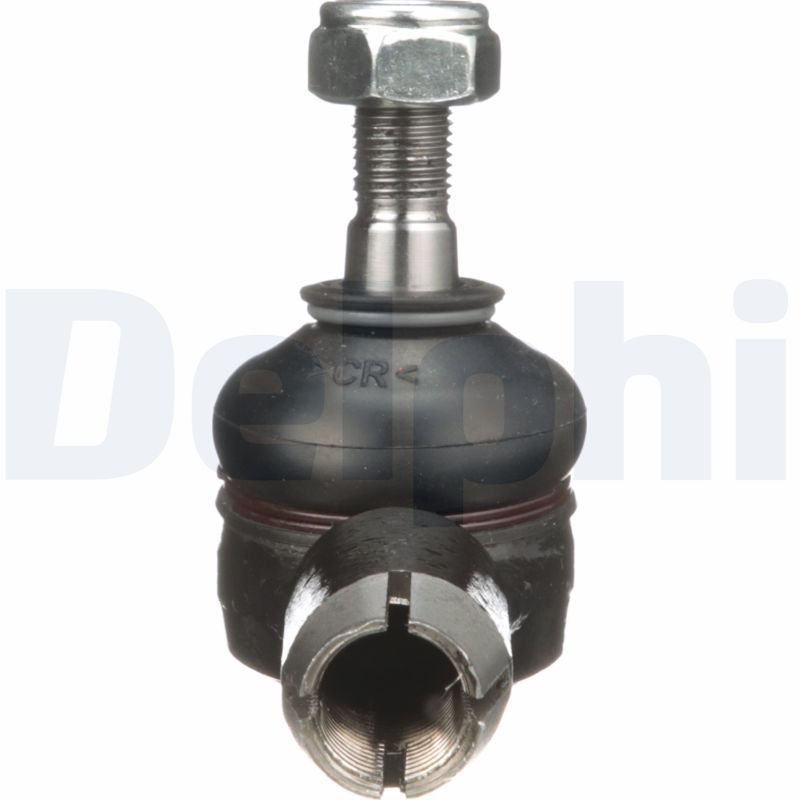

Delphi TA1069 Tie Rod End - 5

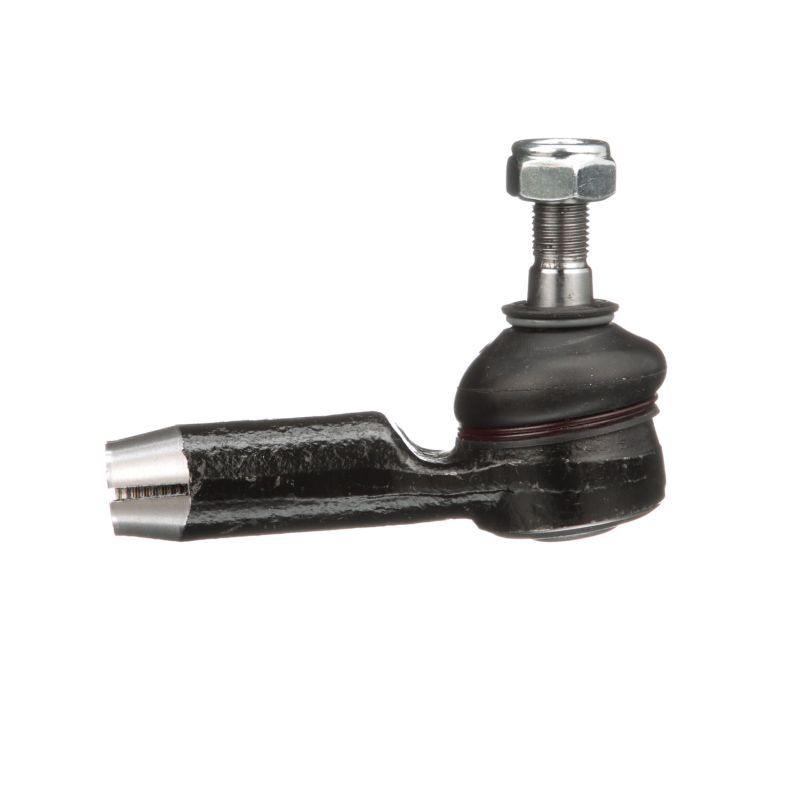

Delphi TA1069 Tie Rod End - 6

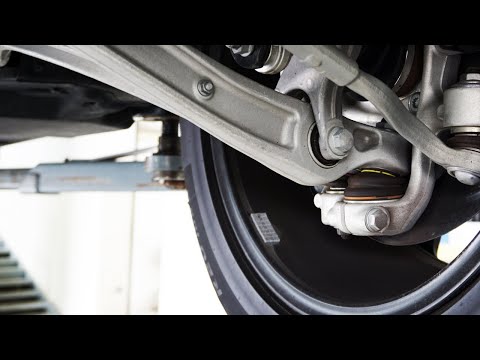

Delphi TA1069 Tie Rod End video
Delphi TA1069 Tie Rod End - 1
Delphi TA1069 Tie Rod End - 2
Delphi TA1069 Tie Rod End - 3
Delphi TA1069 Tie Rod End - 4
Delphi TA1069 Tie Rod End - 5
Delphi TA1069 Tie Rod End - 6
Delphi TA1069 Tie Rod End video
DELPHI

Delphi TA1069 Tie Rod End

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: TA1069

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£10.18 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

AUDI
80 B2 Saloon (811, 813, 814, 819, 853)
Description Cylinder Capacity Horse Power Year
1.3 1272 CCM 55 HP 09/1978 - 07/1981
1.3 1297 CCM 60 HP 09/1978 - 07/1986
1.6 1595 CCM 73 HP 02/1986 - 07/1986
1.6 1595 CCM 75 HP 08/1978 - 03/1987
1.6 1588 CCM 85 HP 08/1978 - 02/1983
1.6 GLE 1588 CCM 110 HP 08/1978 - 07/1982
1.8 1781 CCM 88 HP 02/1986 - 07/1986
1.8 1781 CCM 90 HP 01/1983 - 08/1986
1.8 GTE 1781 CCM 112 HP 10/1984 - 08/1986
1.6 D 1588 CCM 54 HP 08/1980 - 08/1986
1.6 TD 1588 CCM 70 HP 08/1981 - 05/1986
1.8 CC quattro (85Q) 1781 CCM 90 HP 08/1984 - 08/1986
1.8 GTE quattro (85Q) 1781 CCM 112 HP 08/1984 - 08/1986
2.0 quattro (85Q) 1994 CCM 115 HP 10/1983 - 09/1984
80 B3 Saloon (893, 894, 8A2)
Description Cylinder Capacity Horse Power Year
1.6 1595 CCM 75 HP 09/1986 - 08/1991
1.8 1781 CCM 75 HP 10/1986 - 01/1990
1.8 S 1781 CCM 88 HP 08/1986 - 01/1990
1.8 S 1781 CCM 90 HP 09/1986 - 10/1991
1.8 E 1781 CCM 112 HP 06/1986 - 08/1991
1.8 1847 CCM 113 HP 09/1986 - 07/1988
2.0 E 1984 CCM 113 HP 08/1988 - 10/1990
1.6 D 1588 CCM 54 HP 02/1987 - 07/1989
1.6 TD 1588 CCM 80 HP 09/1986 - 08/1991
1.9 D 1896 CCM 68 HP 08/1989 - 08/1991
1.6 1595 CCM 70 HP 08/1987 - 09/1991
2.0 E 16V 1984 CCM 137 HP 03/1990 - 09/1991
1.8 S quattro 1781 CCM 88 HP 09/1986 - 07/1990
1.8 S quattro 1781 CCM 90 HP 09/1986 - 09/1991
1.8 quattro 1847 CCM 113 HP From 09/1986
80 B4 Avant (8C5)
Description Cylinder Capacity Horse Power Year
2.0 1984 CCM 90 HP 07/1992 - 01/1996
2.0 E 1984 CCM 115 HP 07/1992 - 01/1996
2.0 E 16V 1984 CCM 140 HP 02/1993 - 01/1996
2.3 E 2309 CCM 133 HP 07/1992 - 01/1996
2.6 2598 CCM 150 HP 07/1992 - 01/1996
S2 quattro 2226 CCM 230 HP 02/1993 - 07/1995
2.6 quattro 2598 CCM 150 HP 07/1992 - 07/1995
2.8 quattro 2771 CCM 174 HP 08/1992 - 07/1995
RS2 quattro 2226 CCM 315 HP 03/1994 - 05/1995
2.3 E quattro 2309 CCM 133 HP 09/1991 - 11/1994
1.9 TDI 1896 CCM 90 HP 07/1992 - 01/1996
1.6 E 1595 CCM 101 HP 06/1993 - 01/1996
2.8 2771 CCM 174 HP 09/1991 - 01/1996
2.0 E 16V quattro 1984 CCM 140 HP 12/1992 - 07/1995
1.9 TD 1896 CCM 75 HP 09/1991 - 12/1994
80 B4 Saloon (8C2)
Description Cylinder Capacity Horse Power Year
1.9 TD 1896 CCM 75 HP 09/1991 - 12/1994
1.9 TDI 1896 CCM 90 HP 09/1991 - 12/1994
1.6 1595 CCM 71 HP 09/1991 - 12/1994
1.6 E 1595 CCM 101 HP 06/1993 - 12/1994
2.0 1984 CCM 90 HP 09/1991 - 12/1994
2.0 E 1984 CCM 115 HP 09/1991 - 12/1994
2.0 E 16V 1984 CCM 140 HP 08/1992 - 12/1994
2.3 E 2309 CCM 133 HP 09/1991 - 12/1994
2.6 2598 CCM 150 HP 07/1992 - 12/1994
2.8 2771 CCM 174 HP 09/1991 - 12/1994
2.0 E 16V quattro 1984 CCM 140 HP 04/1992 - 12/1994
2.0 E quattro 1984 CCM 115 HP 09/1991 - 12/1994
S2 quattro 2226 CCM 230 HP 02/1993 - 12/1994
2.3 E quattro 2309 CCM 133 HP 09/1991 - 12/1994
2.6 quattro 2598 CCM 150 HP 06/1992 - 12/1994
90 B2 (813, 814, 853)
Description Cylinder Capacity Horse Power Year
2.0 1994 CCM 115 HP 10/1984 - 03/1987
2.2 2226 CCM 115 HP 01/1985 - 03/1987
2.2 2226 CCM 136 HP 10/1984 - 03/1987
2.2 E quattro 2226 CCM 136 HP 11/1984 - 03/1987
2.2 E quattro 2226 CCM 120 HP 08/1985 - 03/1987
2.0 1994 CCM 113 HP 03/1986 - 03/1987
90 B3 (893, 894, 8A2)
Description Cylinder Capacity Horse Power Year
2.0 1994 CCM 115 HP 07/1988 - 09/1991
2.3 E 2309 CCM 136 HP 04/1987 - 07/1991
2.3 E 2309 CCM 133 HP 04/1987 - 09/1991
2.3 E 20V 2309 CCM 167 HP 04/1990 - 07/1991
2.3 E quattro 2309 CCM 136 HP 04/1987 - 07/1991
2.3 E 20V quattro 2309 CCM 170 HP 06/1988 - 09/1991
2.3 E quattro 2309 CCM 133 HP 04/1987 - 09/1991
2.3 E 20V quattro 2309 CCM 167 HP 04/1990 - 09/1991
2.2 E 2226 CCM 136 HP 04/1987 - 07/1991
2.2 E quattro 2226 CCM 136 HP 04/1987 - 09/1991
2.3 E 20V 2309 CCM 170 HP 08/1988 - 07/1991
1.6 TD 1588 CCM 80 HP 04/1987 - 09/1991
2.0 20 V 1994 CCM 160 HP 08/1989 - 07/1991
2.0 20 V quattro 1994 CCM 160 HP 08/1988 - 09/1991
CABRIOLET B3 (8G7)
Description Cylinder Capacity Horse Power Year
2.0 E 1984 CCM 115 HP 01/1993 - 07/1998
2.3 E 2309 CCM 133 HP 05/1991 - 07/1994
2.6 2598 CCM 150 HP 06/1993 - 08/2000
2.8 2771 CCM 174 HP 11/1992 - 08/2000
1.9 TDI 1896 CCM 90 HP 06/1995 - 08/2000
1.8 1781 CCM 125 HP 01/1997 - 08/2000
COUPE B2 (81, 855, 856)
Description Cylinder Capacity Horse Power Year
1.8 1781 CCM 75 HP 08/1981 - 07/1983
1.8 GT 1781 CCM 88 HP 04/1986 - 10/1988
1.8 GT 1781 CCM 90 HP 09/1982 - 10/1988
1.8 GT 1781 CCM 107 HP 08/1986 - 10/1987
1.9 1921 CCM 115 HP 08/1980 - 07/1983
2.0 1994 CCM 115 HP 09/1983 - 07/1986
2.1 GT 2144 CCM 131 HP 09/1982 - 10/1987
2.2 GT 2226 CCM 115 HP 07/1981 - 10/1987
2.2 GT 2226 CCM 136 HP 09/1984 - 10/1988
2.2 quattro 2226 CCM 136 HP 10/1984 - 10/1988
2.2 quattro 2226 CCM 120 HP 08/1985 - 10/1988
1.8 GT 1781 CCM 112 HP 08/1986 - 10/1988
2.3 2309 CCM 133 HP 08/1986 - 07/1987
2.3 quattro 2309 CCM 133 HP 01/1987 - 12/1987
2.0 1994 CCM 113 HP 03/1986 - 04/1988
COUPE B3 (89, 8B3)
Description Cylinder Capacity Horse Power Year
2.3 2309 CCM 136 HP 10/1988 - 07/1994
2.0 1984 CCM 115 HP 05/1989 - 12/1996
2.0 16 V 1984 CCM 140 HP 08/1992 - 12/1996
2.3 2309 CCM 133 HP 03/1990 - 12/1996
2.3 20V 2309 CCM 167 HP 08/1990 - 07/1991
2.6 2598 CCM 150 HP 08/1992 - 12/1996
2.8 2771 CCM 174 HP 09/1991 - 12/1996
2.3 quattro 2309 CCM 136 HP 11/1988 - 12/1992
2.3 20V quattro 2309 CCM 170 HP 11/1988 - 07/1991
S2 quattro 2226 CCM 220 HP 09/1990 - 09/1992
S2 quattro 2226 CCM 230 HP 10/1992 - 12/1996
2.3 quattro 2309 CCM 134 HP 05/1990 - 12/1996
2.3 20V quattro 2309 CCM 167 HP 05/1990 - 12/1996
2.6 quattro 2598 CCM 150 HP 08/1992 - 12/1996
2.8 quattro 2771 CCM 174 HP 08/1991 - 12/1996
QUATTRO (85)
Description Cylinder Capacity Horse Power Year
2.1 Turbo 2144 CCM 200 HP 07/1980 - 07/1987
2.2 Turbo 2226 CCM 200 HP 08/1987 - 07/1989
2.2 20V Turbo 2226 CCM 220 HP 08/1989 - 07/1991
2.1 20V Turbo 2144 CCM 306 HP 05/1984 - 07/1987
VW
PASSAT B1 (32)
Description Cylinder Capacity Horse Power Year
1.6 1588 CCM 85 HP 08/1975 - 07/1980
1.3 1297 CCM 60 HP 05/1973 - 01/1978
1.3 1272 CCM 60 HP 01/1978 - 07/1980
1.6 1588 CCM 75 HP 08/1979 - 07/1980
PASSAT B1 Estate (33)
Description Cylinder Capacity Horse Power Year
1.6 1588 CCM 75 HP 02/1976 - 07/1980
1.6 1588 CCM 85 HP 08/1975 - 07/1980
PASSAT B2 (32B)
Description Cylinder Capacity Horse Power Year
1.3 1272 CCM 55 HP 08/1980 - 07/1983
1.3 1272 CCM 60 HP 08/1980 - 07/1986
1.6 1595 CCM 70 HP 08/1986 - 03/1988
1.6 1595 CCM 72 HP 02/1986 - 03/1988
1.6 1588 CCM 75 HP 09/1979 - 03/1988
1.6 1588 CCM 85 HP 01/1981 - 02/1983
1.8 1781 CCM 87 HP 05/1986 - 03/1988
1.8 1781 CCM 90 HP 01/1983 - 03/1988
1.8 1781 CCM 112 HP 12/1983 - 03/1988
1.9 1921 CCM 115 HP 01/1981 - 07/1983
2.0 1994 CCM 115 HP 08/1983 - 03/1988
2.2 2226 CCM 115 HP 08/1985 - 03/1988
2.2 2226 CCM 136 HP 01/1985 - 03/1988
1.6 D 1588 CCM 54 HP 08/1980 - 03/1988
1.6 TD 1588 CCM 70 HP 04/1982 - 03/1988
PASSAT B2 Estate (33B)
Description Cylinder Capacity Horse Power Year
1.3 1272 CCM 55 HP 08/1980 - 07/1983
1.3 1272 CCM 60 HP 08/1980 - 07/1986
1.6 1595 CCM 70 HP 08/1986 - 03/1988
1.6 1595 CCM 72 HP 02/1986 - 03/1988
1.6 1588 CCM 75 HP 08/1980 - 07/1983
1.6 1588 CCM 85 HP 01/1981 - 02/1983
1.8 1781 CCM 87 HP 05/1986 - 03/1988
1.8 Syncro 1781 CCM 90 HP 01/1986 - 03/1988
1.8 1781 CCM 90 HP 01/1983 - 03/1988
1.9 1921 CCM 115 HP 01/1981 - 07/1983
2.0 1994 CCM 115 HP 08/1983 - 03/1988
2.2 2226 CCM 116 HP 08/1985 - 03/1988
2.2 Syncro 2226 CCM 120 HP 08/1985 - 03/1988
2.2 2226 CCM 136 HP 01/1985 - 03/1988
1.6 D 1588 CCM 54 HP 08/1980 - 03/1988
PASSAT B2 Saloon (32B)
Description Cylinder Capacity Horse Power Year
1.6 1595 CCM 75 HP 08/1984 - 03/1988
1.6 1595 CCM 72 HP 01/1985 - 03/1988
2.2 2226 CCM 115 HP 01/1985 - 03/1988
1.8 1781 CCM 90 HP 01/1985 - 03/1988
1.6 TD 1588 CCM 70 HP 01/1985 - 03/1988
1.8 1781 CCM 87 HP 05/1986 - 03/1988
1.6 1595 CCM 70 HP 08/1986 - 03/1988
2.0 1994 CCM 116 HP 08/1984 - 07/1985
1.6 D 1588 CCM 54 HP 08/1984 - 03/1988
SANTANA (32B)
Description Cylinder Capacity Horse Power Year
1.3 1272 CCM 60 HP 08/1981 - 07/1983
1.6 1588 CCM 75 HP 08/1981 - 12/1984
1.6 1588 CCM 85 HP 08/1981 - 12/1982
1.8 1781 CCM 90 HP 01/1983 - 12/1984
1.9 1921 CCM 115 HP 08/1981 - 07/1983
2.0 1994 CCM 115 HP 08/1983 - 12/1984
1.6 D 1588 CCM 54 HP 08/1981 - 12/1984
1.6 TD 1588 CCM 70 HP 12/1981 - 12/1984
1.6 1595 CCM 75 HP 08/1981 - 12/1984

The Delphi TA1069 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14x1.5 thread size, with right-hand thread thread type, front axle fitting position, and 91 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M14x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 10.8
Fitting Position : Front Axle
Length [mm] : 91
Width [mm] : 34
Height [mm] : 62
  • Vendor DELPHI
  • SKU TA1069
  • Barcode 5012759848777
  • AUDI : 811 419 812A 811 419 812B 8A0 419 812
  • VW : 811 419 812A
  • APEC : AST6844
  • BORG & BECK : BTR4127
  • CORTECO : 49398629
  • FEBI BILSTEIN : 02268
  • FEBI BILSTEIN : 05220
  • FEBI BILSTEIN : 09782
  • FIRST LINE : FTR4127
  • MEYLE : 116 020 3916
  • MEYLE : 116 030 3924
  • MEYLE : 116 030 7197
  • MONROE : L29016
  • NAPA : NST6844
  • Schaeffler FAG : 840 0828 10
  • SKF : VKDY 311054
  • TRW : JTE144
