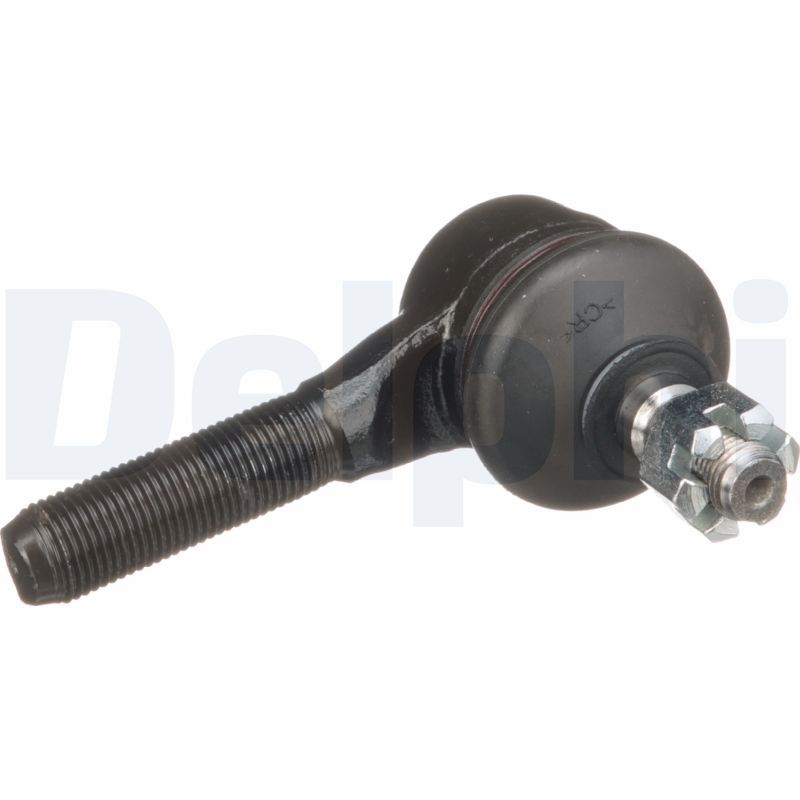

Delphi TA1196 Tie Rod End - 1

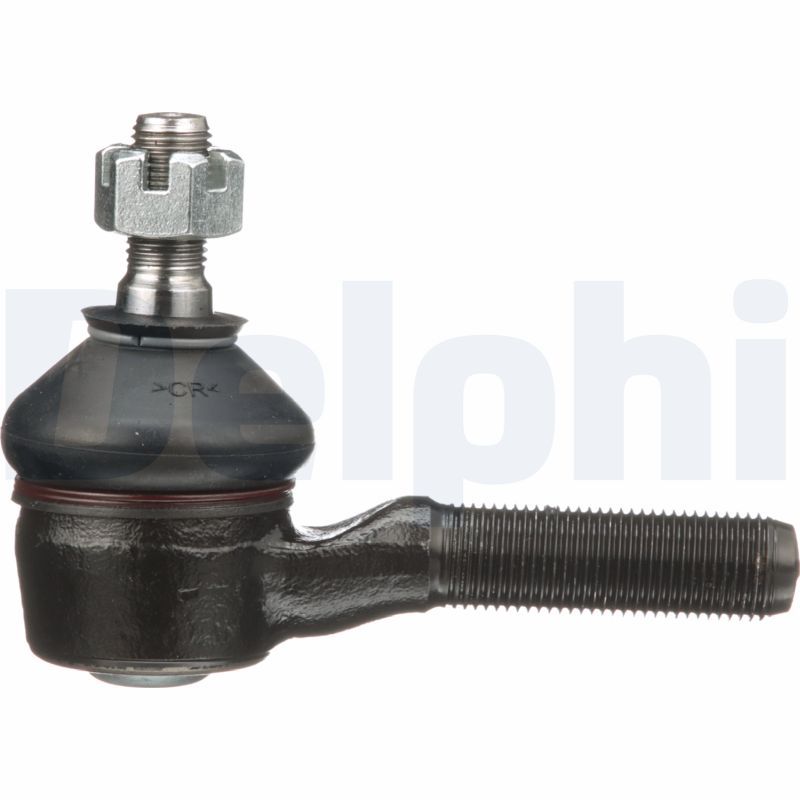

Delphi TA1196 Tie Rod End - 2

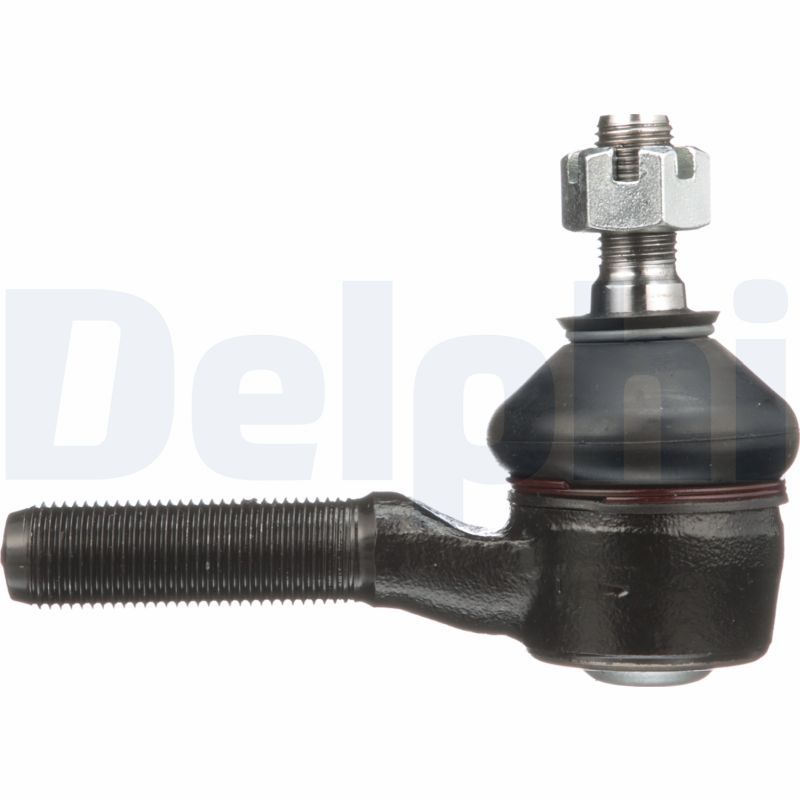

Delphi TA1196 Tie Rod End - 3

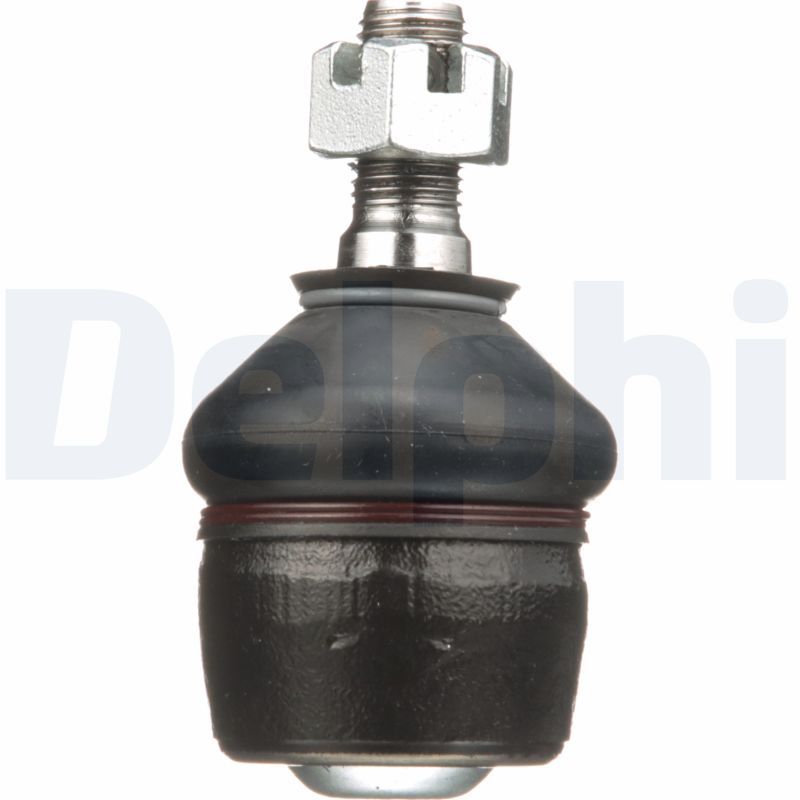

Delphi TA1196 Tie Rod End - 4

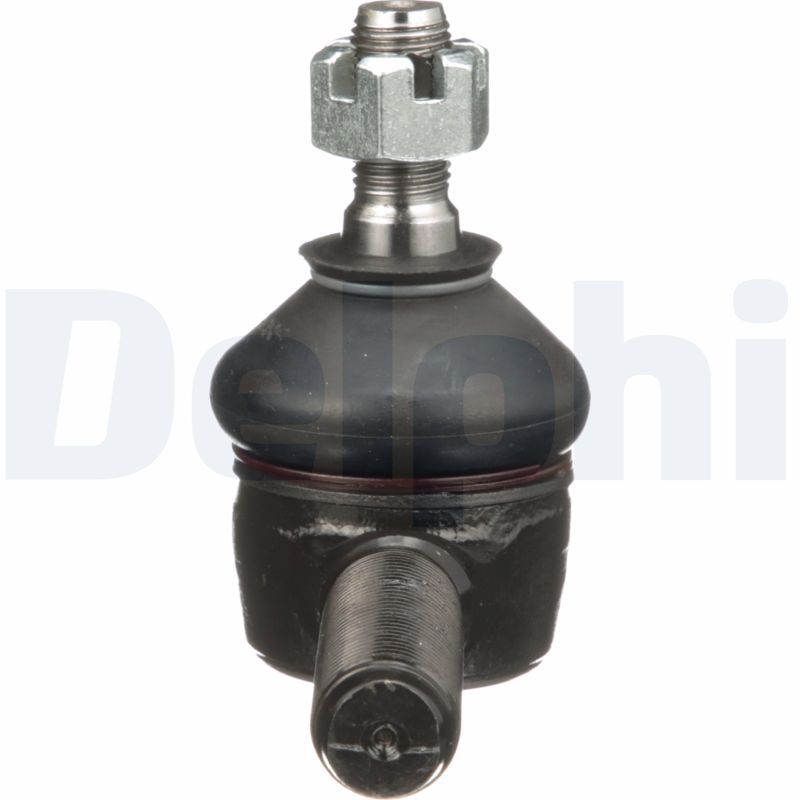

Delphi TA1196 Tie Rod End - 5

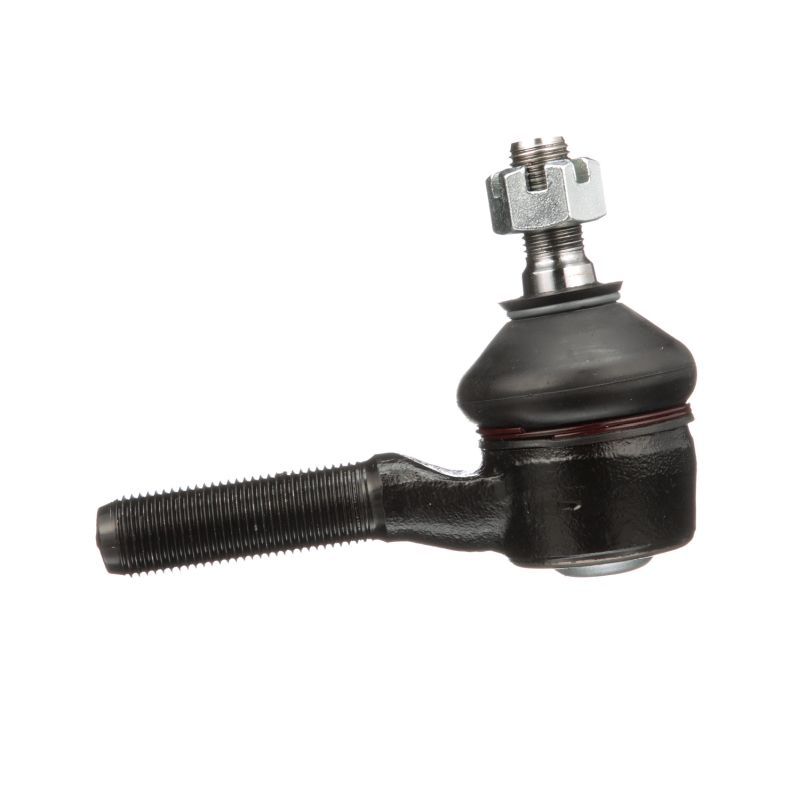

Delphi TA1196 Tie Rod End - 6
Delphi TA1196 Tie Rod End video
Delphi TA1196 Tie Rod End - 1
Delphi TA1196 Tie Rod End - 2
Delphi TA1196 Tie Rod End - 3
Delphi TA1196 Tie Rod End - 4
Delphi TA1196 Tie Rod End - 5
Delphi TA1196 Tie Rod End - 6
Delphi TA1196 Tie Rod End video
DELPHI

Delphi TA1196 Tie Rod End

SKU: TA1196
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£14.41 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MITSUBISHI
L200 (K3_T, K2_T, K1_T, K0_T)
Description Cylinder Capacity Horse Power Year
2.5 TD 4WD (K34T) 2477 CCM 87 HP 11/1992 - 08/1996
2.5 D 4WD (K24T) 2476 CCM 70 HP 12/1987 - 05/1993
2.6 4WD (K33T) 2555 CCM 103 HP 11/1989 - 05/1995
2.0 4WD 1997 CCM 86 HP 02/1987 - 05/1994
L200 (K7_T, K6_T, K5_T)
Description Cylinder Capacity Horse Power Year
2.0 (K62T) 1997 CCM 122 HP 06/1996 - 12/2007
2.5 D (K64T) 2477 CCM 75 HP 06/1996 - 12/2007
2.5 TD (K64T) 2477 CCM 90 HP 08/2001 - 11/2005
PAJERO/SHOGUN   (L04_G, L14_G)
Description Cylinder Capacity Horse Power Year
2.5 TD (L044G, L049G) 2477 CCM 87 HP 04/1987 - 12/1991
2.5 TD (L044G, L049G) 2477 CCM 95 HP 11/1989 - 11/1990
3.0 V6 (L141G, L146G) 2972 CCM 141 HP 11/1988 - 11/1990
2.3 TD (L043G, L048G) 2346 CCM 84 HP 12/1982 - 04/1986
2.6 4WD (L042G, L047G) 2555 CCM 103 HP 01/1983 - 09/1987
PAJERO/SHOGUN Mk II Canvas Top (L04_G)
Description Cylinder Capacity Horse Power Year
2.6 (L042G, L047G) 2555 CCM 103 HP 01/1983 - 11/1990
2.3 TD (L043G, L048G) 2347 CCM 84 HP 12/1982 - 04/1986
2.5 TD (L044G, L049G) 2477 CCM 84 HP 05/1986 - 10/1989
2.5 TD (L044G, L049G) 2477 CCM 95 HP 11/1989 - 11/1990
HYUNDAI
GALLOPER II (JK-01)
Description Cylinder Capacity Horse Power Year
3.0 V6 2972 CCM 141 HP 08/1998 - 12/2003
2.5 TD intercooler 2476 CCM 99 HP 08/1998 - 12/2003
2.5 TCi D 2476 CCM 105 HP 08/1998 - 12/2003
2.5 TD 2476 CCM 88 HP 08/1998 - 12/2003

The Delphi TA1196 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16x1.5 thread size, with right-hand thread thread type, front axle fitting position, and 113 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M16x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 13.6
Fitting Position : Front Axle
Length [mm] : 113
Width [mm] : 43
Height [mm] : 76
  • Vendor DELPHI
  • SKU TA1196
  • Barcode 5012759849668
  • MITSUBISHI : MB241171 MB315775 MR241032
  • HYUNDAI : HB568120 MB166765 MB166765A
  • APEC : AST6525
  • BLUE PRINT : ADC48704
  • BLUE PRINT : ADM596505
  • BORG & BECK : BTR4315
  • BOSCH : 0 986 140 470
  • CORTECO : 49399768
  • FEBI BILSTEIN : 24765
  • FEBI BILSTEIN : 41277
  • FIRST LINE : FTR4315
  • MEYLE : 32-16 020 0017
  • MONROE : L43106
  • NAPA : NST6525
  • Schaeffler FAG : 840 0633 10
  • SKF : VKDY 815502
  • TRW : JTE261
