DELPHI

Delphi TA1214 Tie Rod End

SKU: TA1214

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£12.94 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

PEUGEOT

305 Mk II (581M)

Description	Cylinder Capacity	Horse Power	Year
1.9 D	1905 CCM	64 HP	10/1982 - 07/1988
1.9 D	1905 CCM	65 HP	10/1982 - 07/1988
1.6	1580 CCM	73 HP	11/1986 - 12/1988
1.9	1905 CCM	98 HP	11/1986 - 12/1988

305 Mk II Break (581E)

Description	Cylinder Capacity	Horse Power	Year
1.9 Diesel	1905 CCM	64 HP	10/1982 - 12/1988
1.9 Diesel	1905 CCM	65 HP	10/1982 - 12/1988
1.6	1580 CCM	73 HP	11/1986 - 12/1988
1.6	1580 CCM	75 HP	02/1986 - 12/1988
1.9	1905 CCM	98 HP	11/1986 - 12/1988

405 (15B)

Description	Cylinder Capacity	Horse Power	Year
1.6	1580 CCM	72 HP	07/1987 - 12/1992
1.6	1580 CCM	90 HP	10/1989 - 12/1992
1.9	1905 CCM	95 HP	07/1987 - 12/1992
1.9 Sport MI-16	1905 CCM	158 HP	07/1987 - 11/1992
1.8 Turbo Diesel	1769 CCM	90 HP	03/1988 - 12/1992
1.9 Diesel	1905 CCM	64 HP	07/1988 - 09/1992
1.9 Diesel	1905 CCM	69 HP	03/1988 - 12/1992
1.6	1580 CCM	75 HP	07/1987 - 06/1988
1.6	1580 CCM	88 HP	07/1987 - 12/1992
1.9 Injection	1905 CCM	105 HP	07/1987 - 12/1992
1.9	1905 CCM	109 HP	06/1987 - 07/1992
1.9 4x4	1905 CCM	109 HP	07/1988 - 12/1992
1.9	1905 CCM	120 HP	06/1987 - 07/1992
1.9 Sport MI-16	1905 CCM	147 HP	06/1987 - 07/1992
1.9 SPort MI-16 4x4	1905 CCM	147 HP	06/1987 - 07/1992

405 Estate (15E)

Description	Cylinder Capacity	Horse Power	Year
1.6	1580 CCM	72 HP	10/1988 - 08/1992
1.6	1580 CCM	90 HP	10/1988 - 08/1992
1.9	1905 CCM	95 HP	10/1988 - 08/1992
1.9	1905 CCM	120 HP	10/1988 - 08/1992
1.8 TD	1769 CCM	90 HP	10/1988 - 08/1992
1.9 D	1905 CCM	64 HP	10/1988 - 08/1992
1.9 D	1905 CCM	69 HP	10/1988 - 08/1992
1.6	1580 CCM	88 HP	10/1988 - 08/1992
1.6	1580 CCM	75 HP	10/1988 - 08/1992
1.9	1905 CCM	105 HP	10/1988 - 08/1992
1.9	1905 CCM	109 HP	10/1988 - 08/1992
1.9 4x4	1905 CCM	109 HP	10/1988 - 08/1992
1.6	1580 CCM	94 HP	10/1988 - 08/1992
1.4	1360 CCM	64 HP	05/1988 - 07/1992
1.6	1580 CCM	92 HP	05/1988 - 07/1992

405 Mk II (4B)

Description	Cylinder Capacity	Horse Power	Year
1.9 D	1905 CCM	64 HP	08/1992 - 10/1995
1.9 TD	1905 CCM	90 HP	08/1992 - 10/1995
1.4	1360 CCM	75 HP	08/1992 - 10/1995
1.6	1580 CCM	88 HP	08/1992 - 10/1995
1.8	1761 CCM	101 HP	08/1992 - 10/1995
2.0	1998 CCM	121 HP	08/1992 - 10/1995
2.0 X4	1998 CCM	121 HP	08/1992 - 10/1995
2.0 MI-16	1998 CCM	152 HP	08/1992 - 10/1995
2.0 T 16 X4	1998 CCM	196 HP	08/1992 - 10/1995
1.9 D	1905 CCM	68 HP	06/1994 - 10/1995
2.0 16V	1998 CCM	150 HP	06/1994 - 10/1995
1.6	1580 CCM	92 HP	08/1992 - 08/1994
1.9 TD	1905 CCM	94 HP	08/1992 - 05/1997
1.9 D	1905 CCM	71 HP	08/1997 - 11/1999
1.9 D	1905 CCM	69 HP	08/1992 - 08/1994

405 II Estate Van (4E_)

Description	Cylinder Capacity	Horse Power	Year
1.9 D	1905 CCM	69 HP	08/1992 - 12/1995

405 Mk II Estate (4E)

Description	Cylinder Capacity	Horse Power	Year
1.9 D	1905 CCM	64 HP	08/1992 - 10/1996
1.9 TD	1905 CCM	90 HP	08/1992 - 10/1996
1.4	1360 CCM	75 HP	08/1992 - 10/1996
1.6	1580 CCM	88 HP	08/1992 - 10/1996
1.8	1761 CCM	101 HP	08/1992 - 10/1996
2.0	1998 CCM	121 HP	08/1992 - 10/1996
2.0 4x4	1998 CCM	121 HP	08/1992 - 10/1996
1.9 D	1905 CCM	68 HP	06/1994 - 10/1996
2.0 4x4	1998 CCM	196 HP	08/1992 - 12/1995
1.9 D	1905 CCM	69 HP	09/1993 - 12/1995
1.6	1580 CCM	92 HP	08/1992 - 08/1994
1.9 TD	1905 CCM	93 HP	08/1992 - 10/1996
1.6	1580 CCM	90 HP	08/1992 - 05/1997
1.9	1905 CCM	109 HP	08/1992 - 12/1995

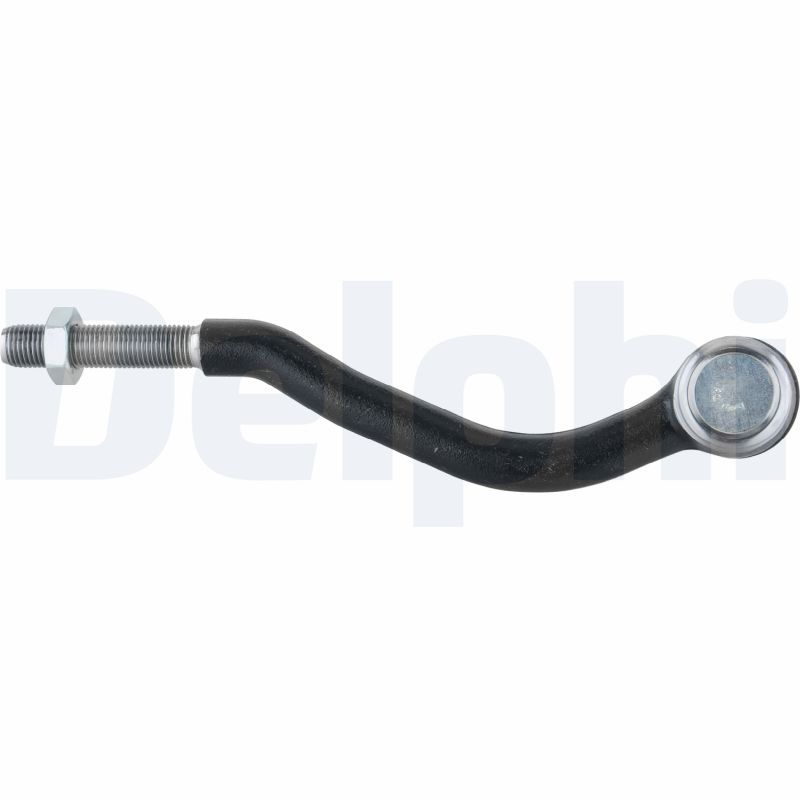

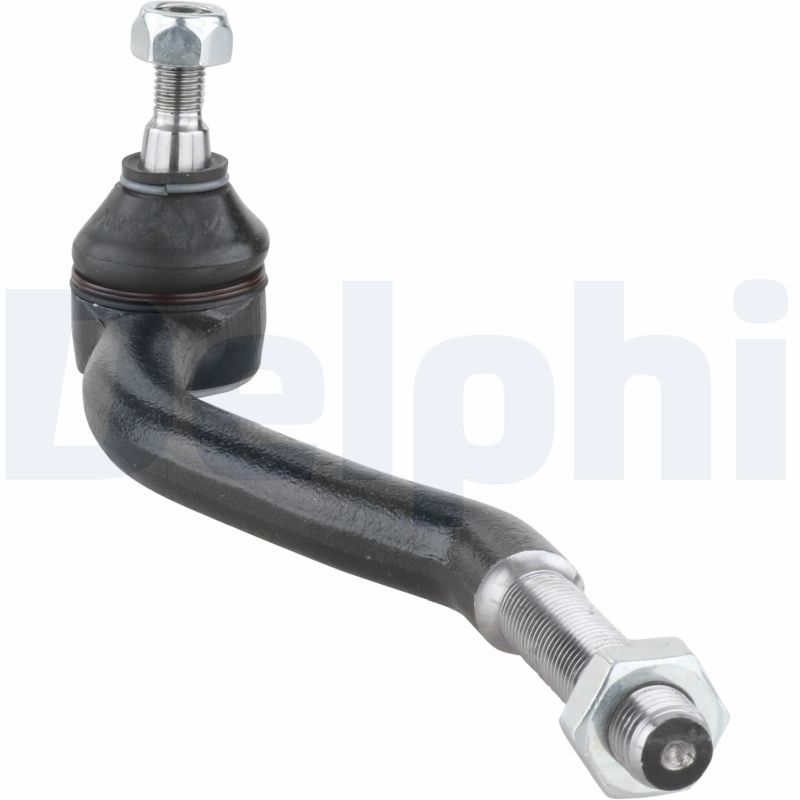

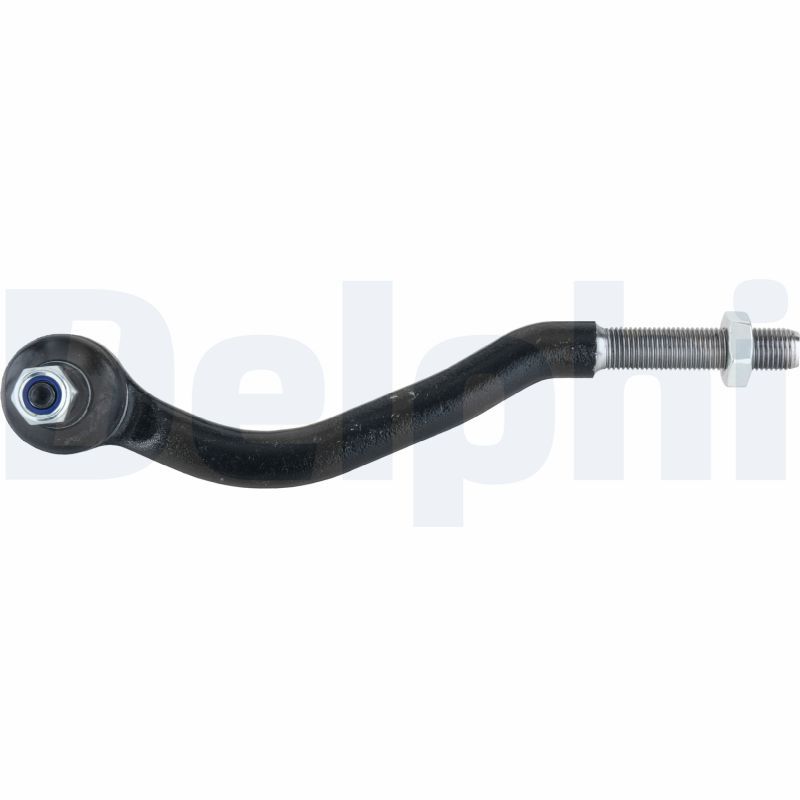

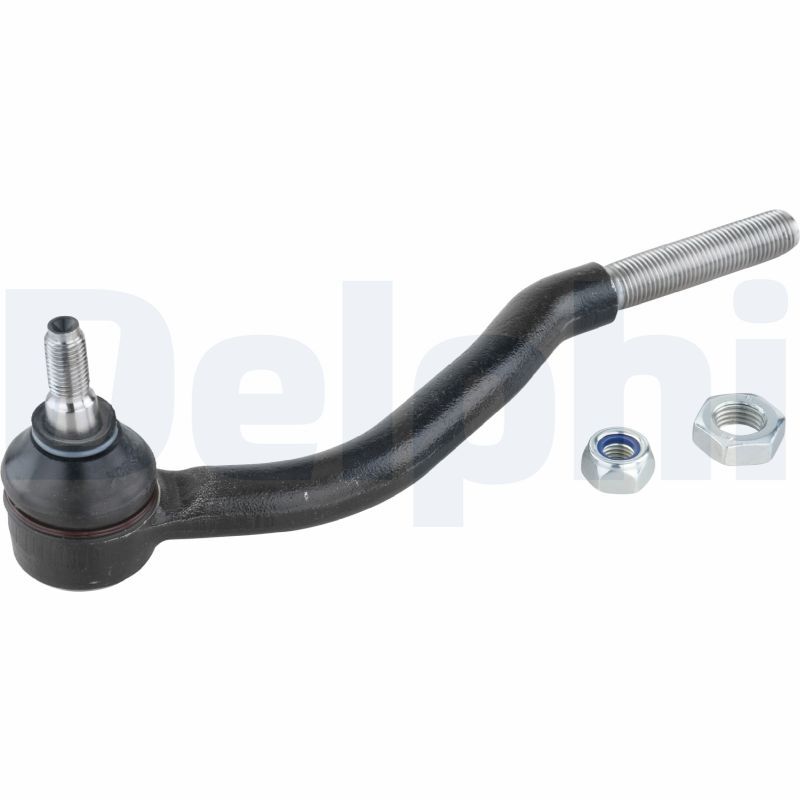

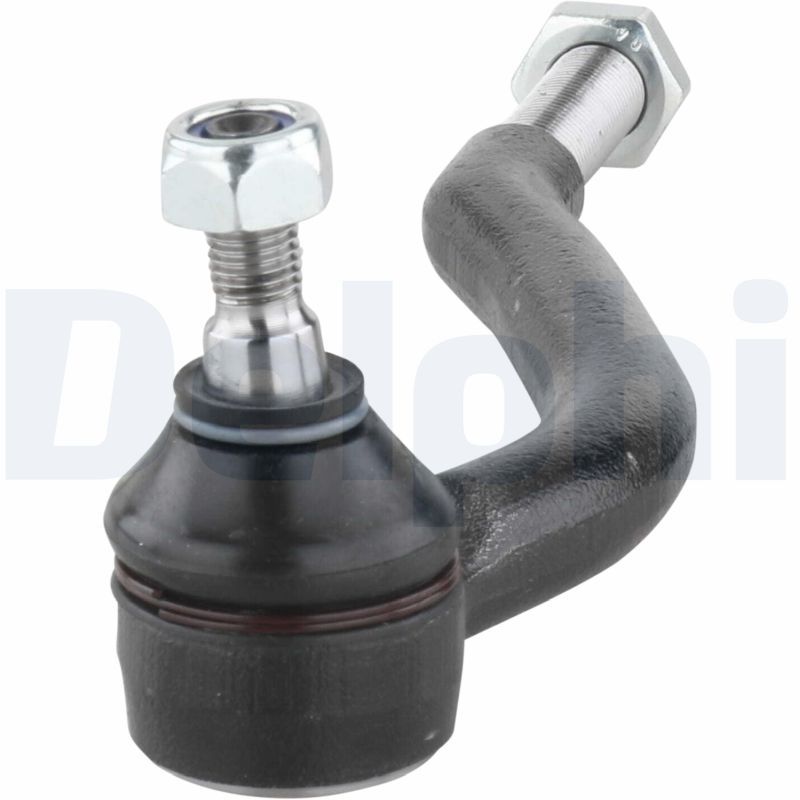

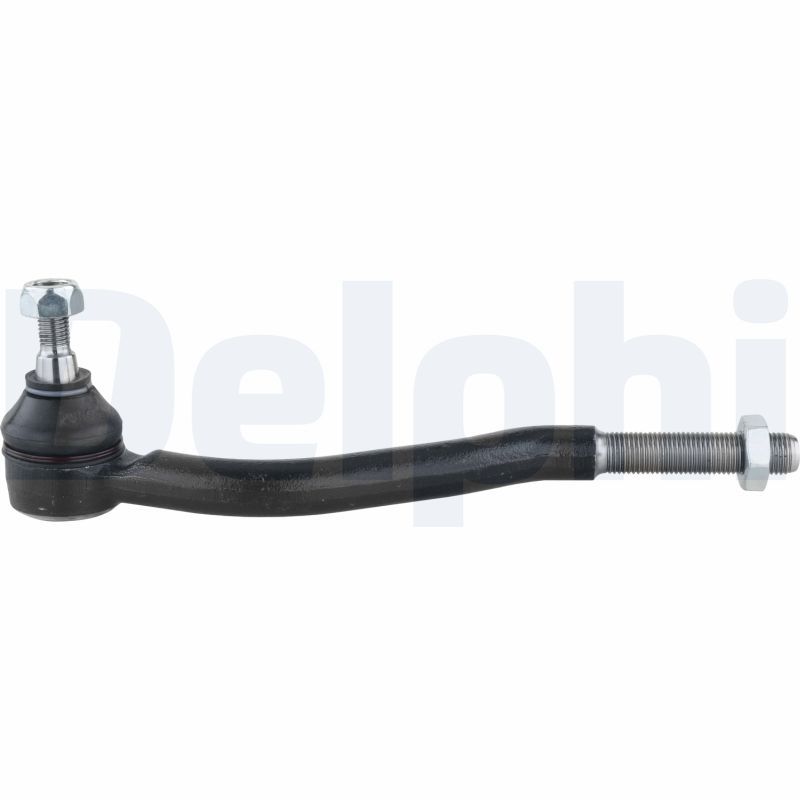

The Delphi TA1214 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14x1.5 thread size, with right-hand thread thread type, front axle left fitting position, and 249 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End

Thread Size : M14x1.5

Thread Type : with right-hand thread

Cone Size [mm] : 11.9

Paired article number : TA1215

Fitting Position : Front Axle Left

Length [mm] : 249

Width [mm] : 38

Height [mm] : 73

Delphi TA1214 Tie Rod End
