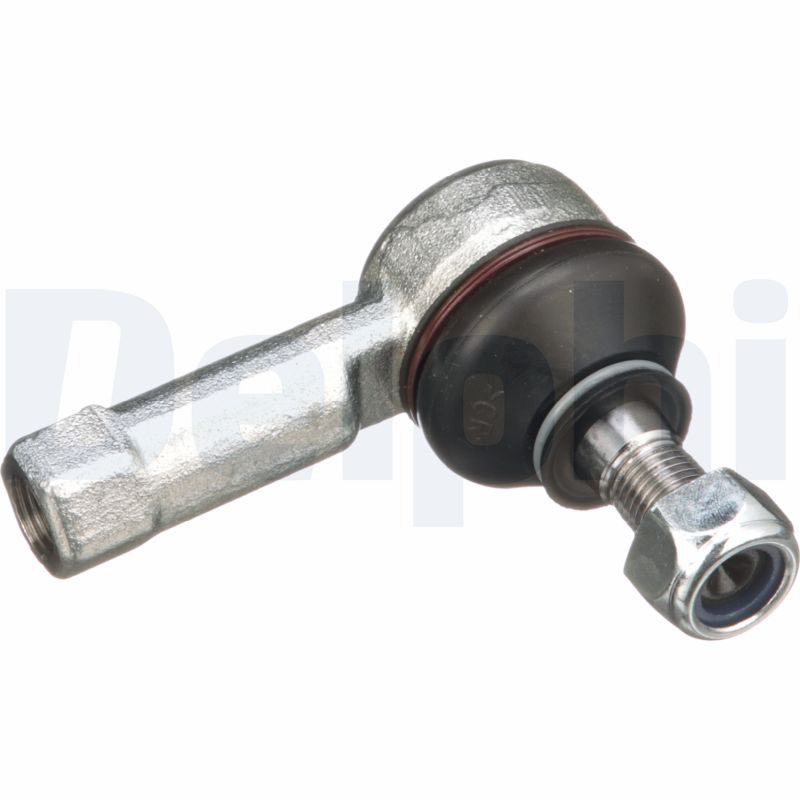

Delphi TA1221 Tie Rod End - 1

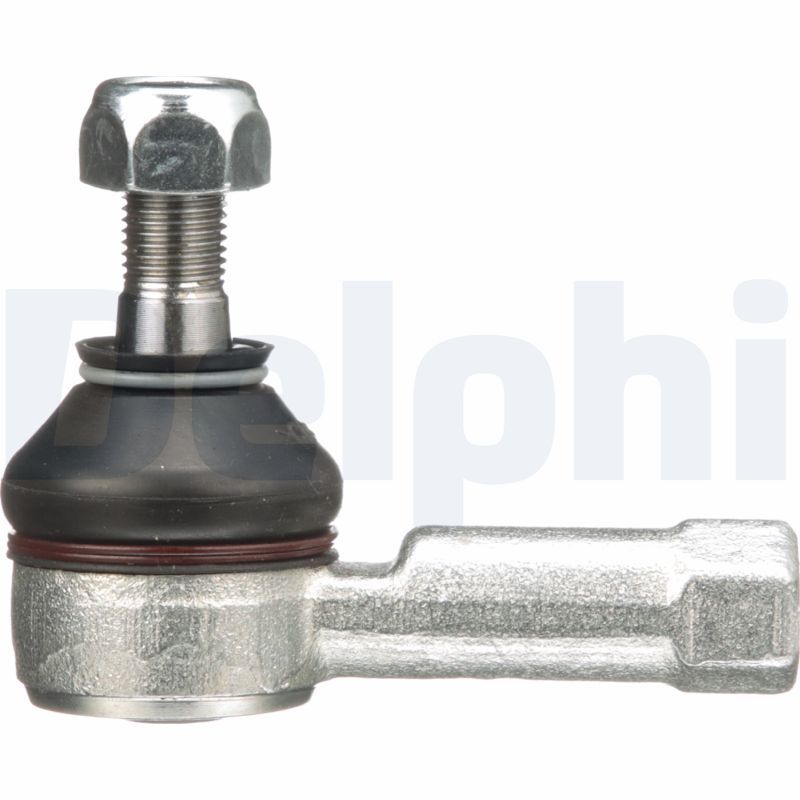

Delphi TA1221 Tie Rod End - 2

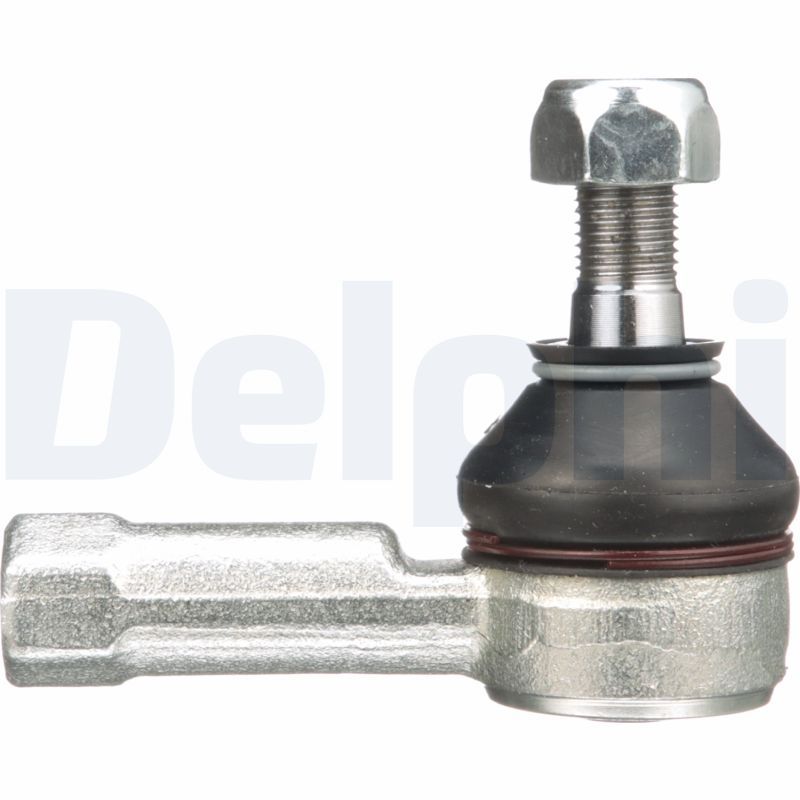

Delphi TA1221 Tie Rod End - 3

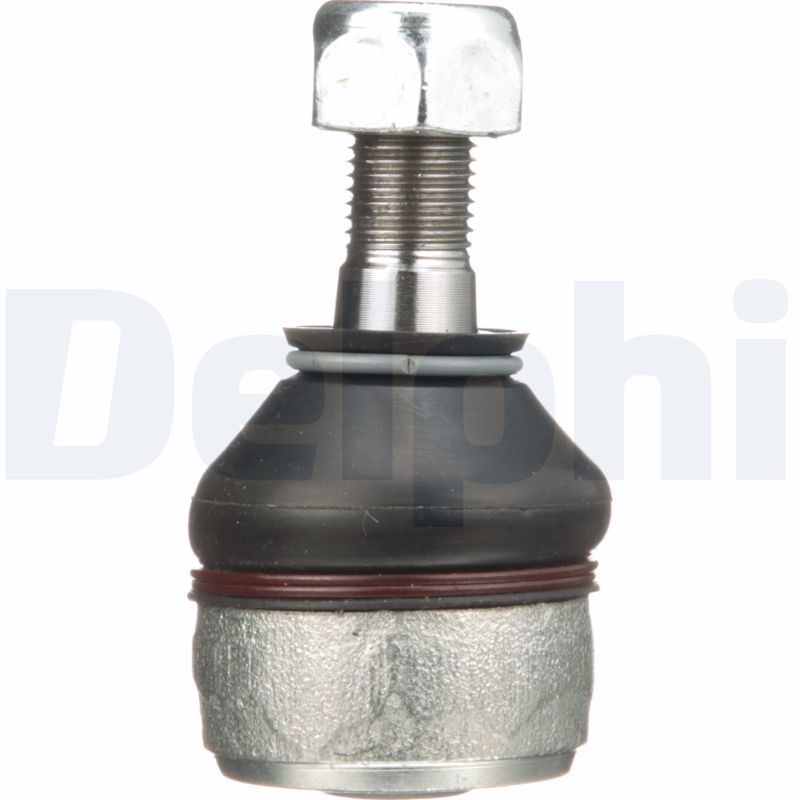

Delphi TA1221 Tie Rod End - 4

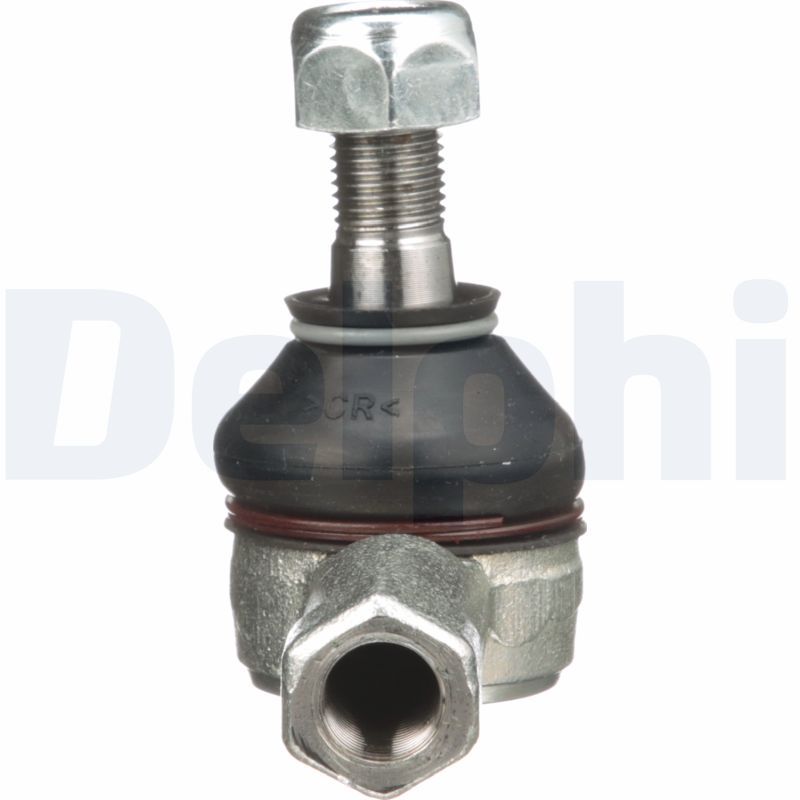

Delphi TA1221 Tie Rod End - 5

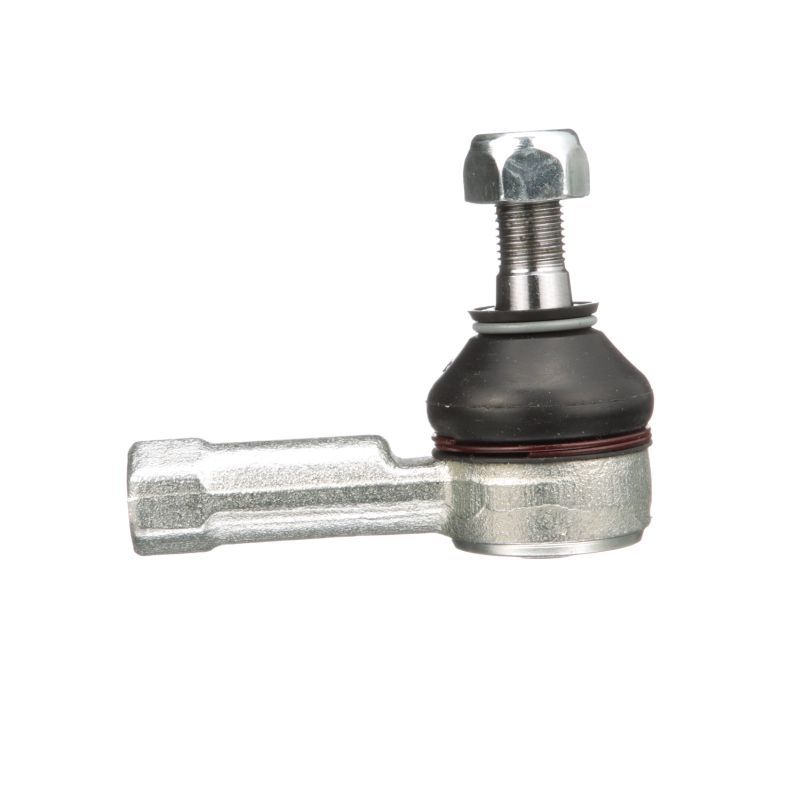

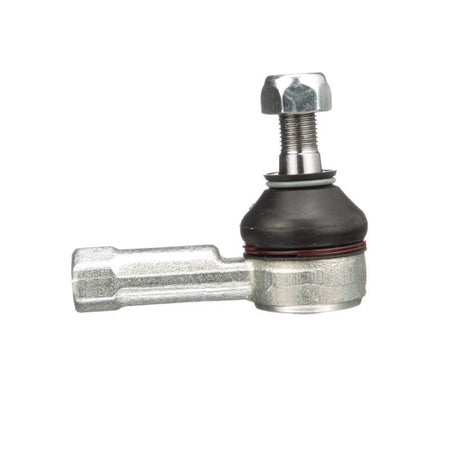

Delphi TA1221 Tie Rod End - 6
Delphi TA1221 Tie Rod End video
Delphi TA1221 Tie Rod End - 1
Delphi TA1221 Tie Rod End - 2
Delphi TA1221 Tie Rod End - 3
Delphi TA1221 Tie Rod End - 4
Delphi TA1221 Tie Rod End - 5
Delphi TA1221 Tie Rod End - 6
Delphi TA1221 Tie Rod End video
DELPHI

Delphi TA1221 Tie Rod End

SKU: TA1221
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£13.68 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

SUBARU
JUSTY Mk II (JMA, MS)
Description Cylinder Capacity Horse Power Year
1.3 GX 4x4 1298 CCM 68 HP 10/1995 - 11/2003
1.3 4x4 1298 CCM 86 HP 04/2001 - 11/2003
SUZUKI
BALENO (EG)
Description Cylinder Capacity Horse Power Year
1.3 i 16V (SY413) 1298 CCM 85 HP 07/1995 - 05/2002
1.6 i 16V (SY416) 1590 CCM 98 HP 07/1995 - 05/2002
1.6 i 16V 4x4 (SY416) 1590 CCM 98 HP 07/1995 - 05/2002
1.8 GTX (SY418) 1839 CCM 121 HP 03/1996 - 05/2002
1.3 (SY413) 1298 CCM 71 HP 09/1996 - 05/2002
1.9 TD (SY419) 1905 CCM 75 HP 04/1998 - 05/2002
BALENO Hatchback (EG)
Description Cylinder Capacity Horse Power Year
1.3 i 16V (SY413) 1298 CCM 85 HP 07/1995 - 05/2002
1.6 i 16V (SY416) 1590 CCM 98 HP 07/1995 - 05/2002
1.6 i 16V 4x4 (SY416) 1590 CCM 98 HP 07/1995 - 05/2002
1.8 GTX (SY418) 1839 CCM 121 HP 03/1996 - 05/2002
1.3 (SY413) 1298 CCM 71 HP 09/1996 - 05/2002
1.9 TD (SY419) 1905 CCM 75 HP 04/1998 - 05/2002
BALENO Estate (EG)
Description Cylinder Capacity Horse Power Year
1.6 i 16V (SY416) 1590 CCM 98 HP 08/1996 - 05/2002
1.6 i 16V 4x4 (SY416) 1590 CCM 98 HP 08/1996 - 05/2002
1.8 i 16V (SY418) 1839 CCM 121 HP 08/1996 - 05/2002
1.3 16V (SY413) 1298 CCM 86 HP 03/1997 - 05/2002
1.9 TD (SY419) 1905 CCM 75 HP 04/1998 - 05/2002
1.6 i 16V (SY416) 1590 CCM 99 HP 08/1996 - 05/2002
CAPPUCCINO (EE)
Description Cylinder Capacity Horse Power Year
0.7 (SX306, EA11) 657 CCM 64 HP 02/1992 - 08/1995
IGNIS I (FH)
Description Cylinder Capacity Horse Power Year
1.3 (HV51, HX51, RG413) 1328 CCM 83 HP 10/2000 - 09/2003
1.3 4WD (RG413) 1328 CCM 83 HP 10/2000 - 09/2003
1.5 Sport (RG415) 1490 CCM 109 HP 12/2003 - 12/2005
LIANA Hatchback
Description Cylinder Capacity Horse Power Year
1.3 1328 CCM 90 HP 07/2001 - 12/2007
1.6 (RH416) 1586 CCM 103 HP 07/2001 - 12/2007
1.6 4WD 1586 CCM 103 HP 07/2001 - 12/2007
1.6 i (RH416) 1586 CCM 106 HP 04/2002 - 12/2007
1.6 4WD 1586 CCM 106 HP 04/2002 - 12/2007
1.4 DDiS 1398 CCM 90 HP 04/2004 - 12/2007
1.6 4WD 1586 CCM 107 HP 01/2005 - 12/2007
1.6 1586 CCM 107 HP 01/2005 - 08/2007
LIANA (ER, RH_)
Description Cylinder Capacity Horse Power Year
1.3 (RH 413) 1328 CCM 90 HP From 03/2002
1.6 (RH416) 1586 CCM 103 HP From 03/2002
1.6 4WD (RH416) 1586 CCM 103 HP From 03/2002
1.6 i (RH416) 1586 CCM 106 HP From 04/2002
1.6 4WD (RH416) 1586 CCM 106 HP From 04/2002
1.4 DDiS (RH 414D) 1398 CCM 90 HP From 04/2004
1.6 (RH416) 1586 CCM 107 HP From 01/2005
1.6 4WD (RH416) 1586 CCM 107 HP 01/2005 - 12/2007
SWIFT   (AA)
Description Cylinder Capacity Horse Power Year
1.0 (SA310, AA41/43) 993 CCM 50 HP 10/1983 - 03/1989
1.0 Turbo (SA310) 993 CCM 71 HP 02/1985 - 12/1989
1.3 GTi/GXi (SA413, AA33) 1298 CCM 101 HP 08/1985 - 03/1989
1.3 (SA413, AA53) 1324 CCM 64 HP 08/1986 - 03/1989
1.3 (SA413, AA51) 1324 CCM 68 HP 10/1984 - 03/1989
1.3 (SA413, AA51/53) 1324 CCM 73 HP 10/1984 - 03/1989
SWIFT Mk II Saloon (AH, AJ)
Description Cylinder Capacity Horse Power Year
1.3 (SF413, AH35, MA) 1298 CCM 68 HP 01/1991 - 12/1995
1.6 i (SF416, AH14) 1590 CCM 92 HP 01/1990 - 05/2001
1.6 i 4WD (SF416, AJ14) 1590 CCM 92 HP 01/1990 - 05/2001
1.6 (SF416, AH14) 1590 CCM 95 HP 11/1989 - 12/1991
1.6 4WD (SF416, AJ14) 1590 CCM 95 HP 11/1989 - 12/1991
1.0 993 CCM 53 HP 01/1994 - 05/2001
SWIFT Mk II Hatchback (EA, MA)
Description Cylinder Capacity Horse Power Year
1.0 (SF310, AA44) 993 CCM 50 HP 03/1989 - 05/2001
1.0 i (SF310, AA44) 993 CCM 53 HP 01/1995 - 12/2005
1.0 i (SF310, AA44) 993 CCM 54 HP 03/1989 - 12/1991
1.3 (SF413, AB35) 1298 CCM 68 HP 03/1989 - 05/2001
1.3 4WD (SF413, AA35) 1324 CCM 68 HP 03/1989 - 05/2001
1.3 4WD (SF413, AF35) 1324 CCM 71 HP 10/1989 - 12/1991
1.3 GTi (SF413, AA34) 1298 CCM 101 HP 03/1989 - 05/2001
1.3 (SF 413) 1298 CCM 69 HP 03/1989 - 10/1996
1.6 4x4 (SF416) 1590 CCM 92 HP 03/1989 - 10/1996
1.3 (SF 413) 1298 CCM 71 HP 03/1989 - 12/1997
SWIFT Convertible (SF413)
Description Cylinder Capacity Horse Power Year
1.3 i (SF413, AK35, SY415, E35) 1298 CCM 68 HP 09/1991 - 10/1996
WAGON R+ Hatchback (EM)
Description Cylinder Capacity Horse Power Year
1.0 (RC410, SR410, SR412) 996 CCM 65 HP 02/1998 - 05/2000
1.2 4WD (SR412) 1171 CCM 69 HP 02/1998 - 05/2000
1.2 (SR412) 1171 CCM 69 HP 02/1998 - 05/2000

The Delphi TA1221 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M12x1.25 thread size, with right-hand thread thread type, front axle fitting position, and 88 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M12x1.25
Thread Type : with right-hand thread
Cone Size [mm] : 12.5
Fitting Position : Front Axle
Length [mm] : 88
Width [mm] : 34
Height [mm] : 64
  • Vendor DELPHI
  • SKU TA1221
  • Barcode 5012759849910
  • SUBARU : 48810-60B00
  • SUZUKI : 48810-60B00 4881076G00 48810-82000
  • APEC : AST6372
  • BLUE PRINT : ADK88711
  • BORG & BECK : BTR4353
  • CORTECO : 49400704
  • FEBI BILSTEIN : 12937
  • FEBI BILSTEIN : 19488
  • FIRST LINE : FTR4353
  • KYB : KTR1091
  • LEMFÖRDER : 15697 03
  • MEYLE : 33-16 020 0006
  • MONROE : L69101
  • NAPA : NST6372
  • Schaeffler FAG : 840 0660 10
  • SKF : VKDY 816007
  • TRW : JTE317
