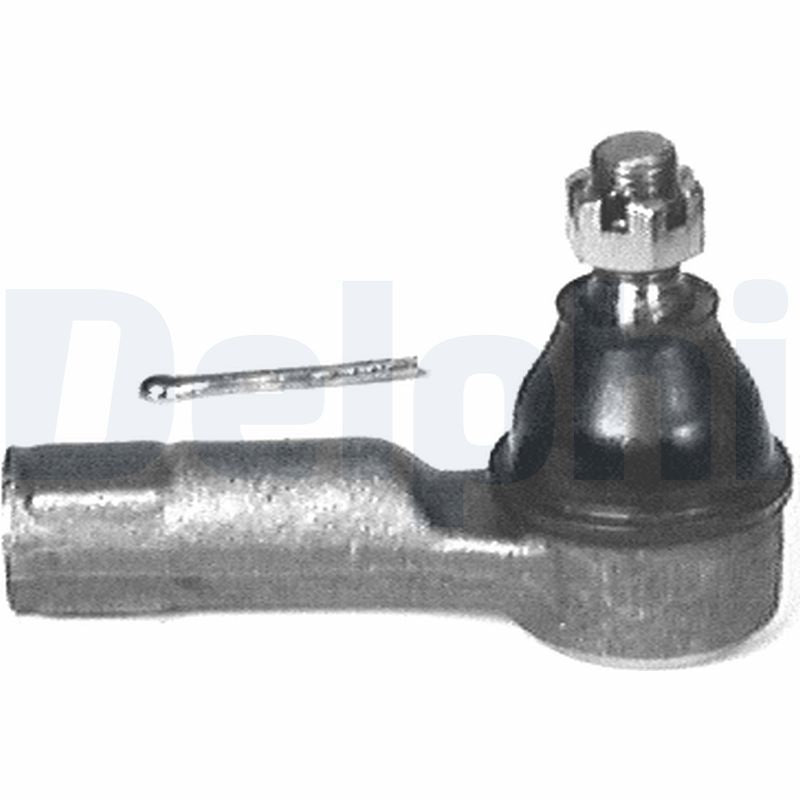

The Delphi TA1247 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14x1.5 thread size, with right-hand thread thread type, front axle fitting position, and 104 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.
Function :
Tie Rod End
Thread Size :
M14x1.5
Thread Type :
with right-hand thread
Cone Size [mm] :
13.7
Fitting Position :
Front Axle
Length [mm] :
104
Width [mm] :
38
Height [mm] :
71
- Vendor DELPHI
- SKU TA1247
- MAZDA : E17Z-3A13-1A UA01-99-324
- BLUE PRINT : ADM58718
- BORG & BECK : BTR4310
- CORTECO : 49400319
- FEBI BILSTEIN : 19484
- FEBI BILSTEIN : 21568
- FEBI BILSTEIN : 42455
- FIRST LINE : FTR4310
- LEMFÖRDER : 15512 02
- TRW : JTE648
