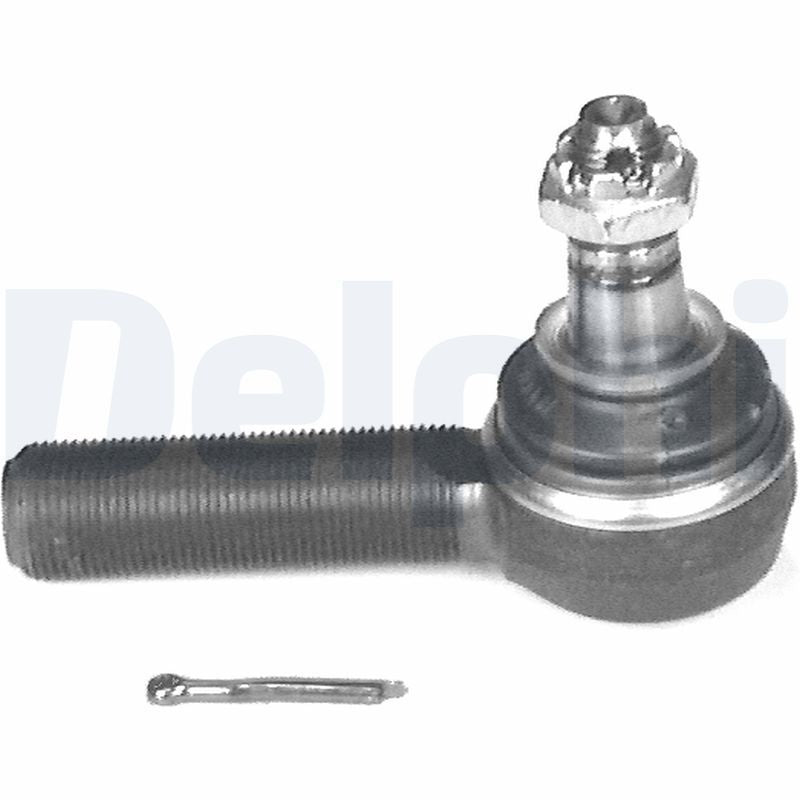

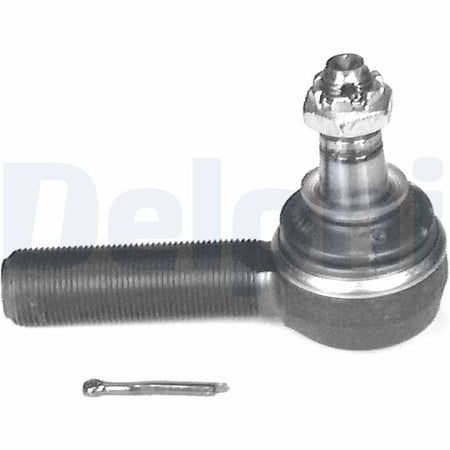

Delphi TA1533 Tie Rod End

SKU: TA1533
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£13.92 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
T1 Platform/Chassis (601)
Description Cylinder Capacity Horse Power Year
208 D 2.3 2299 CCM 82 HP 06/1989 - 02/1996
207 D 2.4 2404 CCM 65 HP 04/1977 - 12/1982
208 D 2.3 2299 CCM 79 HP 11/1988 - 02/1996
207 D 2.4 2399 CCM 72 HP 12/1977 - 10/1989
210 2.3 2298 CCM 95 HP 04/1977 - 10/1989
210 2.3 2307 CCM 86 HP 04/1977 - 10/1989
T1 Platform/Chassis (B602)
Description Cylinder Capacity Horse Power Year
308 D 2.3 2299 CCM 79 HP 06/1989 - 02/1996
307 D 2.4 2399 CCM 65 HP 04/1977 - 01/1983
308 D 2.3 2299 CCM 82 HP 06/1989 - 02/1996
310 D 2.9 2874 CCM 95 HP 06/1989 - 02/1996
310 D 2.9 2874 CCM 98 HP 06/1989 - 02/1996
307 D 2.4 2399 CCM 72 HP 06/1982 - 01/1990
T1 Bus (602)
Description Cylinder Capacity Horse Power Year
308 D 2.3 2299 CCM 82 HP 06/1989 - 02/1996
310 D 2.9 2874 CCM 95 HP 06/1989 - 02/1996
310 D 2.9 2874 CCM 98 HP 06/1990 - 02/1996
308 D 2.3 2299 CCM 79 HP 05/1990 - 02/1996
T1 Bus (B601)
Description Cylinder Capacity Horse Power Year
210 2.3 2298 CCM 95 HP 07/1982 - 01/1990
208 2.3 2307 CCM 86 HP 05/1977 - 12/1982
210 2.3 2298 CCM 105 HP 05/1989 - 02/1996
208 D 2.3 (601.371, 601.372, 601.376, 601.377) 2299 CCM 79 HP 10/1988 - 02/1996
208 D 2.3 2299 CCM 82 HP 10/1988 - 02/1996
207 D 2.4 (601.371, 601.372, 601.376, 601.377) 2404 CCM 65 HP 05/1977 - 12/1982
207 D 2.4 (601.371, 601.376, 601.377) 2399 CCM 72 HP 07/1982 - 01/1990
T1 Van (601, 611)
Description Cylinder Capacity Horse Power Year
210 2.3 2298 CCM 105 HP 05/1989 - 02/1996
208 D 2.3 2299 CCM 79 HP 11/1988 - 02/1996
208 D 2.3 2299 CCM 82 HP 10/1988 - 02/1996
207 D 2.4 2399 CCM 72 HP 06/1982 - 01/1990
210 2.3 2298 CCM 95 HP 07/1982 - 02/1996
T1 Van (B602)
Description Cylinder Capacity Horse Power Year
310 D 2.9 2874 CCM 98 HP 06/1989 - 02/1996
308 D 2.3 2299 CCM 79 HP 11/1988 - 02/1996
307 D 2.4 2399 CCM 72 HP 10/1982 - 01/1990
310 D 2.9 2874 CCM 95 HP 06/1989 - 02/1996
308 D 2.3 2299 CCM 82 HP 06/1989 - 02/1996

The Delphi TA1533 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M22x1.5 thread size, with right-hand thread thread type, front axle fitting position, and 124 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M22x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 16.2
Fitting Position : Front Axle
Length [mm] : 124
Width [mm] : 46
Height [mm] : 82
  • Vendor DELPHI
  • SKU TA1533
  • Barcode 5012759931240
  • MERCEDES-BENZ : A000 330 5035 A310 330 0435 A000 460 8548 A000 460 4548 A000 460 4148 A000 460 2148 A310 330 1335 310 330 0435 000 460 8548 000 460 4548 000 460 4148 000 460 2148 000 330 5035 310 330 1335
  • BORG & BECK : BTR4707
  • CORTECO : 49399767
  • FEBI BILSTEIN : 08204
  • FIRST LINE : FTR4707
  • Schaeffler FAG : 840 1009 10
  • SKF : VKDY 318090
  • TRW : JTE2701
