DELPHI

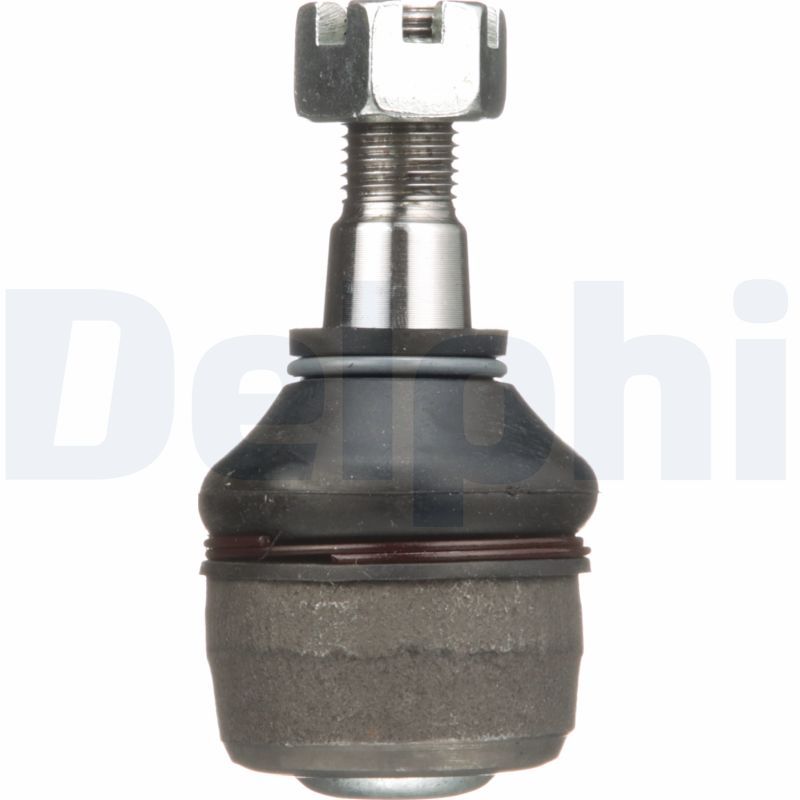

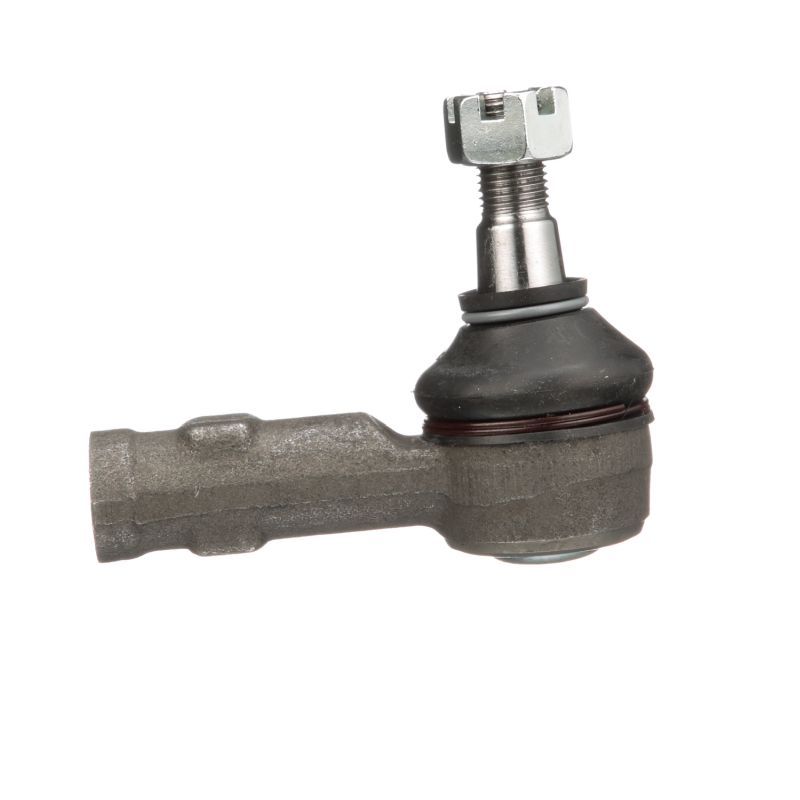

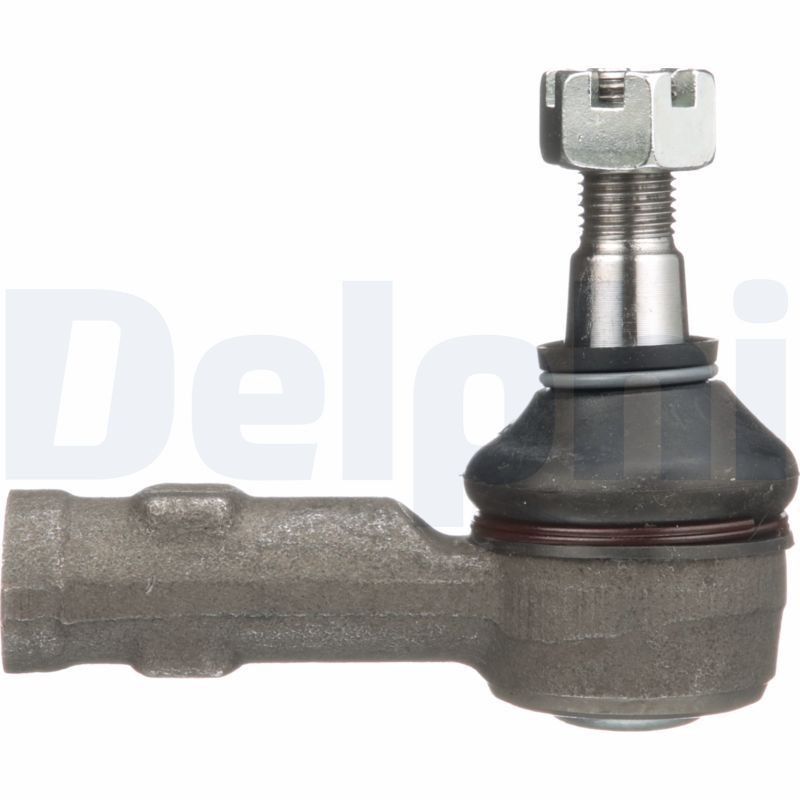

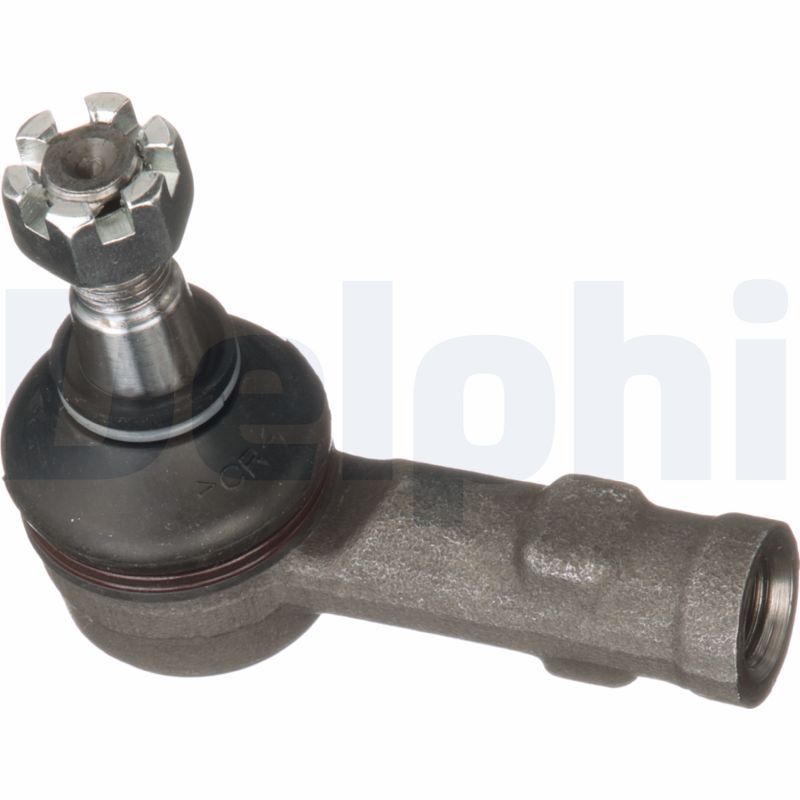

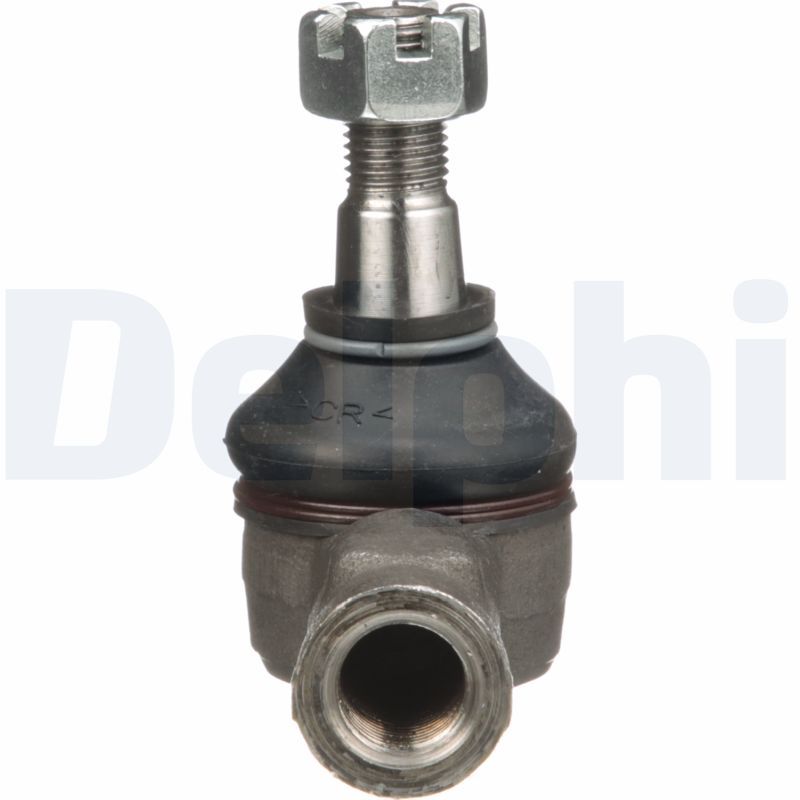

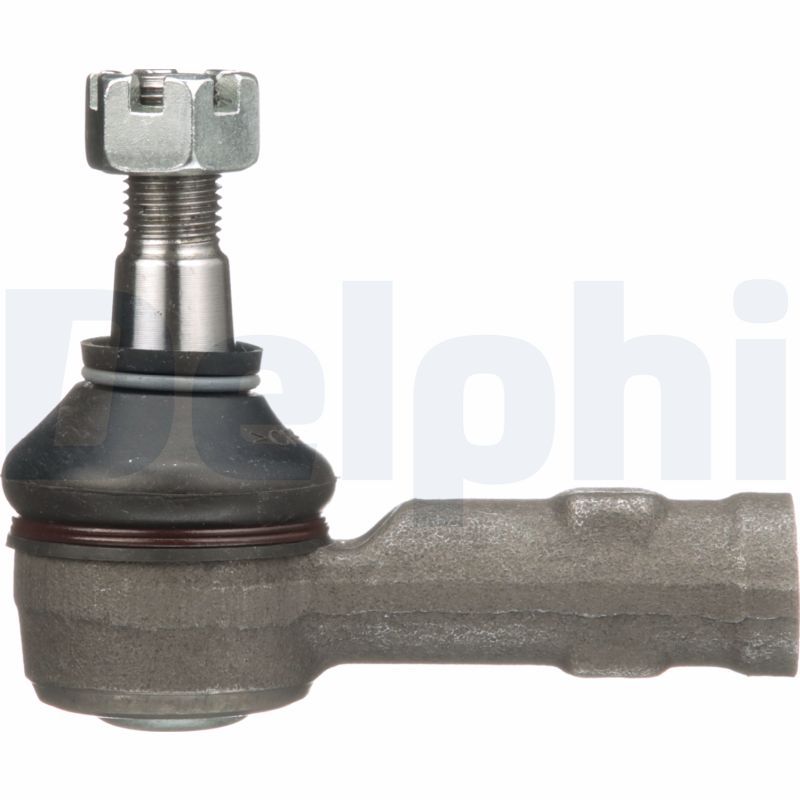

Delphi TA1535 Tie Rod End

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: TA1535

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£14.80 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MITSUBISHI
3000 GT Coupe (Z1_A)
Description Cylinder Capacity Horse Power Year
3.0 Turbo 4WD (Z16A) 2972 CCM 286 HP 01/1990 - 08/1999
3.0 (Z15A) 2972 CCM 226 HP 09/1990 - 12/1999
3.0 4WD (Z16A) 2972 CCM 224 HP 06/1989 - 08/1999
CARISMA (DA_)
Description Cylinder Capacity Horse Power Year
1.6 (DA1A) 1597 CCM 90 HP 07/1995 - 06/2006
1.9 TD (DA4A) 1870 CCM 90 HP 10/1996 - 09/2000
1.6 (DA1A) 1597 CCM 99 HP 05/1997 - 06/2006
1.8 16V GDI (DA2A) 1834 CCM 125 HP 09/1997 - 06/2006
1.9 DI-D (DA5A) 1870 CCM 102 HP 09/2000 - 06/2006
1.9 DI-D (DA5A) 1870 CCM 115 HP 09/2000 - 06/2006
1.8 GDI (DA2A) 1834 CCM 122 HP 10/2000 - 06/2006
1.6 (DA1A) 1597 CCM 95 HP 12/1998 - 06/2006
1.6 (DA1A) 1597 CCM 103 HP 05/1995 - 12/2003
CARISMA Saloon (DA_)
Description Cylinder Capacity Horse Power Year
1.9 TD (DA4A) 1870 CCM 90 HP 10/1996 - 09/2000
1.6 (DA1A) 1597 CCM 90 HP 09/1996 - 06/2006
1.6 (DA1A) 1597 CCM 99 HP 05/1997 - 06/2006
1.8 16V GDI (DA2A) 1834 CCM 125 HP 09/1997 - 06/2006
1.9 DI-D (DA5A) 1870 CCM 102 HP 09/2000 - 06/2006
1.9 DI-D (DA5A) 1870 CCM 115 HP 09/2000 - 06/2006
1.8 GDI (DA2A) 1834 CCM 122 HP 10/2000 - 06/2006
1.6 (DA1A) 1597 CCM 95 HP 12/1998 - 06/2006
1.6 (DA1A) 1597 CCM 103 HP 09/2000 - 06/2006
1.3 16V 1299 CCM 82 HP 09/2000 - 10/2004
1.3 1298 CCM 75 HP 09/2000 - 10/2004
DELICA / SPACE GEAR
Description Cylinder Capacity Horse Power Year
2.0 (PA3V) 1997 CCM 113 HP 09/1995 - 10/2002
2.5 2477 CCM 99 HP 05/1995 - 05/2000
2.5 (PD5W) 2477 CCM 99 HP 05/1995 - 05/2000
GTO Coupe (Z1_A)
Description Cylinder Capacity Horse Power Year
3.0 AWD (Z16A) 2972 CCM 286 HP 01/1994 - 12/2000
L 300 III Bus (P0_W, P1_W, P2_W, P3_W)
Description Cylinder Capacity Horse Power Year
1.6 (P02W, P12W) 1598 CCM 69 HP 11/1986 - 05/1994
2.0 4WD (P23W, P03W, P13W) 1997 CCM 88 HP 12/1986 - 05/2004
2.0 (P03W, P13W) 1997 CCM 87 HP 11/1986 - 05/2004
2.0 4WD (P23W, P03W, P13W) 1997 CCM 90 HP 11/1986 - 05/2004
2.4 4WD (P24W) 2351 CCM 109 HP 11/1986 - 12/1990
2.4 4WD (P24W) 2351 CCM 112 HP 08/1986 - 05/2004
2.5 D (P05W, P15W, P25W) 2477 CCM 69 HP 11/1986 - 05/2004
2.5 TD 4WD (P25W, P35W) 2477 CCM 87 HP 12/1987 - 05/2004
2.0 (P03W, P13W) 1997 CCM 90 HP 11/1986 - 05/2004
2.4 (P04W, P14W) 2351 CCM 112 HP 11/1990 - 05/2004
2.0 i (P00W, P03W, P13W) 1997 CCM 113 HP 06/1994 - 10/1998
2.5 D (P05W, P15W) 2477 CCM 75 HP 09/1991 - 09/2003
L 300 III Van (P0_V, P1_V, P2_V)
Description Cylinder Capacity Horse Power Year
1.6 (P12V, P02V) 1598 CCM 69 HP 11/1986 - 05/1994
2.5 D (P05V, P05W, P15V) 2477 CCM 69 HP 11/1986 - 02/2006
2.0 (P03V, P13V) 1997 CCM 87 HP 11/1986 - 05/1996
2.4 (P24V, P24W) 2351 CCM 112 HP 11/1986 - 08/1997
2.5 TD 4WD (P25V) 2477 CCM 87 HP 11/1991 - 05/2003
2.5 D (P05V, P15V) 2477 CCM 75 HP 09/1991 - 09/2003
2.0 (P03V, P13V) 1997 CCM 106 HP 06/1994 - 05/1996
L 300 III Platform/Chassis (P1_T )
Description Cylinder Capacity Horse Power Year
2.0 (P13T) 1997 CCM 116 HP 07/1994 - 04/2000
2.5 TD (P15T) 2477 CCM 87 HP 11/1994 - 04/2000
L400 Bus (PD_W, PC_W, PA_V, PB_V, PA_W)
Description Cylinder Capacity Horse Power Year
2.0 16V (PA3V/W, PB3V, PA3W) 1997 CCM 115 HP 05/1995 - 05/2000
2.4 i 4WD (PD4V/W) 2351 CCM 132 HP 05/1995 - 05/2000
2.5 TD (PA5V/W, PB5V) 2477 CCM 99 HP 05/1995 - 05/2000
2.5 TD 4WD (PD5V/W) 2477 CCM 99 HP 05/1995 - 05/2000
2500 TD (PA5W) 2477 CCM 87 HP 05/1995 - 06/2005
2.0 (PA3W) 1997 CCM 113 HP 09/1995 - 10/2002
2.4 (PA4W) 2351 CCM 132 HP 05/1995 - 10/2002
2.4 (PA4W) 2351 CCM 128 HP 09/1996 - 06/2005
2.4 4WD (PD4W) 2351 CCM 128 HP 09/1996 - 06/2005
L400 Van (PD_W, PC_W, PB_V, PA_W, PA_V)
Description Cylinder Capacity Horse Power Year
2500 TD (PD5W, PD5V, PA5W, PA5V) 2477 CCM 87 HP 09/1996 - 06/2005
2500 TD 4WD (PD5W, PD5V, PA5W, PA5V) 2477 CCM 87 HP 09/1996 - 06/2005
SPACE STAR MPV (DG_A)
Description Cylinder Capacity Horse Power Year
1.8 GDI (DG5A) 1834 CCM 122 HP 06/1998 - 12/2004
1.3 16V (DG1A) 1299 CCM 83 HP 12/1998 - 12/2004
1.9 DI-D (DG4A) 1870 CCM 102 HP 02/2001 - 12/2004
1.8 GDI (DG5A) 1834 CCM 118 HP 06/1998 - 12/2004
1.3 16V (DG1A) 1299 CCM 82 HP 09/2000 - 12/2004
1.6 16V (DG3A) 1584 CCM 98 HP 01/2001 - 12/2004
1.9 DI-D (DG4A) 1870 CCM 115 HP 10/2002 - 12/2004
1.8 MPI (DG5A) 1834 CCM 112 HP 10/2002 - 12/2004
HYUNDAI
H-1 / STAREX Bus (A1)
Description Cylinder Capacity Horse Power Year
2.4 2351 CCM 112 HP 06/1997 - 04/2004
2.5 TD 2476 CCM 80 HP 06/1997 - 04/2004
2.4 4WD 2351 CCM 112 HP 02/1998 - 04/2004
2.5 TD 4WD 2476 CCM 80 HP 02/1998 - 04/2004
2.4 4WD 2351 CCM 135 HP 06/2001 - 04/2004
2.5 TCi 2476 CCM 99 HP 10/1997 - 12/2007
2.5 CRDi 2497 CCM 140 HP 12/2002 - 09/2007
2.5 TD 4WD 2476 CCM 99 HP 03/2001 - 04/2004
2.5 TD 4WD 2476 CCM 101 HP 11/2001 - 04/2004
2.5 CRDi 2497 CCM 110 HP 06/2006 - 12/2007
2.5 CRDi 2497 CCM 163 HP 12/2002 - 04/2004
H-1 Van (A1)
Description Cylinder Capacity Horse Power Year
2.5 TD 2476 CCM 80 HP 03/2000 - 09/2000
2.4 2351 CCM 112 HP 03/2000 - 04/2004
2.5 TD 2476 CCM 99 HP 03/2000 - 10/2006
2.5 TD 2476 CCM 101 HP 10/2001 - 08/2007
2.5 CRDi 2497 CCM 140 HP 08/2003 - 12/2007
2.5 CRDi 2497 CCM 110 HP 07/2001 - 04/2004
H100 Platform/Chassis
Description Cylinder Capacity Horse Power Year
2.5 D 2476 CCM 80 HP 05/1996 - 12/1997
H100 Bus (P)
Description Cylinder Capacity Horse Power Year
2.5 D 2476 CCM 78 HP 12/1994 - 03/2000
2.4 2351 CCM 114 HP 01/1997 - 03/2000
2.5 D 2477 CCM 75 HP 07/1993 - 12/1994
2.4 2351 CCM 122 HP 07/1993 - 03/2000
2.5 TD 2476 CCM 80 HP 07/1993 - 03/2000
H100 Van
Description Cylinder Capacity Horse Power Year
2.5 D 2476 CCM 78 HP 12/1994 - 03/2000
2.5 D 2477 CCM 75 HP 07/1993 - 12/1994
2.5 TDiC 2476 CCM 80 HP 06/1998 - 10/2003
H100 Platform/Chassis
Description Cylinder Capacity Horse Power Year
2.5 D 2476 CCM 78 HP 05/1996 - 10/2001

The Delphi TA1535 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14x1.5 thread size, with right-hand thread thread type, front axle fitting position, and 95 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M14x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 13.6
Fitting Position : Front Axle
Length [mm] : 95
Width [mm] : 44
Height [mm] : 80
  • Vendor DELPHI
  • SKU TA1535
  • Barcode 5012759933473
  • MITSUBISHI : MB347599 MB527650 MB864164 MR162710 MR376500 MR485672
  • HYUNDAI : 5687243010 56872-43010 56872-43000 5687243000 568204A000 5682047500 5682047300 568204A600
  • BLUE PRINT : ADC48714
  • BLUE PRINT : ADC48739
  • BORG & BECK : BTR4410
  • CORTECO : 49401687
  • CORTECO : 49401824
  • FEBI BILSTEIN : 15300
  • FEBI BILSTEIN : 30243
  • FEBI BILSTEIN : 41300
  • FEBI BILSTEIN : 41318
  • FEBI BILSTEIN : 41945
  • FIRST LINE : FTR4410
  • LEMFÖRDER : 11842 02
  • LEMFÖRDER : 22408 01
  • MEYLE : 32-16 020 0022
  • MEYLE : 516 020 0020
  • MONROE : L27105
  • MONROE : L42102
  • Schaeffler FAG : 840 0637 10
  • SKF : VKDY 815506
  • TRW : JTE517
  • TRW : JTE782
  • TRW : JTE923
