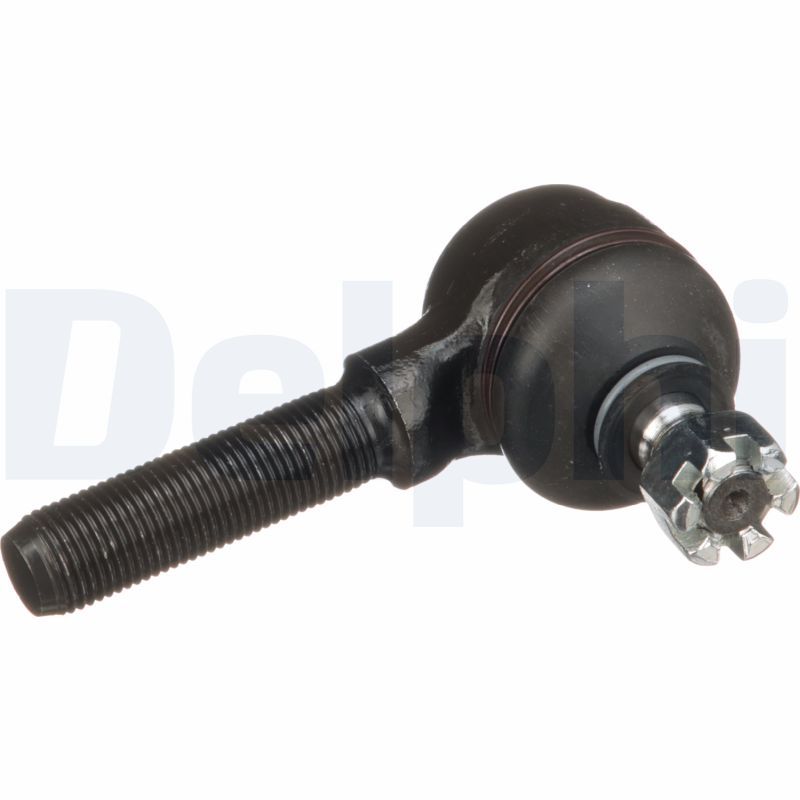

Delphi TA1544 Tie Rod End - 1

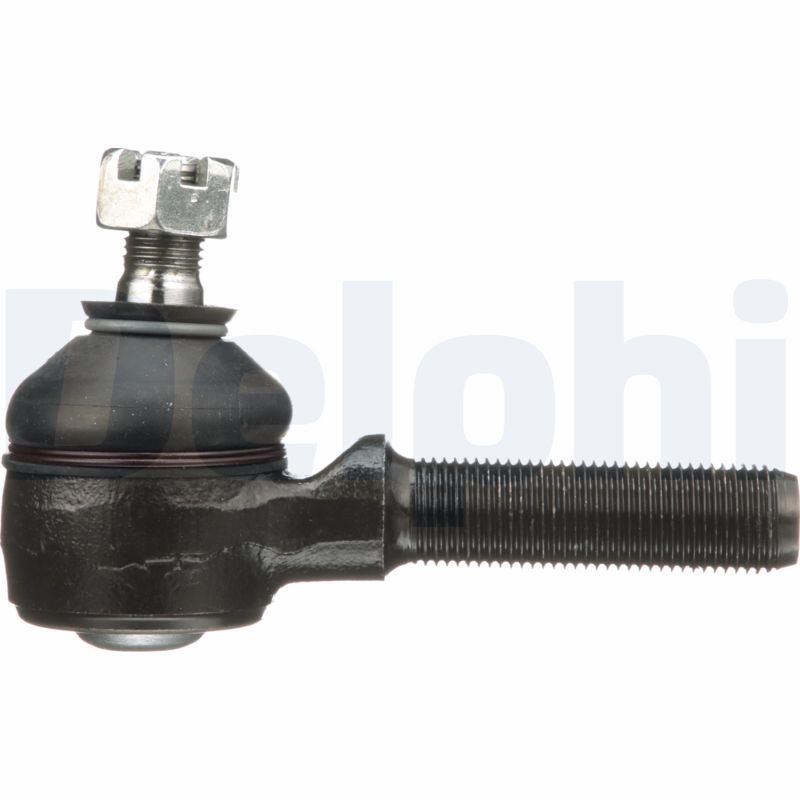

Delphi TA1544 Tie Rod End - 2

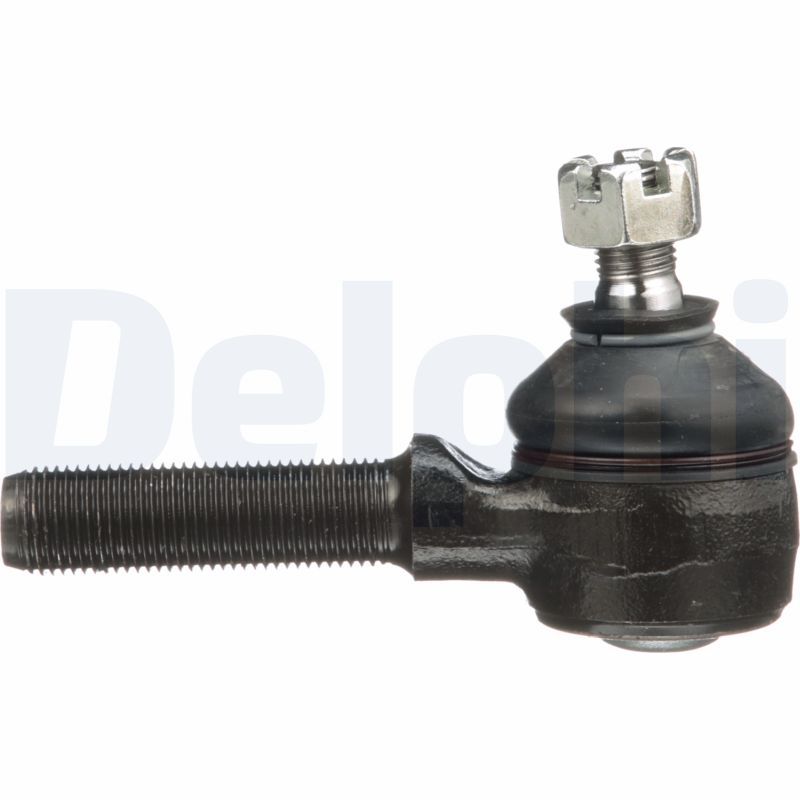

Delphi TA1544 Tie Rod End - 3

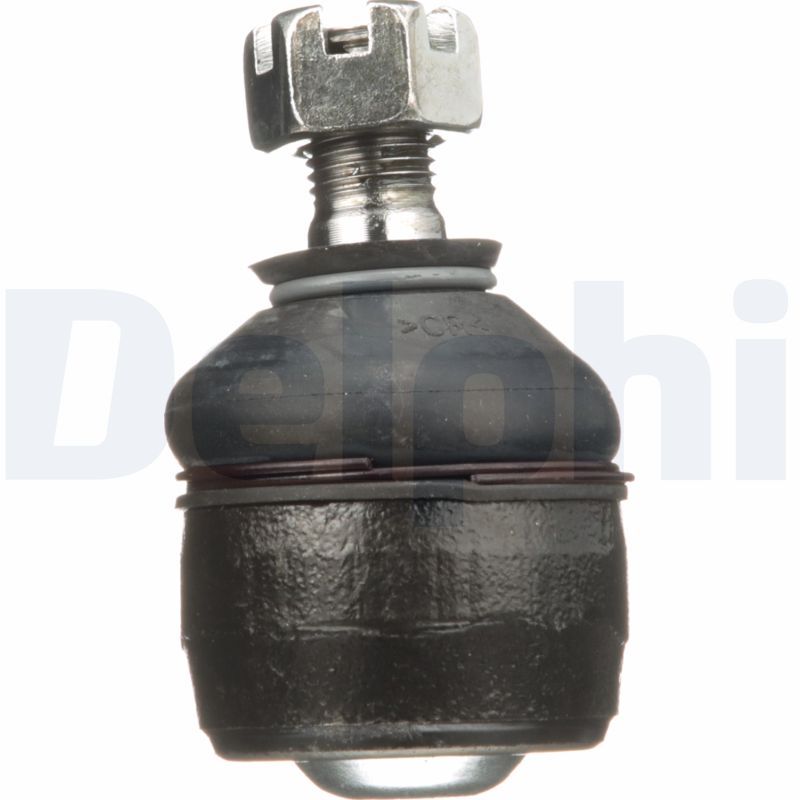

Delphi TA1544 Tie Rod End - 4

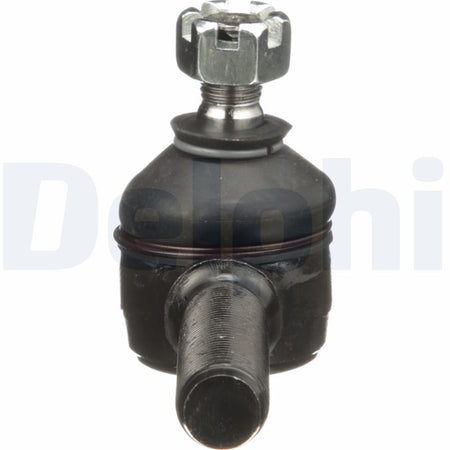

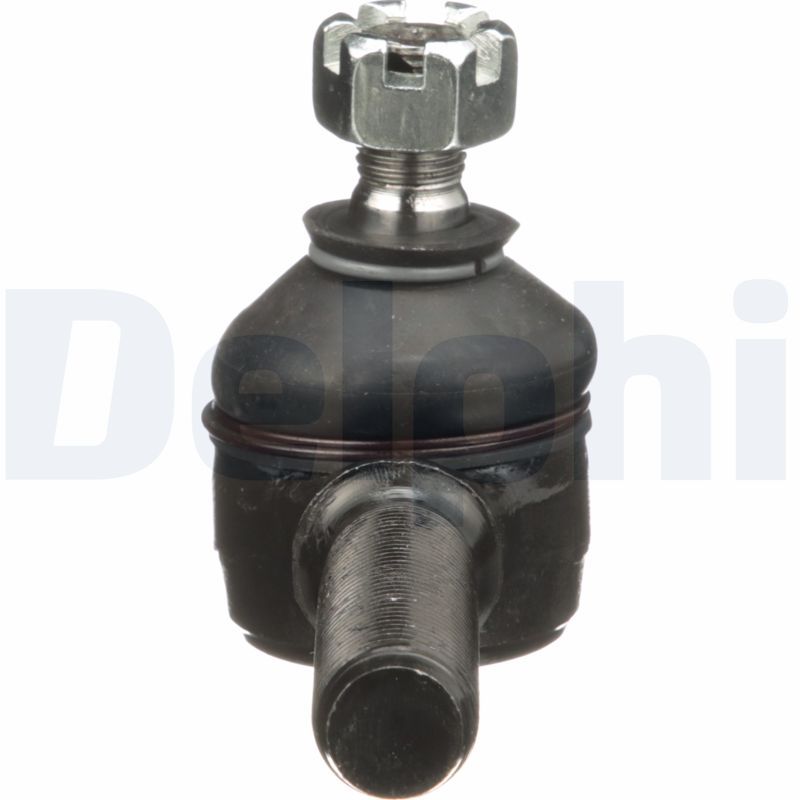

Delphi TA1544 Tie Rod End - 5

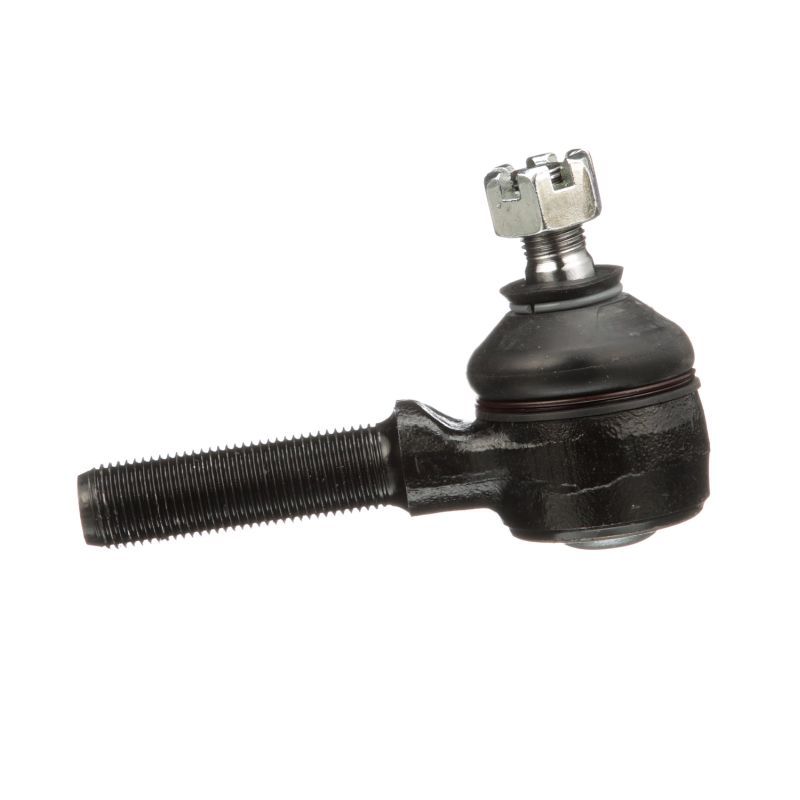

Delphi TA1544 Tie Rod End - 6
Delphi TA1544 Tie Rod End video
DELPHI

Delphi TA1544 Tie Rod End

SKU: TA1544
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£13.01 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

SUZUKI
SAMURAI Closed Off-Road Vehicle (SJ_)
Description Cylinder Capacity Horse Power Year
1.3 All-wheel Drive (SJ413, SJ70, SJ80) 1298 CCM 70 HP 11/1988 - 12/2004
1.3 All-wheel Drive (SJ413) 1324 CCM 60 HP 11/1988 - 12/2004
1.3 All-wheel Drive (SJ413) 1324 CCM 64 HP 11/1988 - 12/2004
1.9 TD All-wheel Drive (SJ419TD) 1905 CCM 63 HP 11/1998 - 12/2004
1.3 All-wheel Drive (SJ413) 1298 CCM 80 HP 01/2000 - 12/2004
1.9 D All-wheel Drive 1870 CCM 64 HP 11/1998 - 12/2004
SJ413 (OS)
Description Cylinder Capacity Horse Power Year
1.3 (SJ413) 1324 CCM 60 HP 08/1986 - 08/1990
1.3 (SJ413) 1324 CCM 64 HP 09/1984 - 08/1990
VITARA / ESCUDO (ET, TA, TD)
Description Cylinder Capacity Horse Power Year
1.6 (TA, TA01) 1590 CCM 80 HP 01/1991 - 01/1998
1.6 All-wheel Drive (SE416, TA01) 1589 CCM 82 HP 07/1988 - 12/1995
1.6 i 16V All-wheel Drive (ET, TA02, SE416) 1590 CCM 97 HP 07/1990 - 03/1998
2.0 V6 24V All-wheel Drive (SV620) 1998 CCM 136 HP 12/1994 - 03/1998
2.0 TD All-wheel Drive (SV420D) 1998 CCM 71 HP 12/1994 - 03/1998
2.0 16V All-wheel Drive (SV420) 1995 CCM 132 HP 12/1996 - 03/1998
1.9 D All-wheel Drive (SE419TD) 1905 CCM 68 HP 01/1995 - 03/1998
2.0 TD Intercooler All-wheel Drive (SV420D) 1998 CCM 87 HP 12/1995 - 03/1998
1.9 D All-wheel Drive (SE419TD) 1905 CCM 75 HP 08/1996 - 03/1998
1.6 (SE 416) 1590 CCM 95 HP 02/1991 - 03/1998
1.6 All-wheel Drive (SE416, TA01) 1590 CCM 75 HP 10/1988 - 12/1998
1.6 All-wheel Drive (SE 416) 1590 CCM 95 HP 02/1991 - 03/1998
VITARA Cabrio (ET, TA)
Description Cylinder Capacity Horse Power Year
1.6 (TA01, SE416) 1589 CCM 80 HP 07/1988 - 01/1995
1.6 i 16V (TA02, SE416) 1590 CCM 97 HP 07/1990 - 03/1999
2.0 16V (TA51, SV420) 1995 CCM 132 HP 12/1996 - 03/1999
1.9 D (SE419TD) 1905 CCM 75 HP 08/1996 - 03/1999
1.9 D (SE419TD) 1905 CCM 68 HP 01/1995 - 03/1998
1.6 (SE416) 1589 CCM 75 HP 01/1990 - 12/1993
X-90 (EL)
Description Cylinder Capacity Horse Power Year
1.6 i 16V 4x4 (SZ416) 1590 CCM 97 HP 09/1995 - 12/1997
1.6 i 16V (SZ416) 1590 CCM 97 HP 09/1995 - 12/1997

The Delphi TA1544 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M16x1.5 thread size, with right-hand thread thread type, front axle left fitting position, and 114 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M16x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 12.5
Fitting Position : Front Axle Left
Length [mm] : 114
Width [mm] : 45
Height [mm] : 70
  • Vendor DELPHI
  • SKU TA1544
  • Barcode 5012759931332
  • SUZUKI : 4881085C00 48810-60A00 4881077E00
  • BLUE PRINT : ADK88705
  • BLUE PRINT : ADK88714
  • BLUE PRINT : ADK88748
  • BORG & BECK : BTR4517
  • CORTECO : 49400646
  • FEBI BILSTEIN : 12940
  • FEBI BILSTEIN : 42299
  • FEBI BILSTEIN : 42321
  • FIRST LINE : FTR4517
  • LEMFÖRDER : 16201 02
  • MEYLE : 33-16 020 0016
  • MONROE : L69102
  • SKF : VKDY 816001
  • TRW : JTE490
