DELPHI

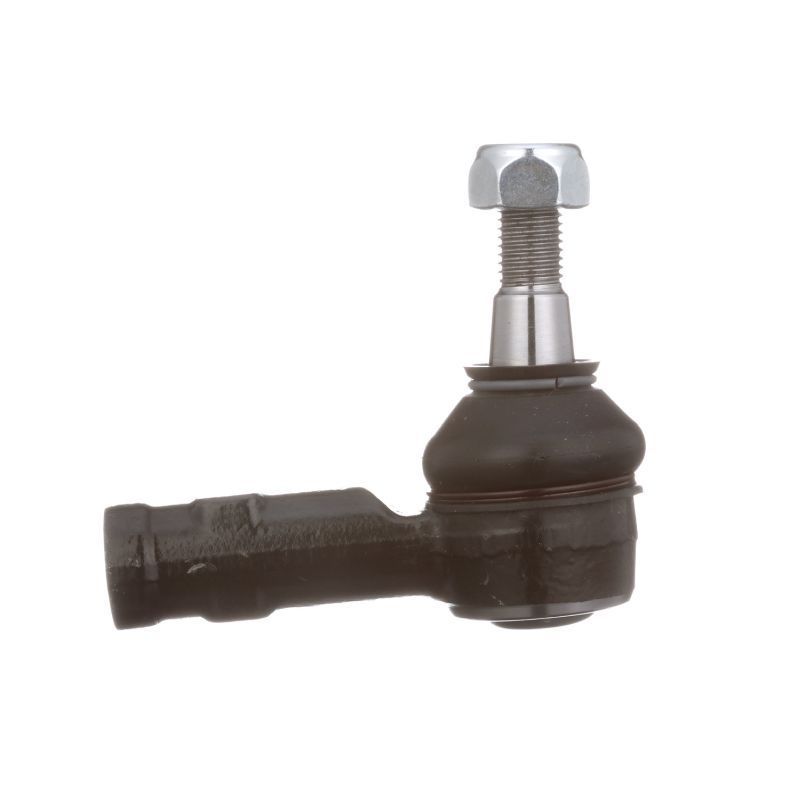

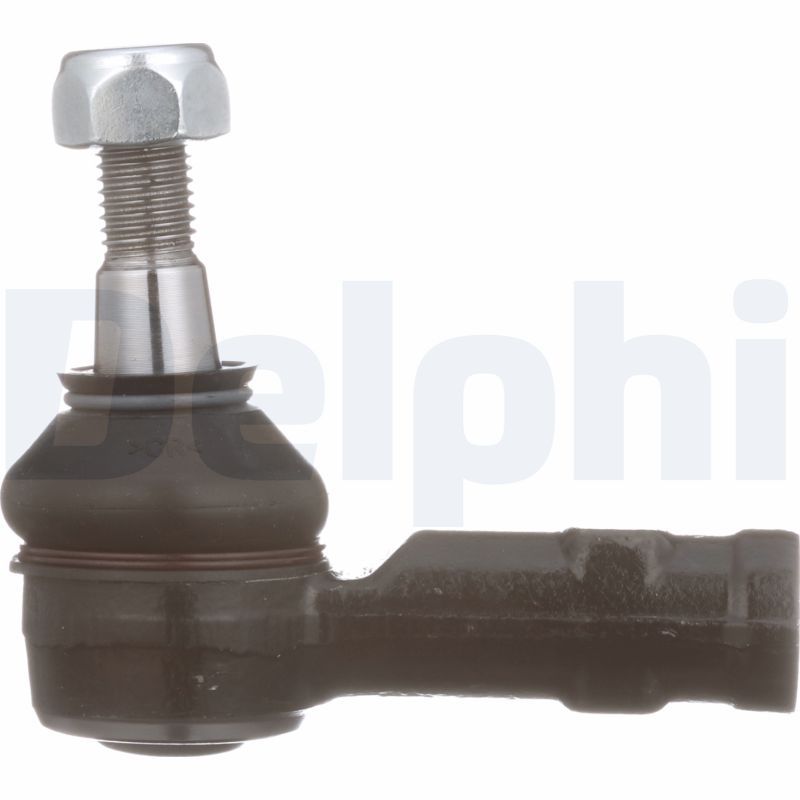

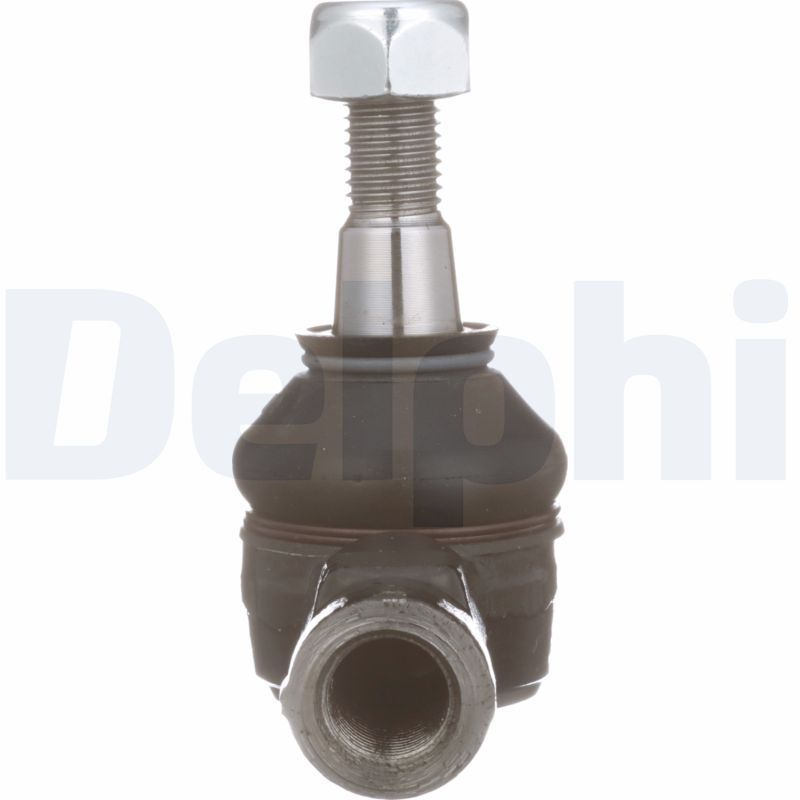

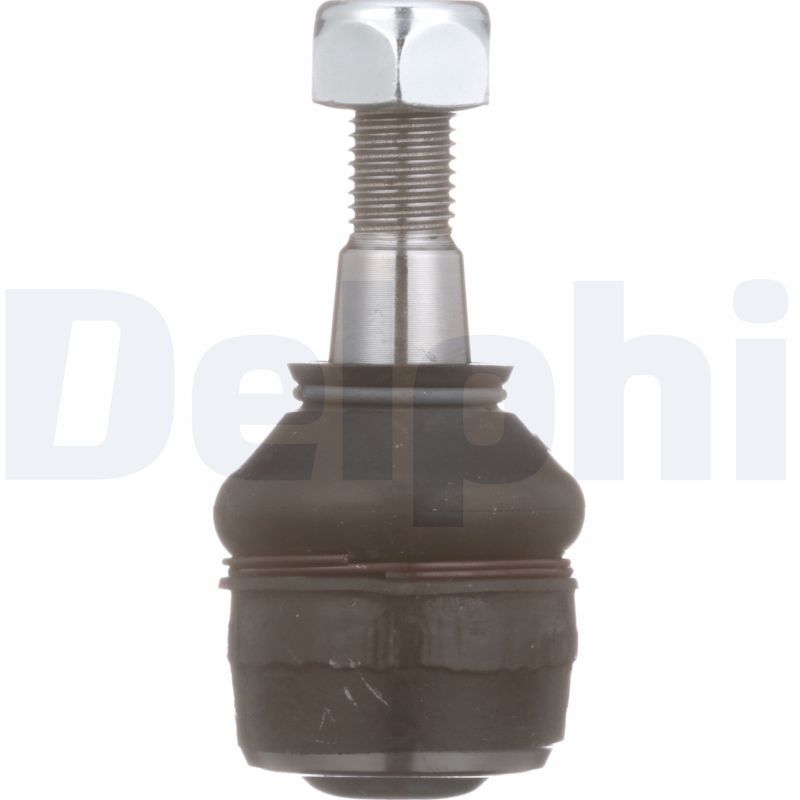

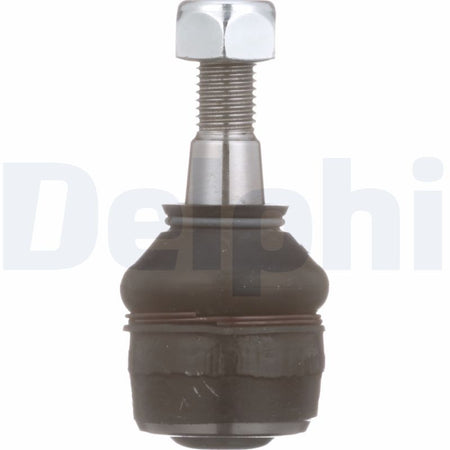

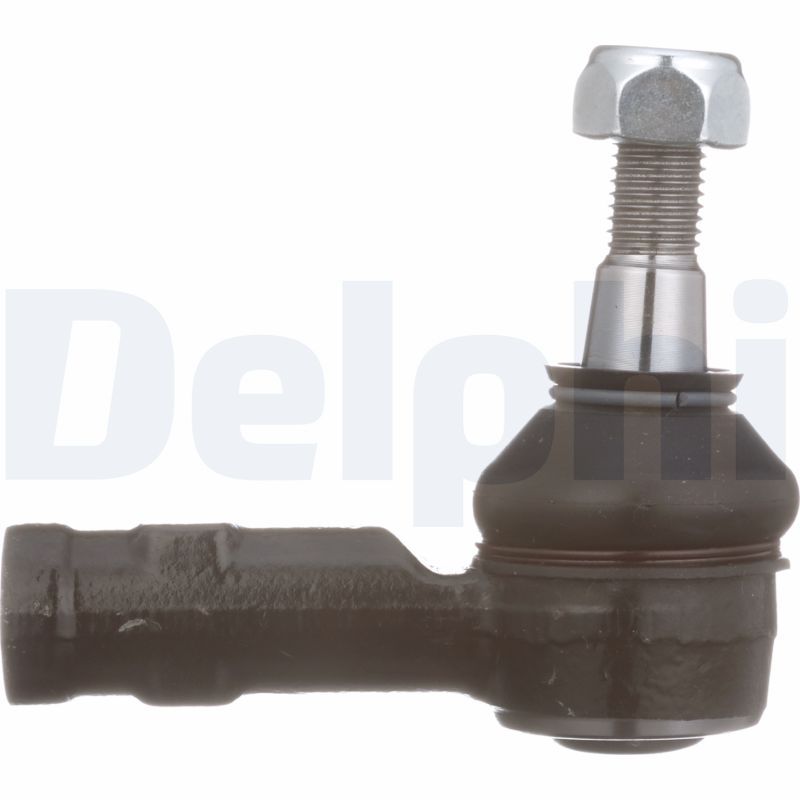

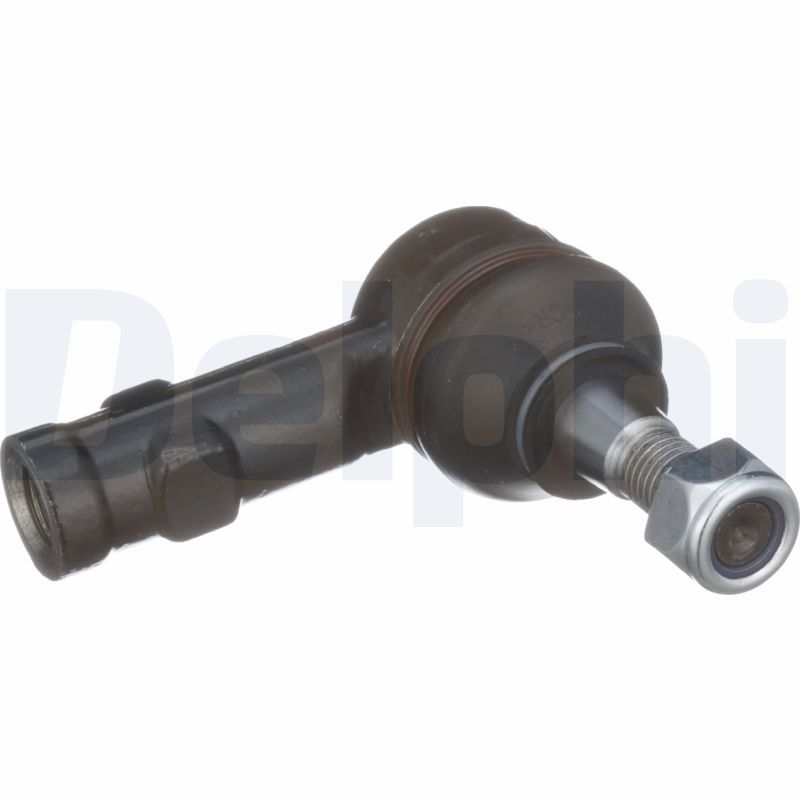

Delphi TA1592 Tie Rod End

SKU: TA1592
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£15.79 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

OPEL
VECTRA B (J96)
Description Cylinder Capacity Horse Power Year
1.6 i (F19) 1598 CCM 75 HP 10/1995 - 04/2002
1.6 i 16V (F19) 1598 CCM 100 HP 10/1995 - 04/2002
1.8 i 16V (F19) 1796 CCM 115 HP 10/1995 - 09/2000
2.0 i 16V (F19) 1998 CCM 136 HP 09/1995 - 06/2000
2.5 i V6 (F19) 2498 CCM 170 HP 10/1995 - 09/2000
2.0 DI 16V (F19) 1995 CCM 82 HP 11/1996 - 04/2002
2.0 DTI 16V (F19) 1995 CCM 101 HP 06/1997 - 04/2002
2.2 DTI 16V (F19) 2172 CCM 120 HP 09/2000 - 04/2002
i 500 2.5 (F19) 2498 CCM 194 HP 03/1997 - 12/1997
1.8 i 16V (F19) 1799 CCM 116 HP 10/1995 - 09/2000
1.8 i 16V (F19) 1796 CCM 125 HP 09/2000 - 04/2002
2.2 DTI 16V (F19) 2172 CCM 125 HP 09/2000 - 04/2002
2.2 i 16V (F19) 2198 CCM 147 HP 09/2000 - 04/2002
2.6 i V6 (F19) 2597 CCM 170 HP 09/2000 - 04/2002
1.6 i (F19) 1598 CCM 75 HP 10/1995 - 04/2002
VECTRA B Hatchback (J96)
Description Cylinder Capacity Horse Power Year
1.6 i (F68) 1598 CCM 75 HP 10/1995 - 07/2003
1.6 i 16V (F68) 1598 CCM 101 HP 10/1995 - 07/2002
1.8 i 16V (F68) 1796 CCM 116 HP 10/1995 - 09/2000
2.0 i 16V (F68) 1998 CCM 136 HP 09/1995 - 06/2000
2.5 i V6 (F68) 2498 CCM 170 HP 10/1995 - 09/2000
2.0 DI 16V (F68) 1995 CCM 82 HP 11/1996 - 06/2000
2.0 DTI 16V (F68) 1995 CCM 101 HP 06/1997 - 07/2003
2.2 DTI 16V (F68) 2172 CCM 120 HP 09/2000 - 04/2002
1.8 i 16V (F68) 1799 CCM 116 HP 10/1995 - 09/2000
1.8 i 16V (F68) 1796 CCM 125 HP 09/2000 - 07/2003
2.2 DTI 16V (F68) 2172 CCM 125 HP 09/2000 - 07/2003
2.2 i 16V (F68) 2198 CCM 147 HP 09/2000 - 07/2003
2.6 i V6 (F68) 2597 CCM 170 HP 09/2000 - 07/2003
1.6 i (F68) 1598 CCM 75 HP 10/1995 - 07/2003
2.0 i (F68) 1998 CCM 112 HP 10/1995 - 02/2002
VECTRA B Estate (J96)
Description Cylinder Capacity Horse Power Year
1.6 i 16V (F35) 1598 CCM 100 HP 11/1996 - 07/2002
1.8 i 16V (F35) 1796 CCM 115 HP 11/1996 - 09/2000
2.0 i 16V (F35) 1998 CCM 136 HP 11/1996 - 06/2000
2.5 i V6 (F35) 2498 CCM 170 HP 11/1996 - 09/2000
2.0 DI 16V (F35) 1995 CCM 82 HP 11/1996 - 06/2000
2.0 DTI 16V (F35) 1995 CCM 101 HP 06/1997 - 07/2003
2.2 DTI 16V (F35) 2172 CCM 120 HP 09/2000 - 04/2002
1.8 i 16V (F35) 1799 CCM 116 HP 11/1996 - 09/2000
i 500 2.5 (F35) 2498 CCM 194 HP 05/1998 - 09/2000
1.8 i 16V (F35) 1796 CCM 125 HP 09/2000 - 07/2003
2.2 DTI 16V (F35) 2172 CCM 125 HP 09/2000 - 07/2003
2.2 i 16V (F35) 2198 CCM 147 HP 09/2000 - 07/2003
2.6 i V6 (F35) 2597 CCM 170 HP 09/2000 - 07/2003
2.0 i (F35) 1998 CCM 112 HP 11/1996 - 02/2002
2.0 i 16V (F35) 1998 CCM 116 HP 07/2000 - 07/2003
SAAB
9-5 (YS3E)
Description Cylinder Capacity Horse Power Year
2.0 t 1985 CCM 150 HP 09/1997 - 12/2009
2.3 t 2290 CCM 170 HP 09/1997 - 12/2003
3.0 V6t 2962 CCM 200 HP 01/1998 - 08/2005
2.3 Turbo 2290 CCM 230 HP 10/1999 - 09/2001
2.3 t 2290 CCM 185 HP 01/2001 - 12/2009
3.0 TiD 2958 CCM 177 HP 07/2001 - 08/2005
2.3 Turbo 2290 CCM 250 HP 09/2001 - 12/2009
2.0 t 1985 CCM 185 HP 07/2000 - 12/2009
2.0 Turbo SE 1985 CCM 192 HP 10/1998 - 07/2000
9-5 Estate (YS3E)
Description Cylinder Capacity Horse Power Year
2.0 t 1985 CCM 150 HP 10/1998 - 12/2009
2.3 t 2290 CCM 170 HP 10/1998 - 12/2009
3.0 V6t 2962 CCM 200 HP 10/1998 - 08/2005
2.0 t 1985 CCM 192 HP 10/1998 - 07/2000
2.3 Turbo 2290 CCM 230 HP 10/1999 - 09/2001
2.3 t 2290 CCM 185 HP 09/1999 - 01/2008
3.0 TiD 2958 CCM 177 HP 07/2001 - 08/2005
2.3 Turbo 2290 CCM 250 HP 09/2001 - 12/2009
2.0 t 1985 CCM 185 HP 07/2000 - 07/2001
VAUXHALL
VECTRA (B) Saloon (J96)
Description Cylinder Capacity Horse Power Year
1.6 i (F19) 1598 CCM 75 HP 08/1995 - 10/2001
1.6 i 16V (F19) 1598 CCM 100 HP 08/1995 - 10/2001
1.8 i 16V (F19) 1799 CCM 116 HP 10/1995 - 09/2000
2.0 i 16V (F19) 1998 CCM 136 HP 10/1995 - 01/2001
2.5 i V6 (F19) 2498 CCM 170 HP 09/1995 - 08/2000
1.7 TD (F19) 1686 CCM 82 HP 10/1995 - 11/1996
2.0 DI 16V (F19) 1995 CCM 82 HP 08/1995 - 10/2001
2.0 DTI 16V (F19) 1995 CCM 101 HP 08/1995 - 10/2001
2.5 i GSi (F19) 2498 CCM 194 HP 03/1998 - 07/2000
1.8 i 16V (F19) 1796 CCM 125 HP 09/2000 - 03/2002
2.2 DTI 16V (F19) 2172 CCM 125 HP 08/1995 - 10/2001
2.2 i 16V (F19) 2198 CCM 147 HP 08/1995 - 10/2001
2.6 i V6 (F19) 2597 CCM 170 HP 09/2000 - 03/2002
1.8 Dualfuel (F19) 1796 CCM 125 HP 09/2000 - 03/2002
1.8 i 16V (F19) 1796 CCM 115 HP 10/1995 - 09/2000
VECTRA (B) Hatchback (J96)
Description Cylinder Capacity Horse Power Year
1.6 i (F68) 1598 CCM 75 HP 08/1995 - 10/2001
1.6 i 16V (F68) 1598 CCM 101 HP 08/1995 - 10/2001
1.8 i 16V (F68) 1796 CCM 116 HP 10/1995 - 09/2000
2.0 i 16V (F68) 1998 CCM 136 HP 10/1995 - 01/2001
2.5 i V6 (F68) 2498 CCM 170 HP 09/1995 - 08/2000
1.7 TD (F68) 1686 CCM 82 HP 10/1995 - 11/1996
2.0 Di 16V (F68) 1995 CCM 82 HP 08/1995 - 10/2001
2.0 DTi 16V (F68) 1995 CCM 101 HP 06/1997 - 10/2001
2.5 i GSi (F68) 2498 CCM 194 HP 03/1998 - 07/2000
1.8 i 16V (F68) 1796 CCM 125 HP 09/2000 - 07/2003
2.2 DTI 16V (F68) 2172 CCM 125 HP 08/1995 - 10/2001
2.2 i 16V (F68) 2198 CCM 147 HP 09/2000 - 07/2003
2.6 i V6 (F68) 2597 CCM 170 HP 09/2000 - 07/2003
1.8 Dualfuel (F68) 1796 CCM 125 HP 09/2000 - 07/2003
1.8 i 16V (F68) 1799 CCM 116 HP 09/1995 - 09/2000
VECTRA (B) Estate (J96)
Description Cylinder Capacity Horse Power Year
1.8 i 16V (F35) 1796 CCM 115 HP 11/1996 - 09/2000
2.0 i 16V (F35) 1998 CCM 136 HP 10/1995 - 01/2001
2.0 DI 16V (F35) 1995 CCM 82 HP 08/1995 - 10/2001
2.5 i V6 (F35) 2498 CCM 170 HP 11/1996 - 08/2000
2.0 DTI 16V (F35) 1995 CCM 101 HP 08/1995 - 10/2001
2.5 i GSi (F35) 2498 CCM 194 HP 05/1998 - 09/1999
1.8 i 16V (F35) 1796 CCM 125 HP 09/2000 - 03/2002
2.2 DTI 16V (F35) 2172 CCM 125 HP 08/1995 - 10/2001
2.2 i 16V (F35) 2198 CCM 147 HP 08/1995 - 10/2001
2.6 i V6 (F35) 2597 CCM 170 HP 09/2000 - 03/2002
1.8 Dualfuel (F35) 1796 CCM 125 HP 09/2000 - 03/2002
1.8 i 16V (F35) 1799 CCM 116 HP 09/1996 - 09/2000
2.0 Dualfuel (F35) 1998 CCM 136 HP 10/1998 - 01/2001

The Delphi TA1592 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14x1.5 thread size, with right-hand thread thread type, front axle fitting position, and 93 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M14x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 13.5
Fitting Position : Front Axle
Length [mm] : 93
Width [mm] : 36
Height [mm] : 74
  • Vendor DELPHI
  • SKU TA1592
  • Barcode 5012759057759
  • OPEL : 1603286 324063 90512775 93186321 0324063
  • SAAB : 48 365 40 49 05 949 48 36 540
  • VAUXHALL : 90512775 93186321
  • BORG & BECK : BTR4602
  • CORTECO : 49398603
  • FEBI BILSTEIN : 09113
  • FEBI BILSTEIN : 19539
  • FIRST LINE : FTR4602
  • LEMFÖRDER : 14705 01
  • MEYLE : 616 020 5579
  • MONROE : L24109
  • Schaeffler FAG : 840 0806 10
  • SKF : VKDY 315011
  • TRW : JTE223
  • TRW : JTE309
