DELPHI

Delphi TA1593 Tie Rod End

SKU: TA1593
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£15.48 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

OPEL
OMEGA B (V94)
Description Cylinder Capacity Horse Power Year
2.0 (F69, M69, P69) 1998 CCM 116 HP 03/1994 - 09/1999
2.0 16V (F69, M69, P69) 1998 CCM 136 HP 03/1994 - 09/1999
2.5 V6 (F69, M69, P69) 2498 CCM 170 HP 03/1994 - 09/2000
3.0 V6 (F69, M69, P69) 2962 CCM 211 HP 04/1994 - 02/2001
2.5 TD (F69, M69, P69) 2498 CCM 130 HP 04/1994 - 07/2003
2.0 DTI 16V (F69, M69, P69) 1995 CCM 101 HP 09/1997 - 09/2000
2.2 16V (F69, M69, P69) 2198 CCM 144 HP 09/1999 - 07/2003
2.2 DTI 16V (F69, M69, P69) 2171 CCM 120 HP 09/2000 - 07/2003
2.6 V6 (F69, M69, P69) 2597 CCM 180 HP 09/2000 - 07/2003
3.2 V6 (F69, M69, P69) 3175 CCM 218 HP 02/2001 - 07/2003
2.5 DTI (F69, M69, P69) 2498 CCM 150 HP 09/2001 - 07/2003
2.0 (F69, M69, P69) 1998 CCM 115 HP 03/1994 - 12/2000
2.2 DTI 16V (F69, M69, P69) 2171 CCM 110 HP 09/2000 - 07/2003
OMEGA B Estate (V94)
Description Cylinder Capacity Horse Power Year
2.0 (F35, M35, P35) 1998 CCM 116 HP 03/1994 - 09/1999
2.0 16V (F35, M35, P35) 1998 CCM 136 HP 03/1994 - 09/1999
2.5 V6 (F35, M35, P35) 2498 CCM 170 HP 03/1994 - 09/2000
2.5 TD (F35, M35, P35) 2498 CCM 131 HP 04/1994 - 07/2001
3.0 V6 (F35, M35, P35) 2962 CCM 211 HP 04/1994 - 02/2001
2.0 DTI 16V (F35, M35, P35) 1995 CCM 101 HP 09/1997 - 09/2000
2.2 16V (F35, M35, P35) 2198 CCM 144 HP 09/1999 - 07/2003
2.2 DTI 16V (F35, M35, P35) 2171 CCM 120 HP 09/2000 - 07/2003
2.6 V6 (F35, M35, P35) 2597 CCM 180 HP 09/2000 - 07/2003
3.2 V6 (F35, M35, P35) 3175 CCM 218 HP 02/2001 - 07/2003
2.5 DTI (F35, M35, P35) 2498 CCM 150 HP 09/2001 - 07/2003
2.2 DTI 16V (F35, M35, P35) 2171 CCM 110 HP 09/2000 - 07/2003
VAUXHALL
OMEGA (B) Saloon (V94)
Description Cylinder Capacity Horse Power Year
2.0 1998 CCM 116 HP 03/1994 - 09/1999
2.0 16V 1998 CCM 136 HP 03/1994 - 07/2001
2.5 V6 2498 CCM 170 HP 03/1994 - 09/2000
3.0 V6 2962 CCM 211 HP 04/1994 - 07/2000
2.5 TD 2498 CCM 131 HP 04/1994 - 07/2001
2.2 16V 2198 CCM 144 HP 01/1994 - 06/2003
2.0 DTI 16V 1995 CCM 101 HP 01/1998 - 09/2000
2.6 V6 2597 CCM 180 HP 08/2000 - 07/2003
2.2 DTI 16V 2171 CCM 120 HP 08/2000 - 07/2003
3.2 V6 3175 CCM 218 HP 02/2001 - 07/2003
2.0 1998 CCM 115 HP 09/1995 - 09/1996
2.0 Dualfuel 1998 CCM 136 HP 05/1998 - 07/2001
OMEGA (B) Estate (V94)
Description Cylinder Capacity Horse Power Year
2.0 1998 CCM 116 HP 03/1994 - 09/1999
2.0 16V 1998 CCM 136 HP 03/1994 - 07/2001
2.5 V6 2498 CCM 170 HP 03/1994 - 09/2000
3.0 V6 2962 CCM 211 HP 07/1994 - 07/2000
2.5 TD 2498 CCM 131 HP 04/1994 - 07/2001
2.2 16V 2198 CCM 144 HP 02/1994 - 06/2003
2.0 DTI 16V 1995 CCM 101 HP 01/1998 - 09/2000
2.6 V6 2597 CCM 180 HP 08/2000 - 06/2003
2.2 DTI 16V 2171 CCM 120 HP 08/2000 - 06/2003
3.2 V6 3175 CCM 218 HP 02/2001 - 06/2003
2.0 Dualfuel 1998 CCM 136 HP 01/1999 - 07/2001

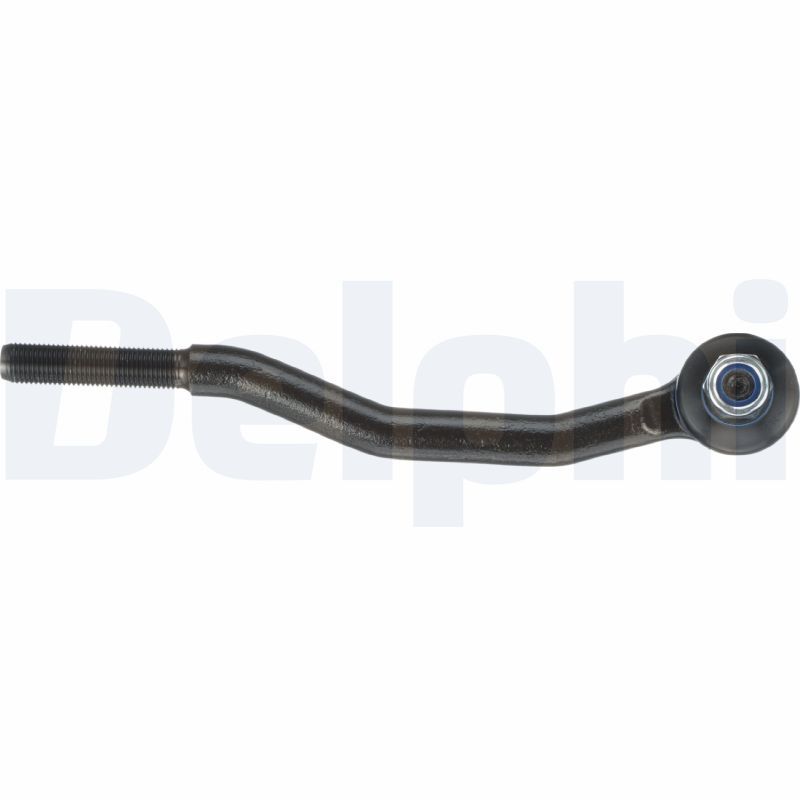

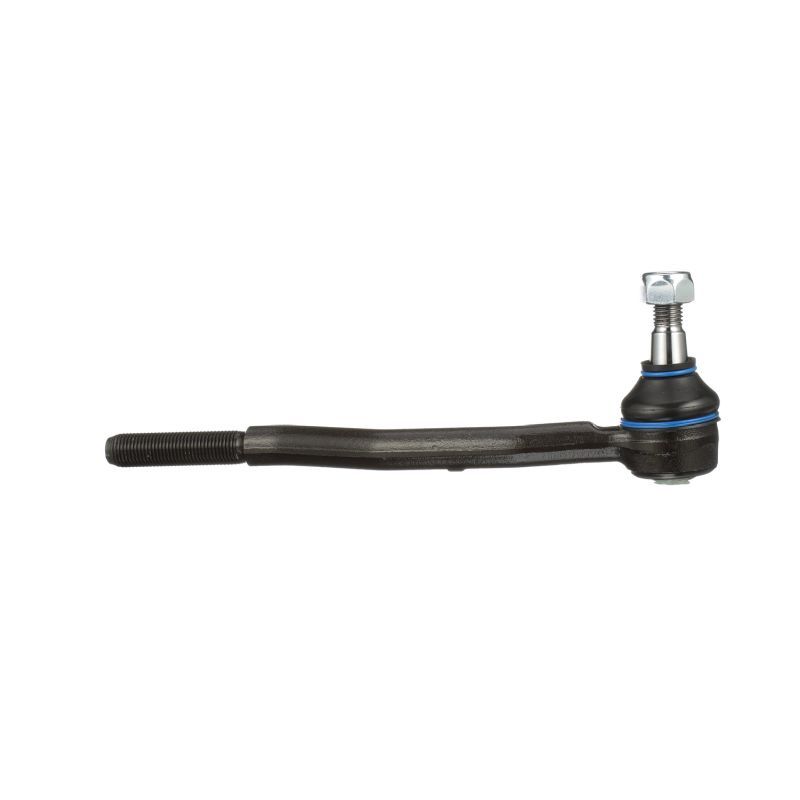

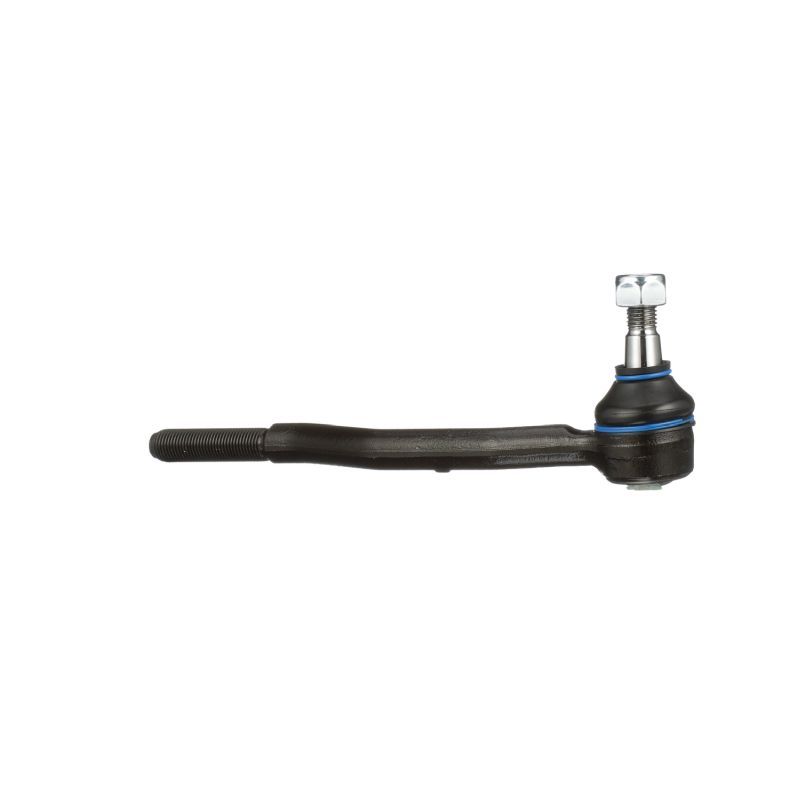

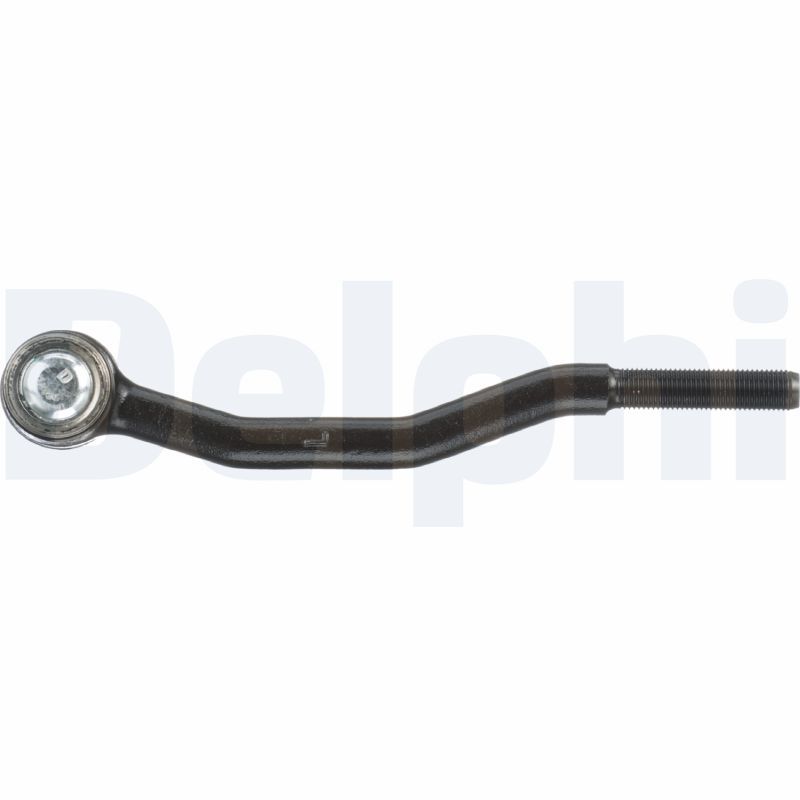

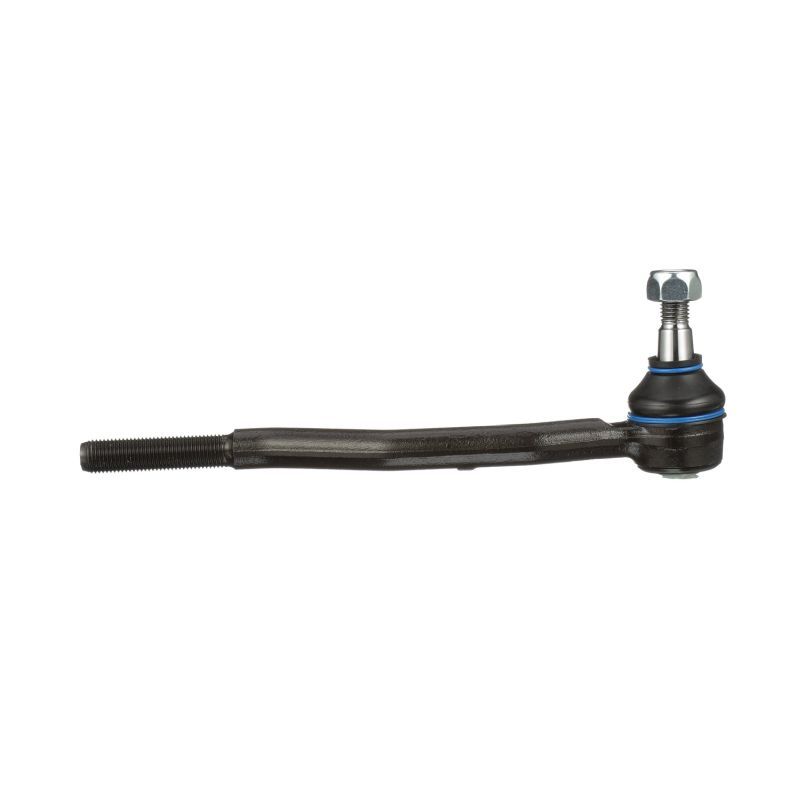

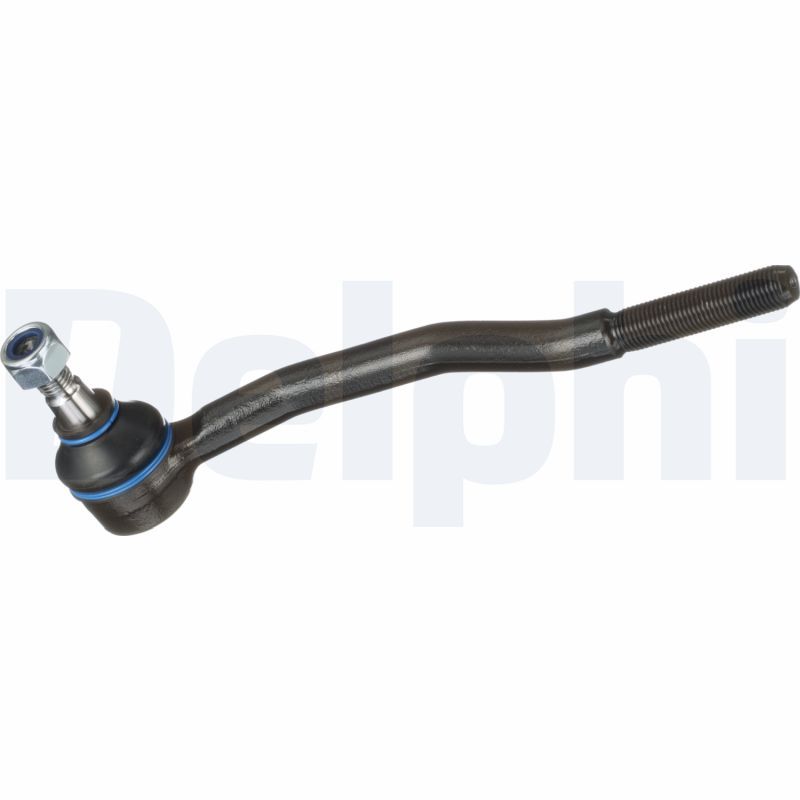

The Delphi TA1593 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records M14x1.5 thread size, with right-hand thread thread type, front axle left fitting position, and 249 mm length. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.

Function : Tie Rod End
Thread Size : M14x1.5
Thread Type : with right-hand thread
Cone Size [mm] : 13.3
Paired article number : TA1594
Fitting Position : Front Axle Left
Length [mm] : 249
Width [mm] : 55
Height [mm] : 74
  • Vendor DELPHI
  • SKU TA1593
  • Barcode 5012759089613
  • OPEL : 322179 9193098 90510653 324059 322004 0324059 0322179 90473811
  • VAUXHALL : 90473811 90510653 9193098
  • GENERAL MOTORS : 90510653 93169285
  • BORG & BECK : BTR4528
  • CORTECO : 49399587
  • FEBI BILSTEIN : 01855
  • FIRST LINE : FTR4528
  • LEMFÖRDER : 14599 01
  • MEYLE : 616 020 5589
  • MONROE : L24106
  • MONROE : L24126
  • Schaeffler FAG : 840 0797 10
  • Schaeffler FAG : 840 0812 10
  • SKF : VKDY 315028
  • TRW : JTE336
